Parts Location: Illustration

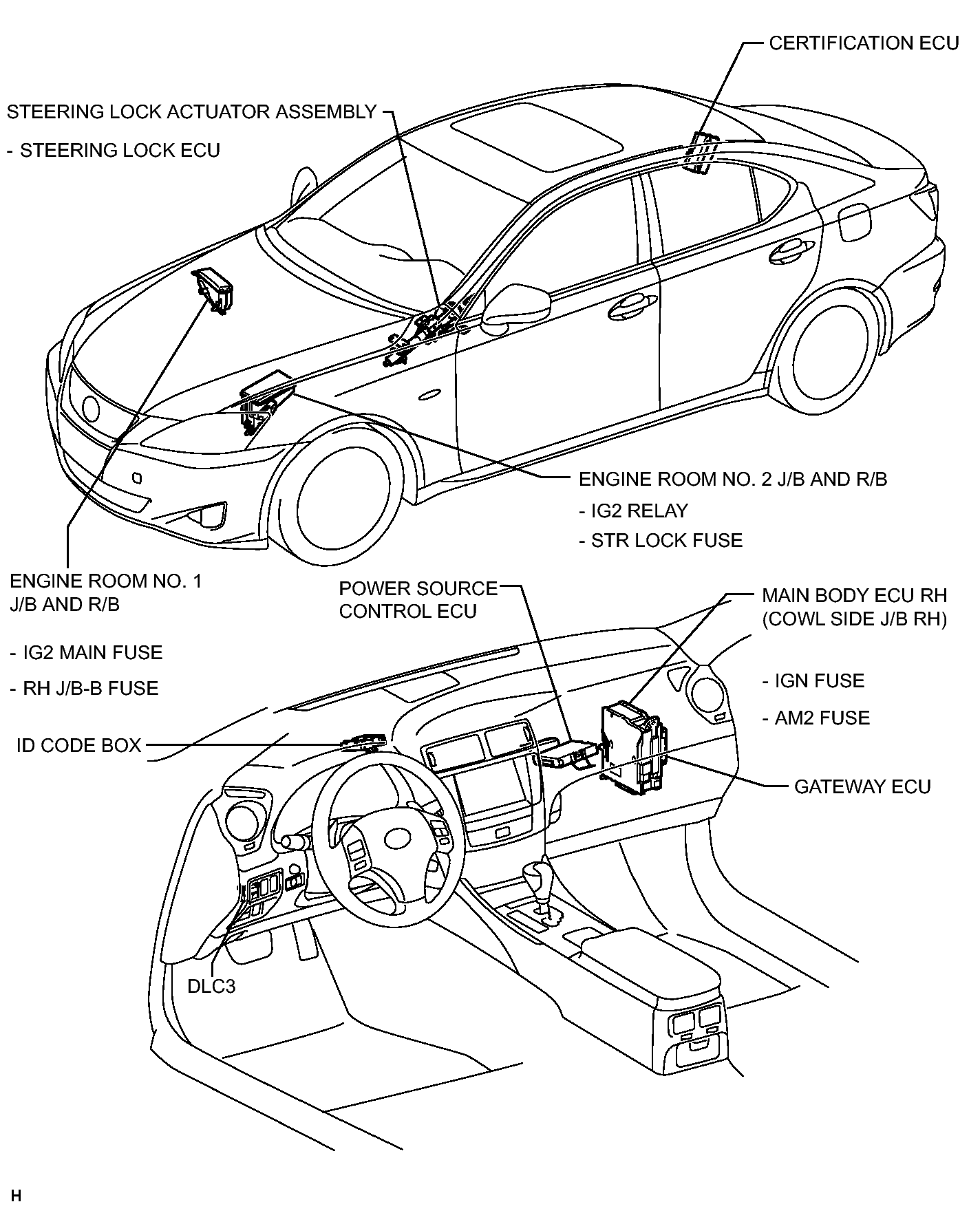

Fig 1: Identifying Electronic Steering Lock Components Location
GTY113517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
