Rear Power Window Switch

WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH)

(a) Check the switch function.





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the rear power window regulator switch assembly (for rear LH side).

(b) Check that the LED illuminates.





(1) Apply battery voltage to the rear power window regulator switch assembly and check that the LED illuminates.

OK:





If the result is not as specified, replace the rear power window regulator switch assembly (for rear LH side).

2. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH)

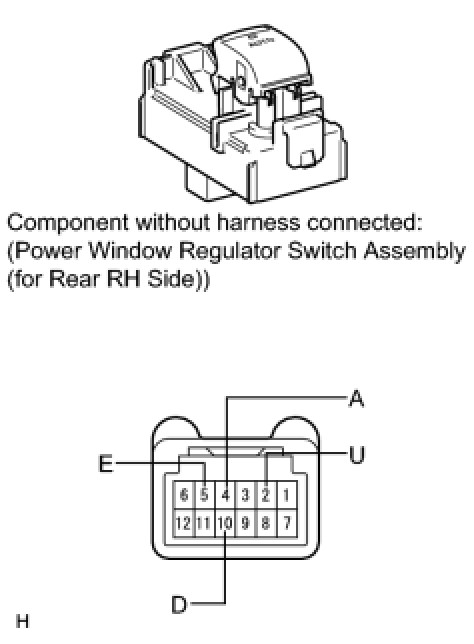

(a) Check the switch function.





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the rear power window regulator switch assembly (for rear RH side).

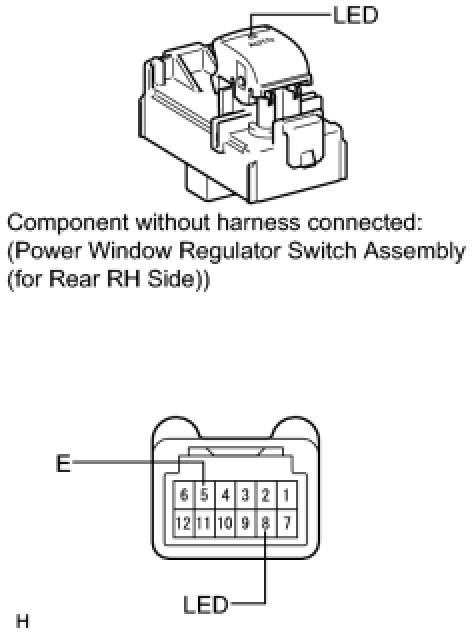

(b) Check that the LED illuminates.





(1) Apply battery voltage to the rear power window regulator switch assembly and check that the LED illuminates.

OK:





If the result is not as specified, replace the rear power window regulator switch assembly (for rear RH side).
