Freeze Frame Data

POWER STEERING: POWER STEERING SYSTEM: FREEZE FRAME DATA

1. FREEZE FRAME DATA

NOTICE:
* It is difficult to show the specified values (judgement values) clearly because freeze frame data values change significantly due to differences in measurement conditions, surroundings, or vehicle conditions. For this reason, there may be a problem even when the values are within specifications.
* Turn the engine switch on (IG) and park the vehicle on level ground. Check the freeze frame data by using the Techstream.

(a) Connect the Techstream (with CAN VIM) to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

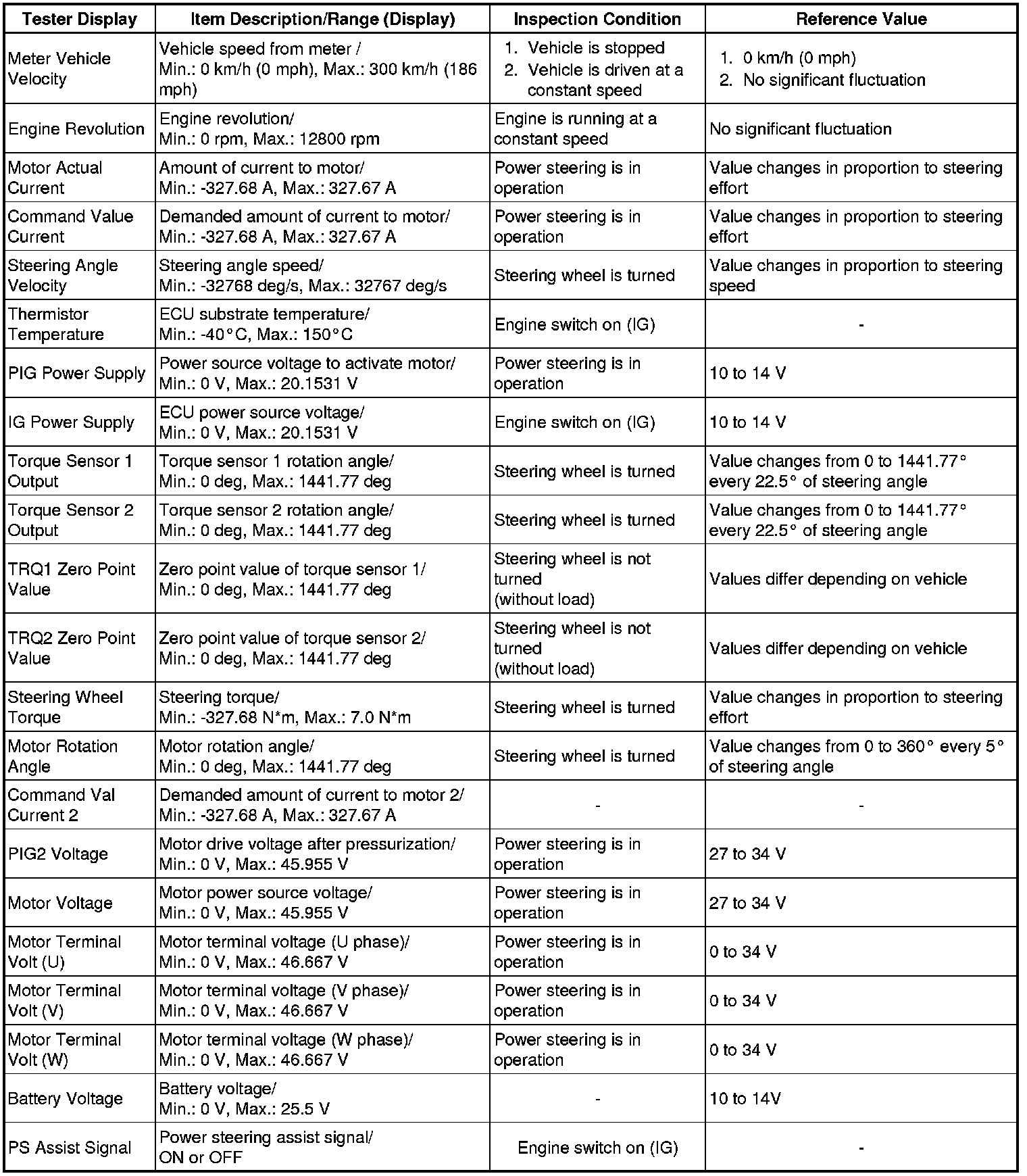

(d) Check the freeze frame data. Enter the following menus: Chassis / EMPS / Utility / Freeze Frame Data.

EMPS
