Initialization

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: INITIALIZATION

1. MAINTENANCE REQUIRED REMINDER RESETTING PROCEDURE

HINT

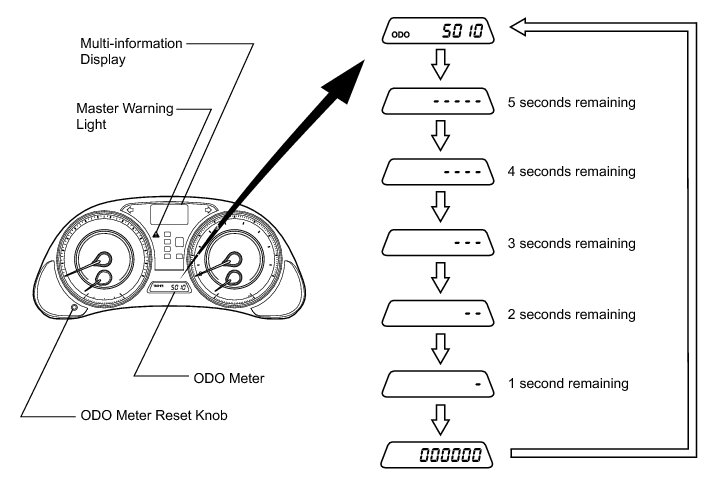

The ODO meter reset knob is located on the left side of the combination meter assembly.

(a) Turn the engine switch on (IG).

(b) Press the TRIP meter reset knob until the ODO meter appears.

(c) Turn the engine switch off.

(d) Turn the engine switch on (IG) while pressing and holding the trip meter reset knob. Hold the trip meter reset knob until the following conditions are met and 5 seconds have passed.





* The ODO meter shows "000000".

* The master warning light illuminates.

(e) When "000000" disappears and the master warning light turns off, the resetting procedure is complete.
