Parts Location: Illustration

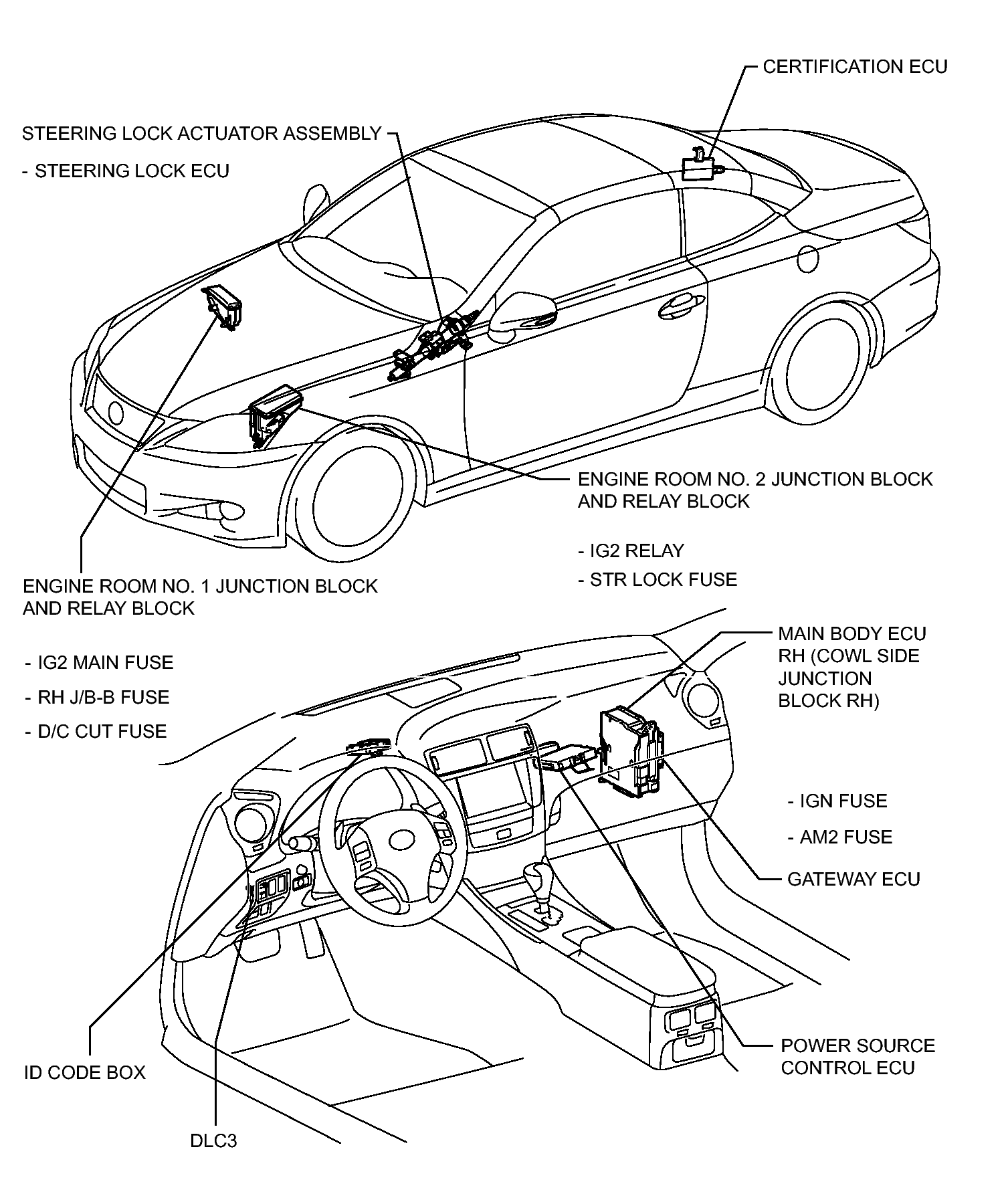

Fig 1: Steering Lock System Components Location
GTY351046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
