Engine Unit: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

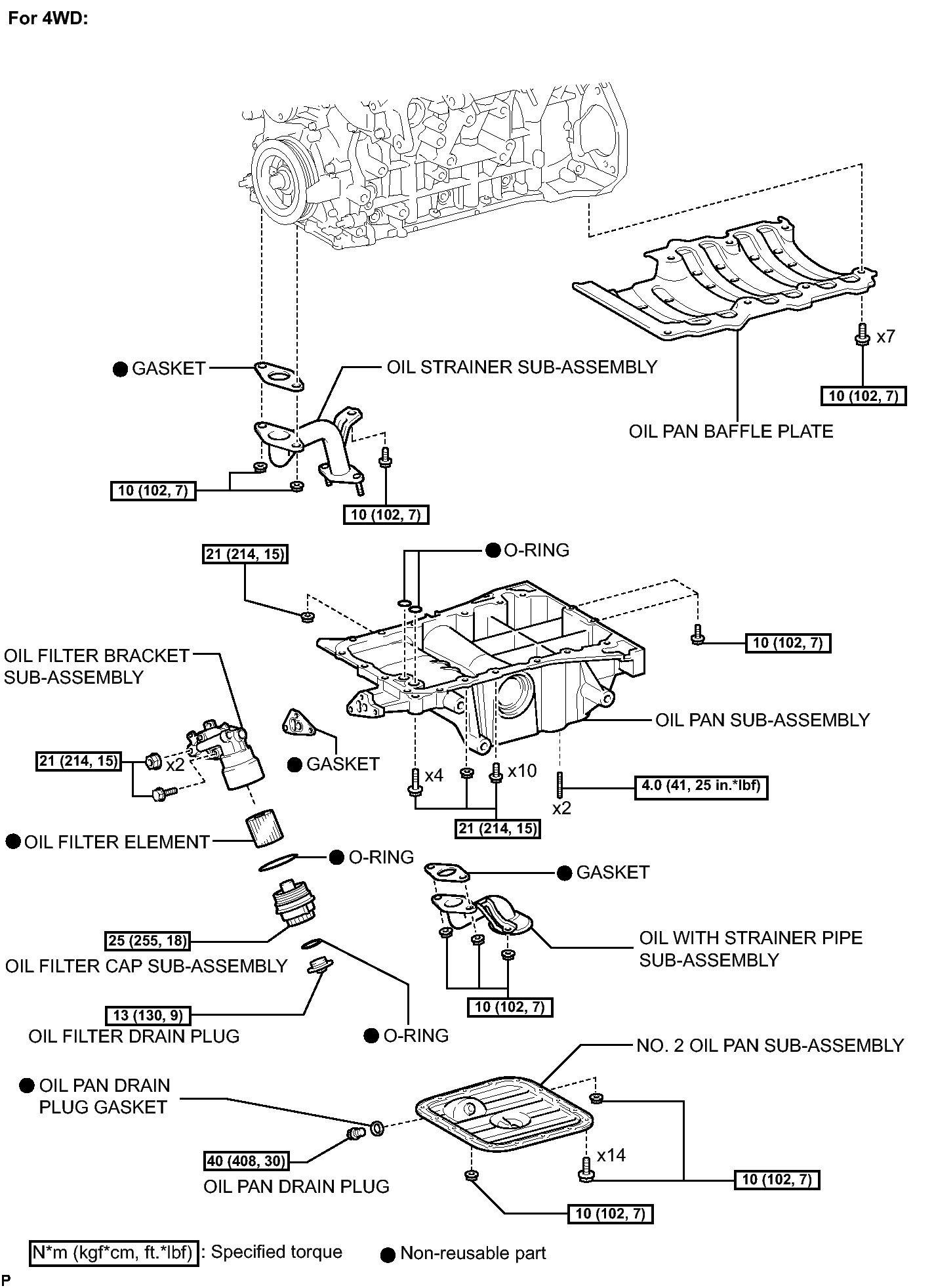

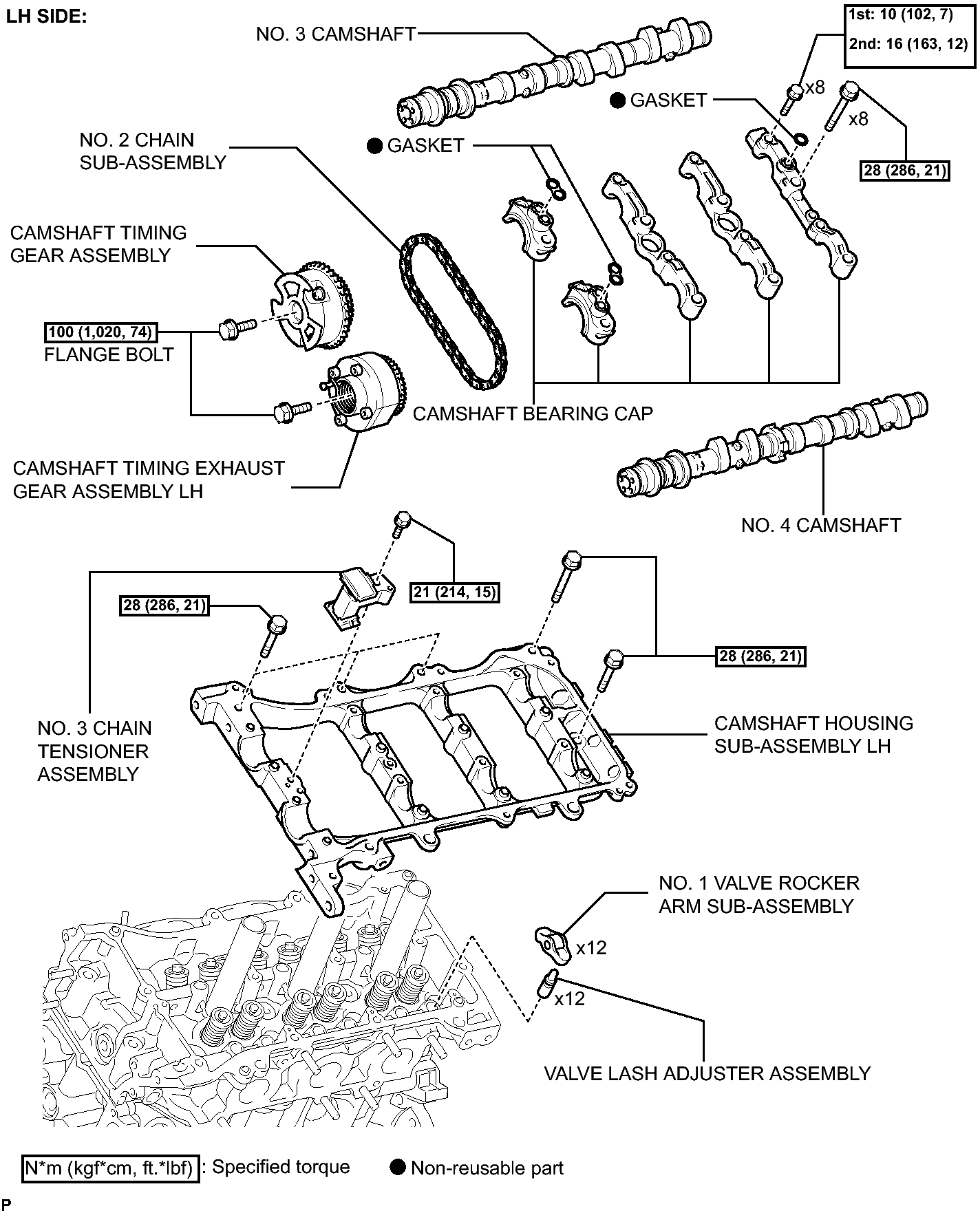

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

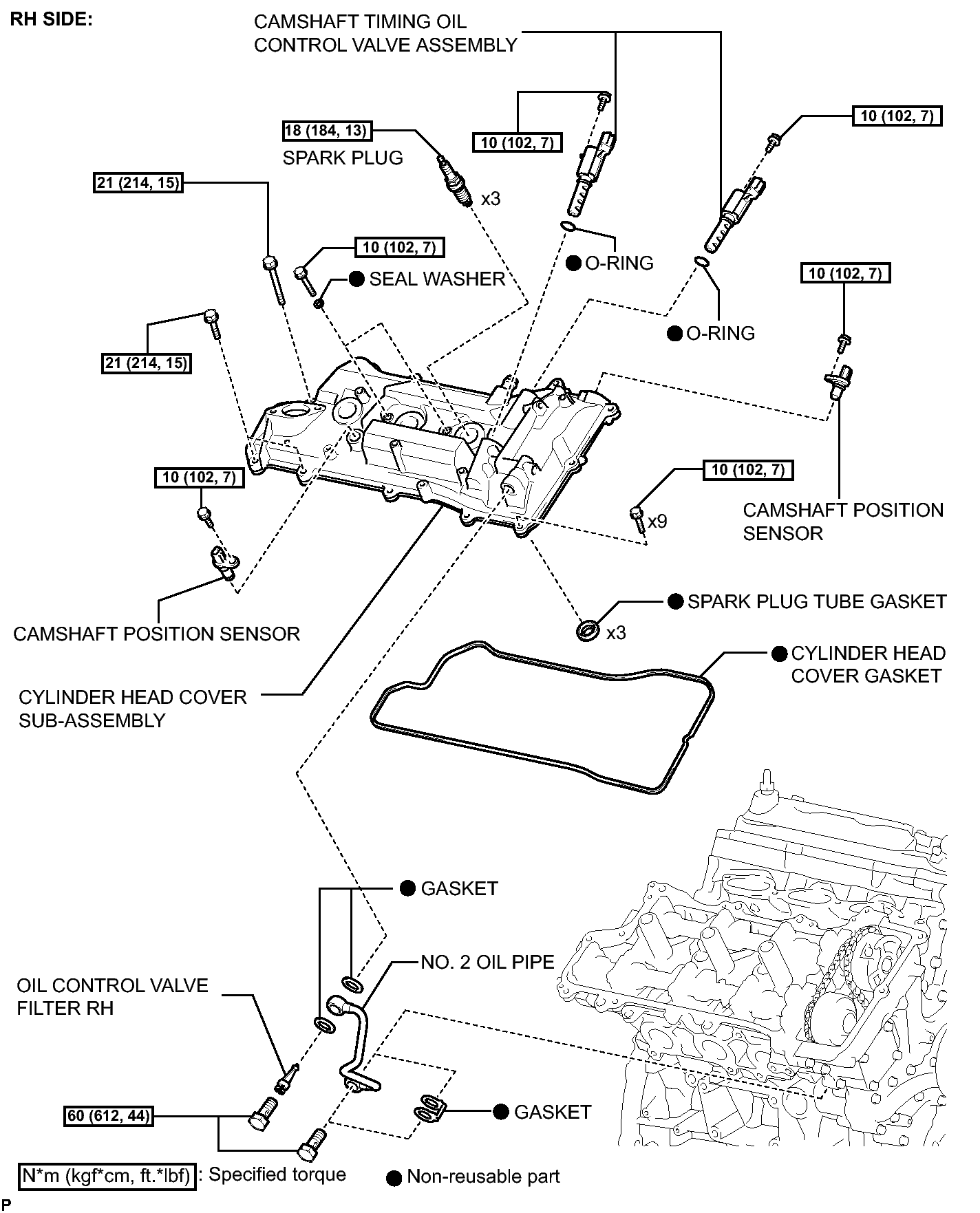

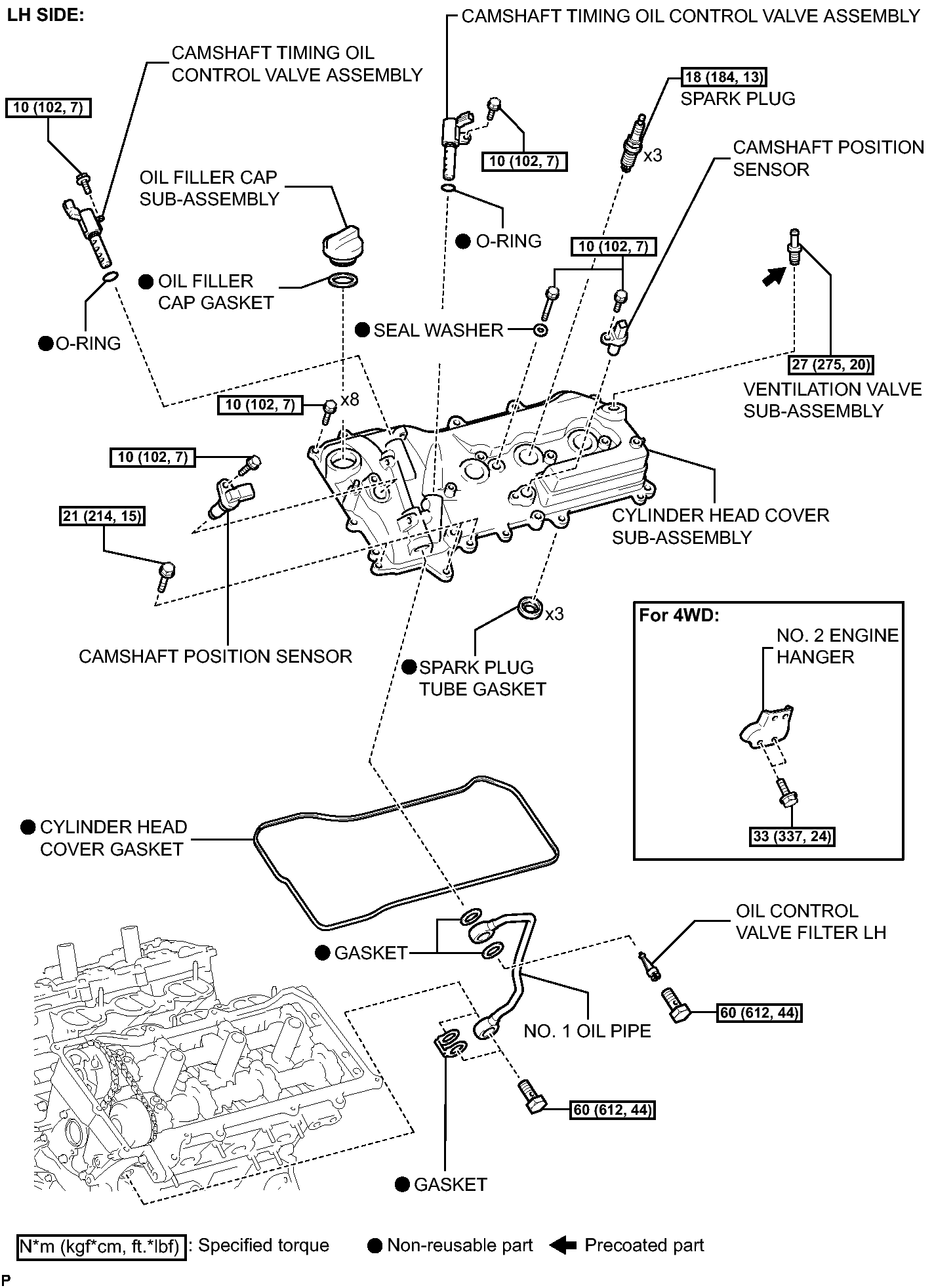

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

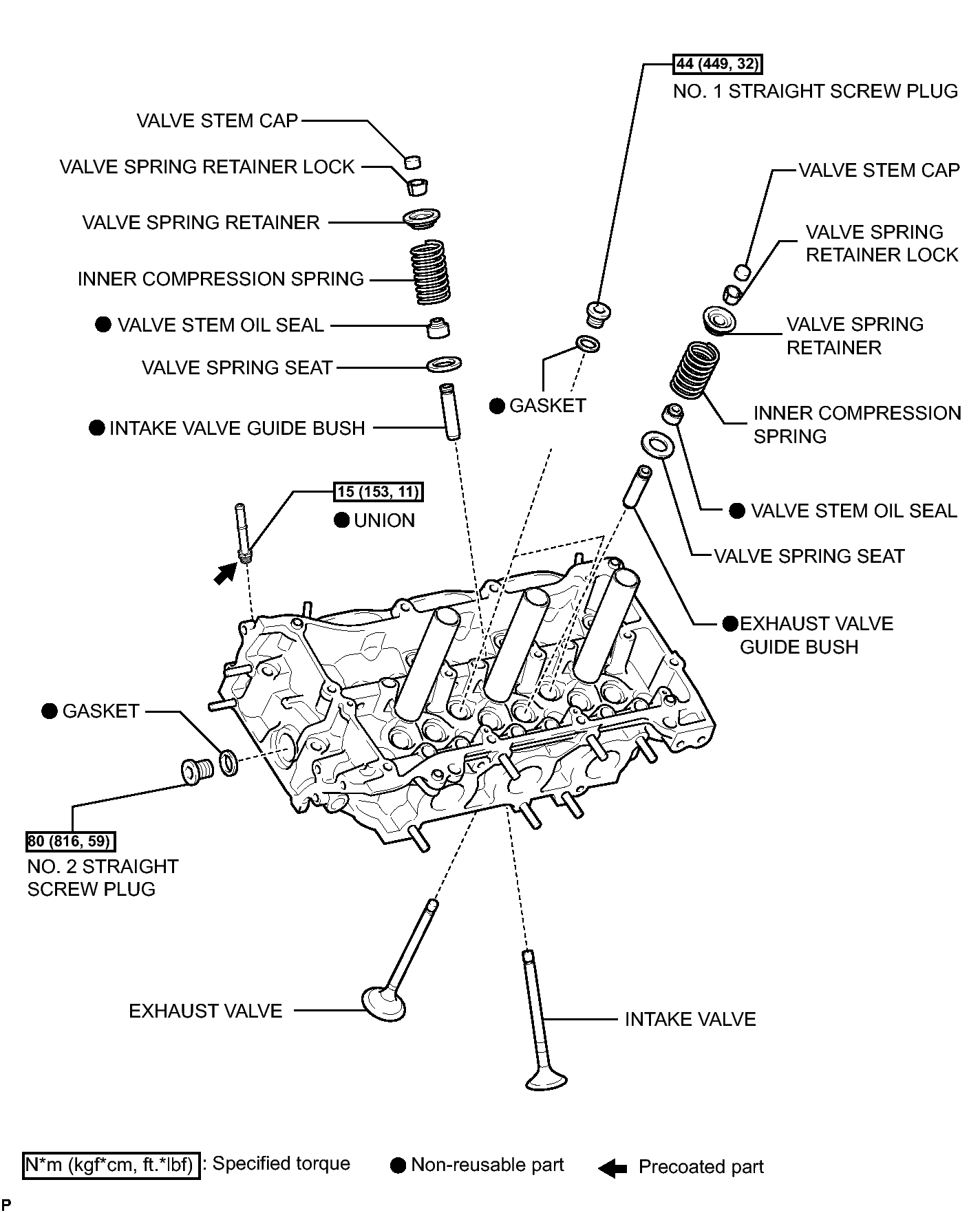

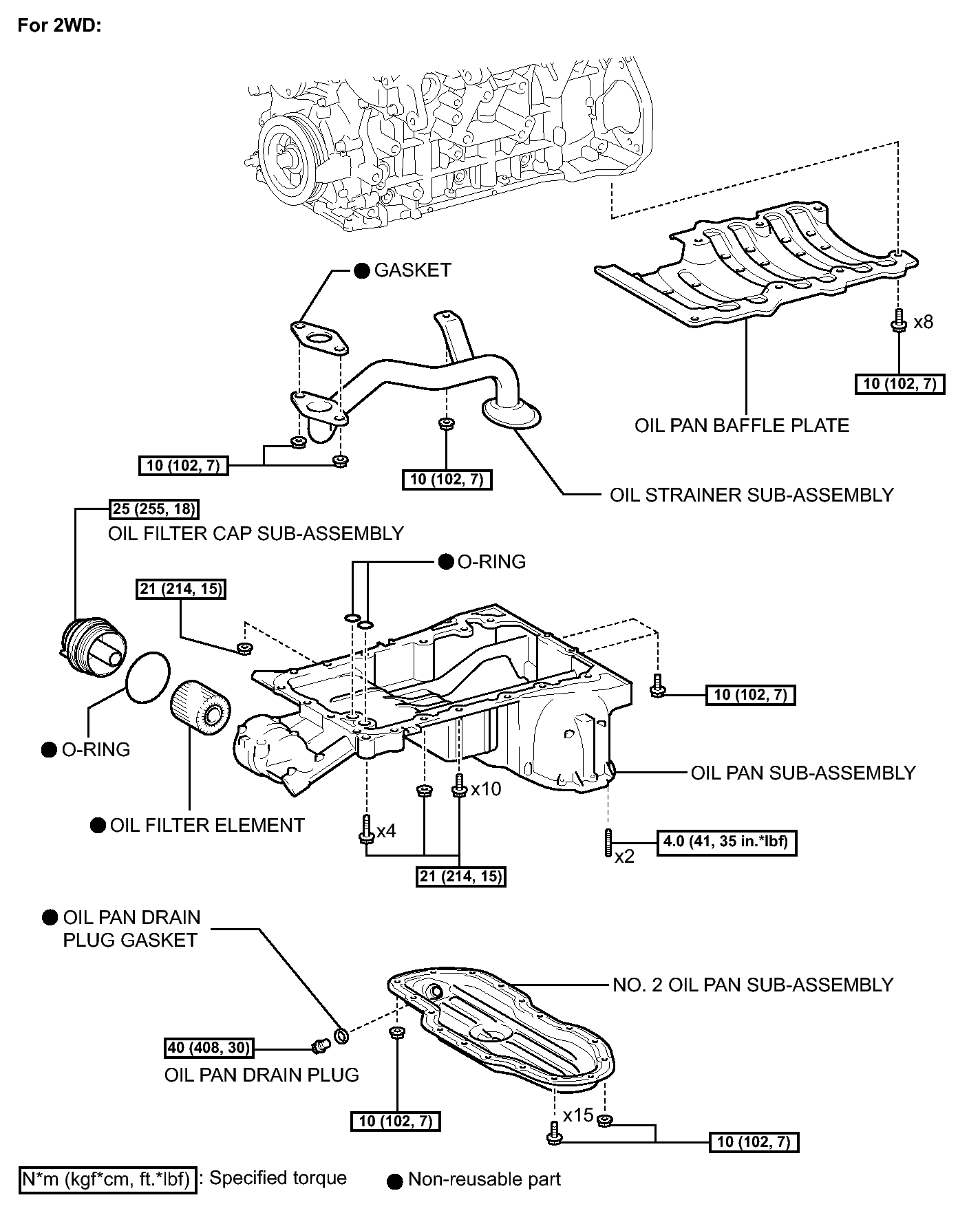

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

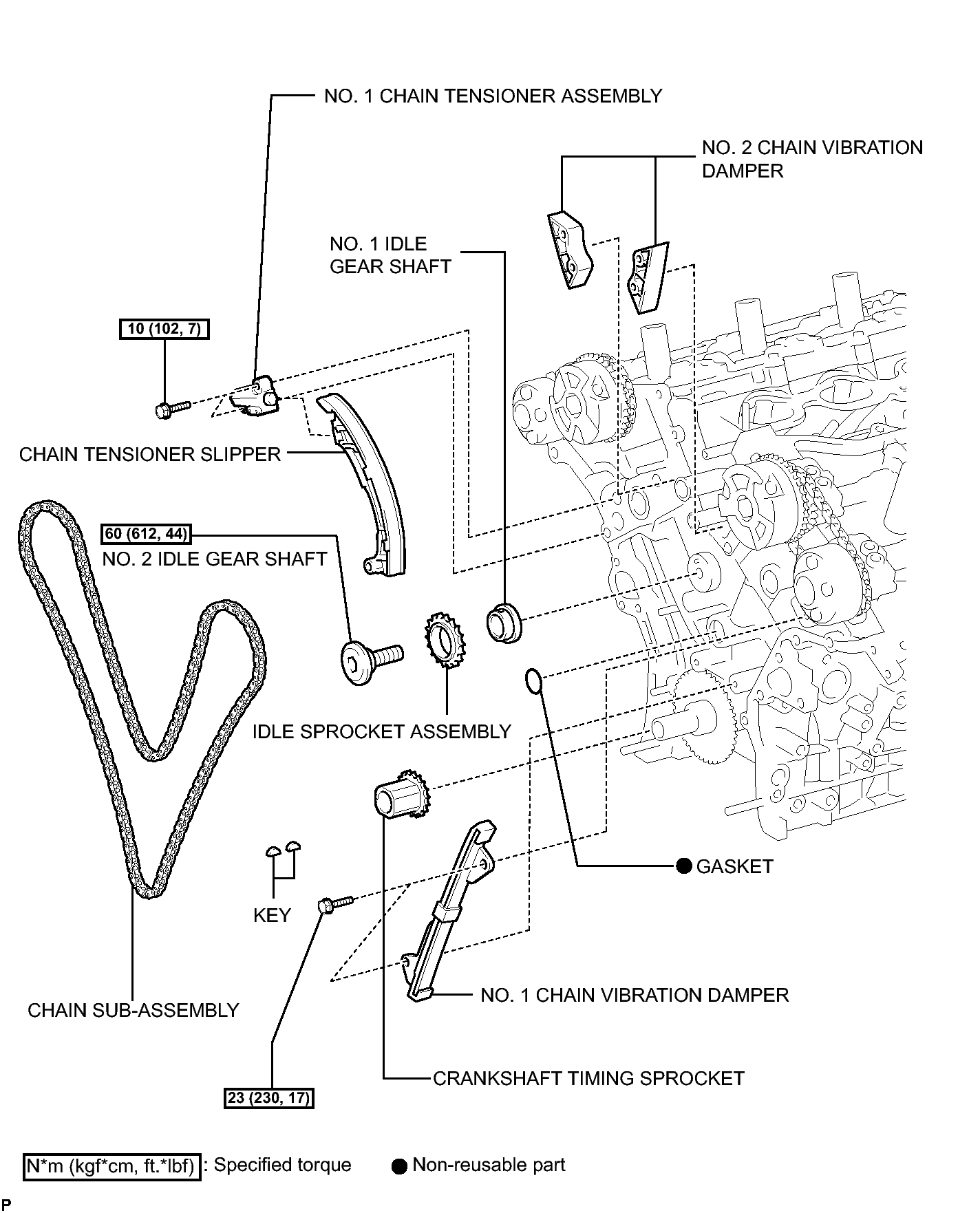

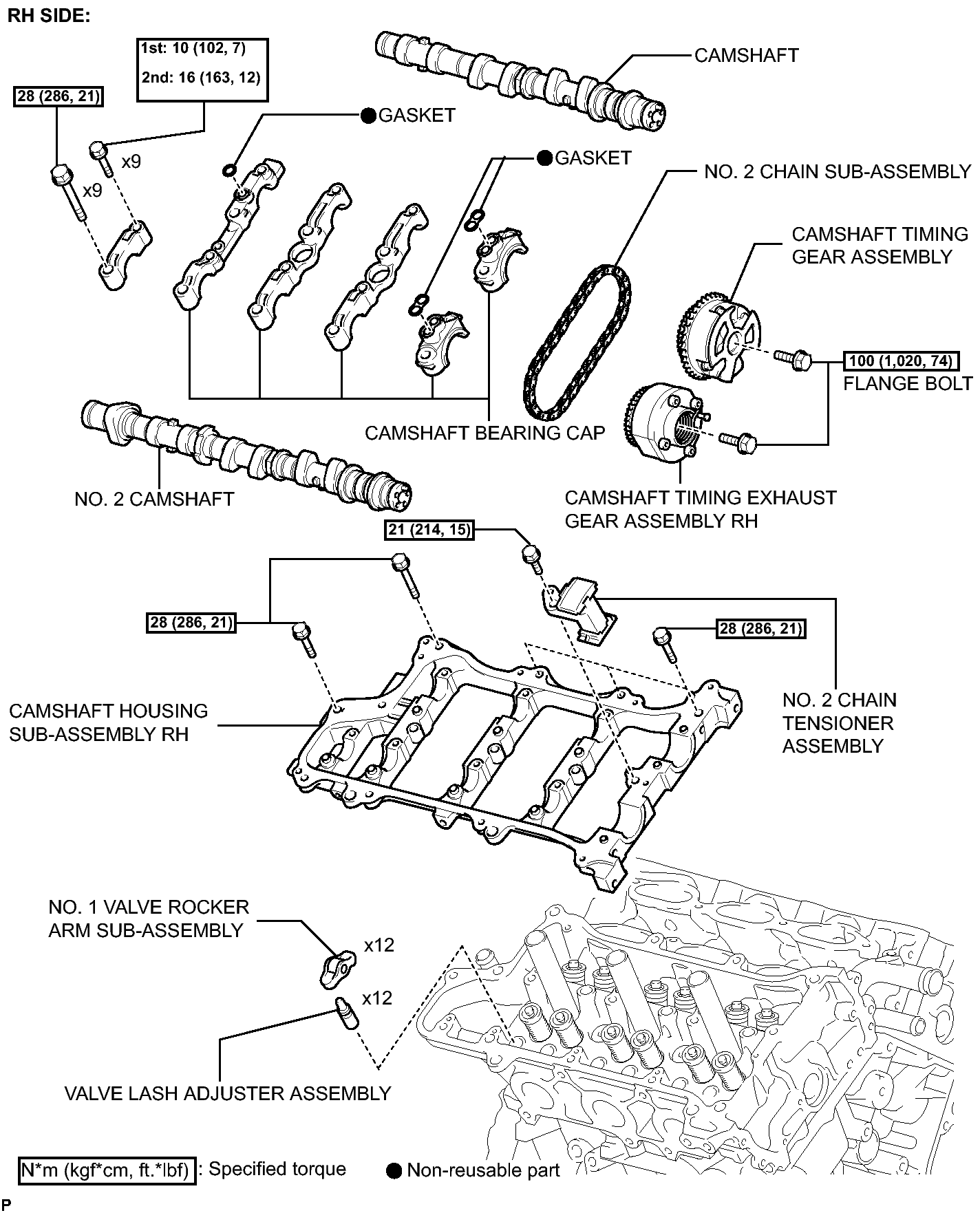

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

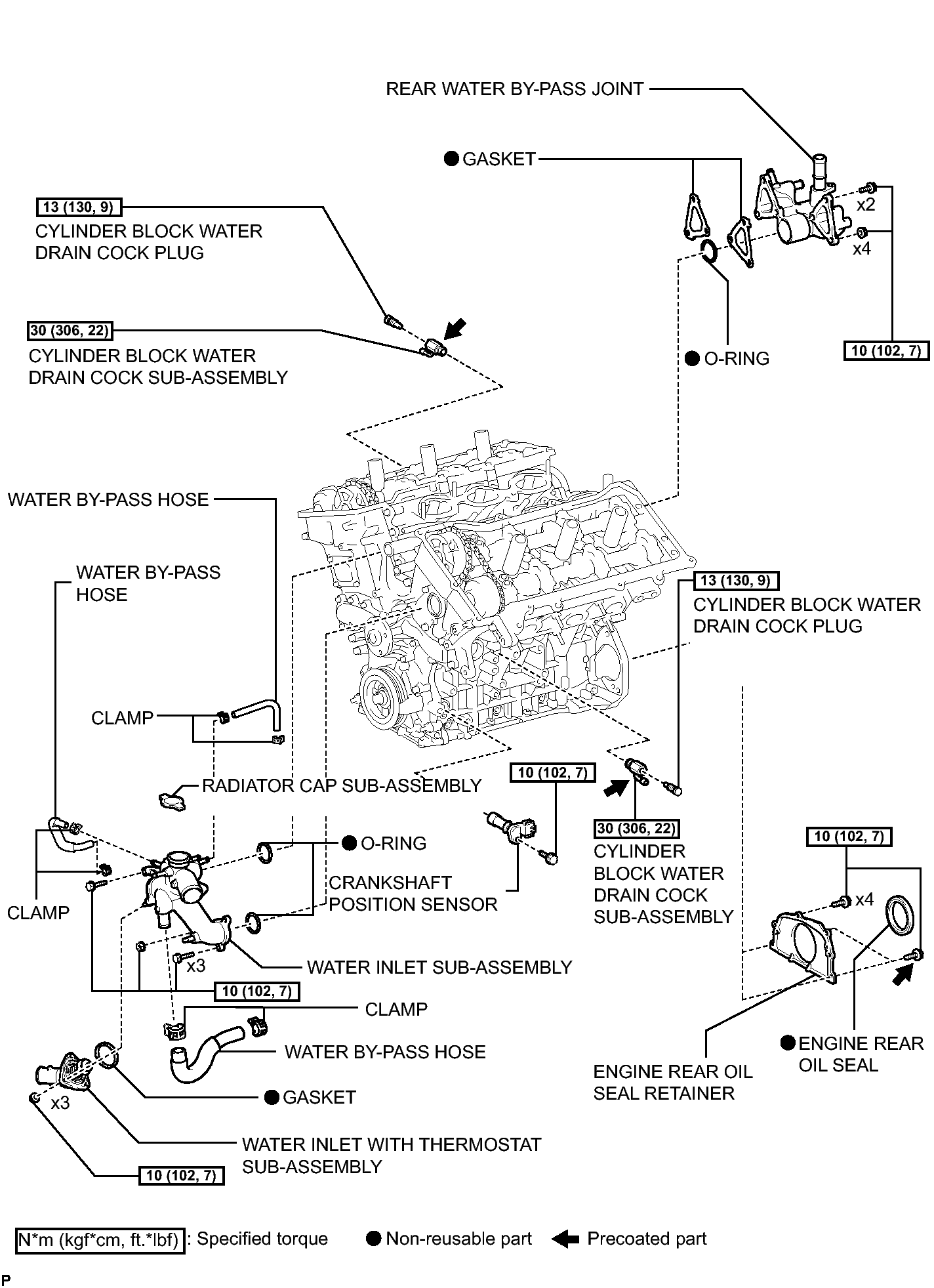

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

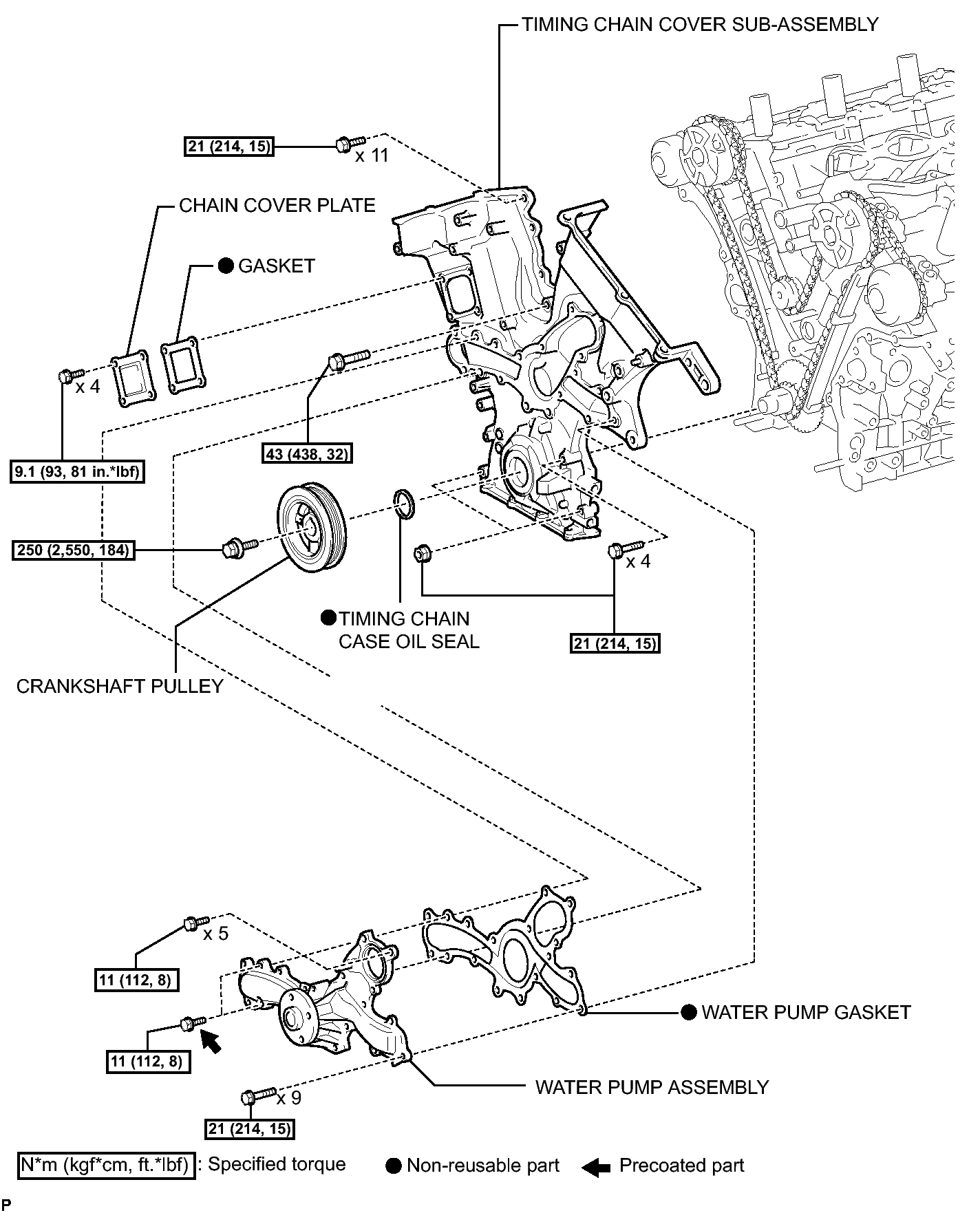

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

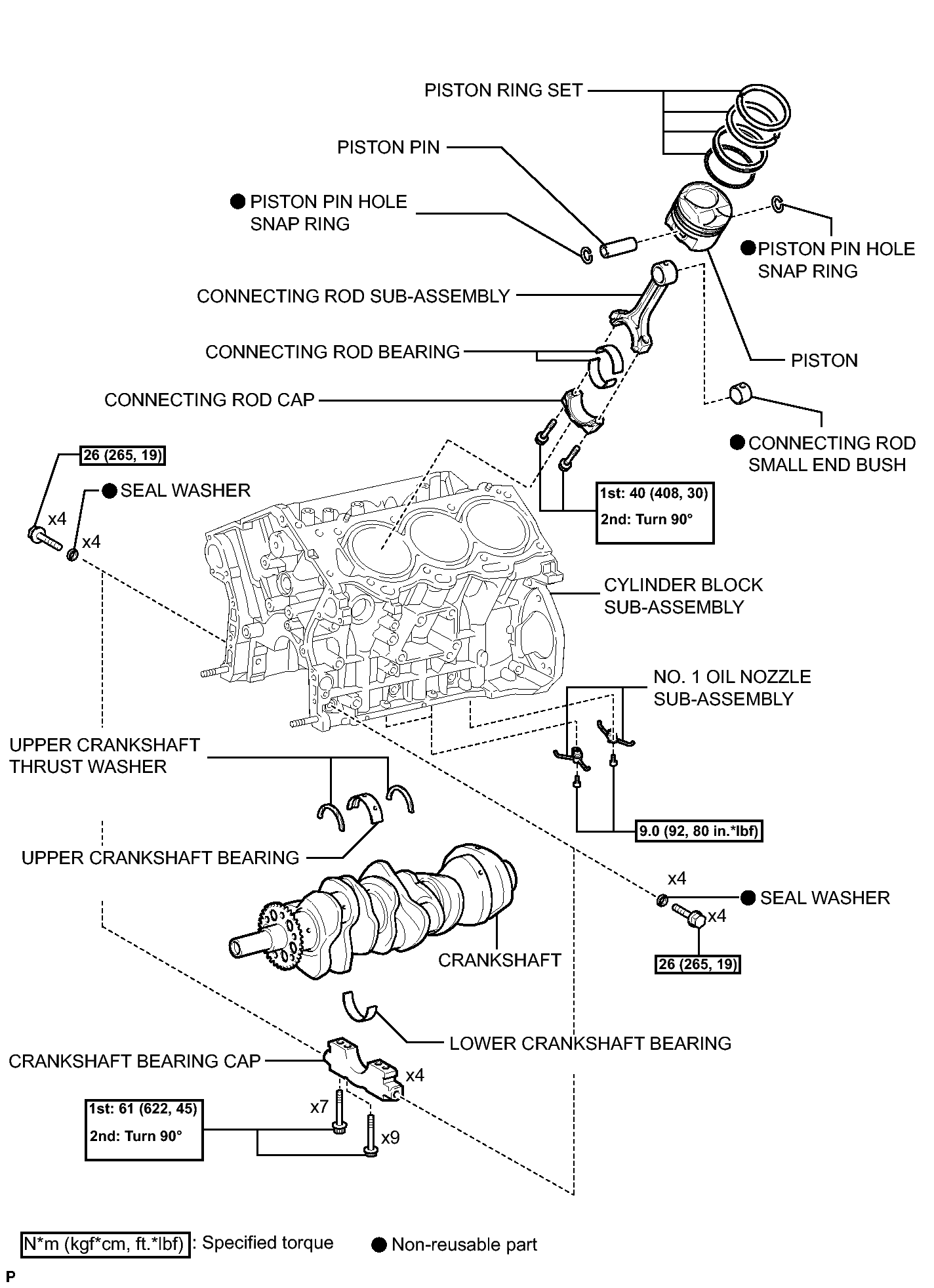

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

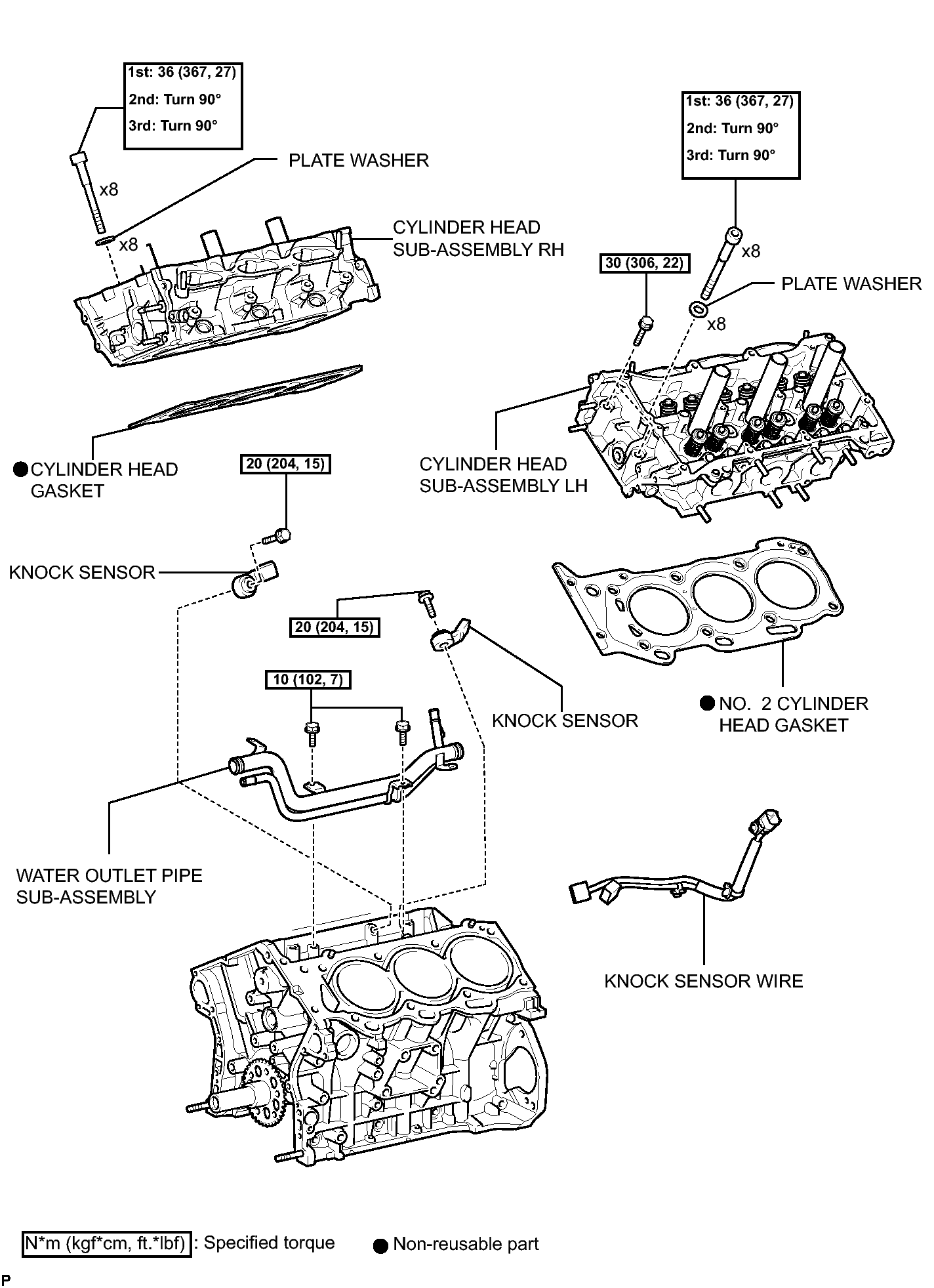

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (8 Of 12)

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (9 Of 12)

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (10 Of 12)

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (11 Of 12)

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (12 Of 12)
