Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

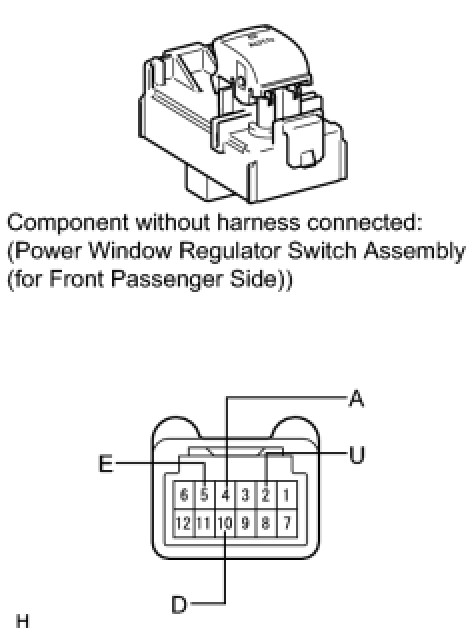

(a) Check the switch function.





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the power window regulator switch assembly (for front passenger side).

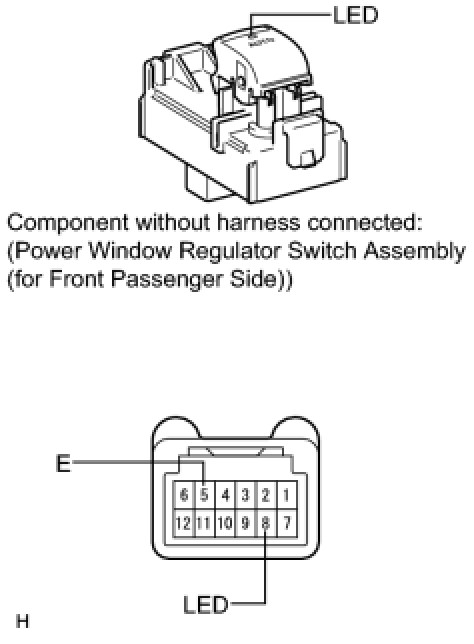

(b) Check that the LED illuminates.





(1) Apply battery voltage to the power window regulator switch assembly and check that the LED illuminates.

OK:





If the result is not as specified, replace the power window regulator switch assembly (for front passenger side).
