Removal

WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH: REMOVAL

1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

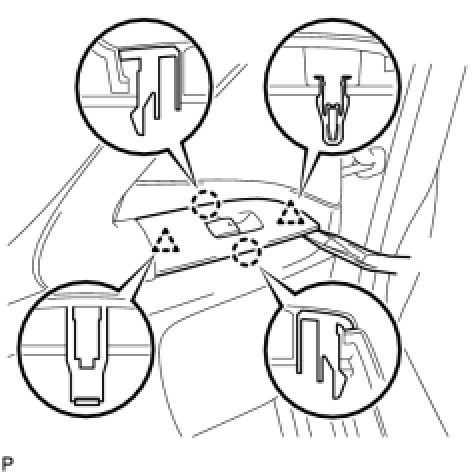

(a) Using a moulding remover, disengage the 2 claws and 2 clips.





(b) Disconnect the connector and remove the rear power window regulator switch assembly with rear door armrest base panel.

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Disengage the 2 claws and remove the rear power window regulator switch assembly.
