Fail-Safe Chart

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION

(a) When communication fails in any of the CAN bus lines (communication lines), a fail-safe function(s) will operate.

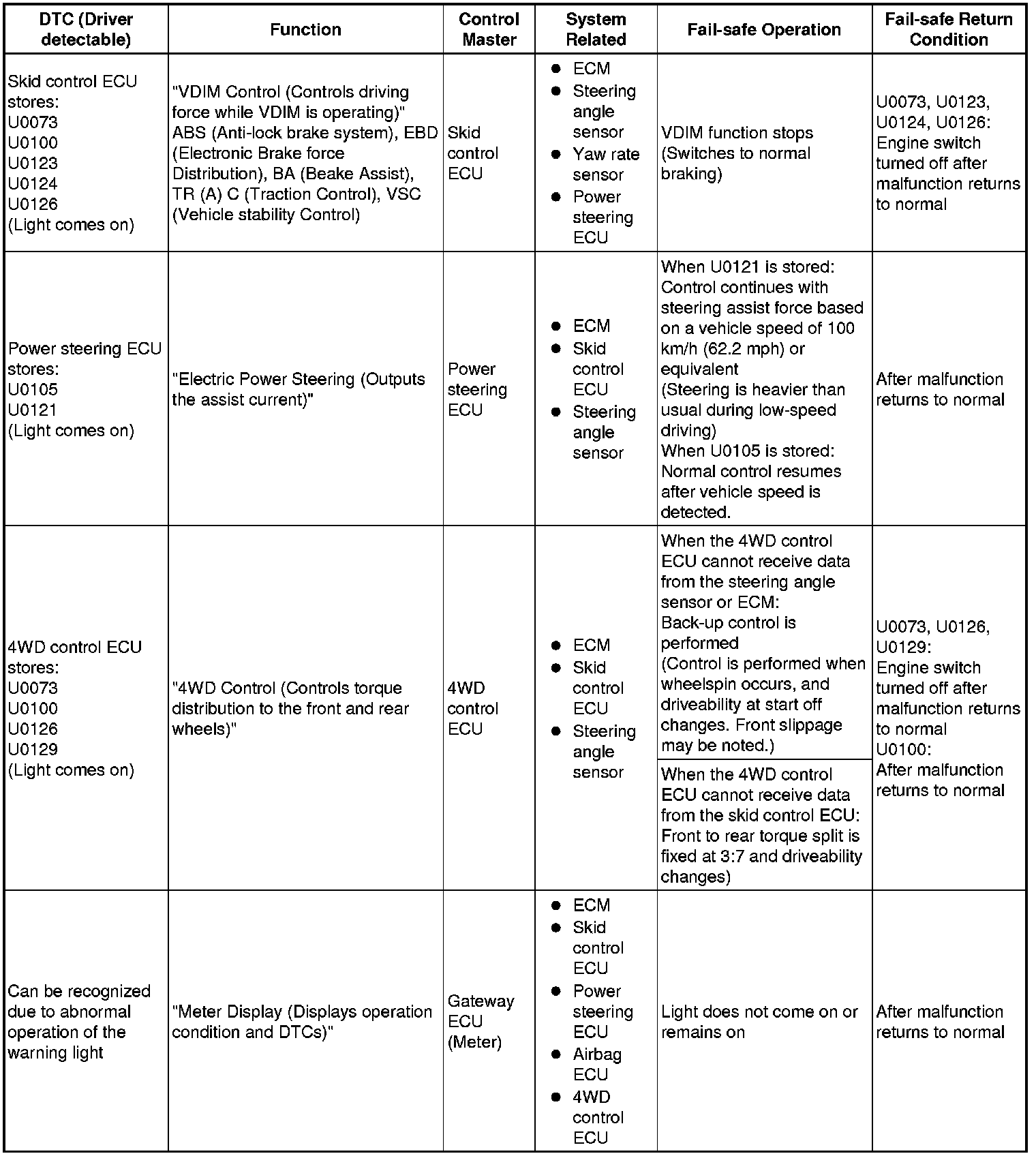

(b) The following table shows the effects on each system when communication is impossible. (For further details, see the pages for each system.)
