Installation

AIR CONDITIONING: SMOG VENTILATION SENSOR: INSTALLATION

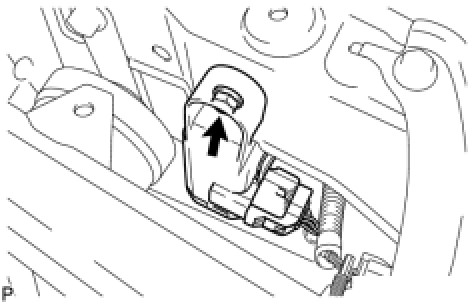

1. INSTALL SMOG VENTILATION SENSOR

(a) Install the smog ventilation sensor with the bolt.





Torque : 9.8 Nm (100 kgf-cm, 7 ft-lbf)

(b) Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL Installation
