Fuel Tank: Components: Illustration

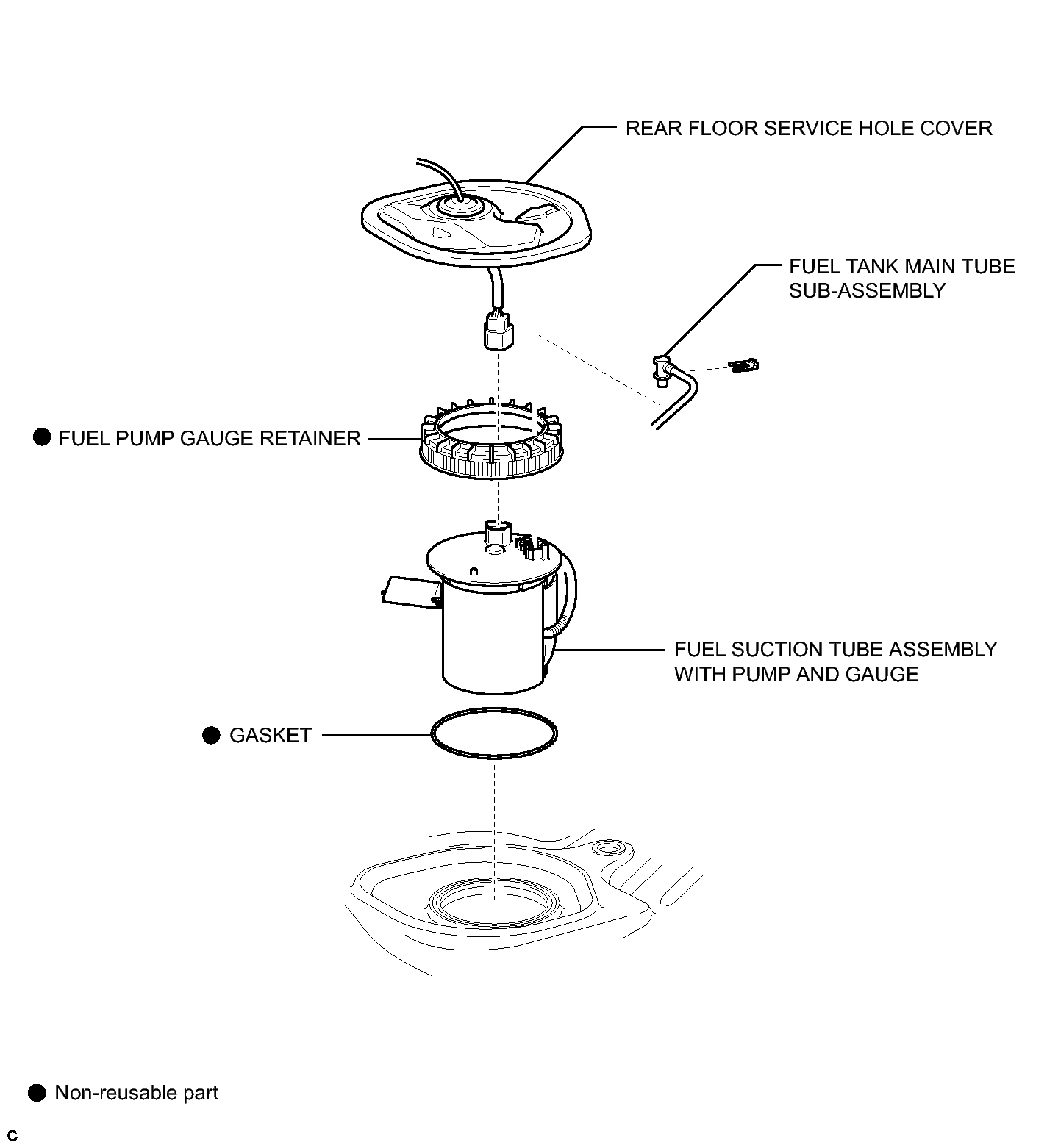

Fig 1: Identifying Fuel Tank Replacement Components (1 Of 2)
GTY287823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

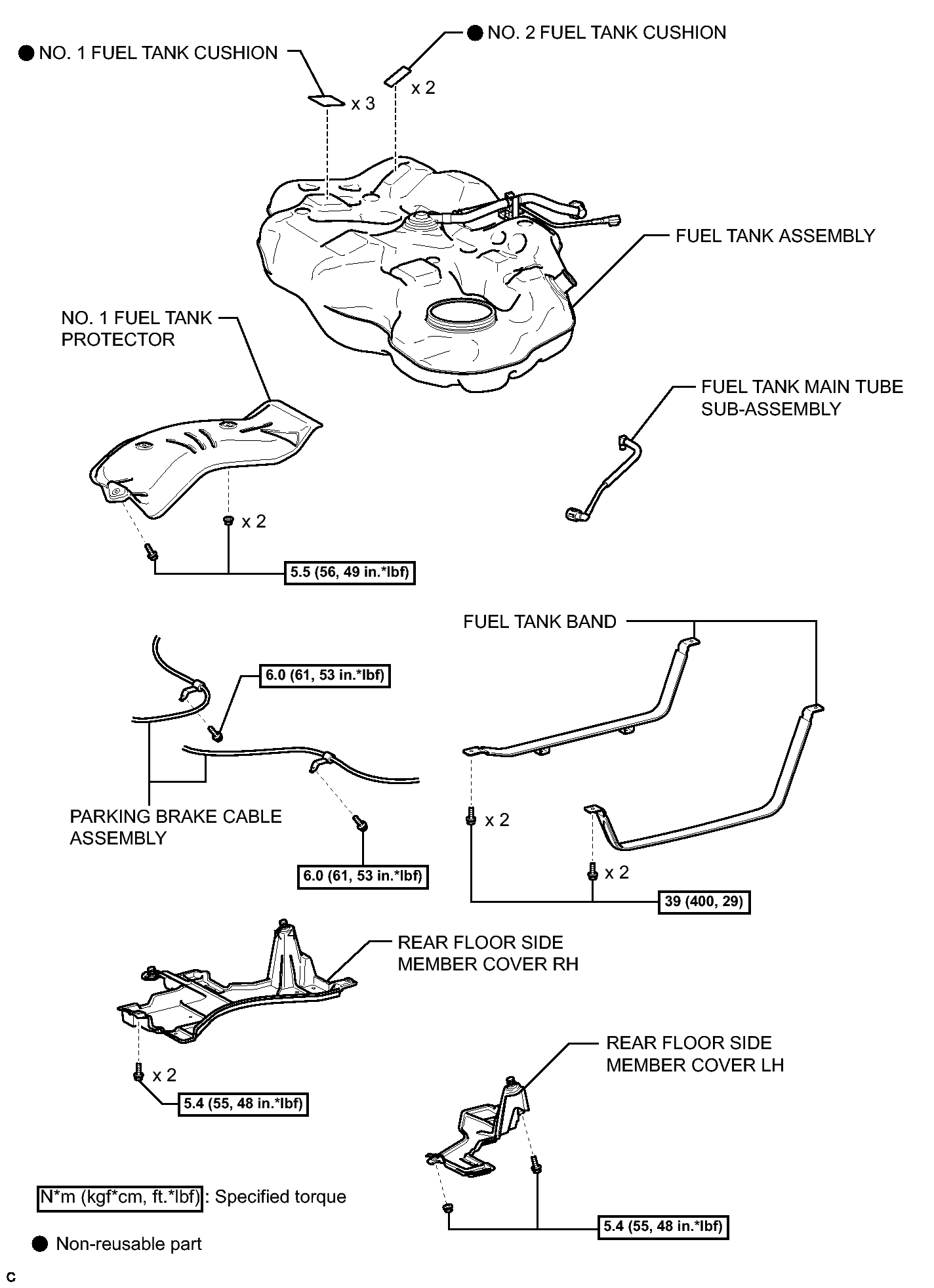

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY282821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
