4WD Control Switch: Components: Illustration

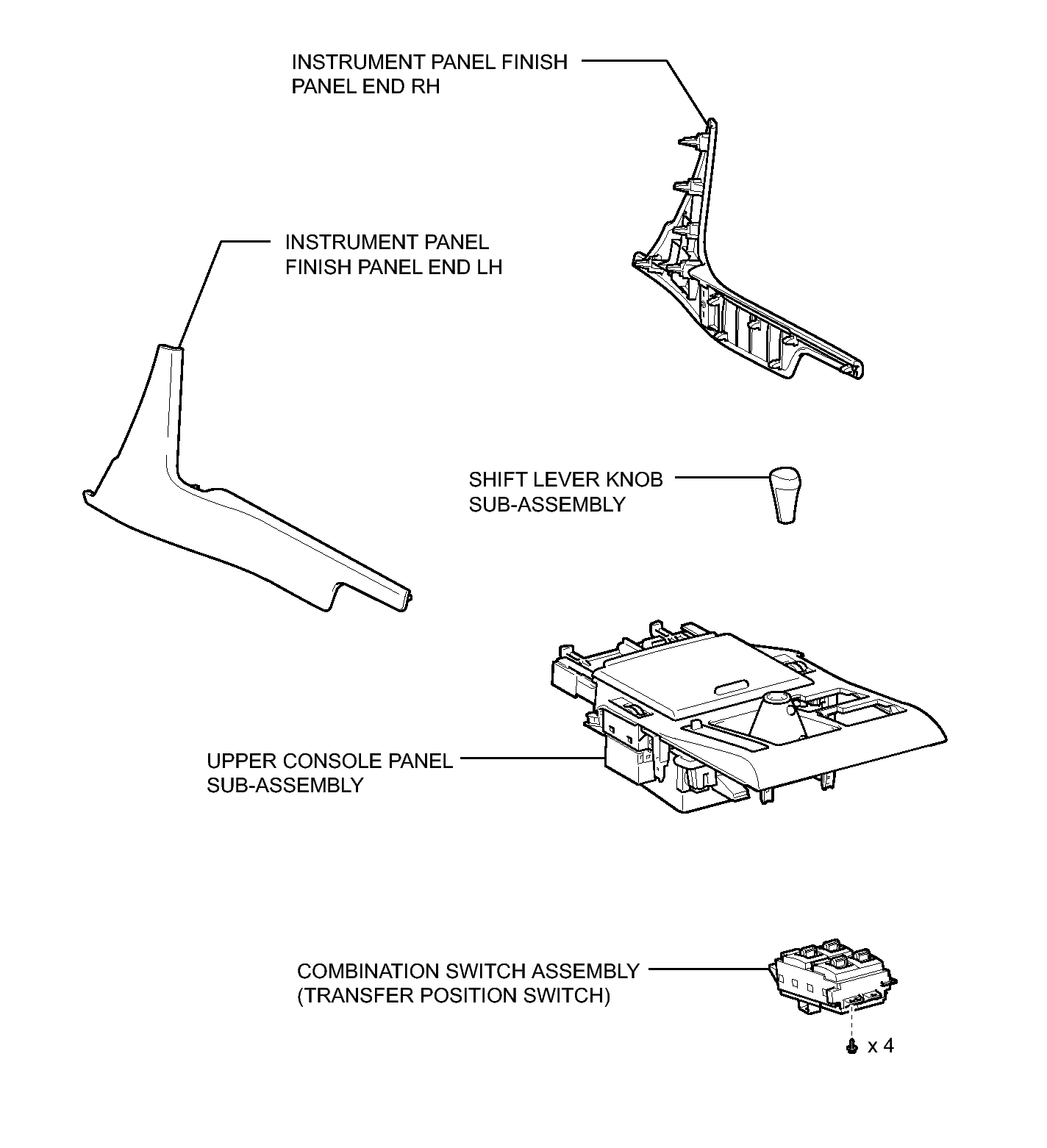

Fig 1: Identifying 4WD Control Switch Replacement Components
GTY279163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
