Dynamic Radar Cruise Control and Lane Departure Alert: Notes

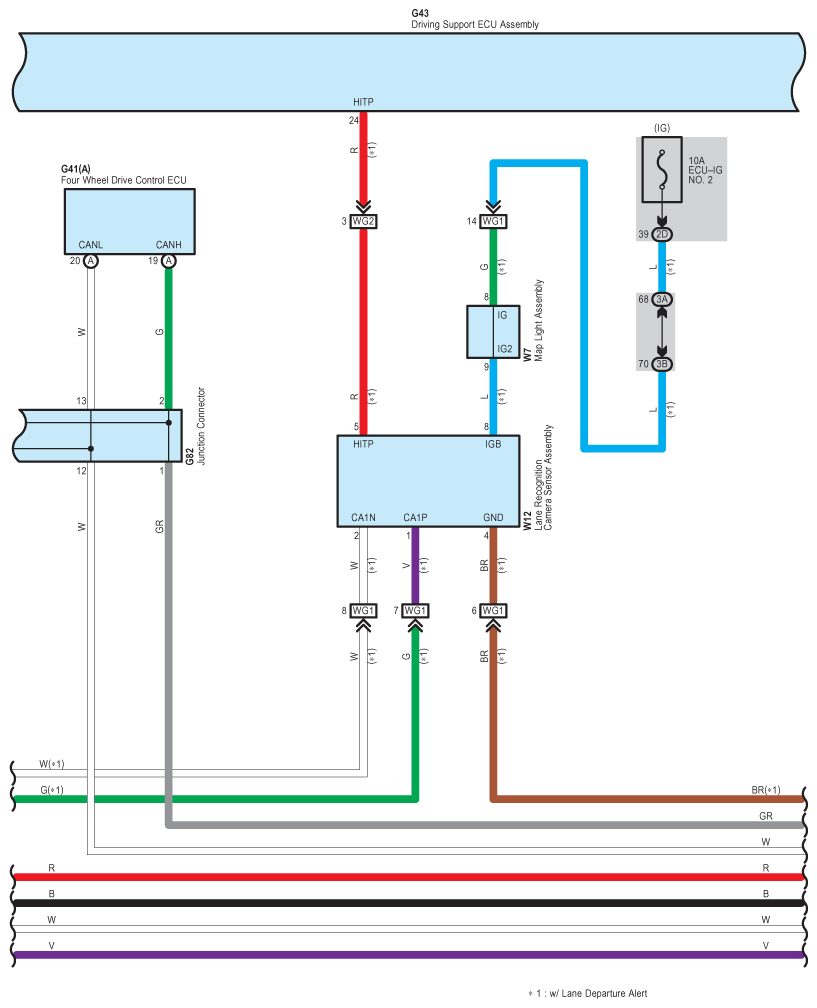

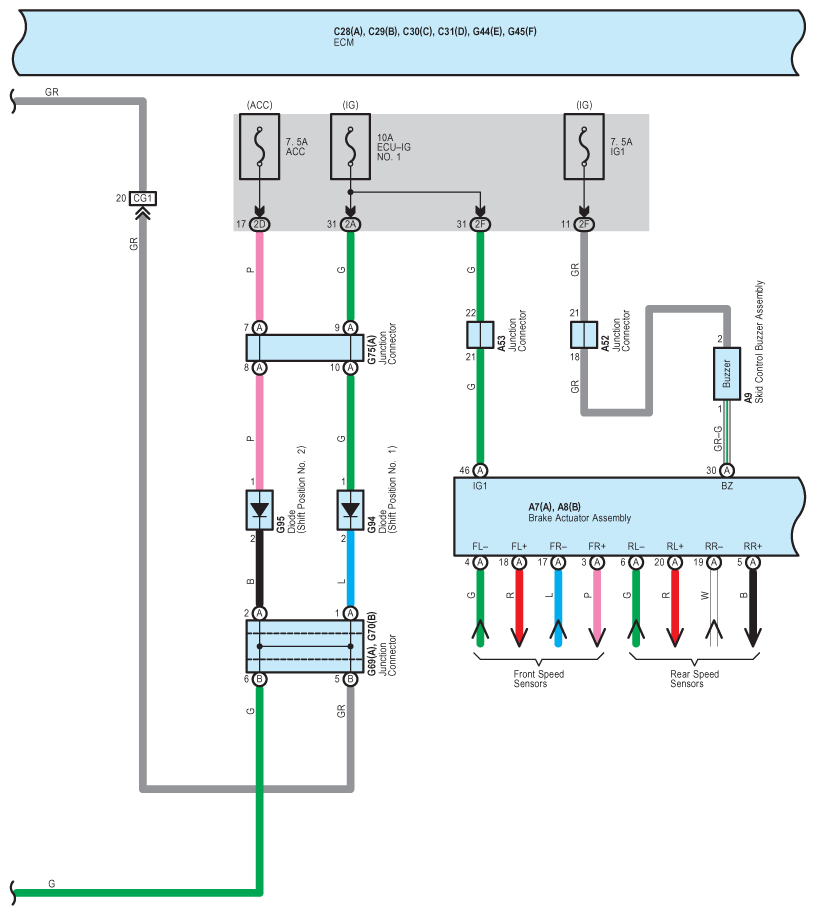

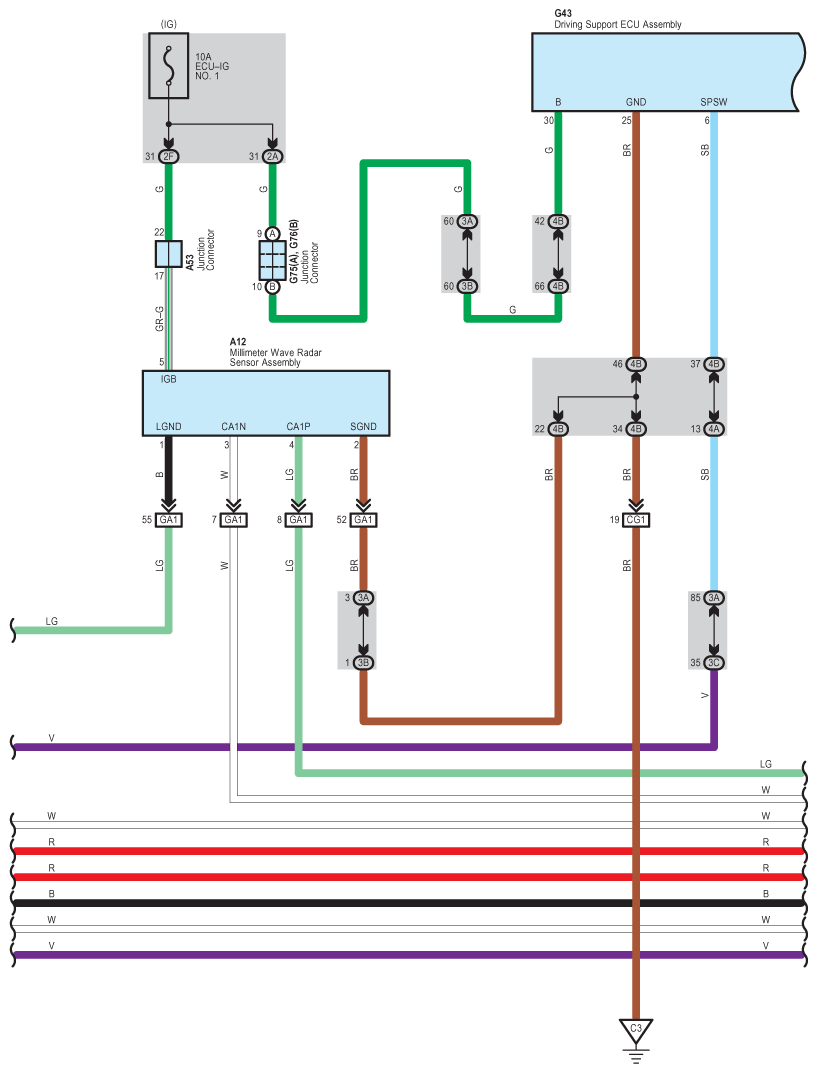

Fig 1: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (1 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

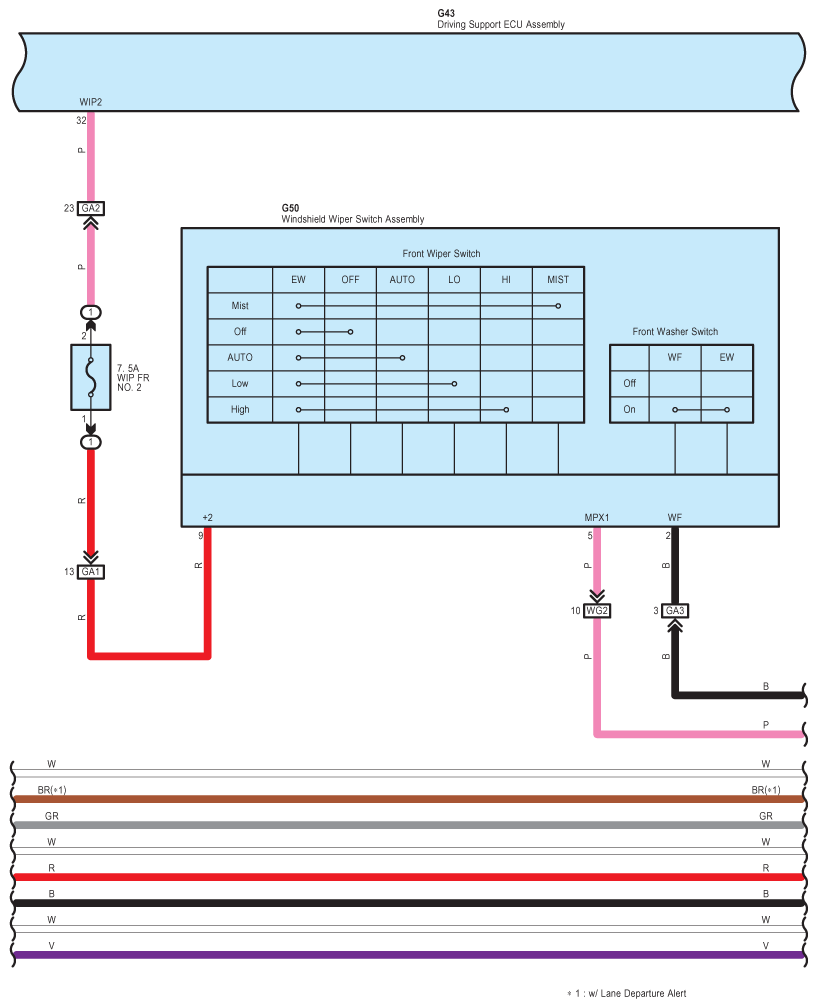

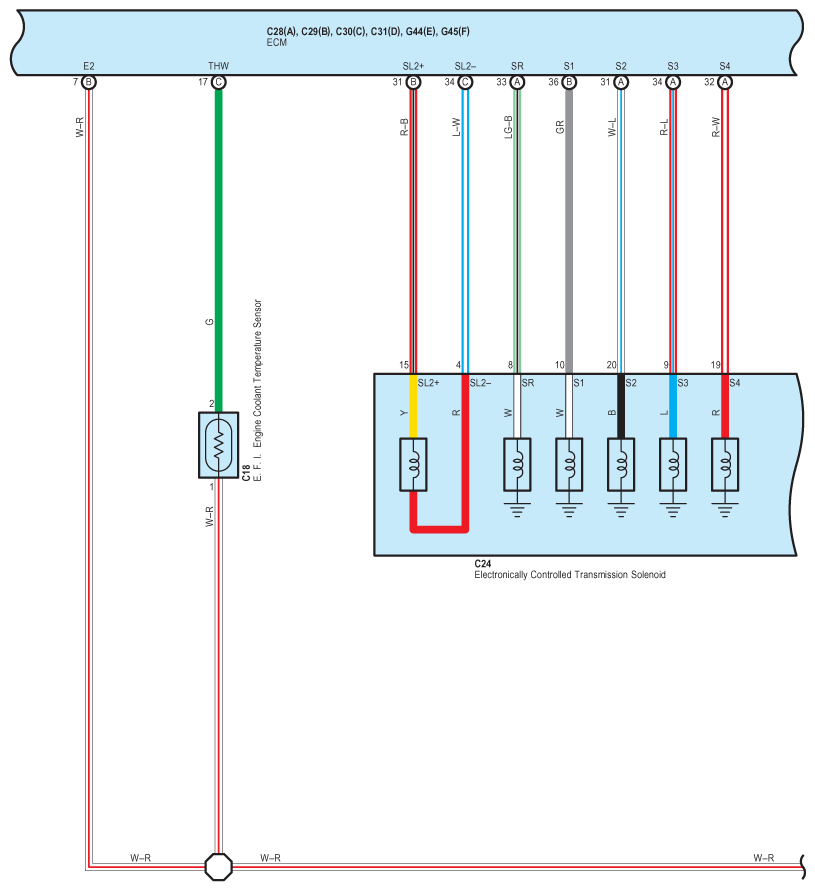

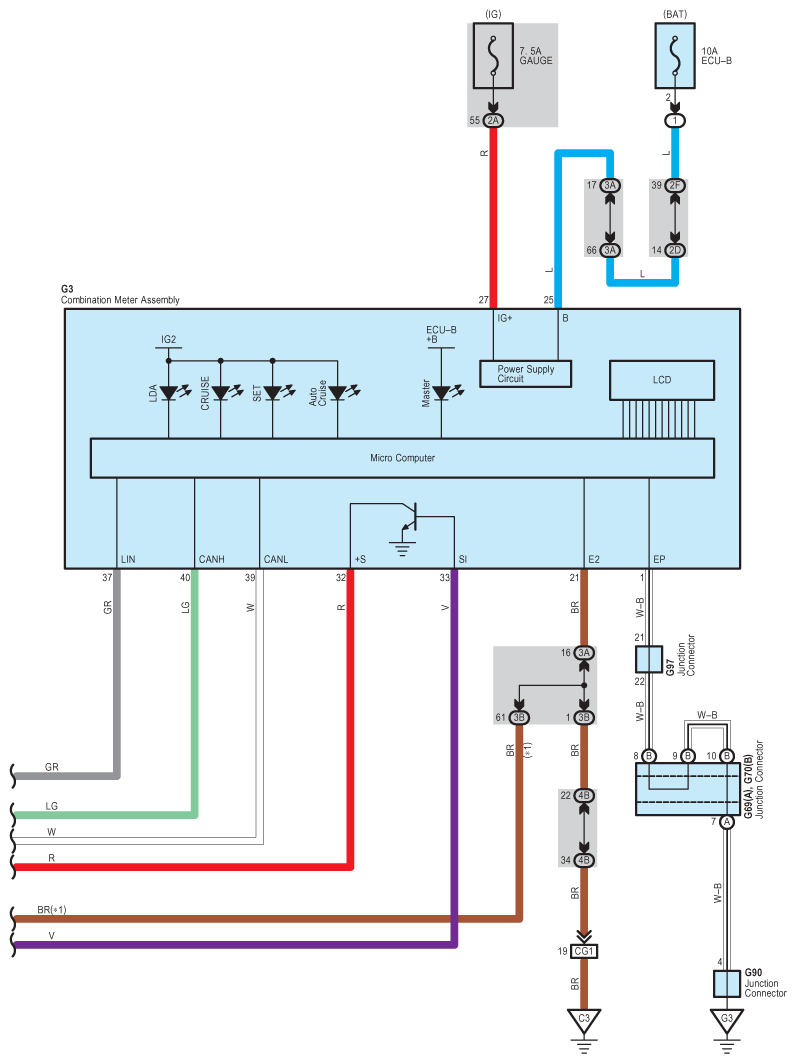

Fig 2: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (2 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

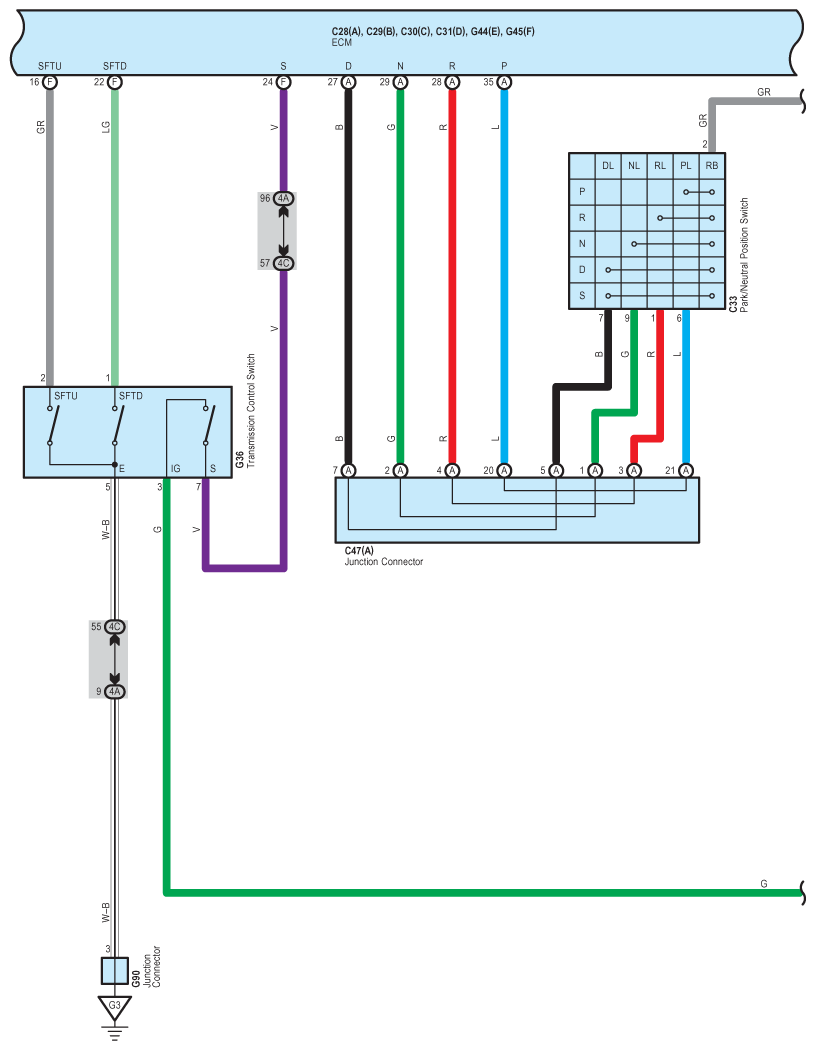

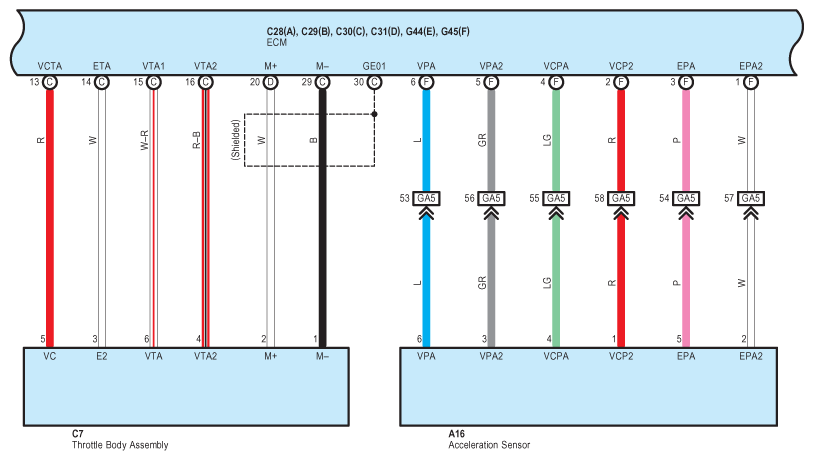

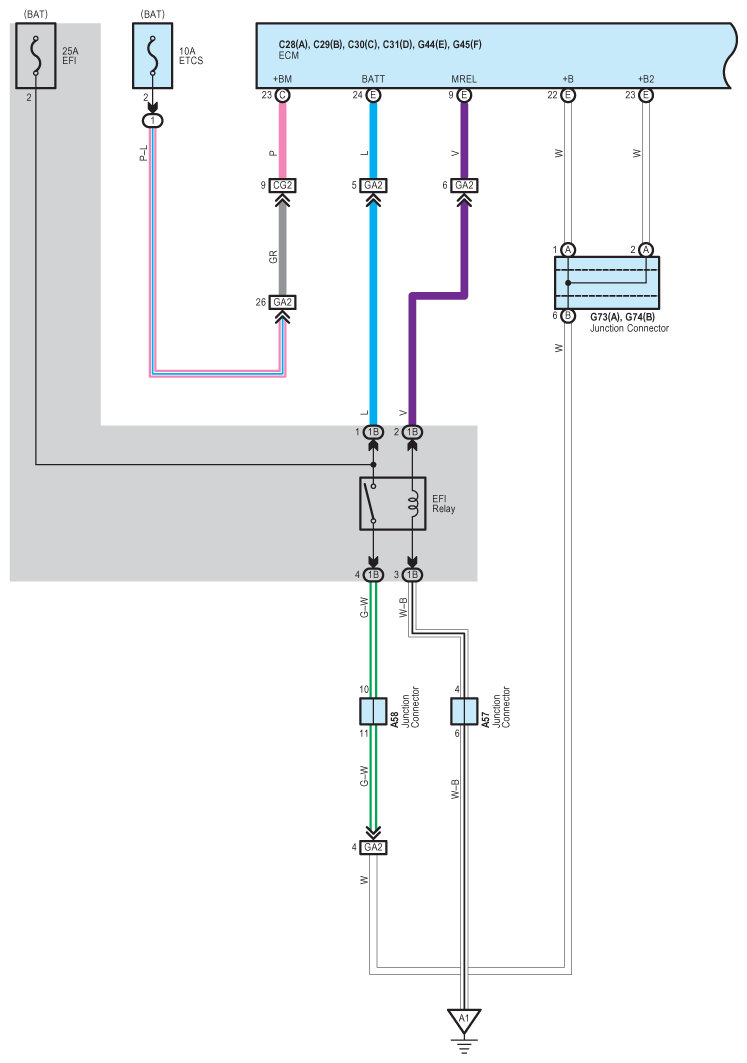

Fig 3: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (3 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

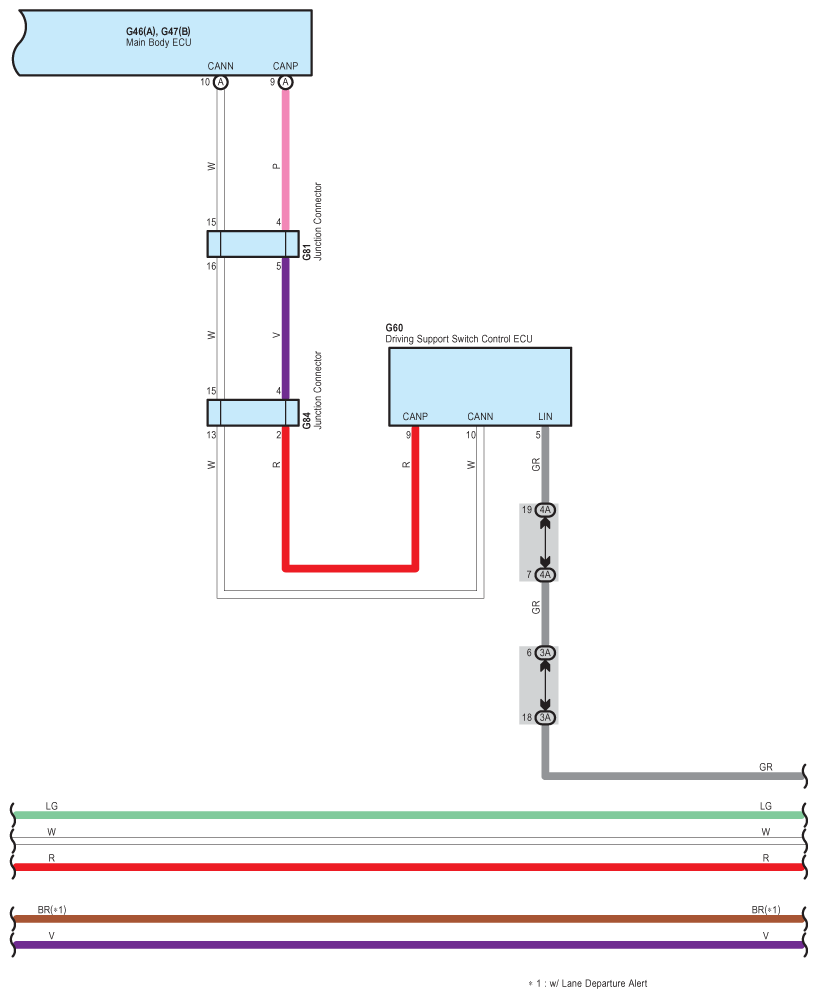

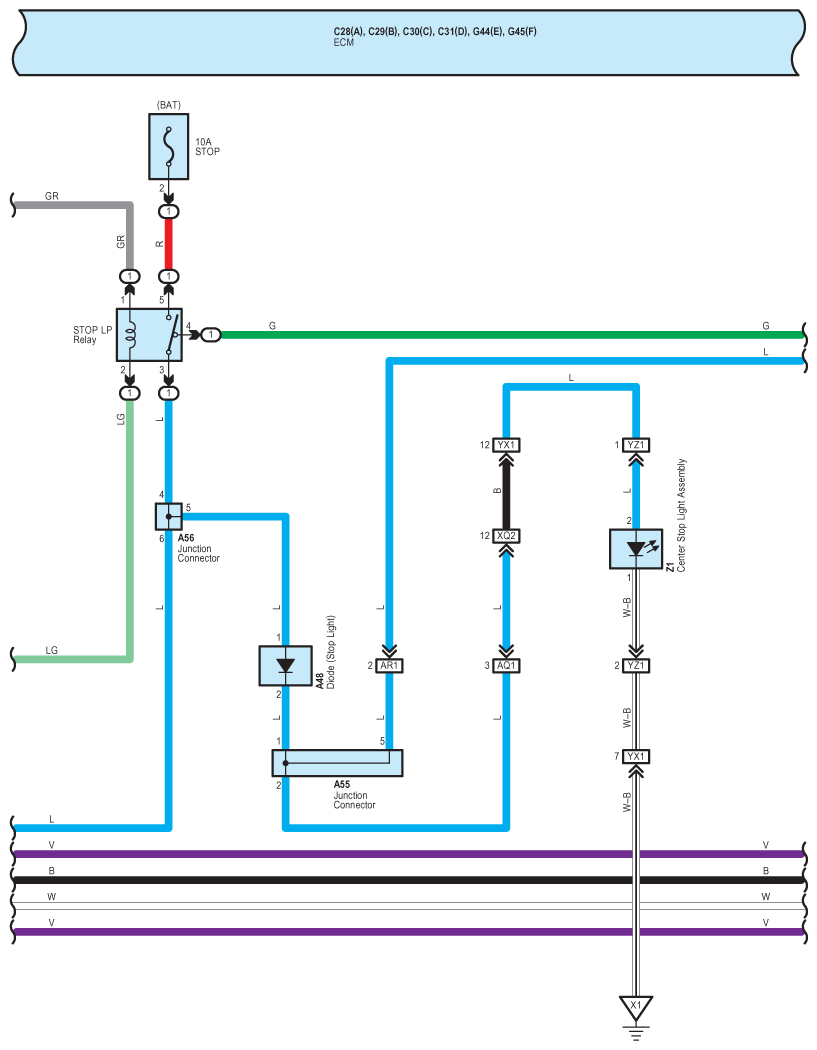

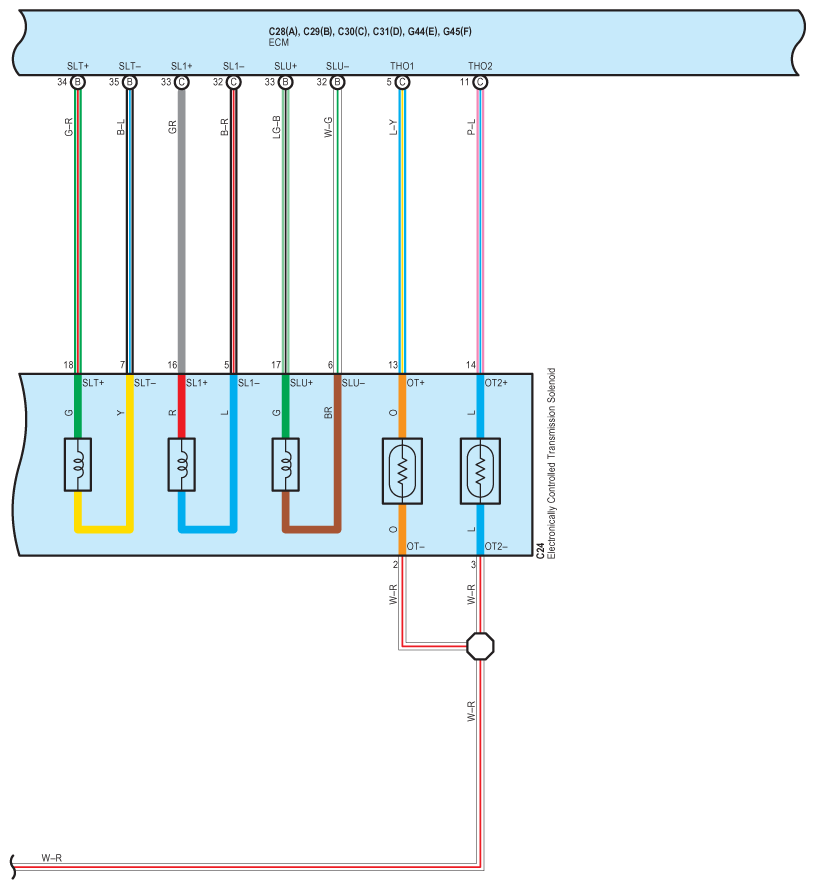

Fig 4: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (4 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

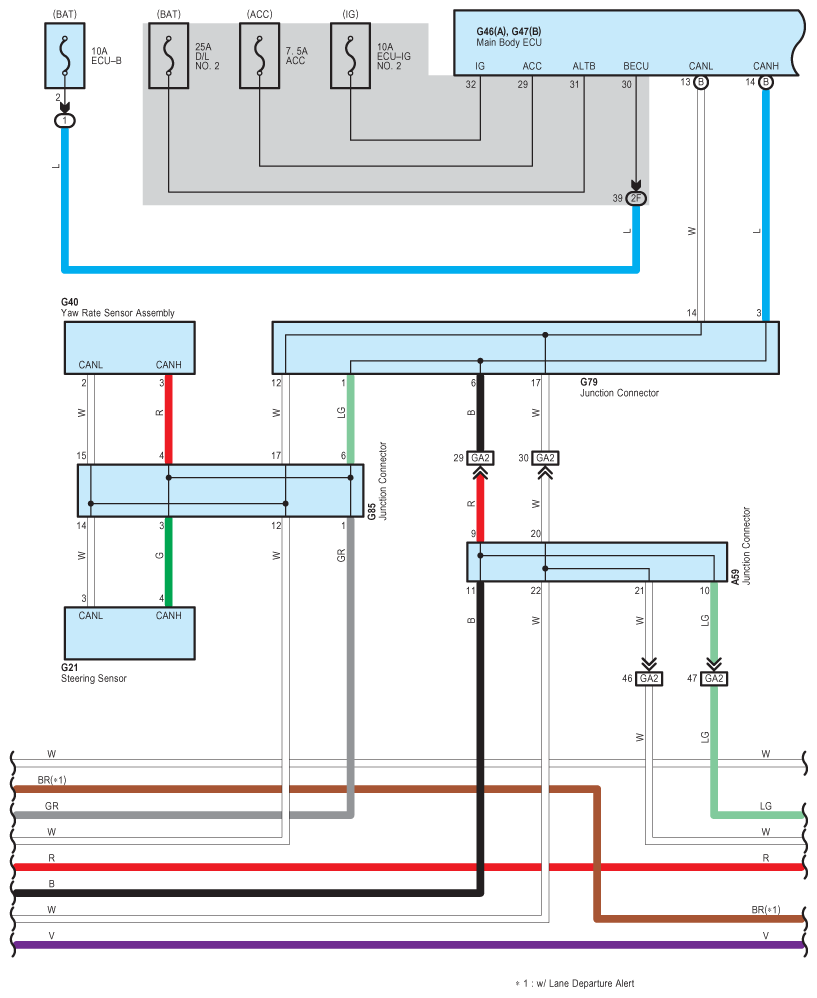

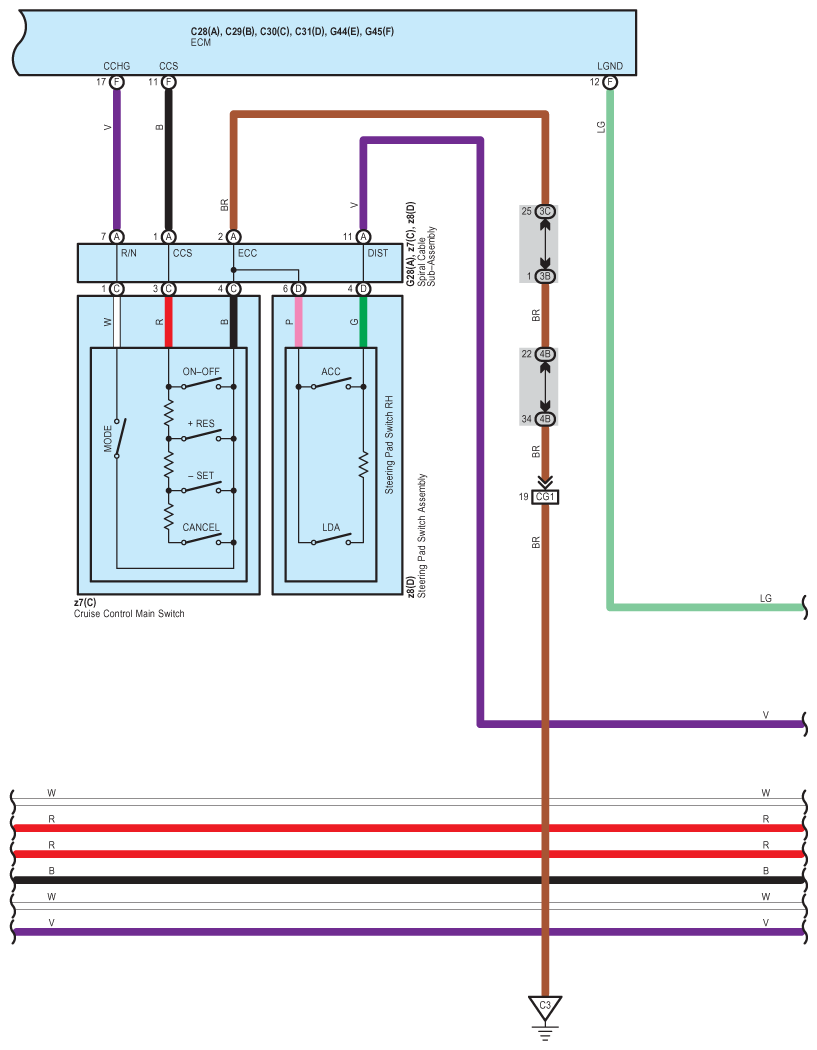

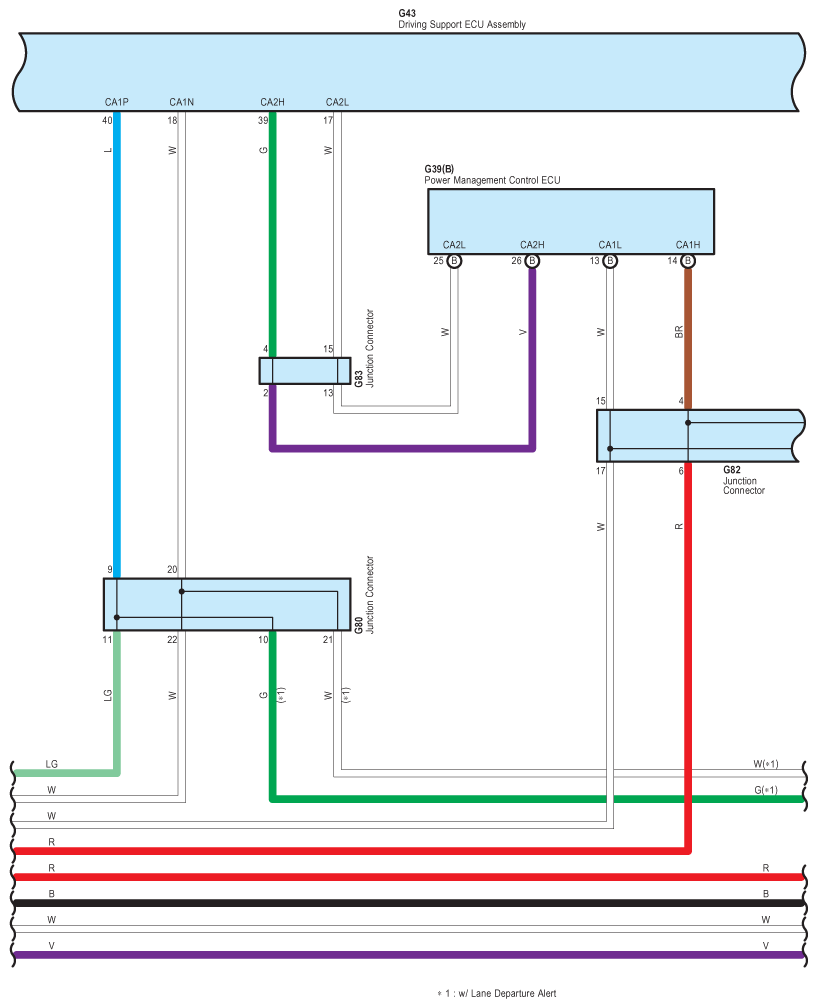

Fig 5: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (5 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

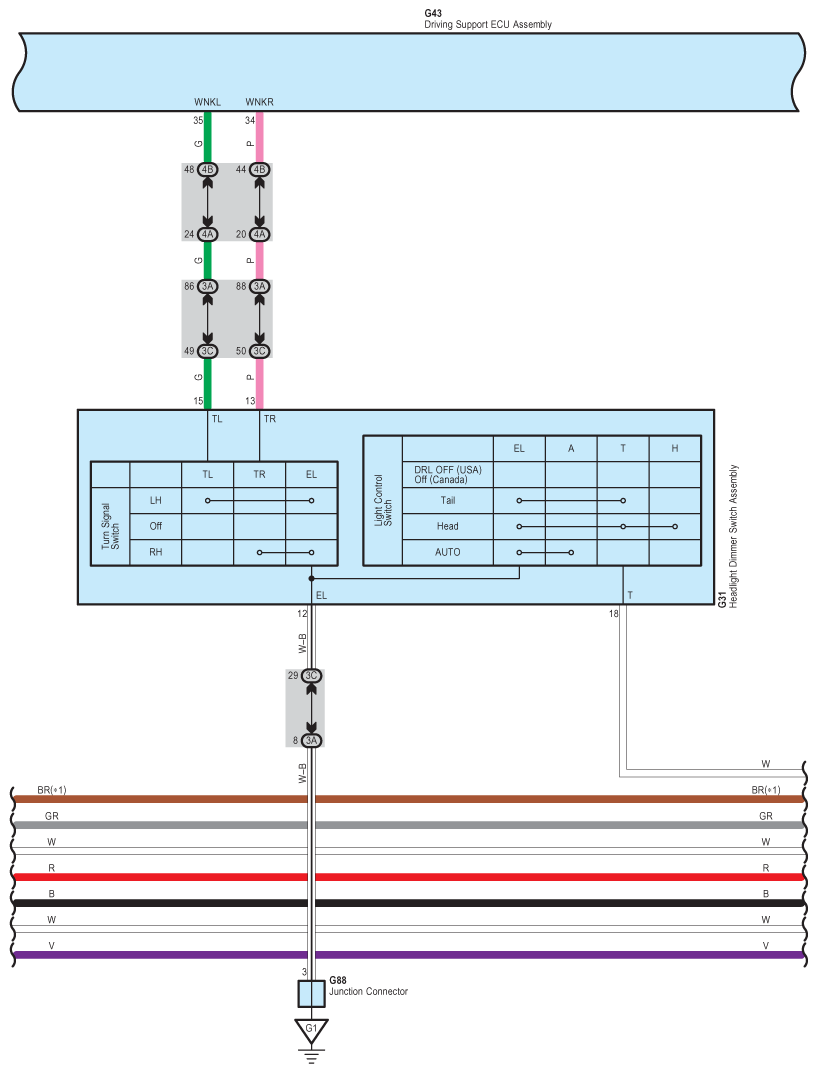

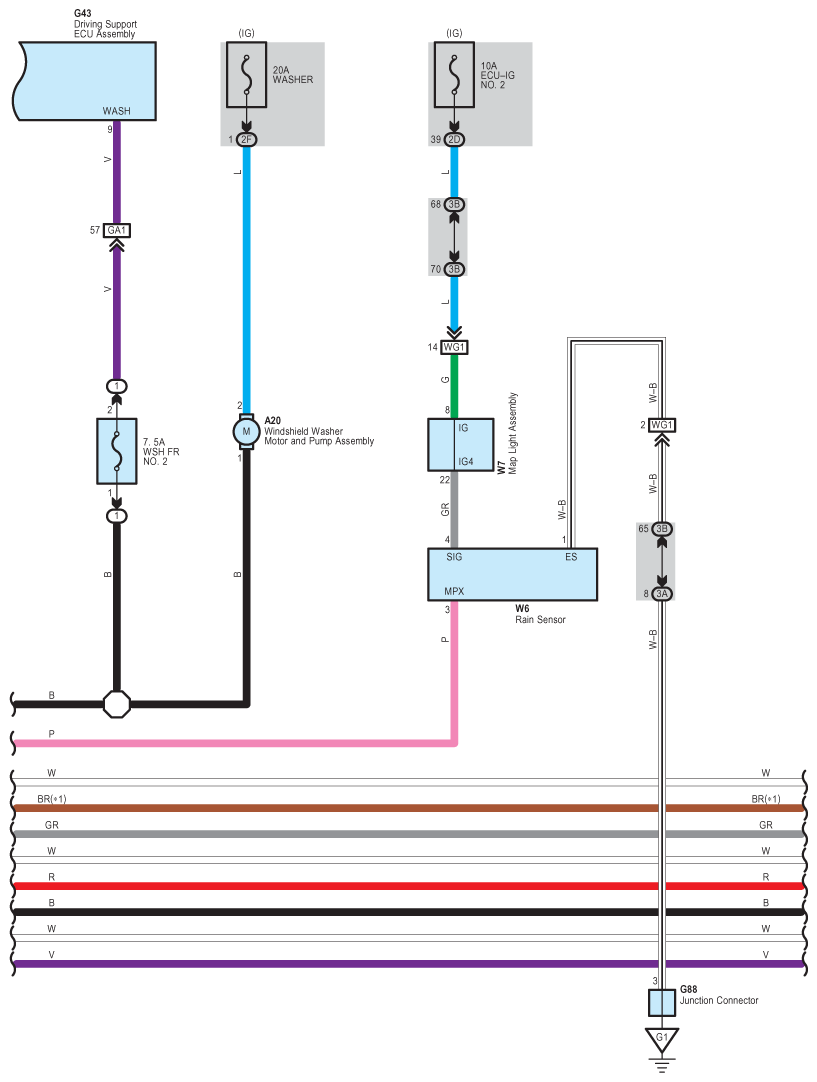

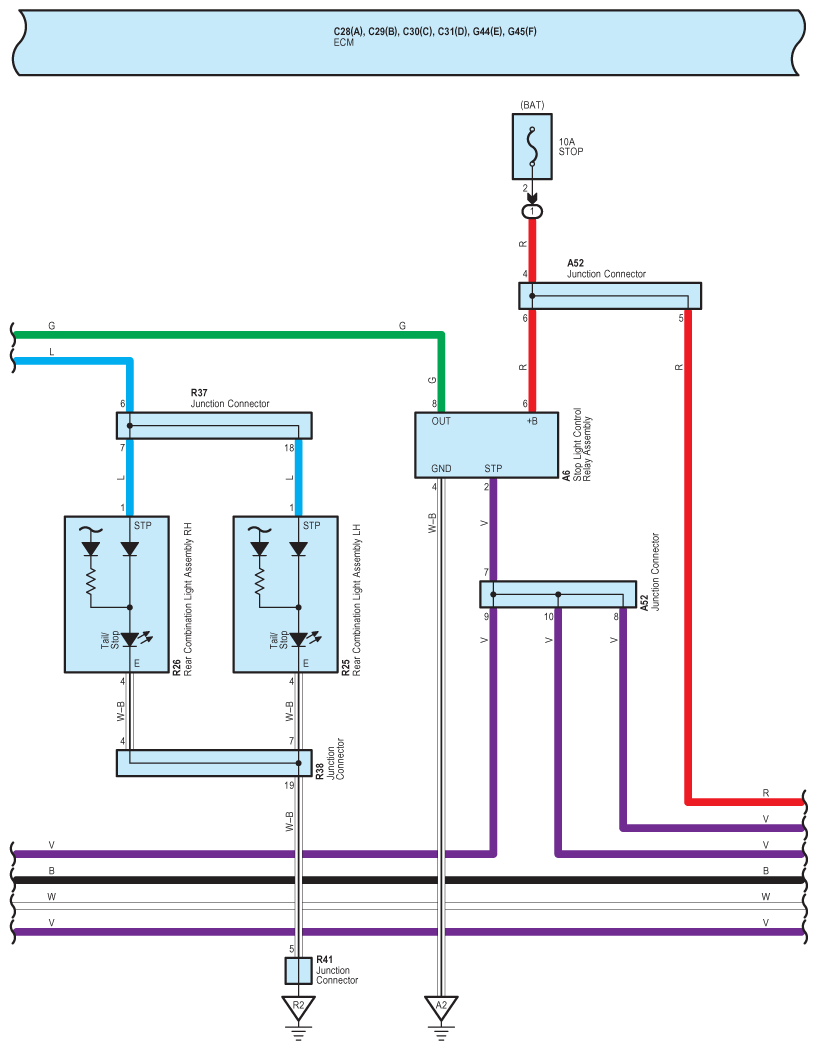

Fig 6: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (6 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

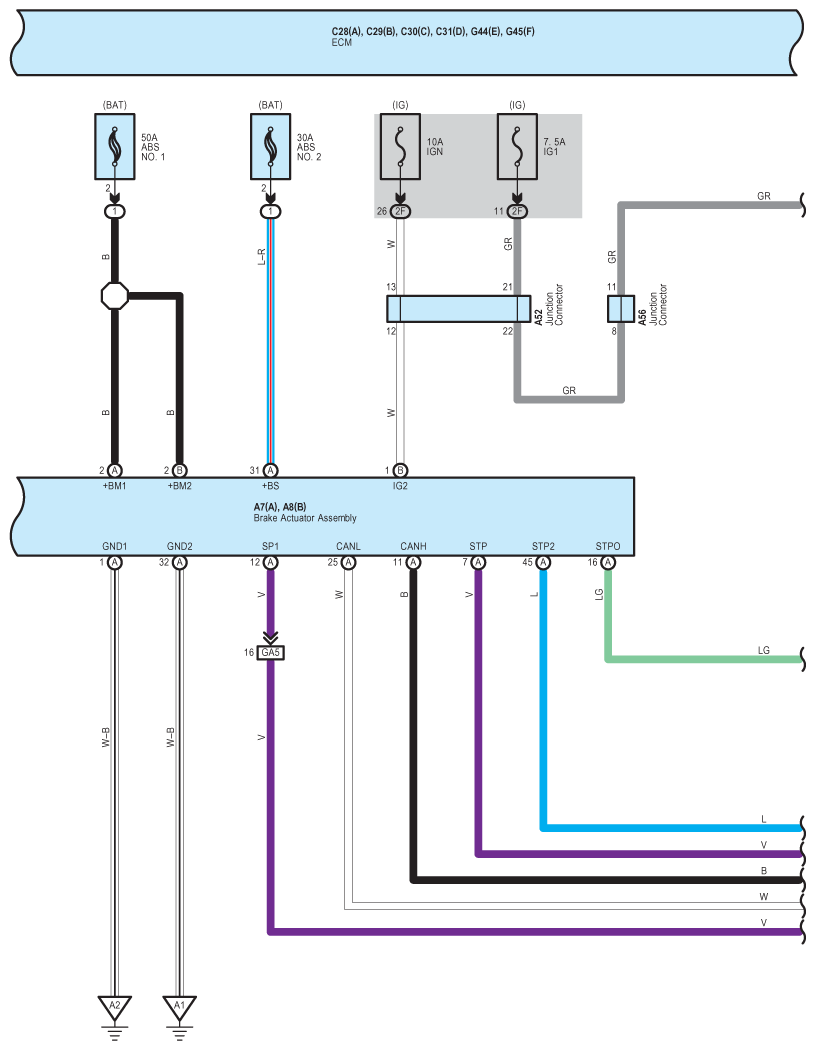

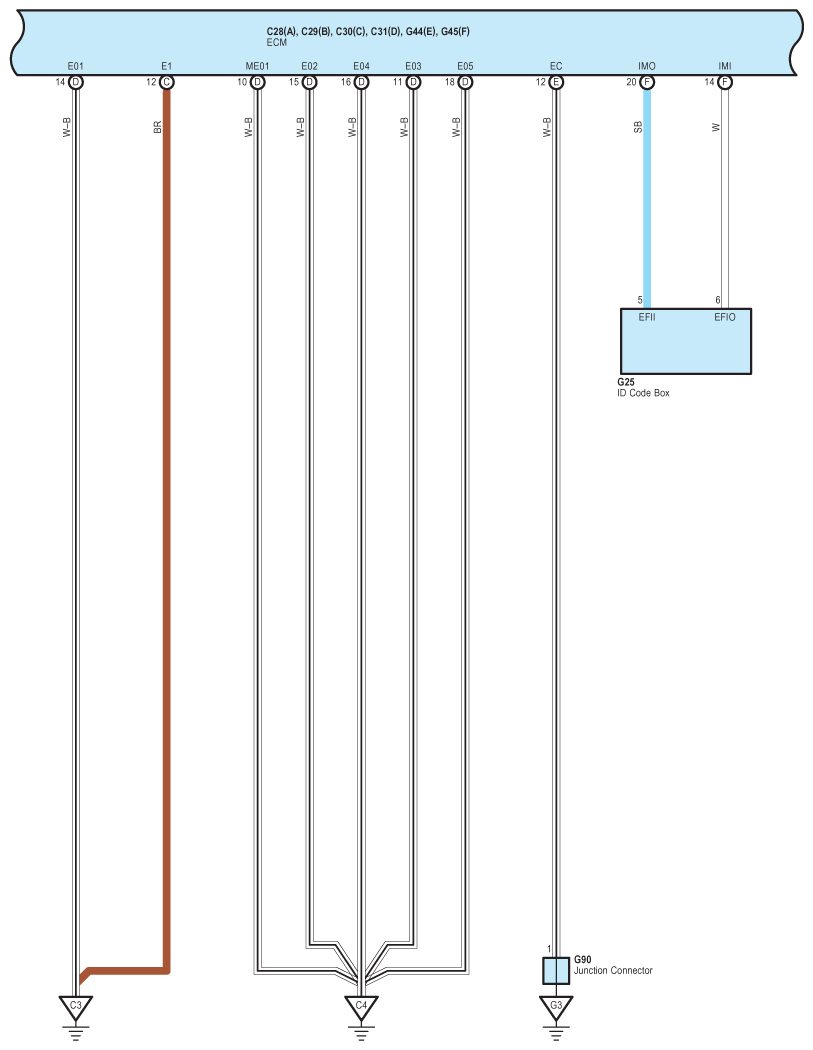

Fig 7: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (7 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

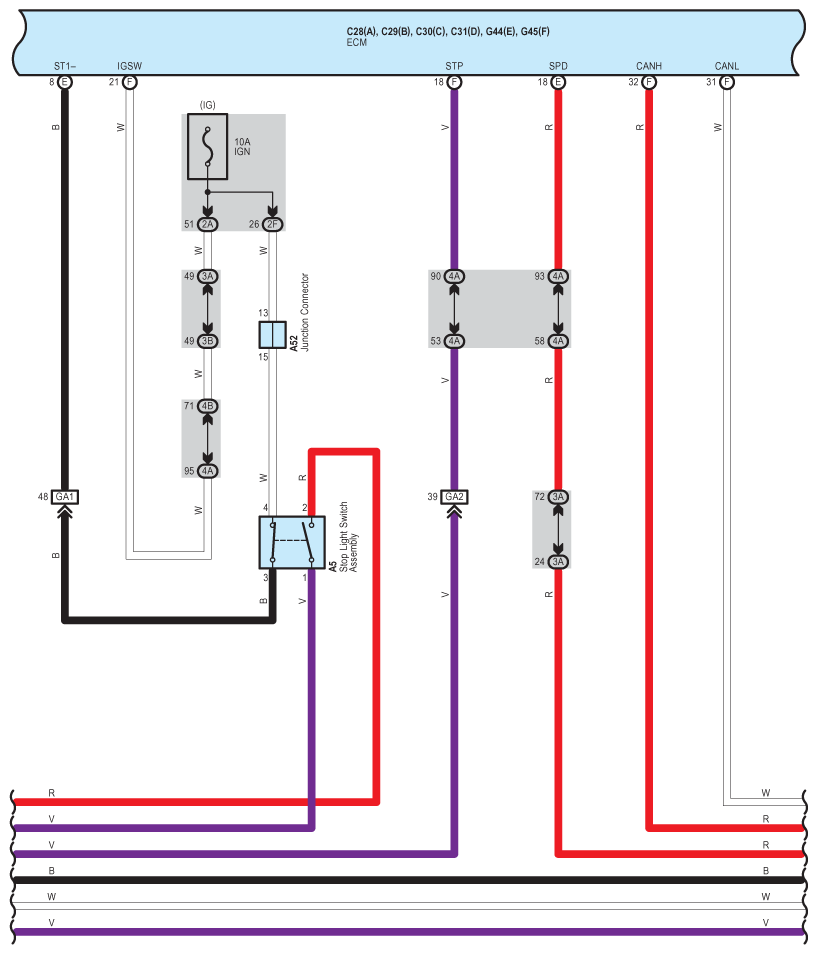

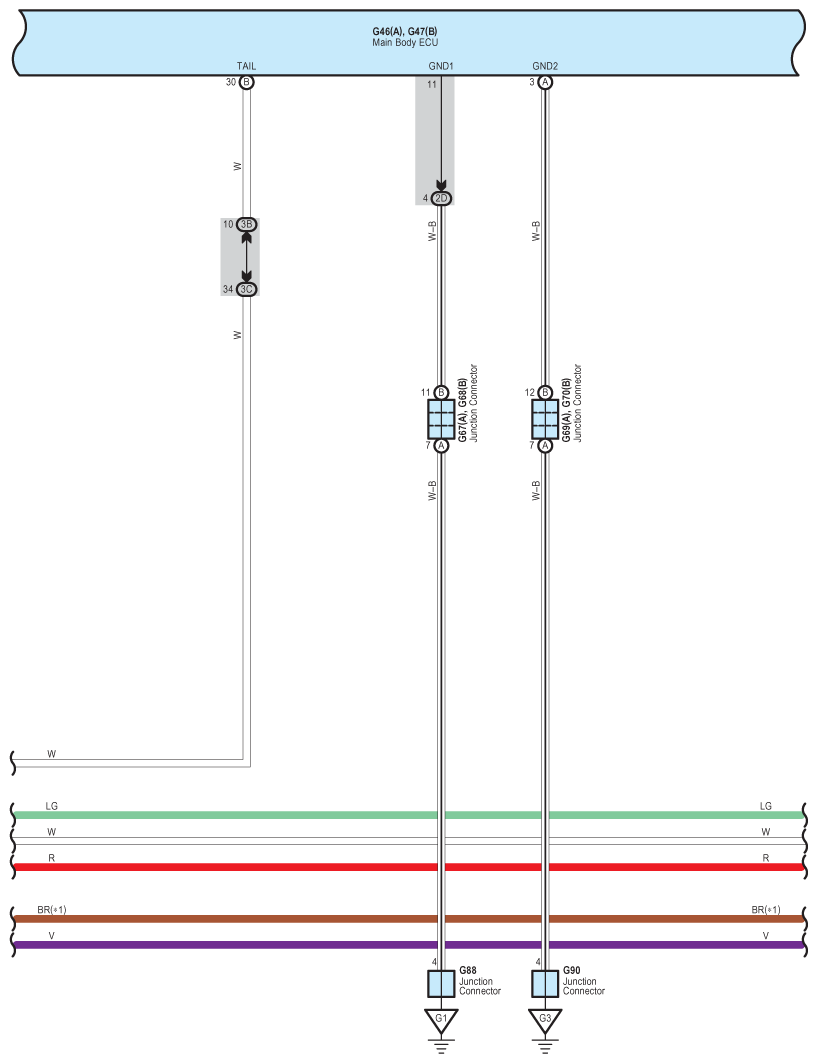

Fig 8: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (8 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (9 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (10 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (11 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (12 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (13 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (14 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (15 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (16 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (17 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (18 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (19 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (20 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (21 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (22 Of 22)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
