Torque Specifications

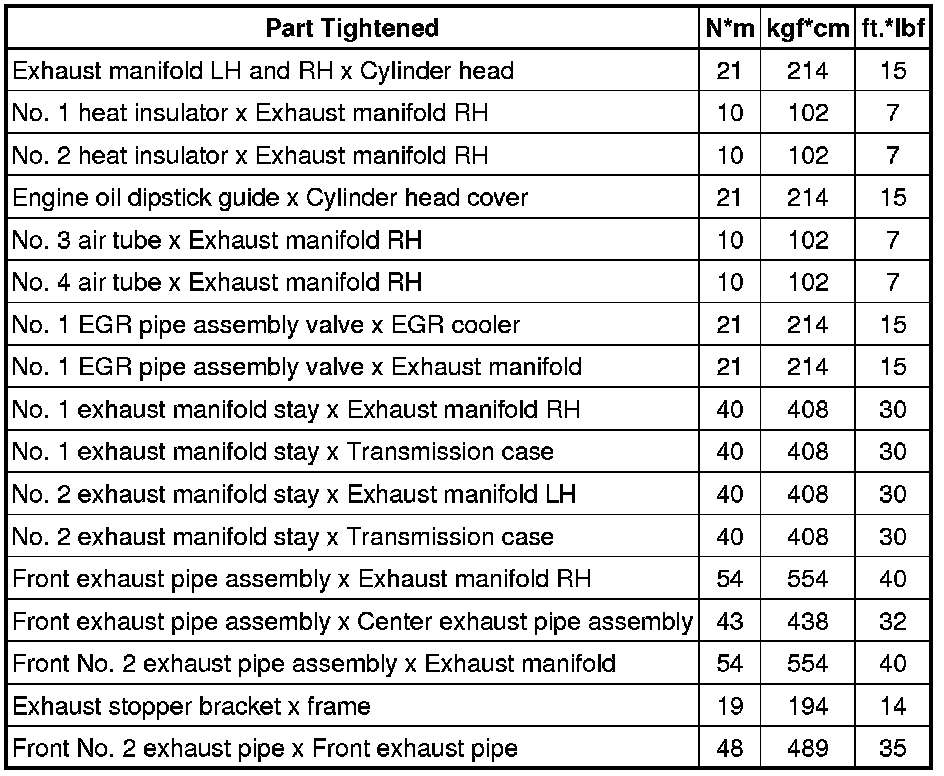

SPECIFICATIONS: 1UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

Exhaust manifold





Exhaust pipe





Intake manifold
