Torque Specifications

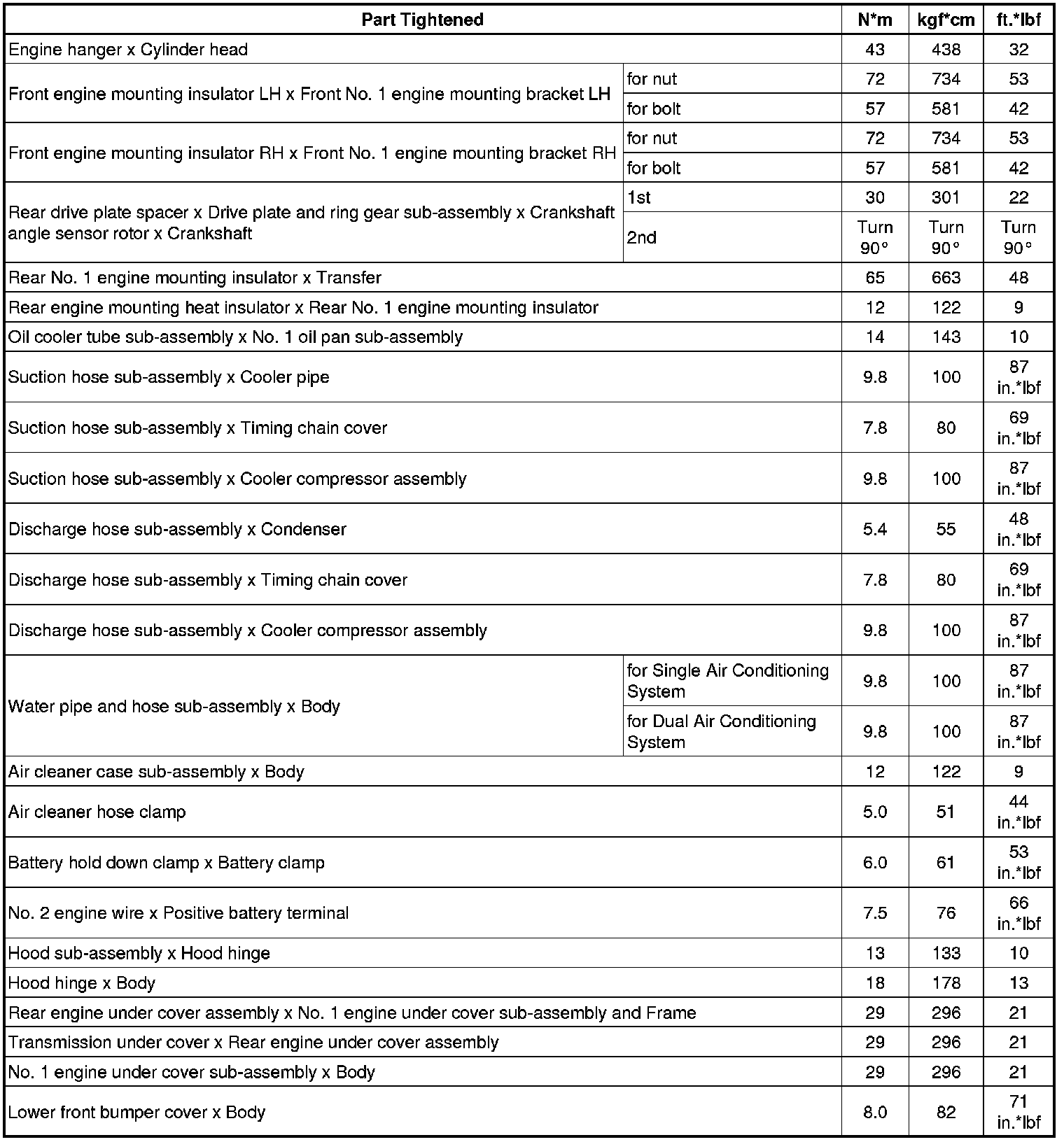

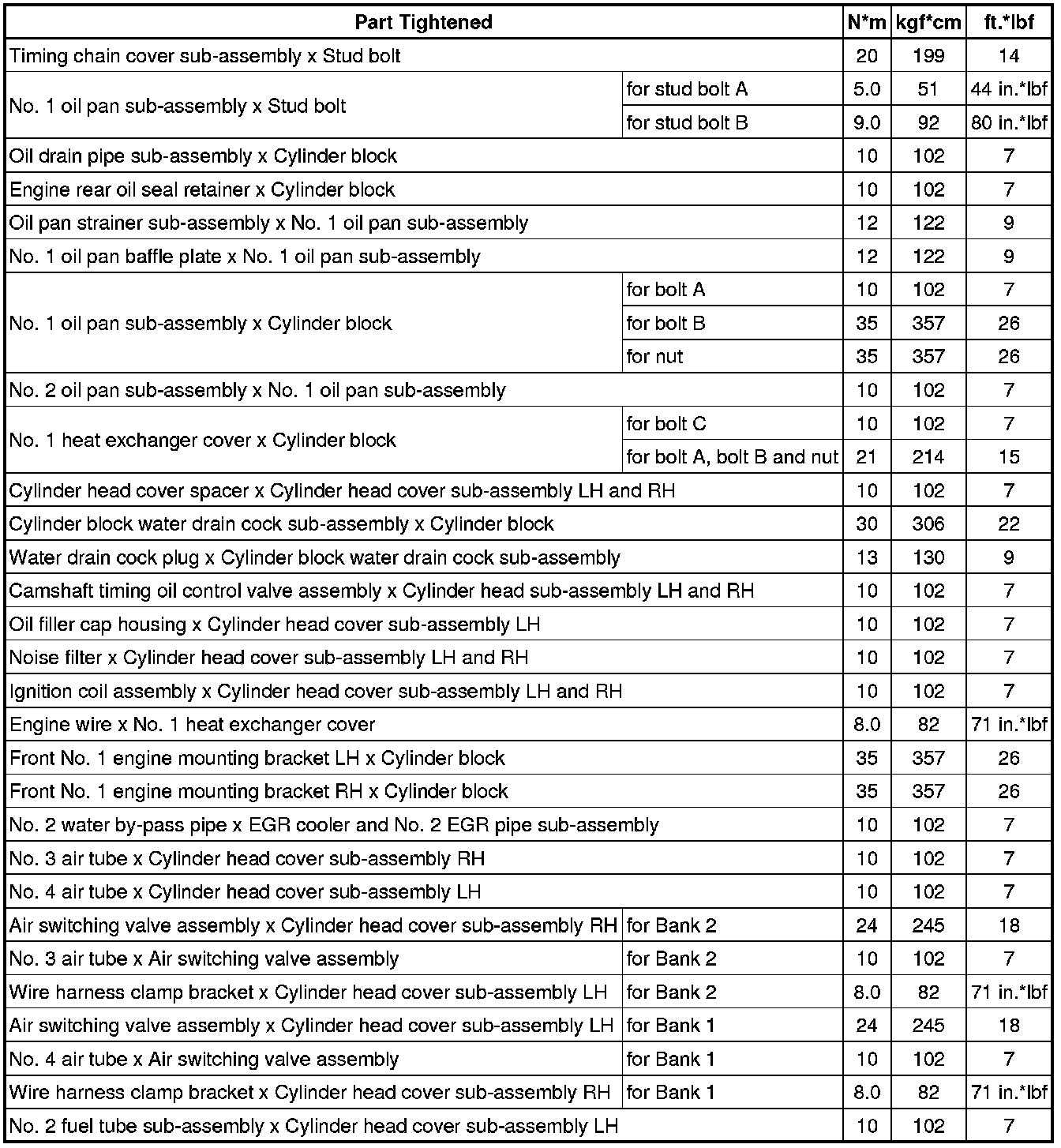

SPECIFICATIONS: 1UR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

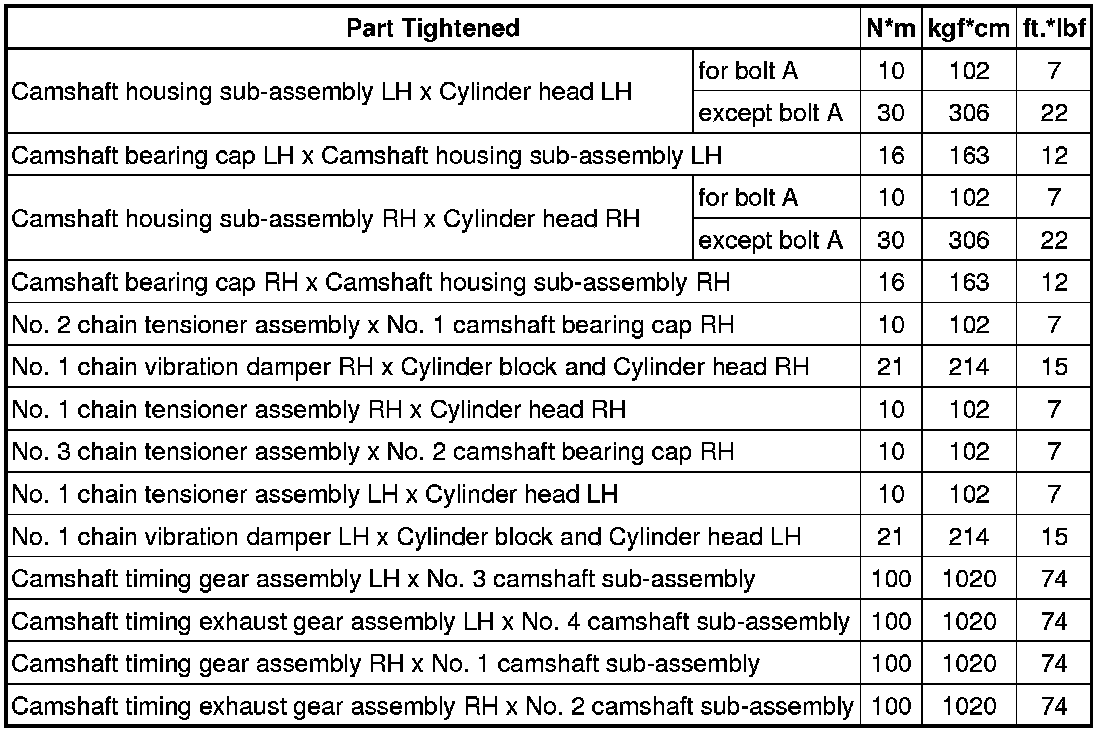

Camshaft





Cylinder Head Gasket





Engine Assembly





Engine Unit





Cylinder Head





Cylinder Block
