Service Data





SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: SERVICE DATA

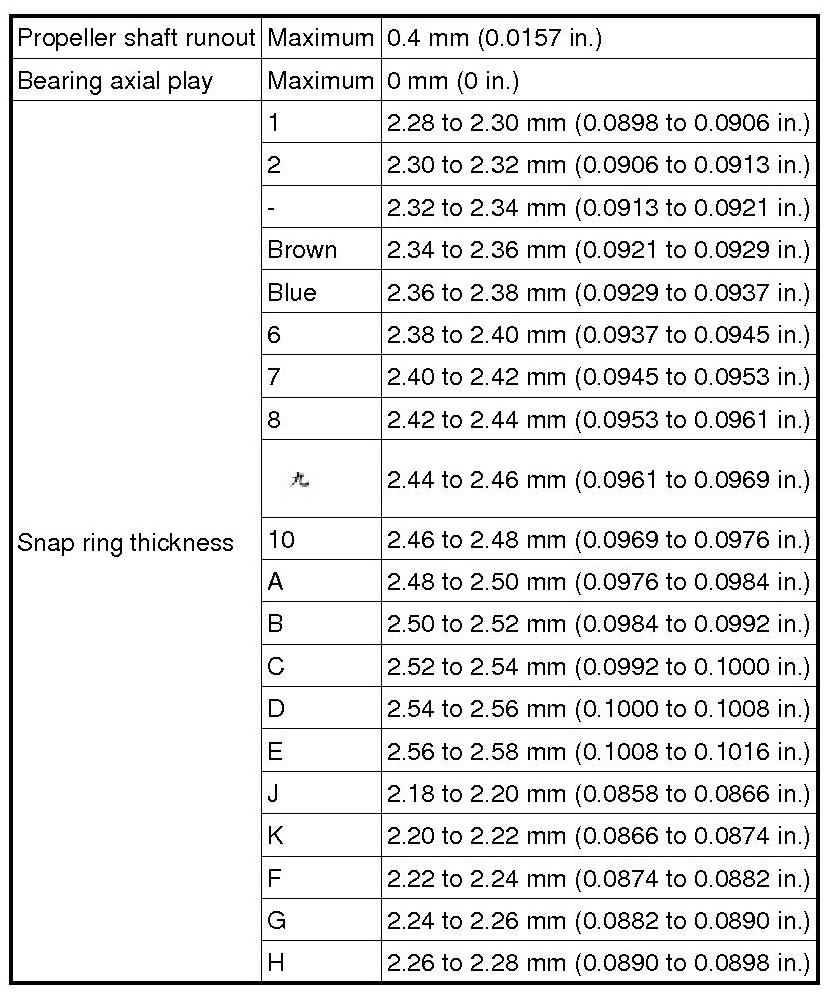

Front Propeller Shaft

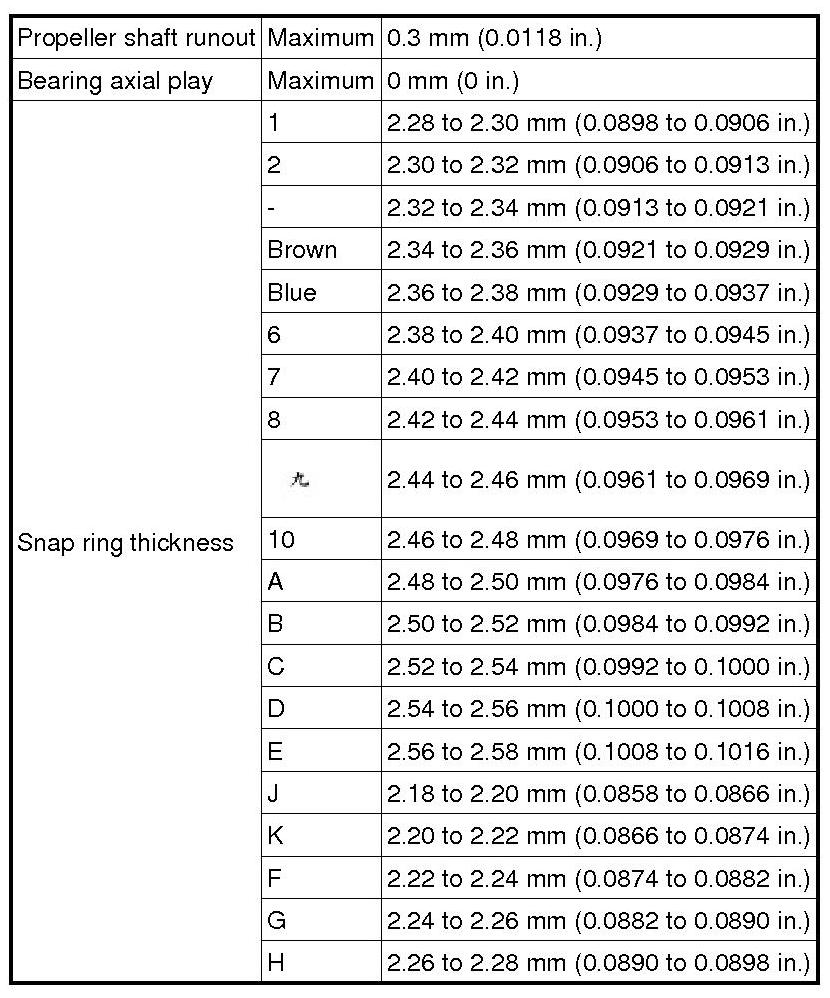

Rear Propeller Shaft Assembly
