Components
COMPONENTS

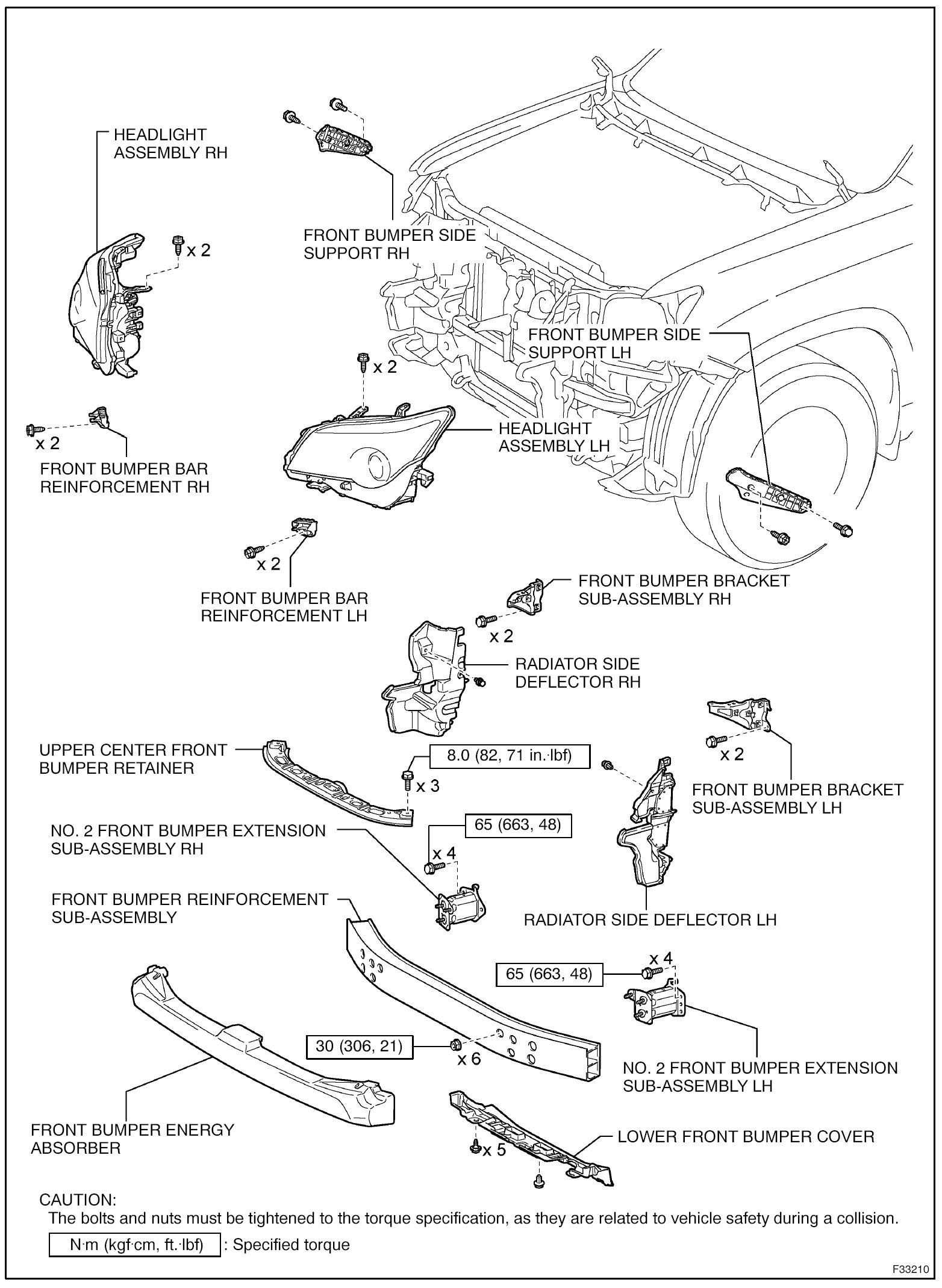

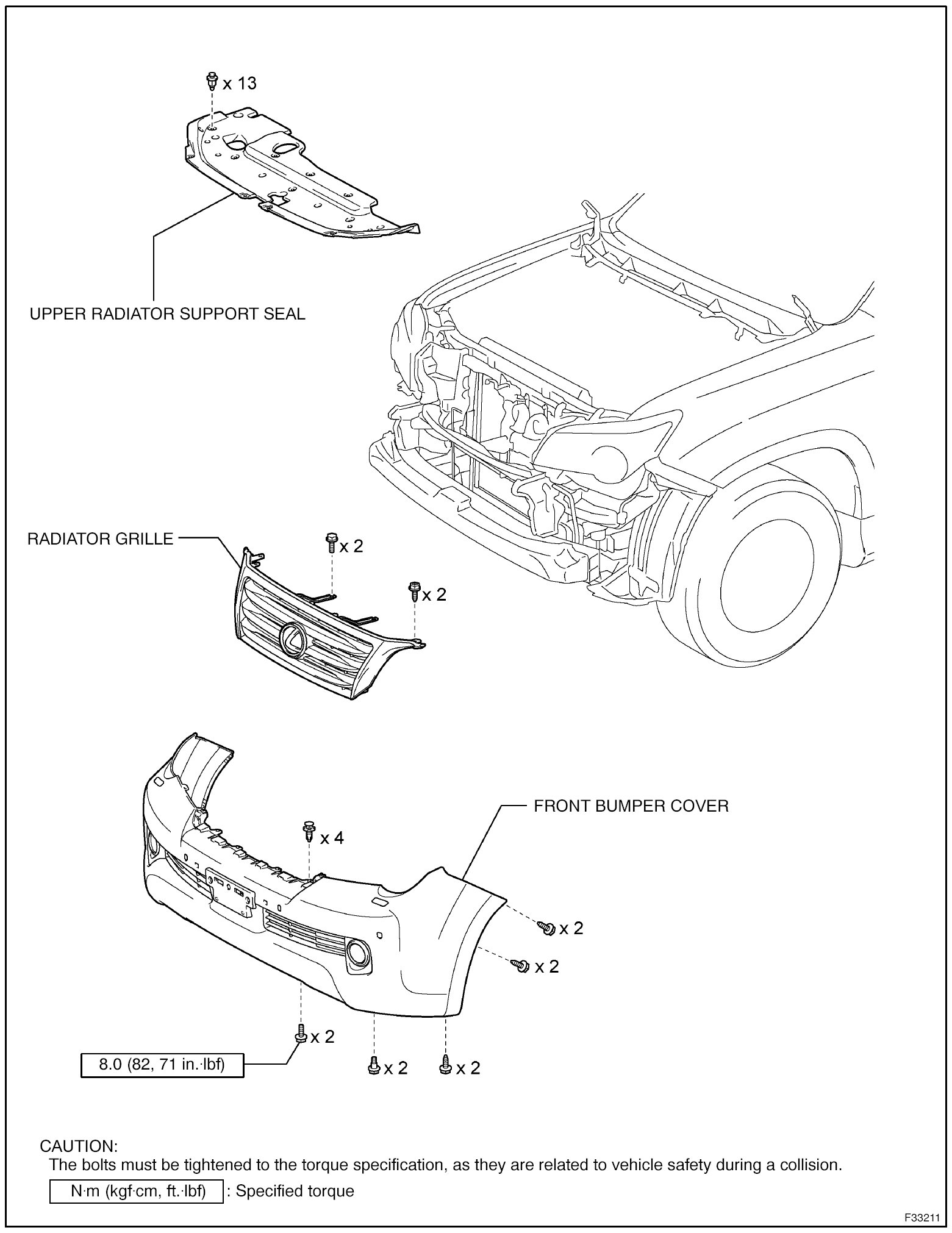

a.
FRONT
BUMPER

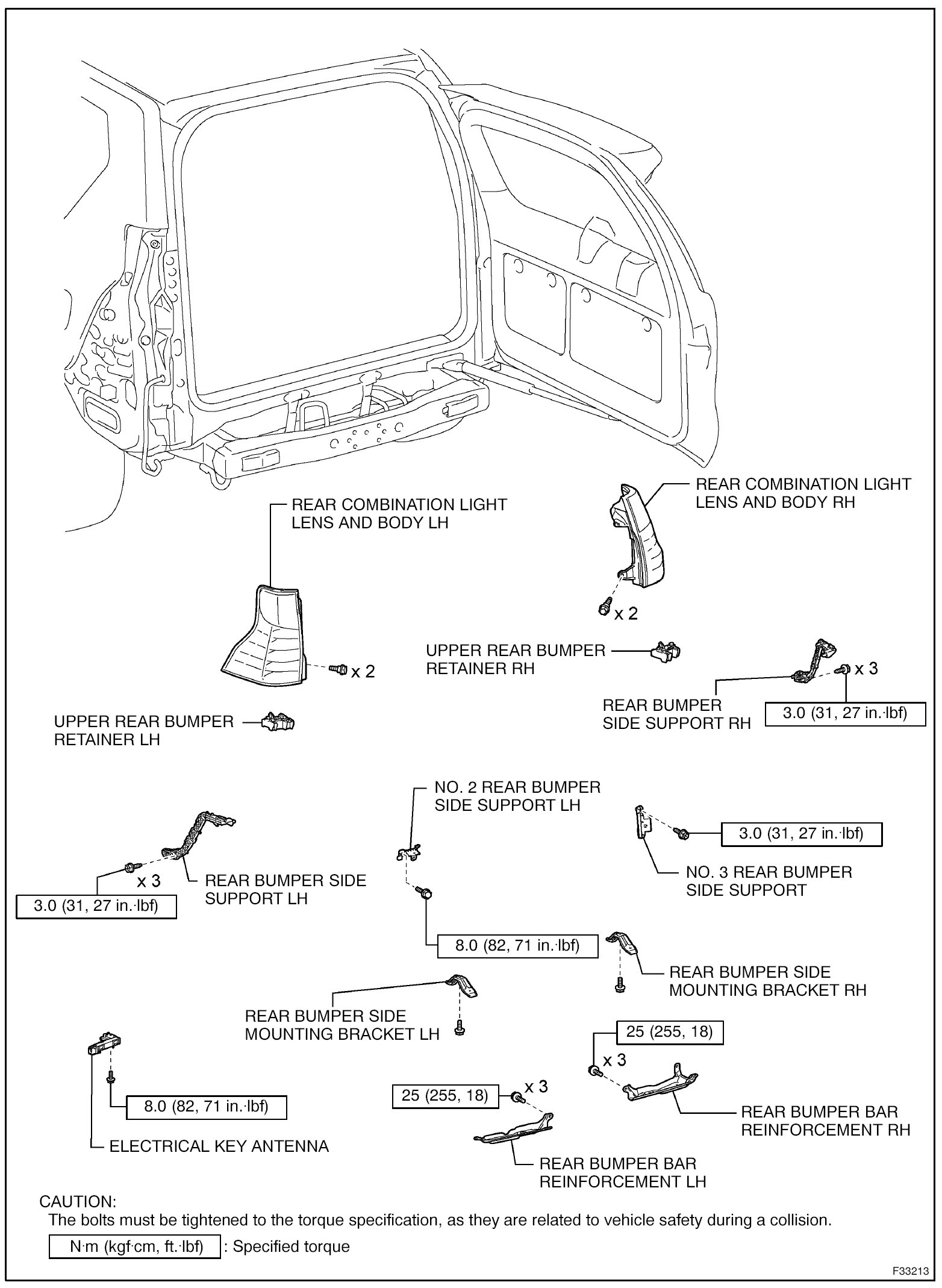

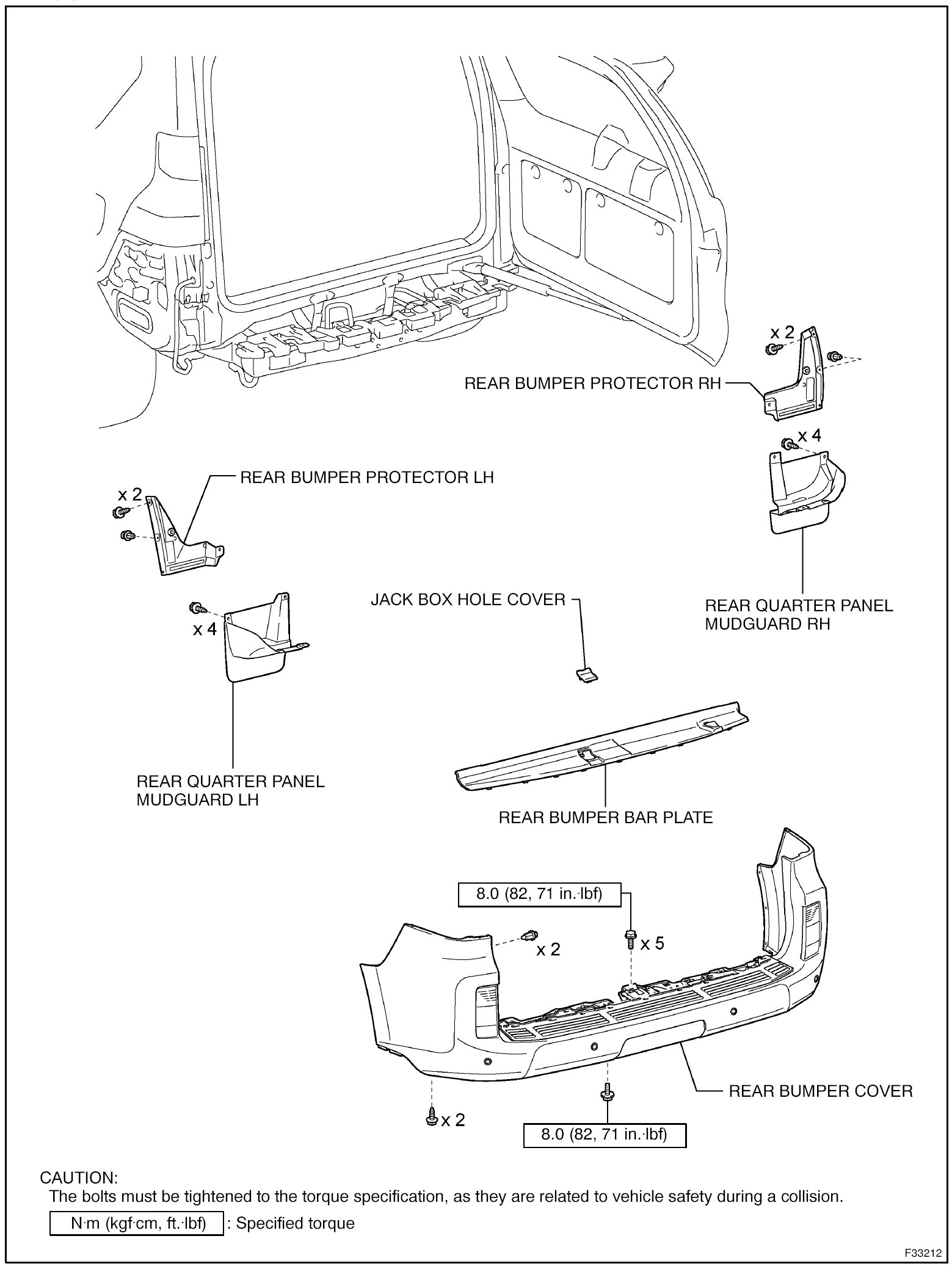

b.
REAR
BUMPER

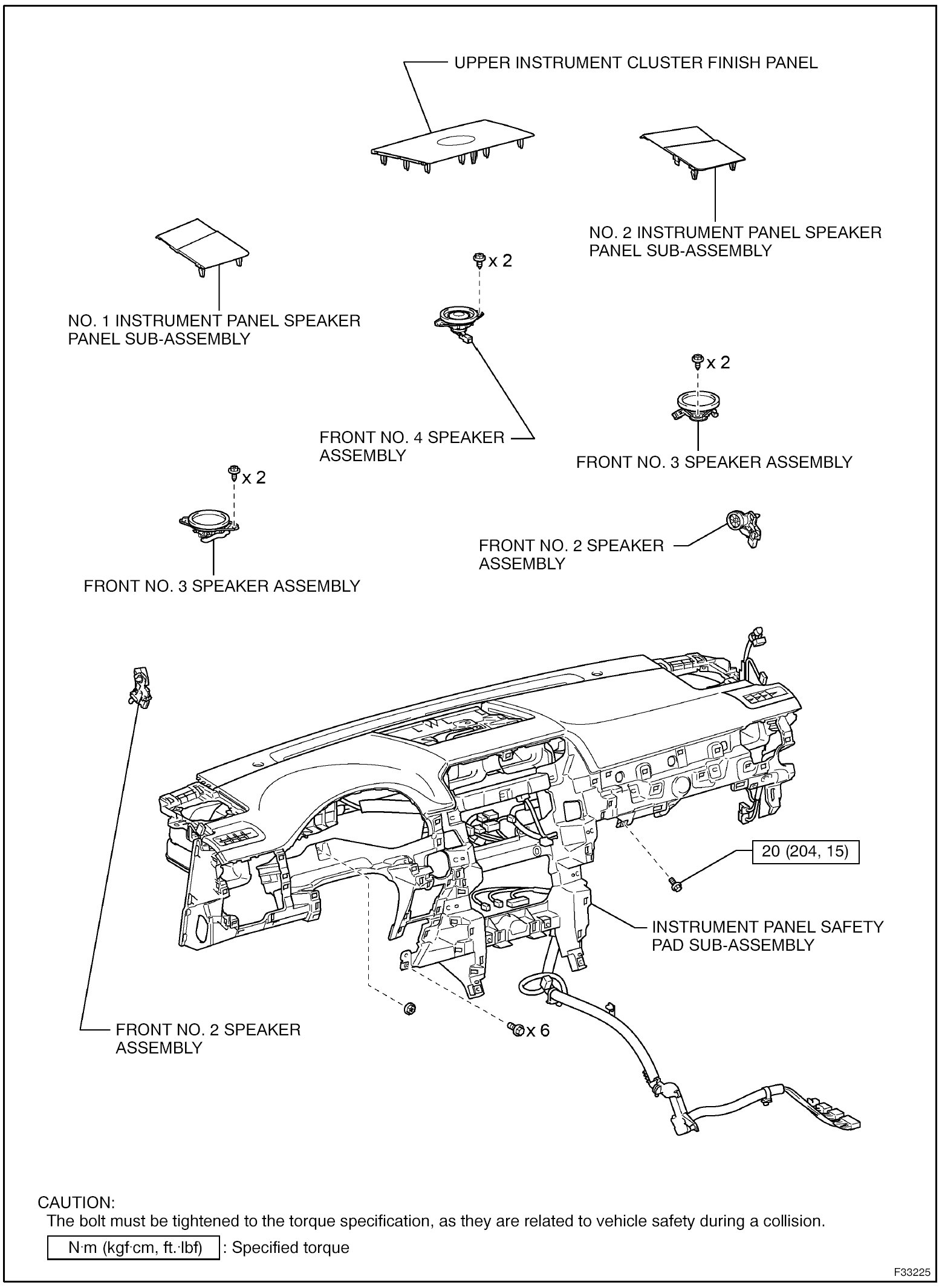

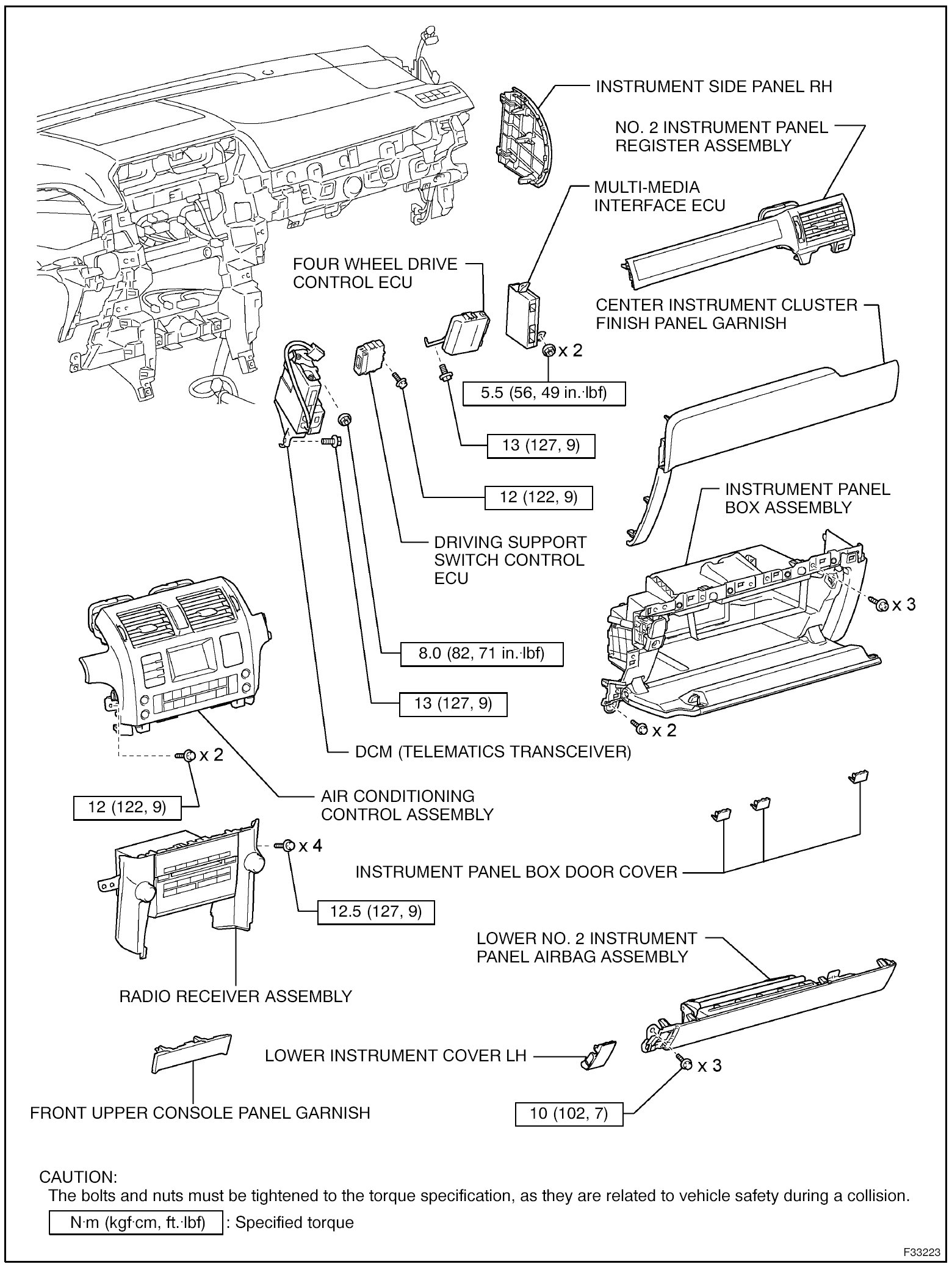

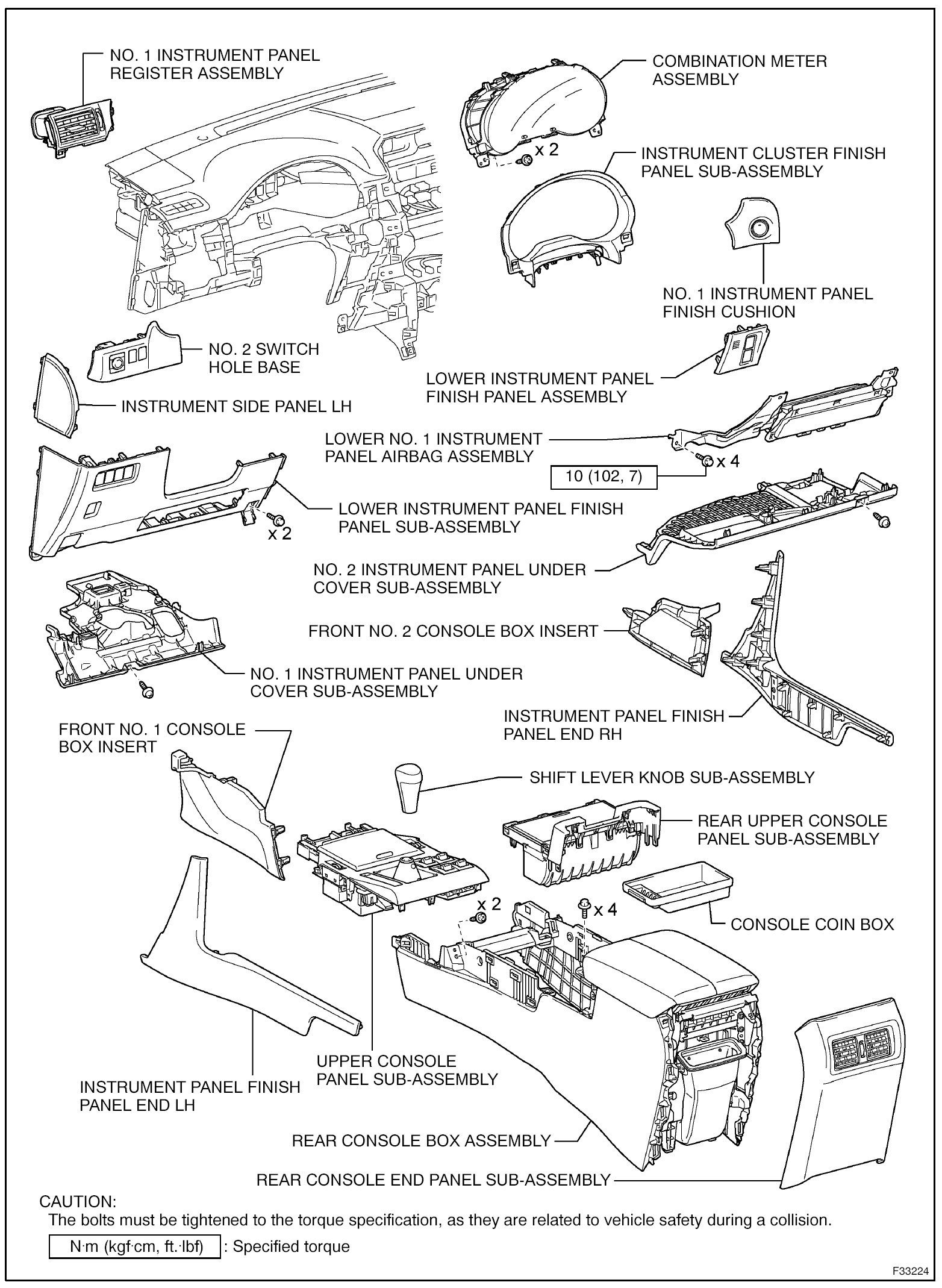

c.
INSTRUMENT PANEL

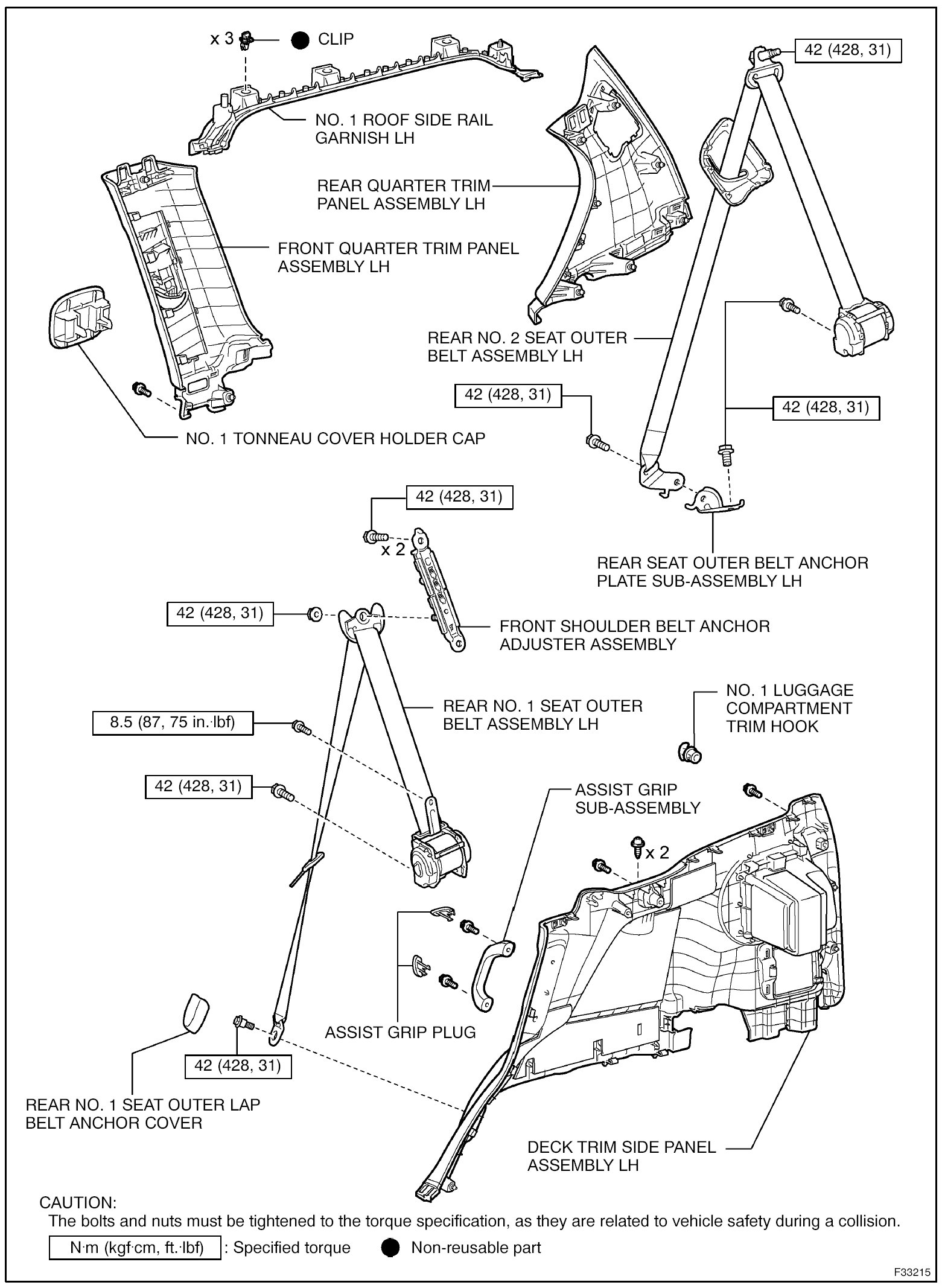

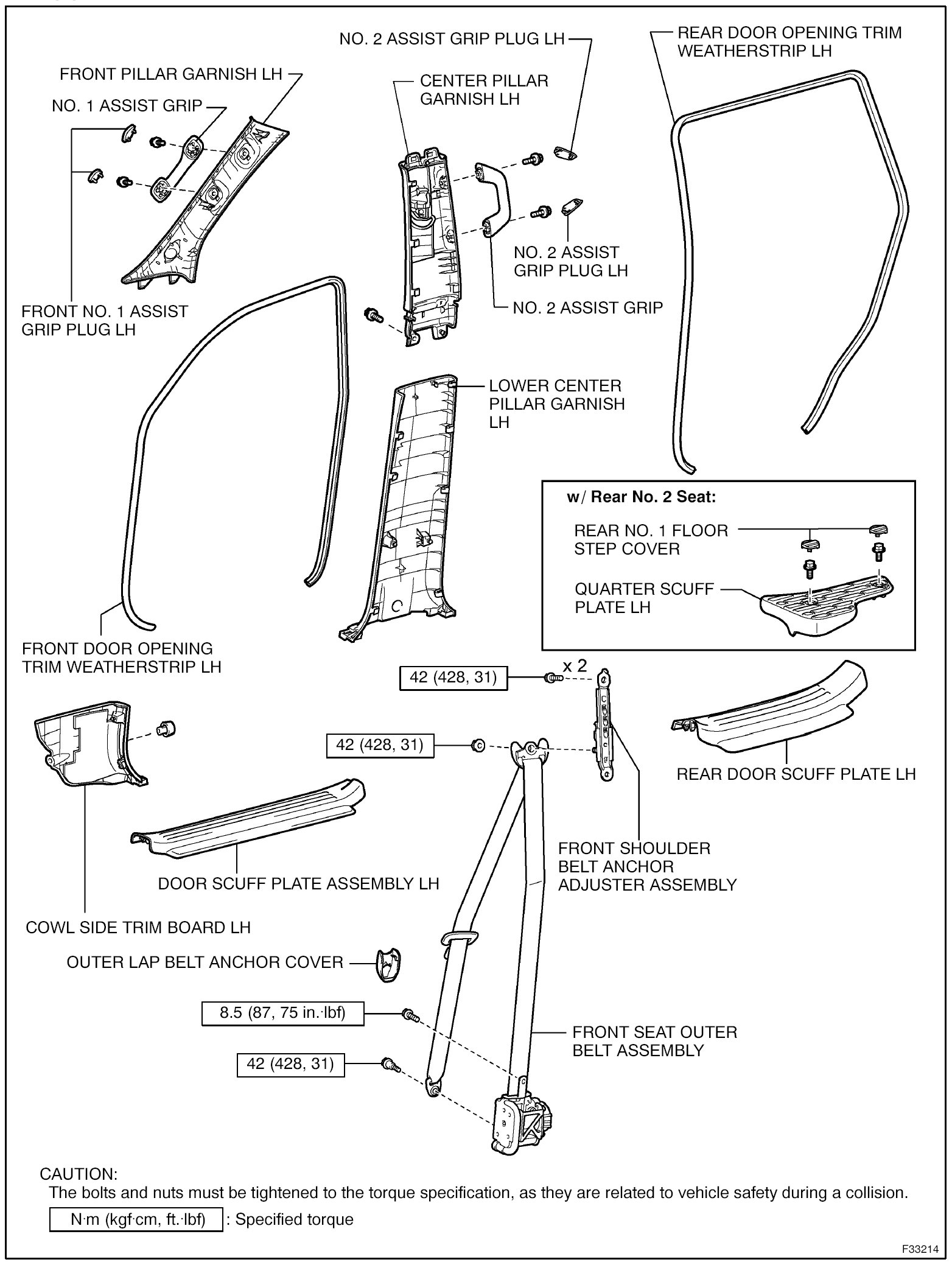

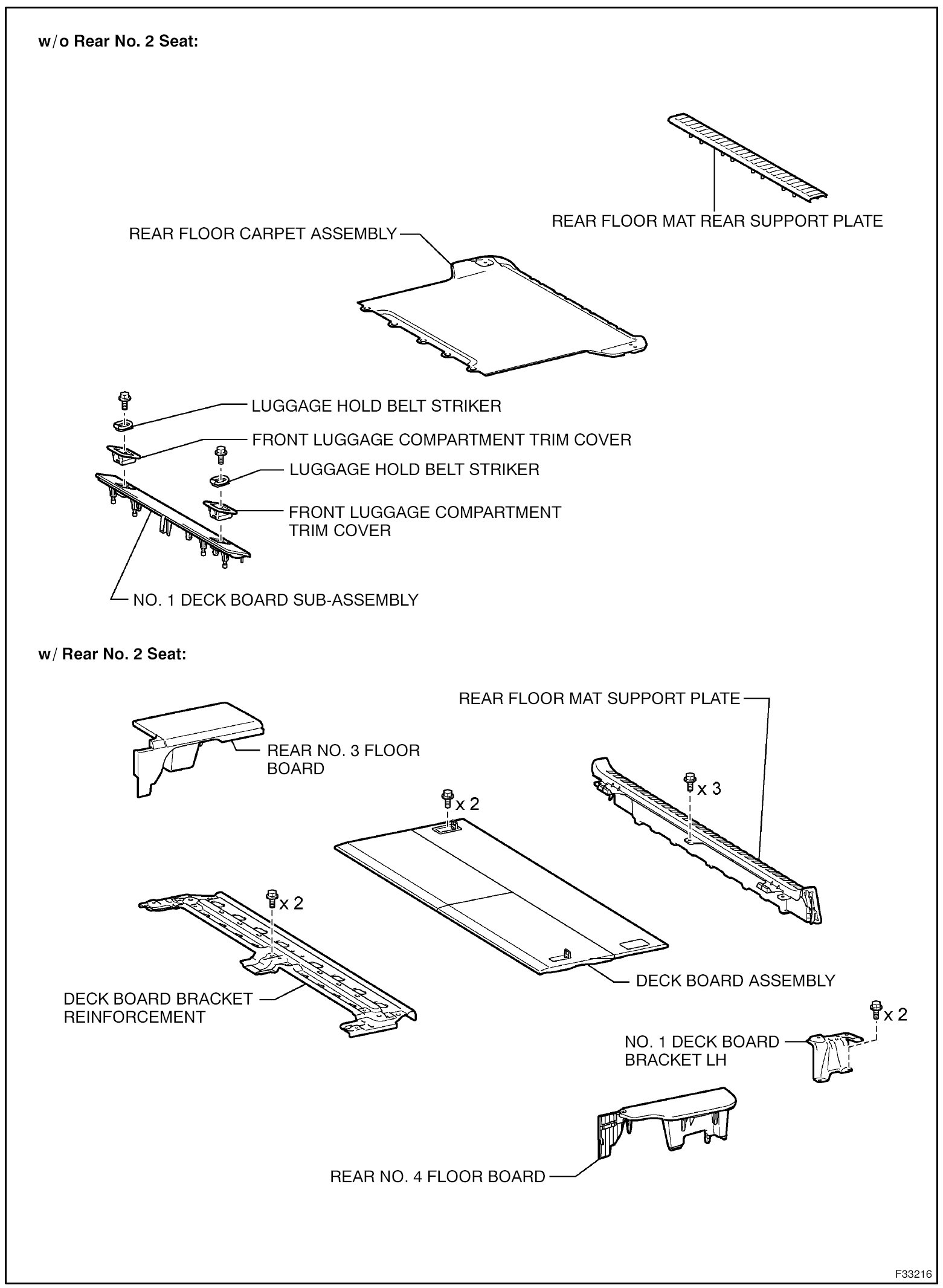

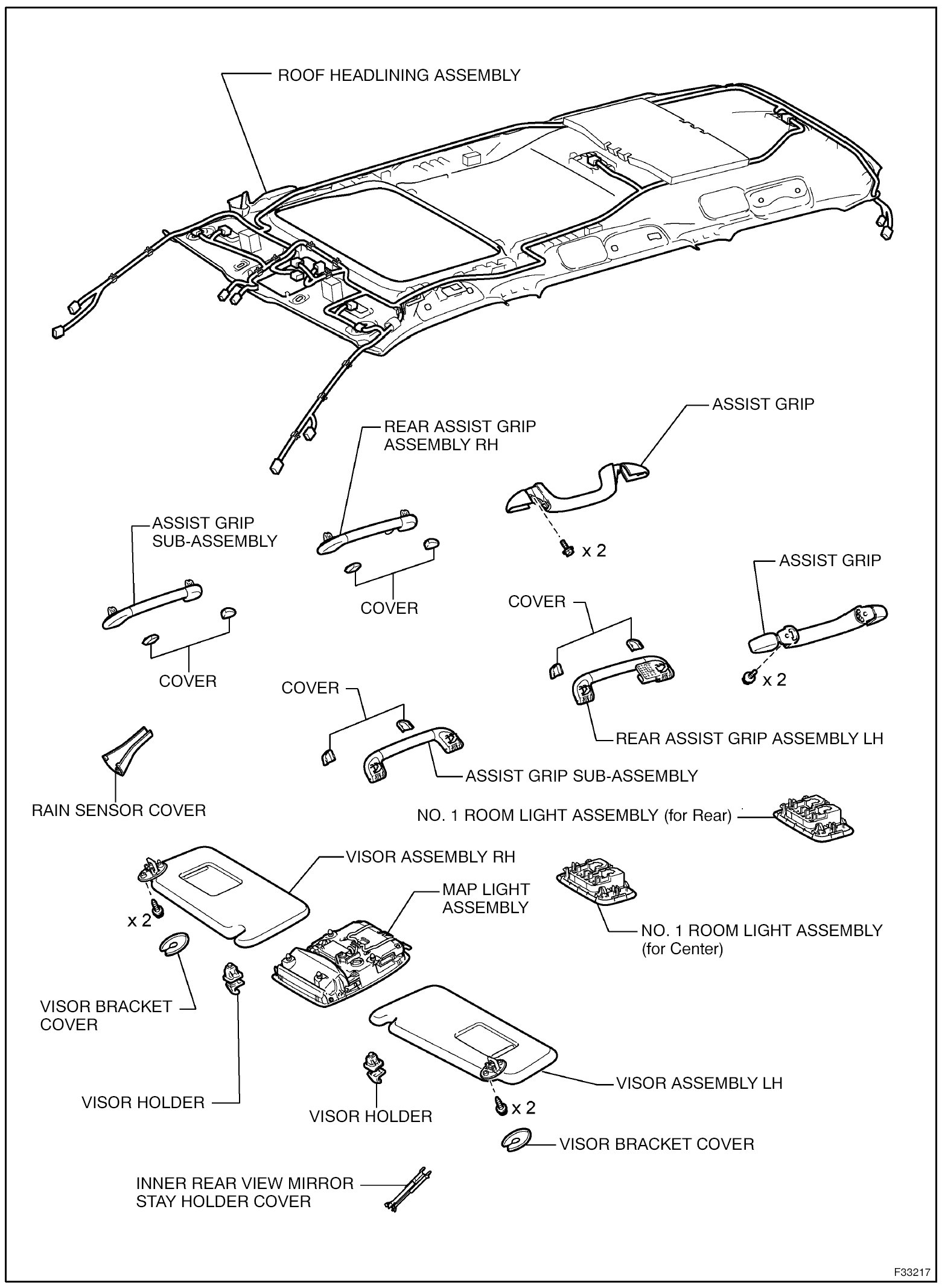

d.
INTERIOR TRIM

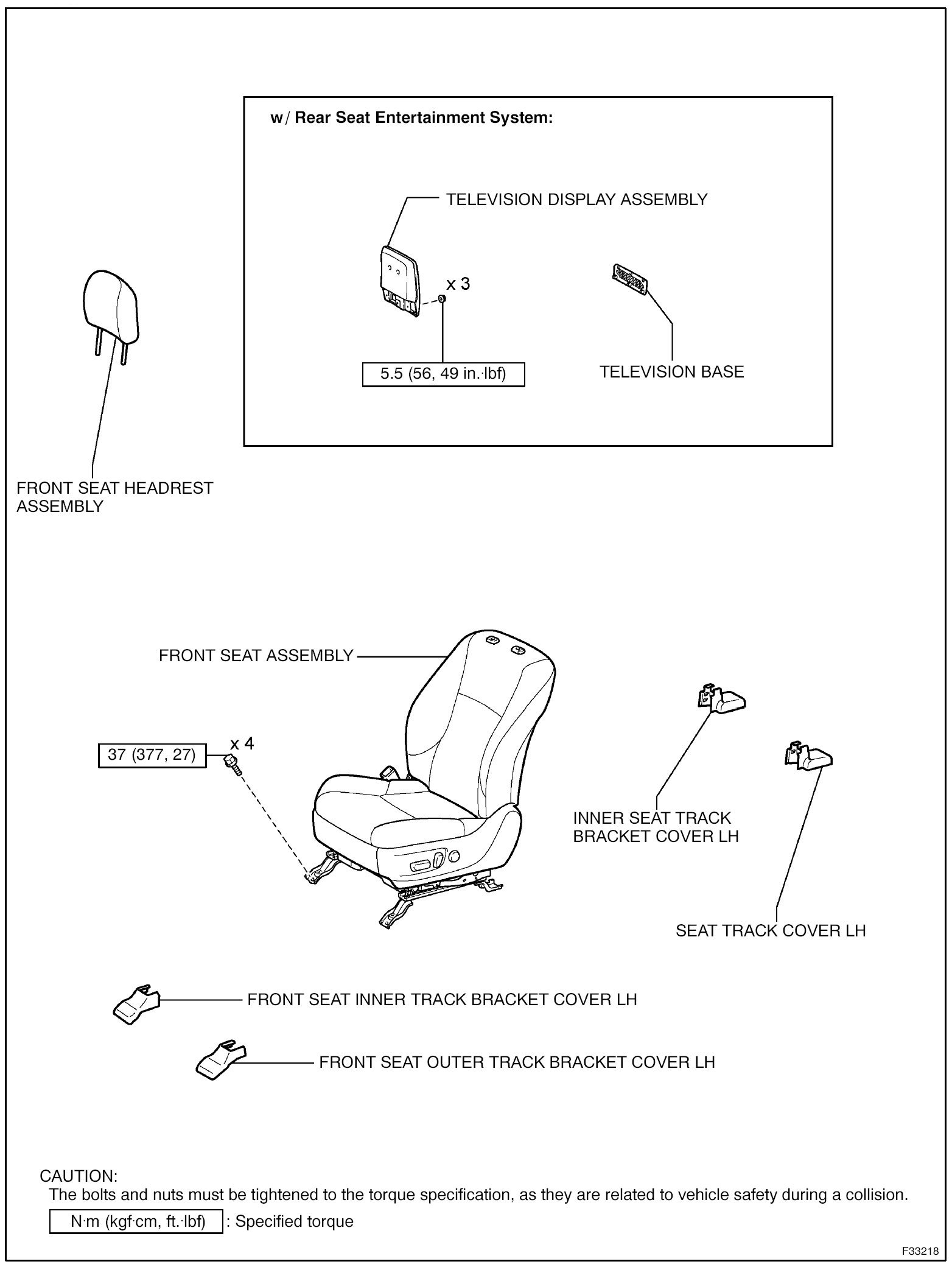

e.
FRONT SEAT

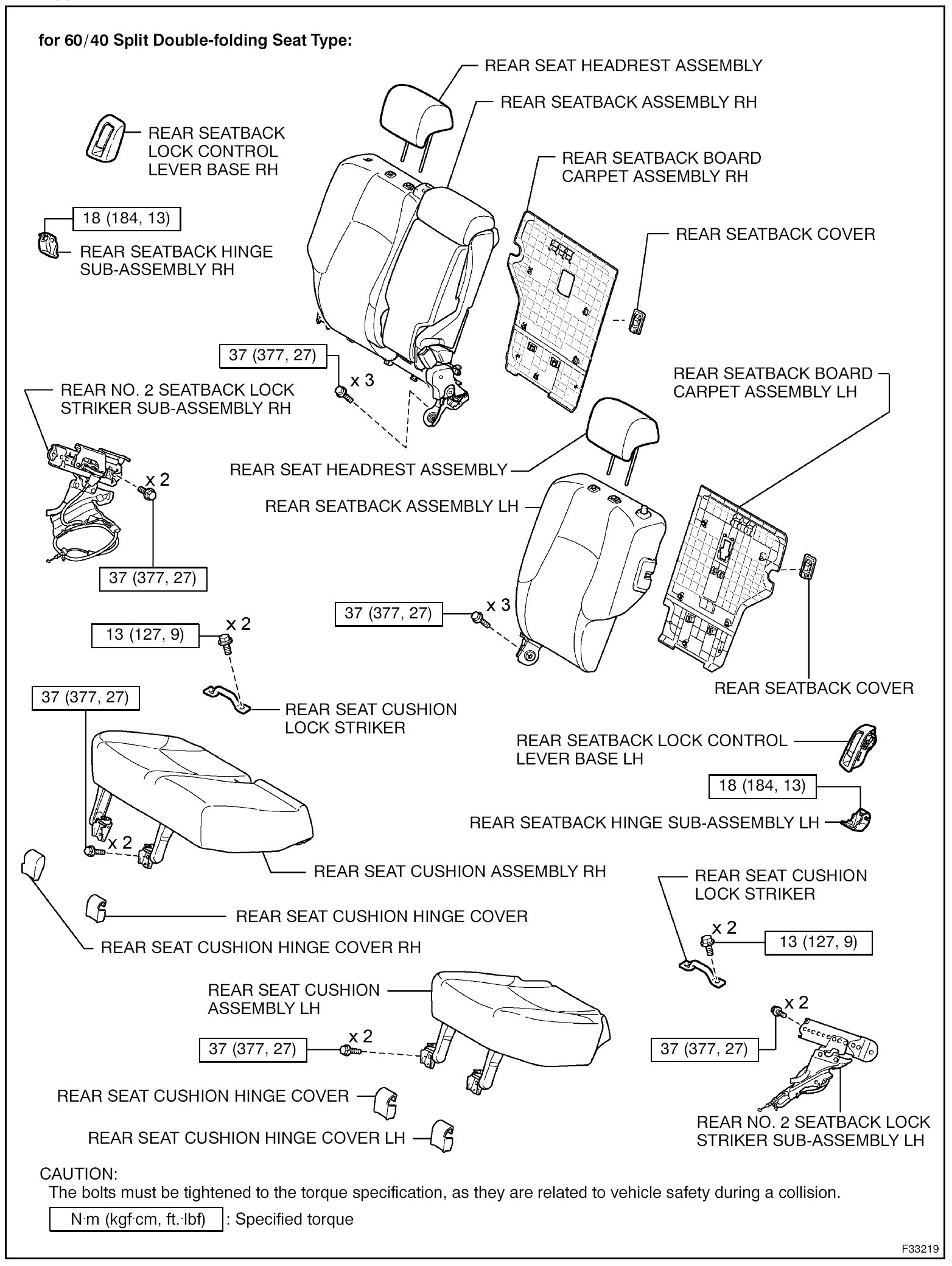

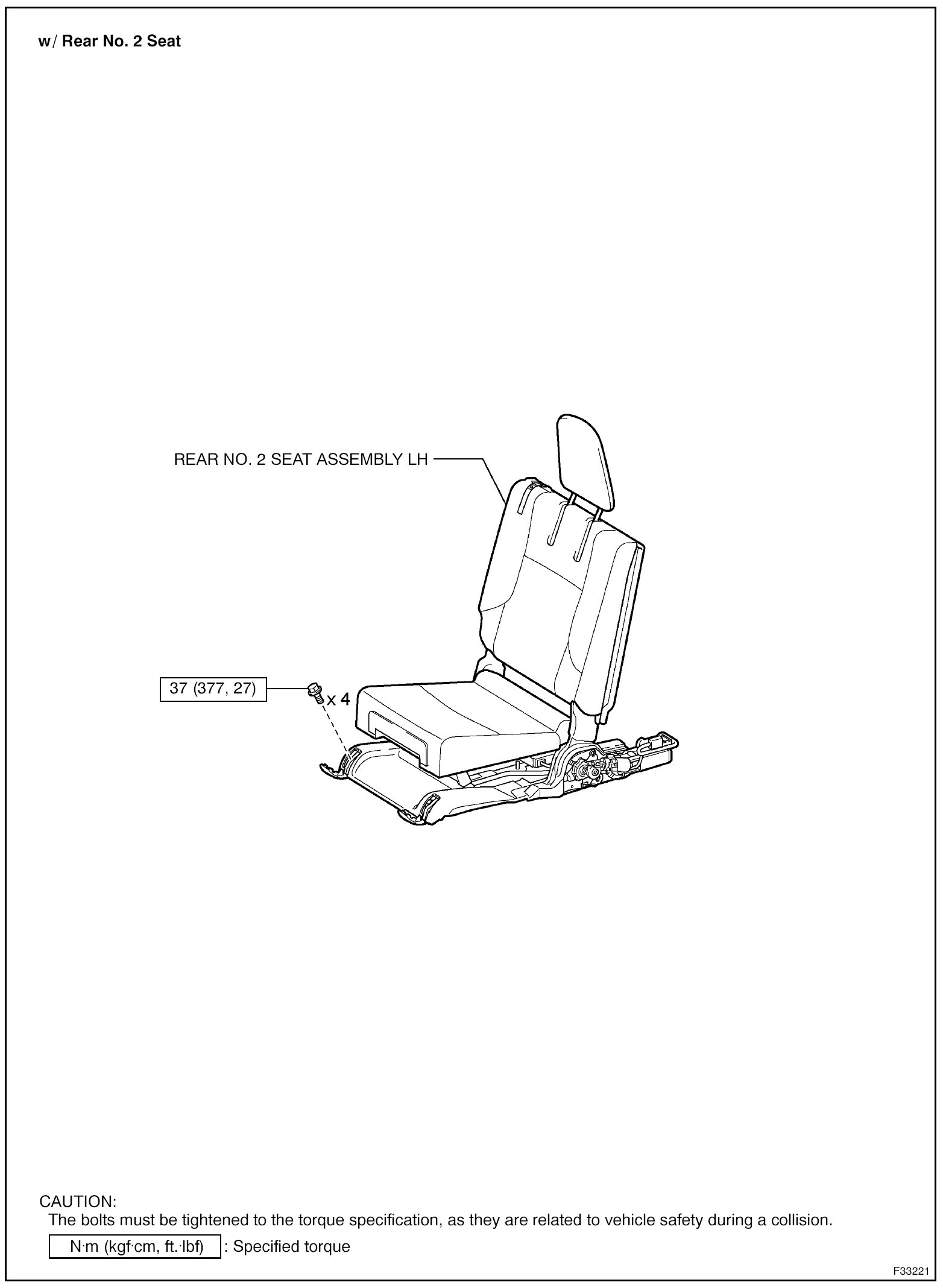

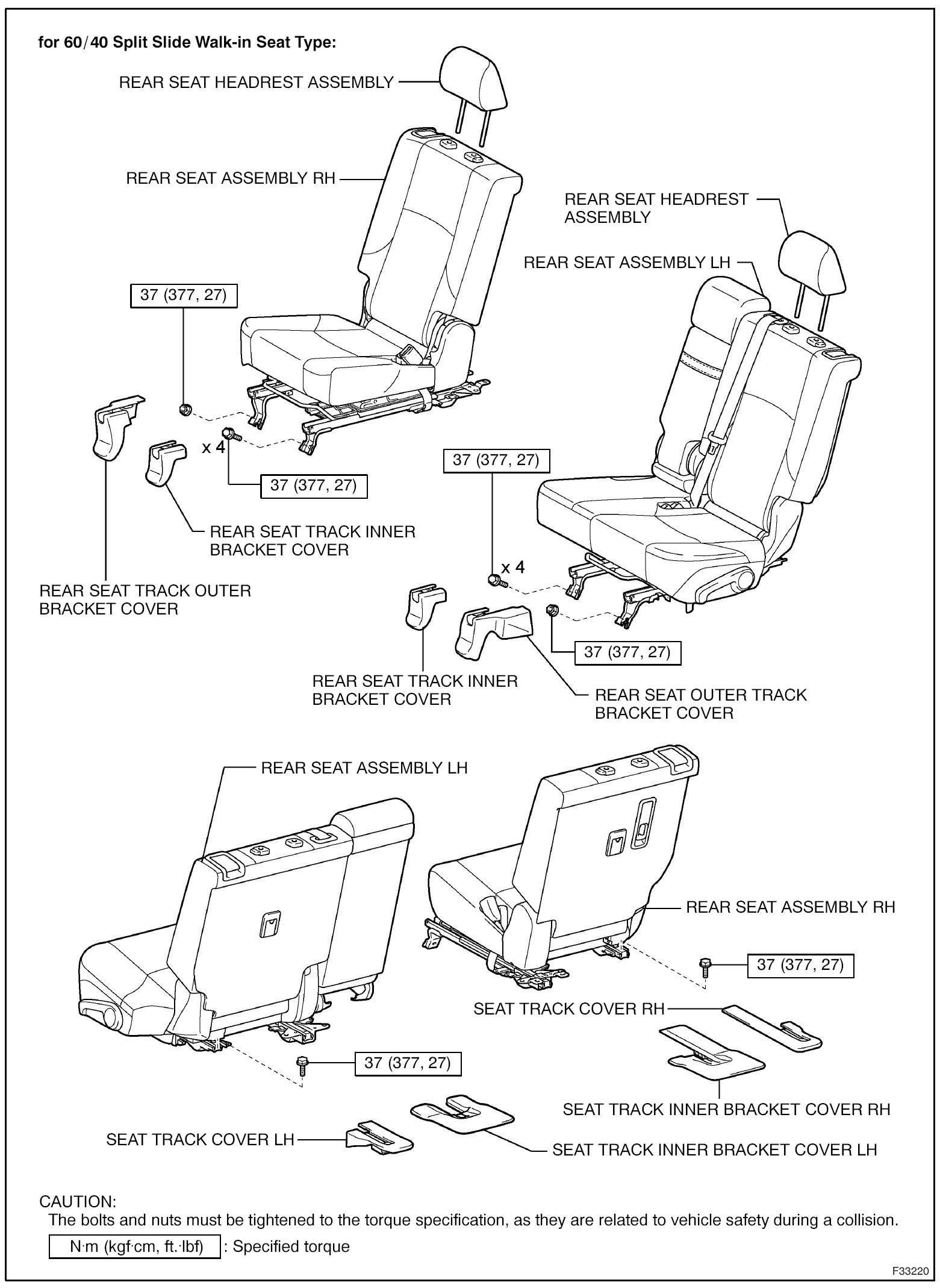

f.
REAR SEAT
