Part 3
1UR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST - Continued
6. EVAP System
Vacuum Pump
Current Fuel Type
EVAP (Purge) VSV
Evap Purge Flow

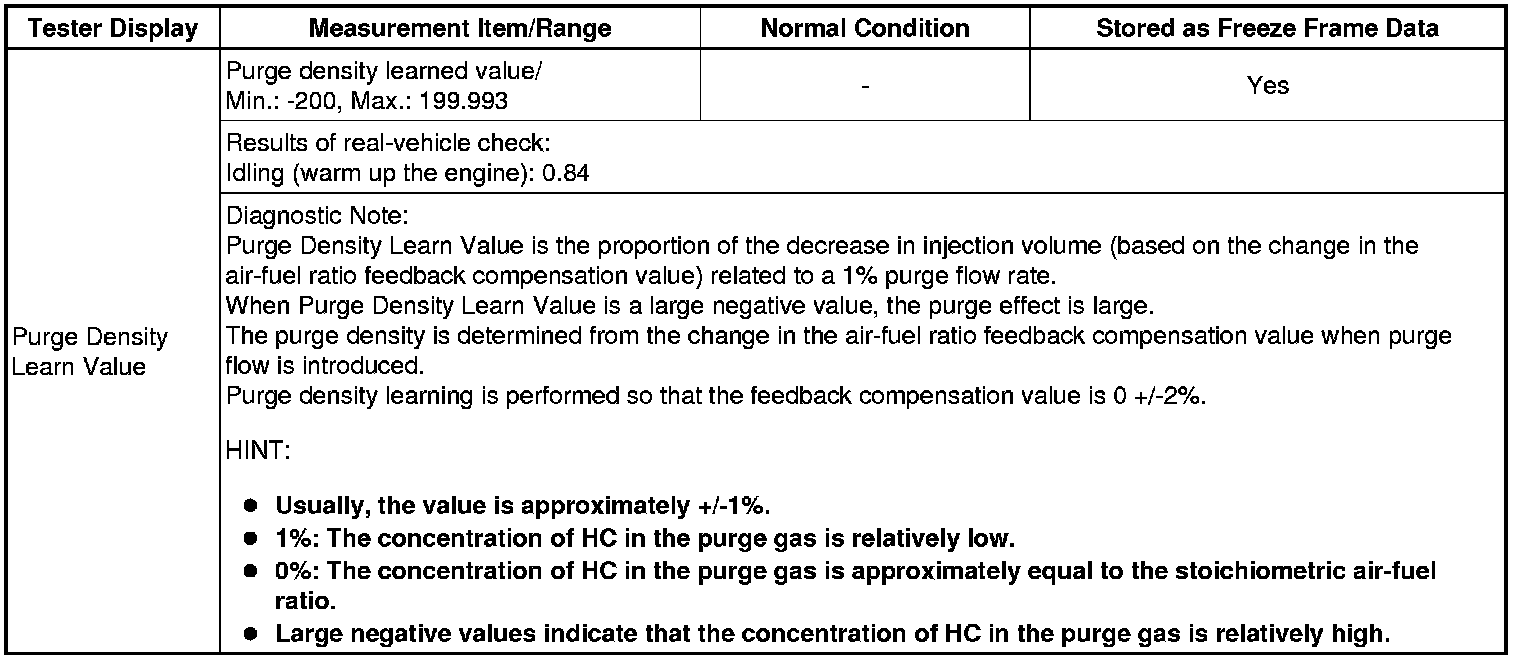

Purge Density Learn Value
Vapor Pressure Pump
Vapor Pressure (Calculated)
EVAP System Vent Valve
EVAP Purge VSV
Purge Cut VSV Duty
7. Air Fuel Ratio Control

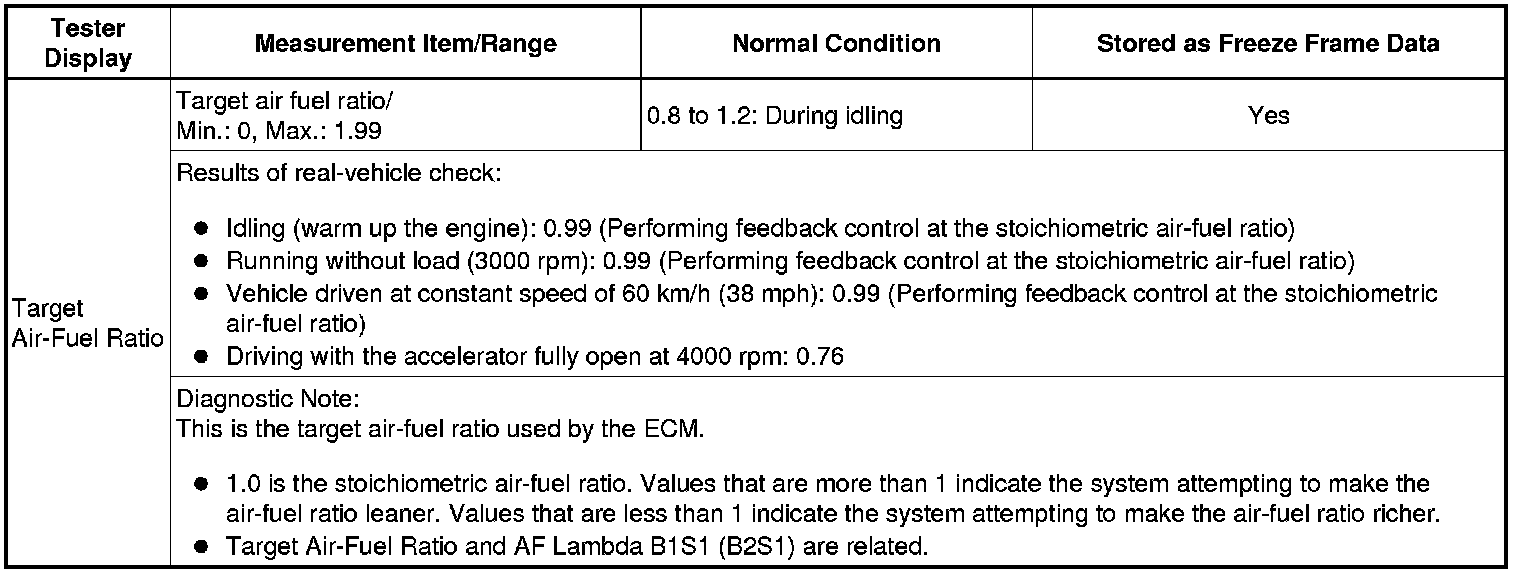

Target Air-Fuel Ratio

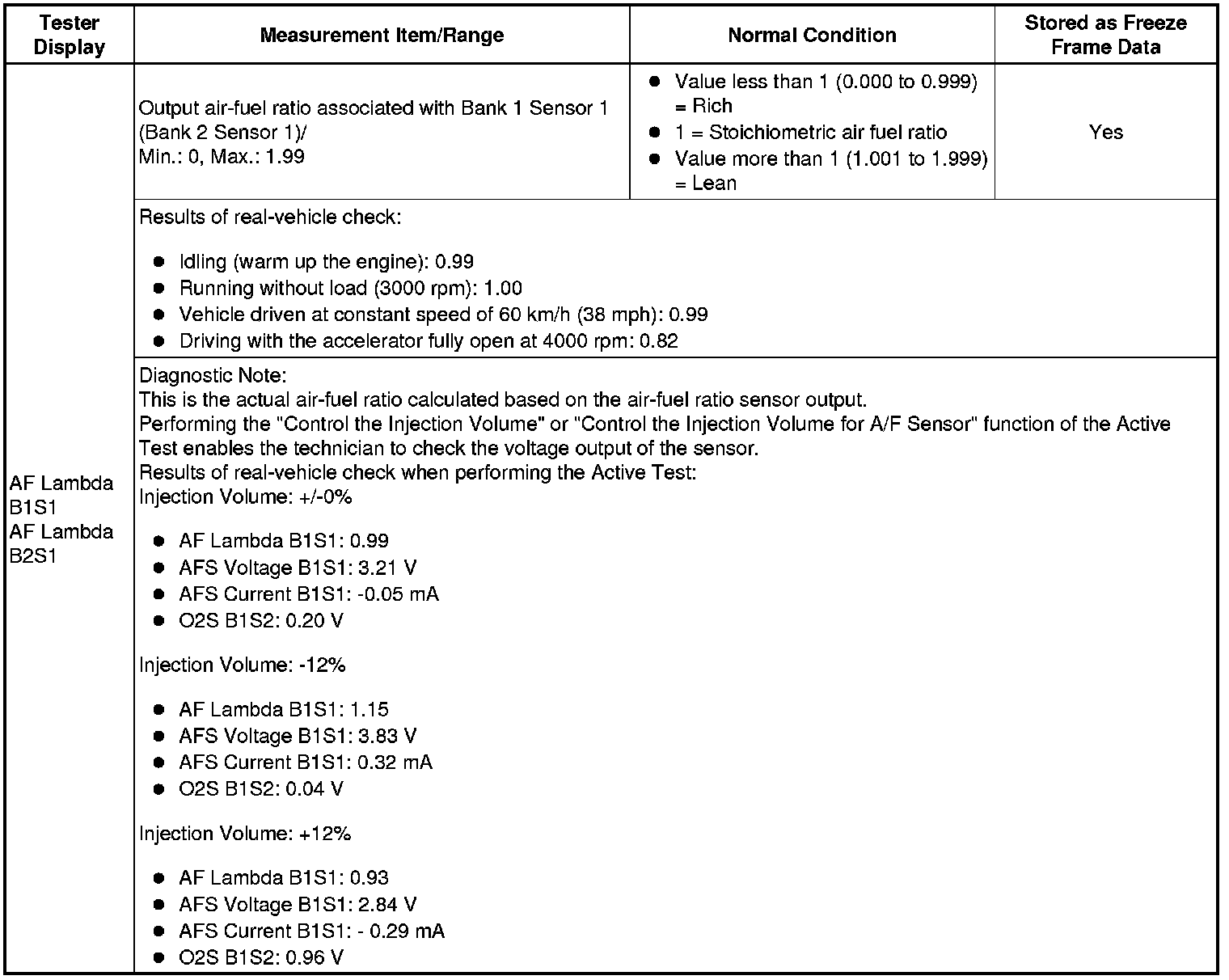

AF Lambda B1S1, B2S1

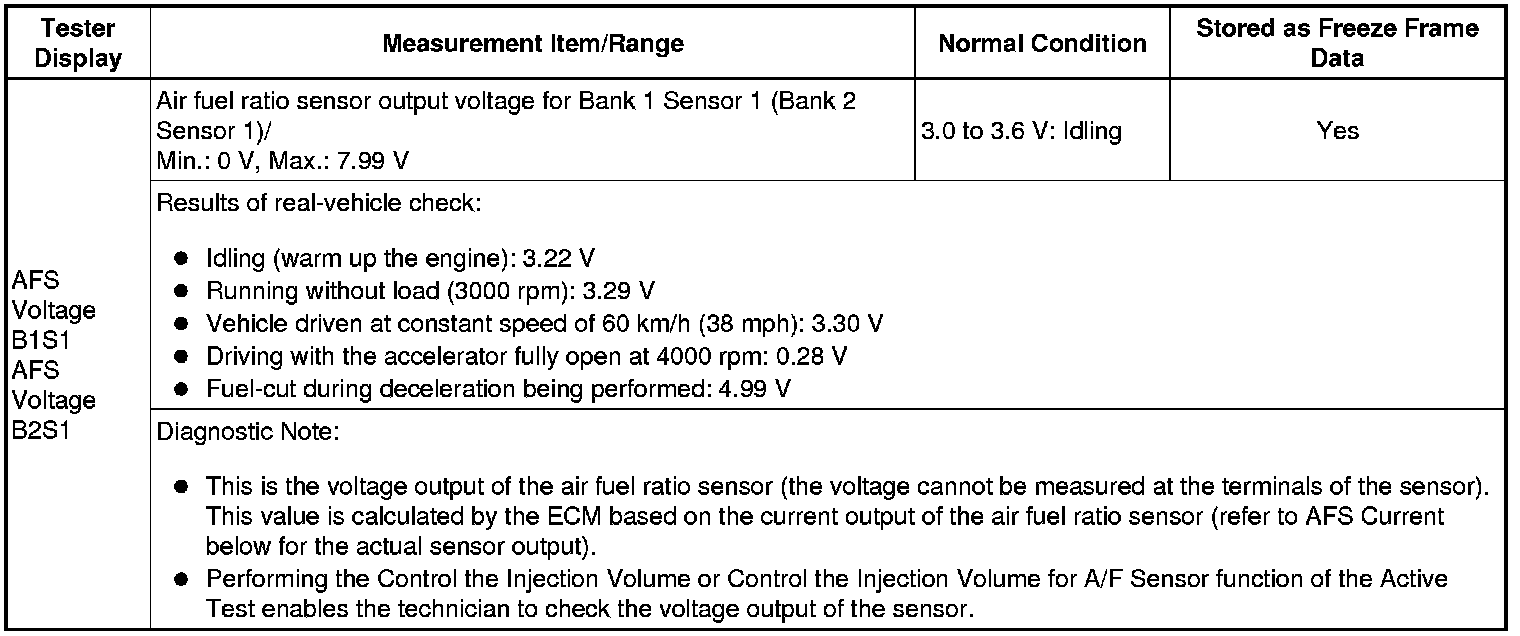

AFS Voltage B1S1, B2S1

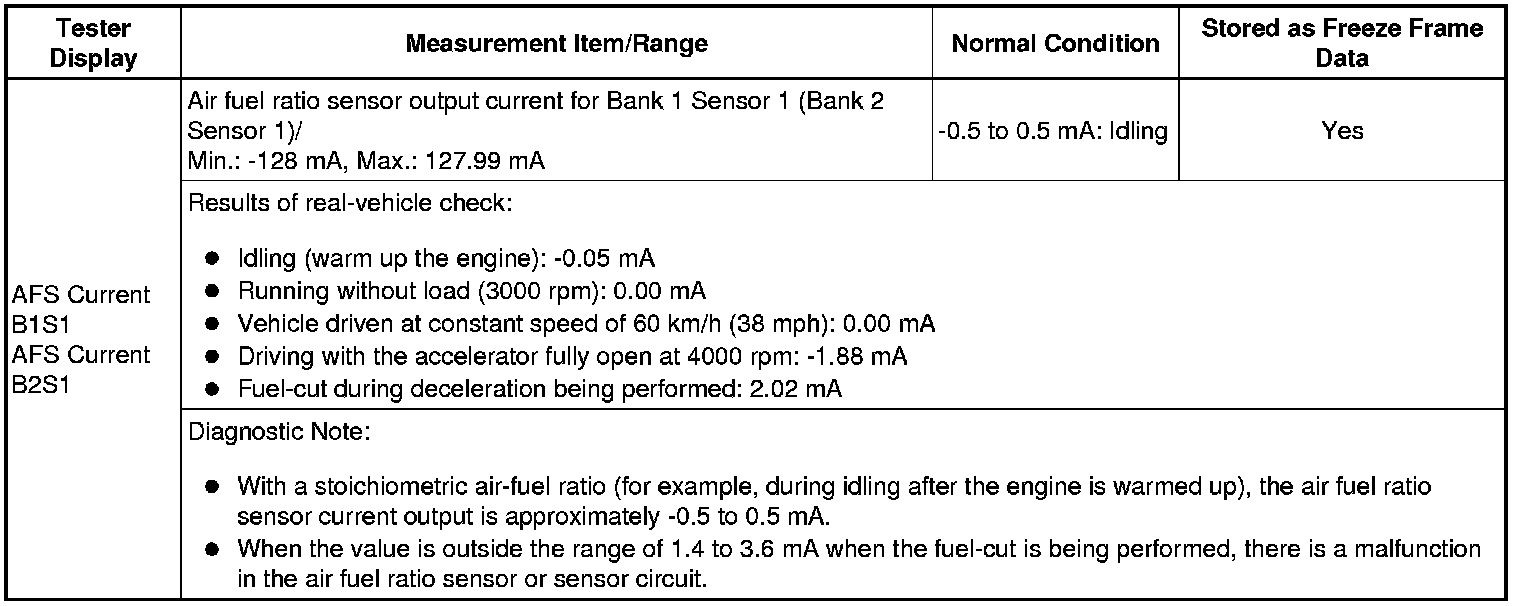

AFS Current B1S1, B2S1
A/F Heater Duty #1, #2

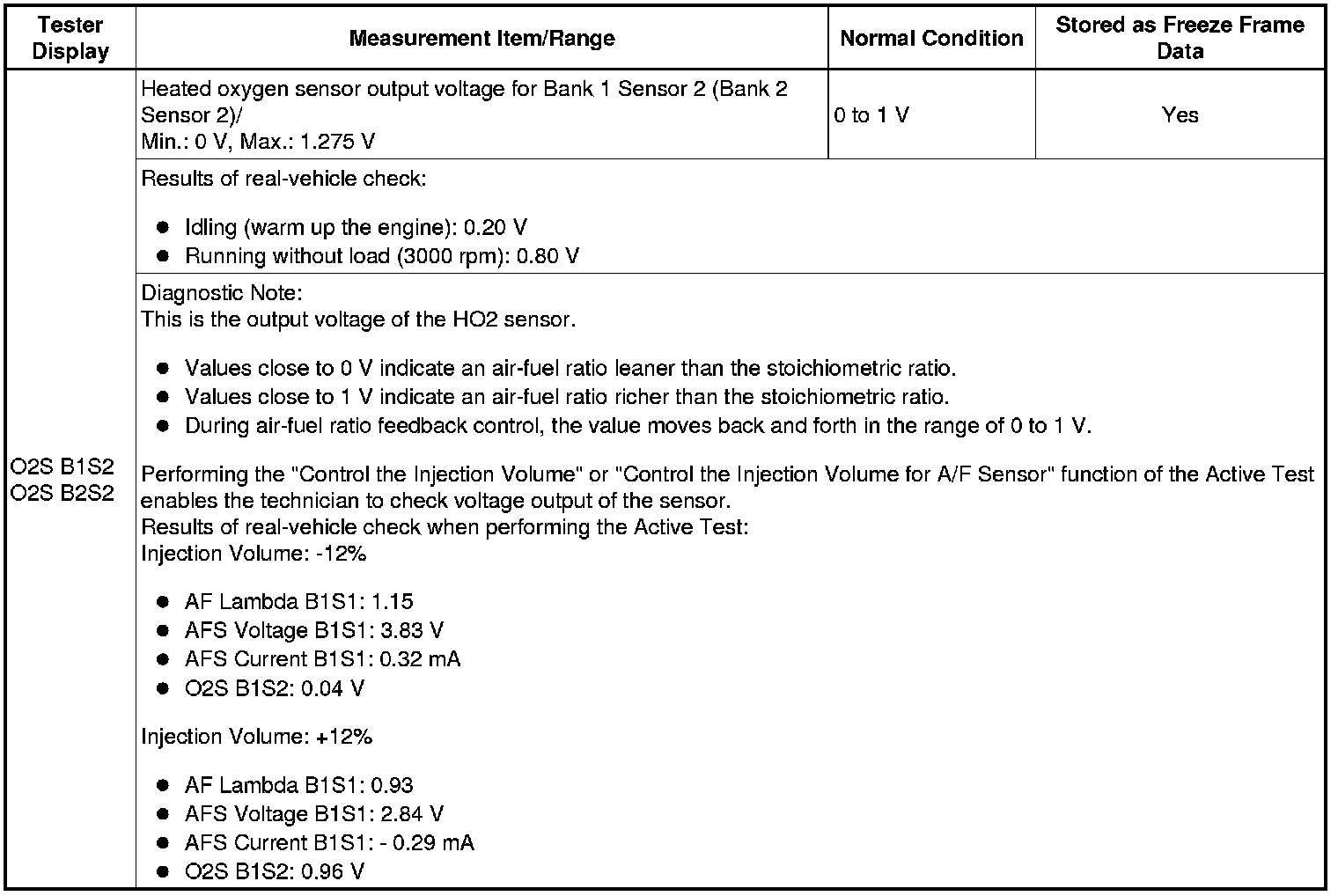

O2S B1S2, B2S2
O2S Impedance B1S2, B2S2
O2 Heater B1S2, B2S2
O2 Heater Curr Val B1S2, B2S2
Short FT #1, #2

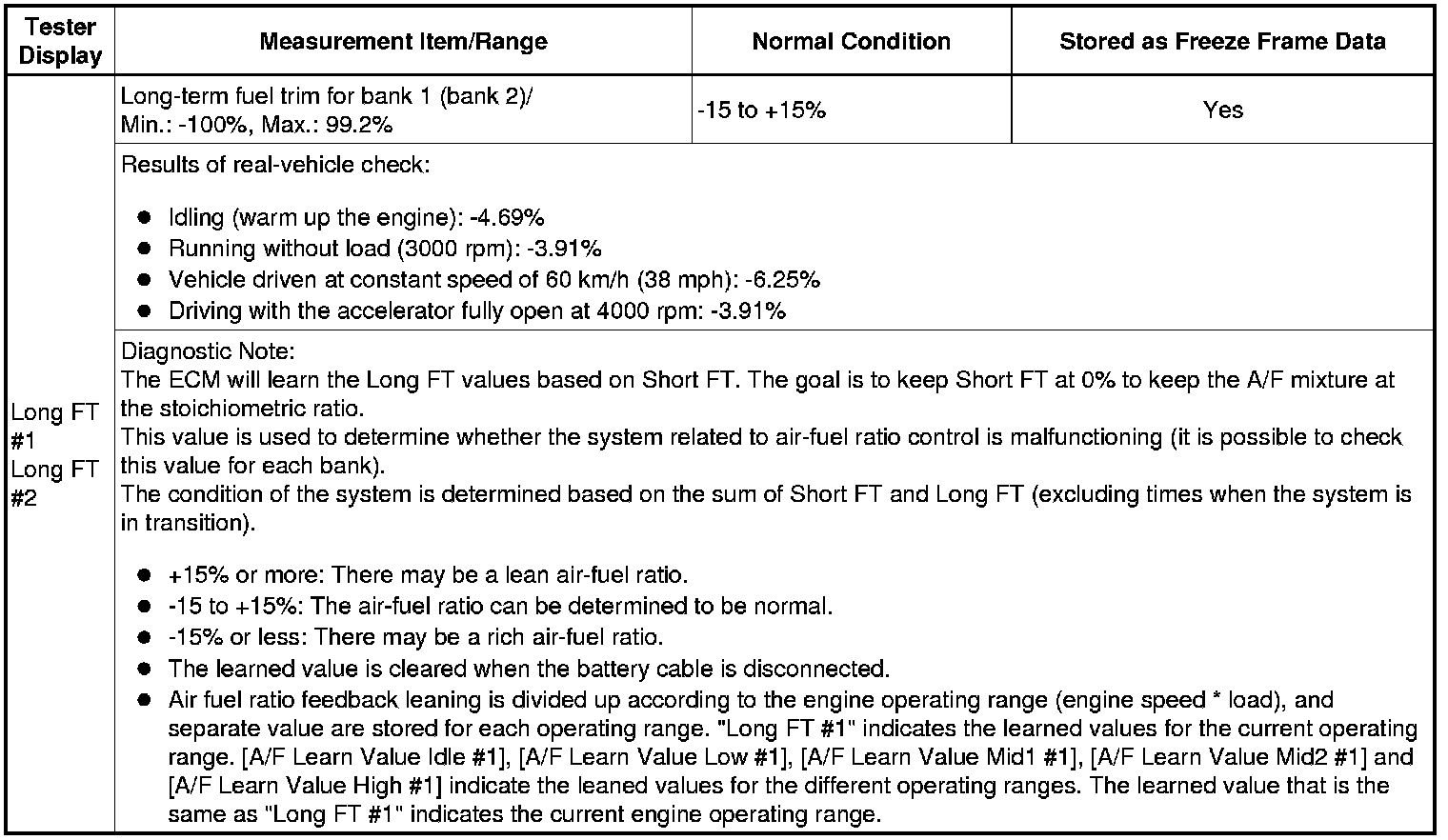

Long FT #1, #2
A/F Learn Value Idle #1, #2
A/F Learn Value Low #1, #2
A/F Learn Value Mid1 #1, #2
A/F Learn Value Mid2 #1, #2
A/F Learn Value High #1, #2
Total FT #1, #2
Fuel System Status #1, #2
