Interior Lighting System

LIGHTING (INT): LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE LIGHTING SYSTEM (INT)

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.

(a) Customizing with the Techstream

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Customize Setting / Illuminated Entry.

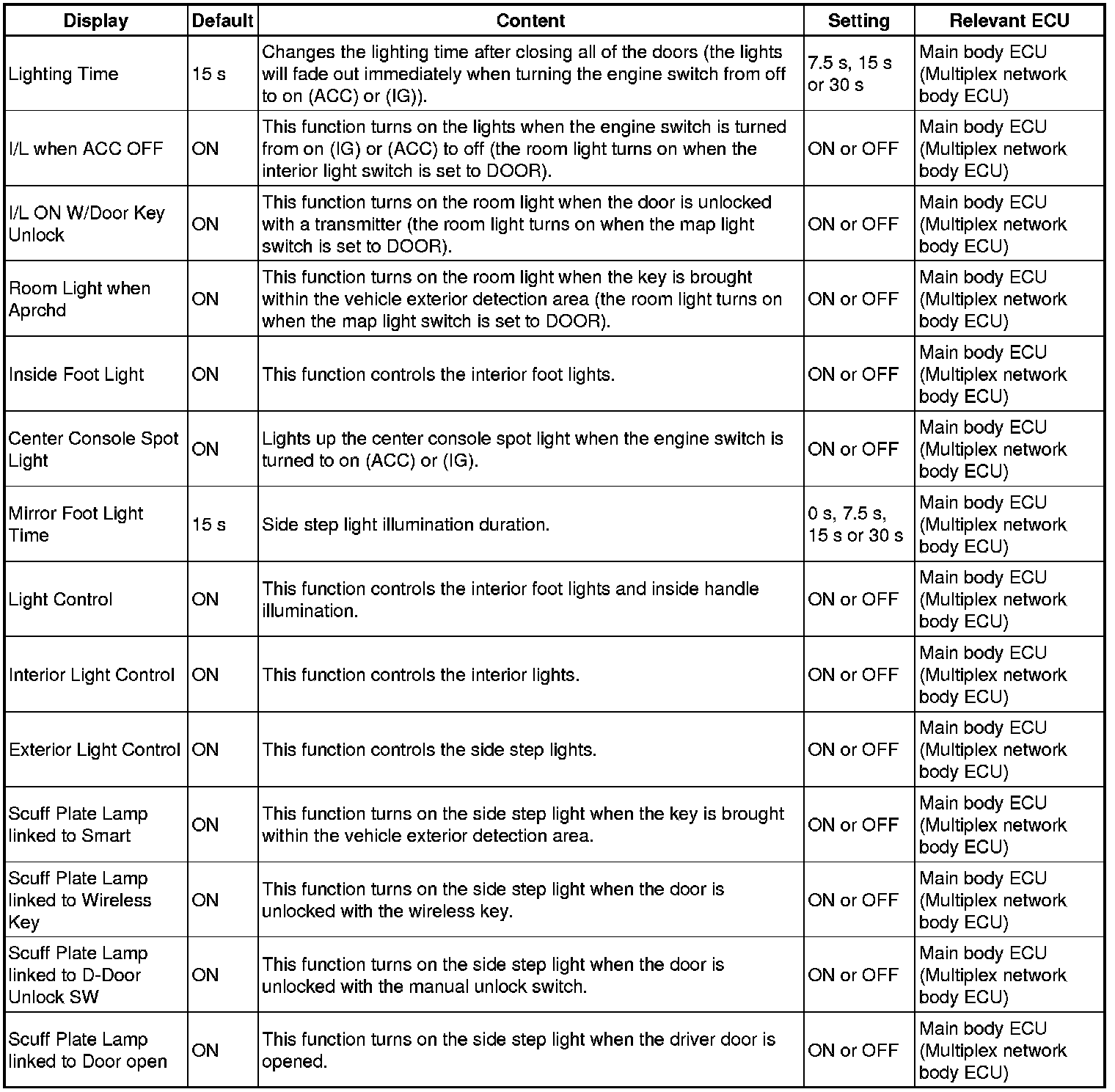

(5) Select the setting by referring to the table below.





(b) Customizing with Multi-display

(1) Turn the engine switch on (IG).

(2) Select the following menus: Setup / Vehicle / Vehicle Customization.

(3) Select the setting by referring to the table below.





(c) Customizing with Multi-information display

(1) Turn the engine switch on (IG).

(2) With the vehicle stationary or at a vehicle speed of less than 8 km/h (4.9 mph), press and hold the menu switch on the steering pad switch to display the meter customize mode screen.

(3) Select the setting by referring to the table below.
