Installation

2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR (for Bank 2)

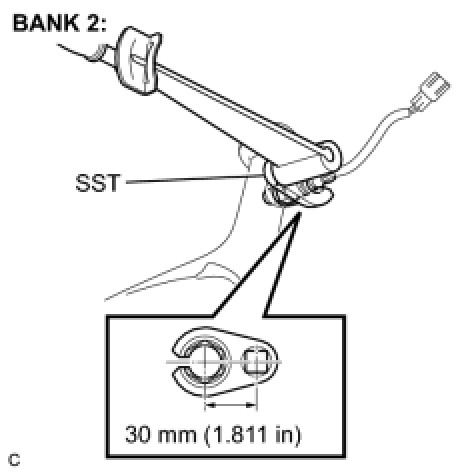

(a) Using SST, install the heated oxygen sensor.





SST : 09224-00010

Torque : 44 Nm (448 kgf-cm, 32 ft-lbf)

NOTICE:
The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST Service Precautions.

2. INSTALL HEATED OXYGEN SENSOR (for Bank 1)

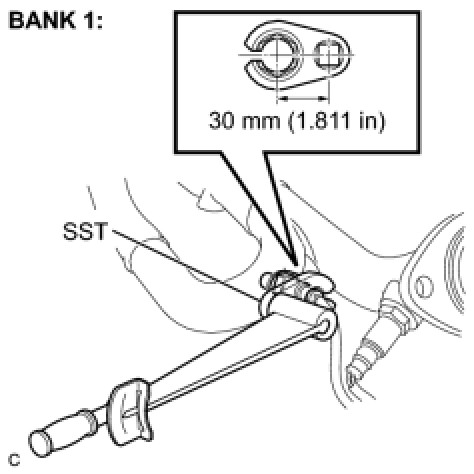

(a) Using SST, install the heated oxygen sensor.





SST : 09224-00010

Torque : 44 Nm (448 kgf-cm, 32 ft-lbf)

NOTICE:
The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST Service Precautions.

3. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

4. INSTALL EXHAUST PIPE NO. 1 SUPPORT BRACKET Installation

5. INSTALL ENGINE UNDER COVER LH

6. INSTALL ENGINE UNDER COVER RH
