Dynamic Radar Cruise Control System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

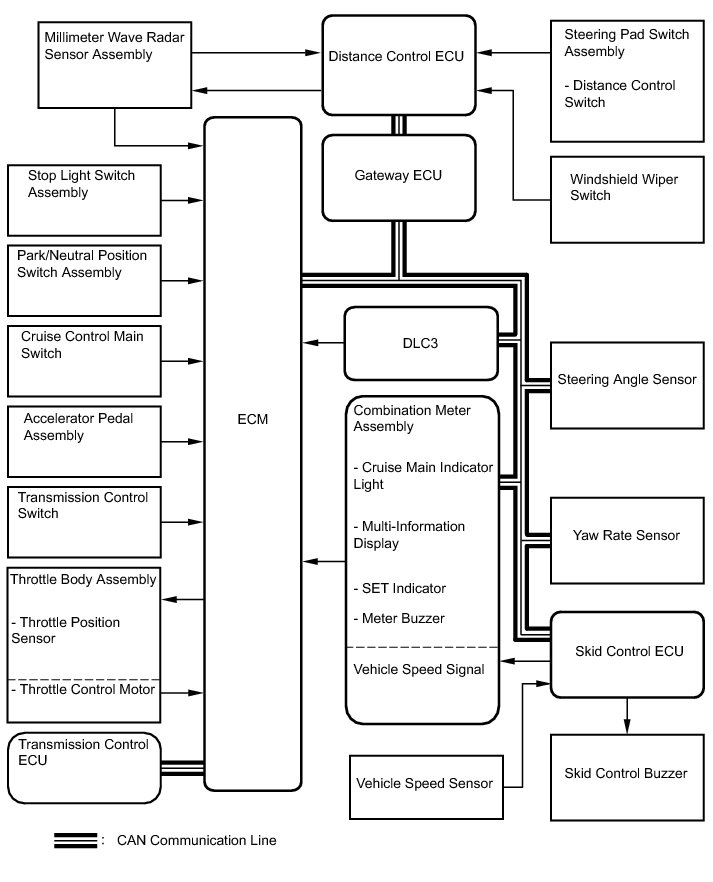

System Diagram
CRUISE CONTROL
: DYNAMIC RADAR CRUISE CONTROL SYSTEM: SYSTEM DIAGRAM

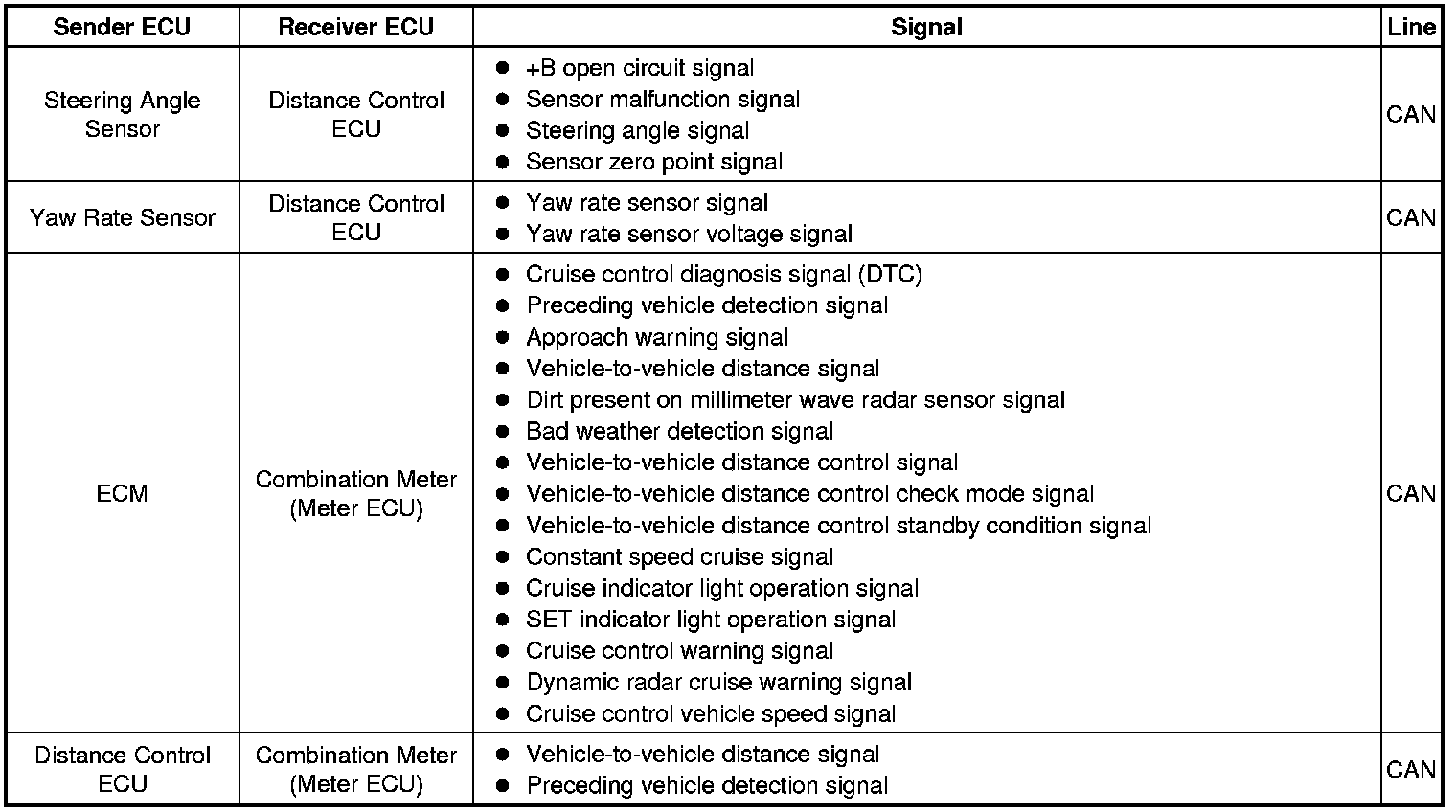

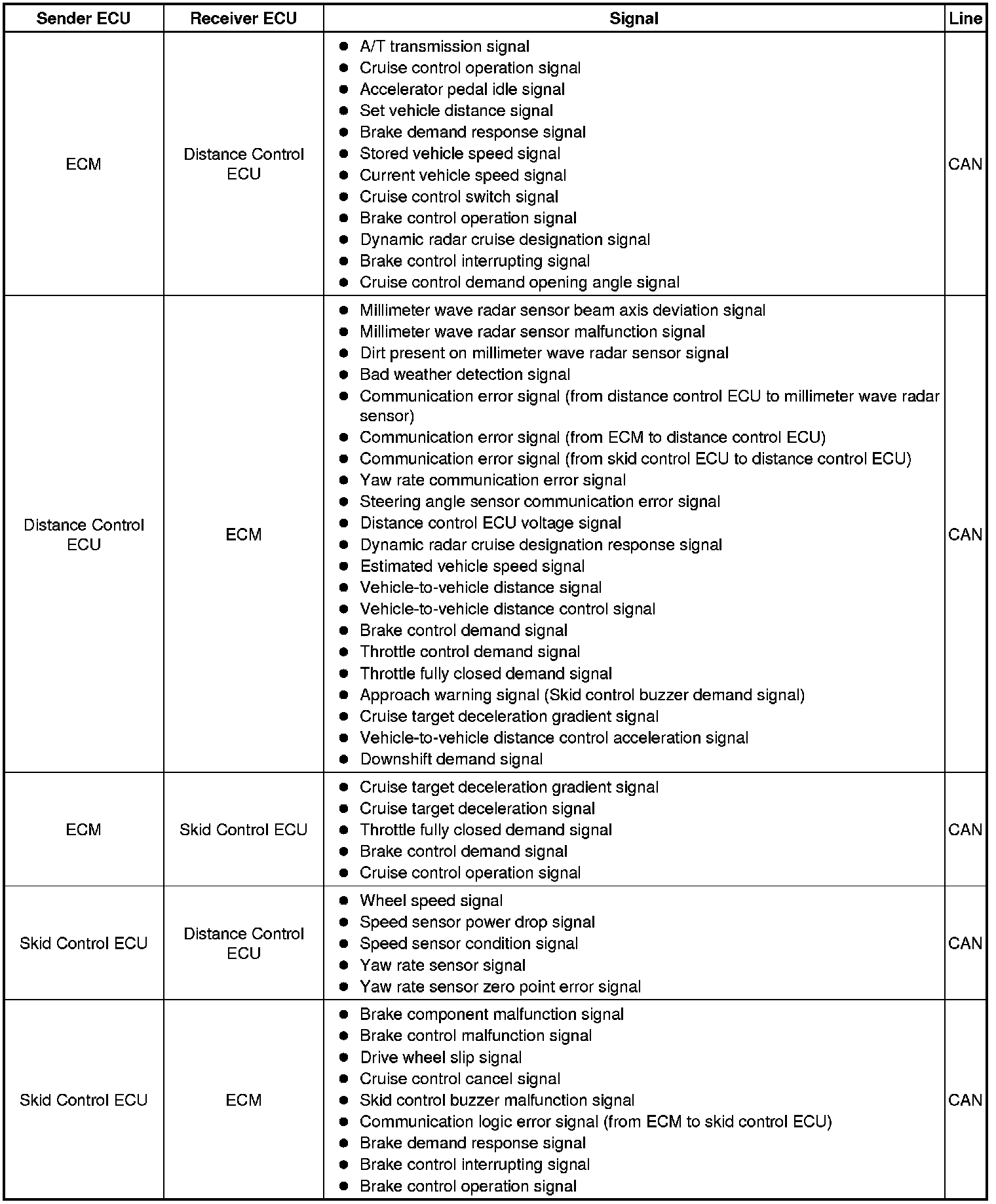

Communication table
