HV Relay Assembly: Components: Illustration

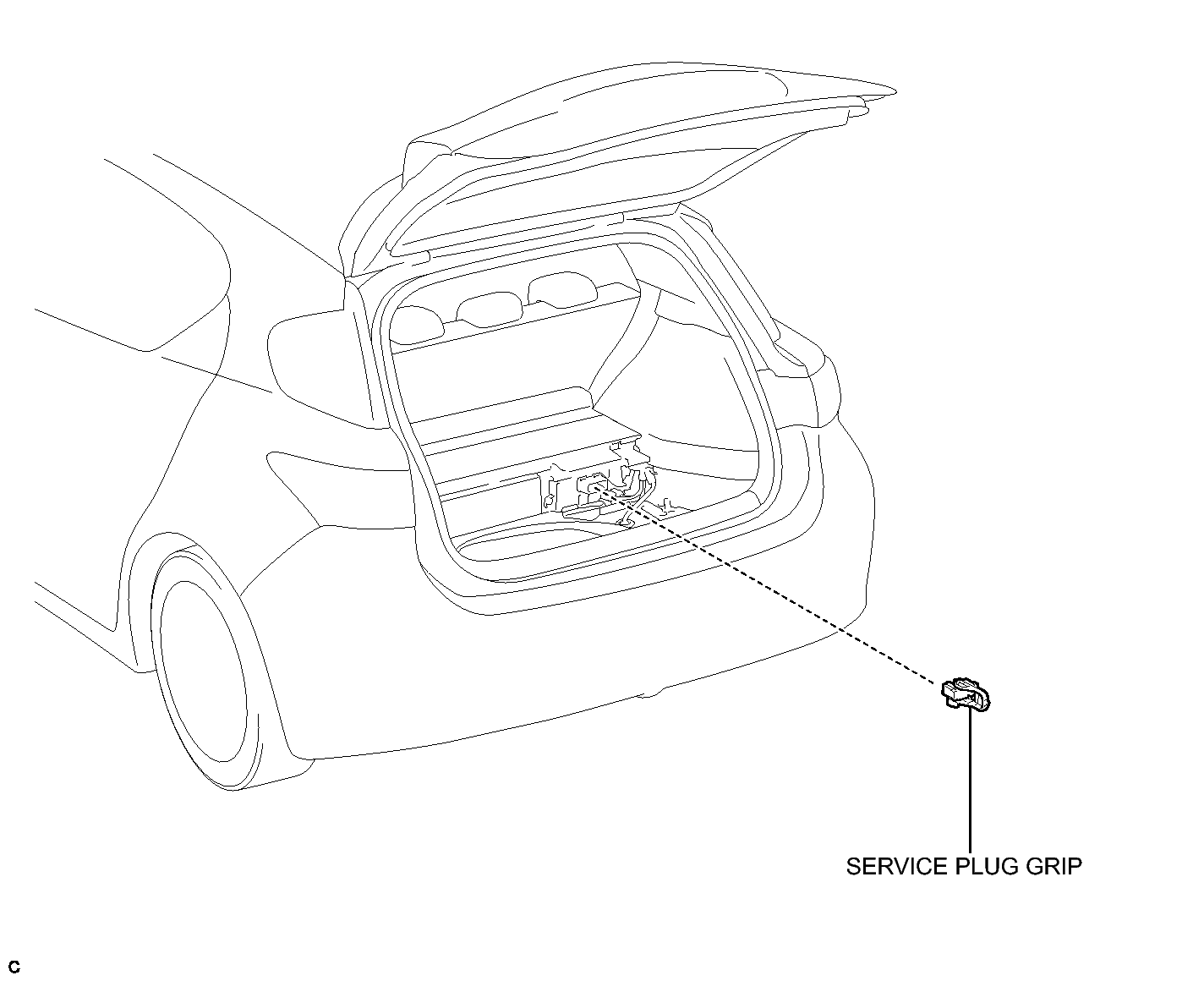

Fig 1: Identifying HV Relay Assembly Replacement Components (1 Of 6)
GTY349043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

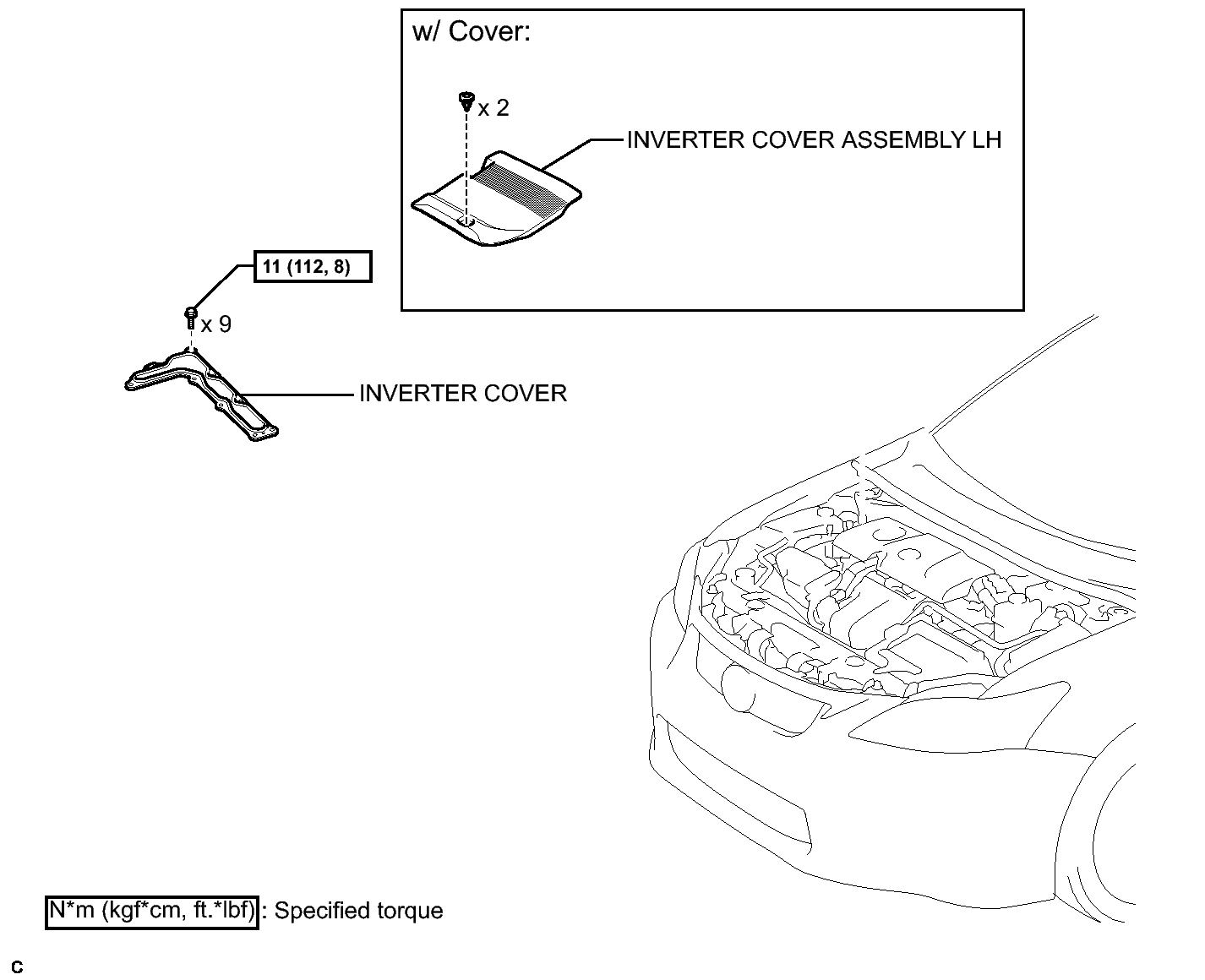

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (2 Of 6)
GTY351279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying HV Relay Assembly Replacement Components (3 Of 6)
GTY356164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (4 Of 6)
GTY358499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

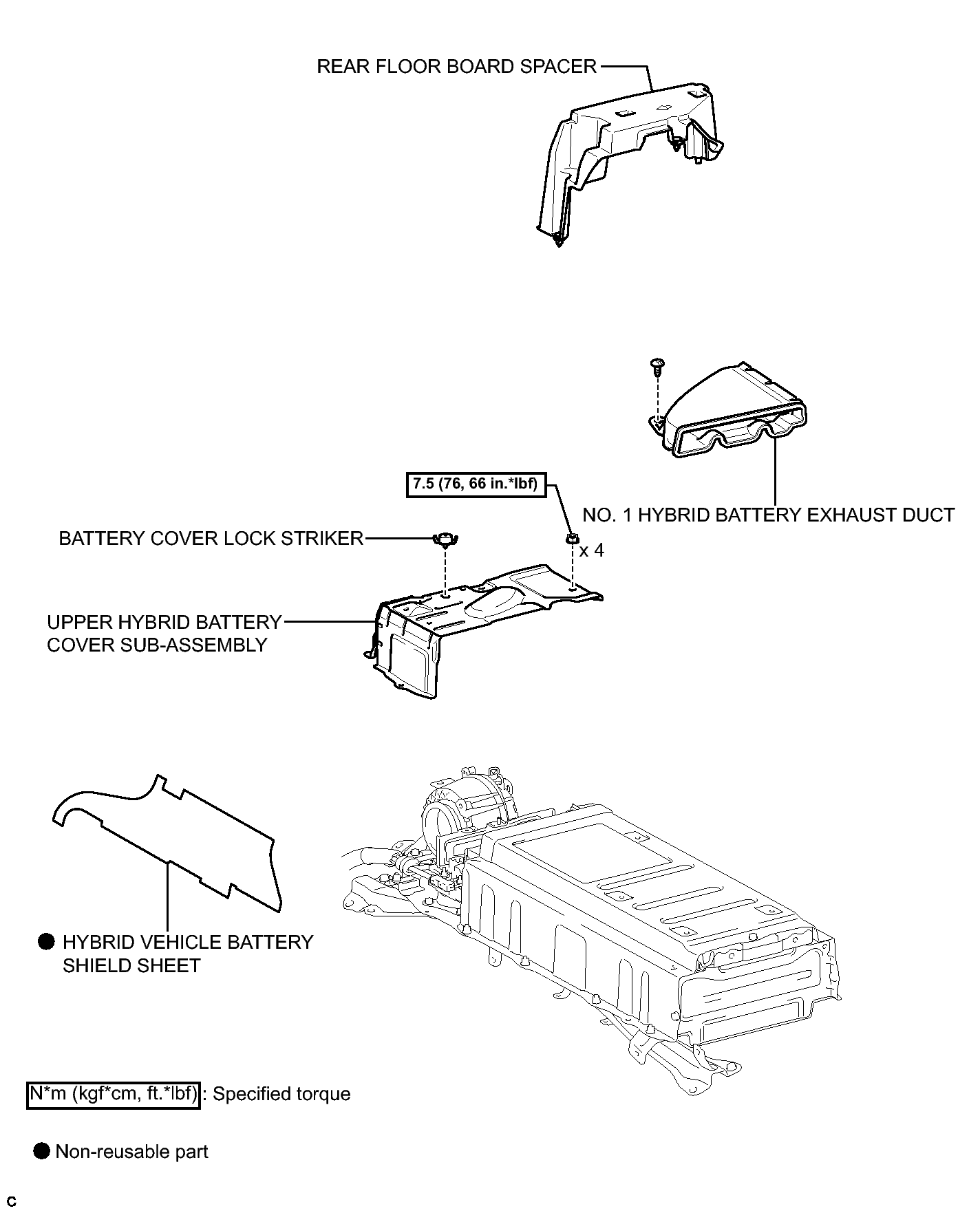

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (5 Of 6)
GTY352578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

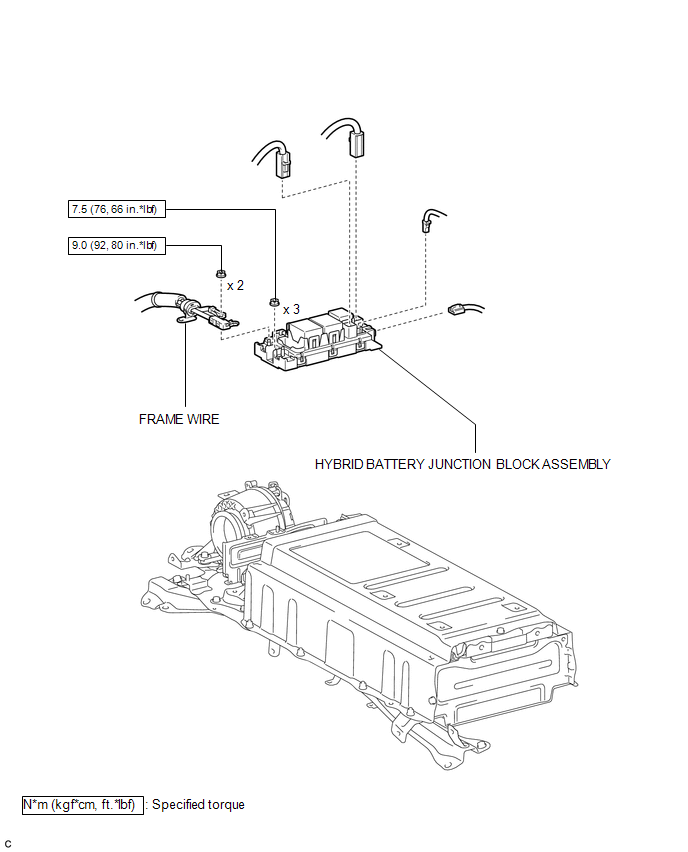

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (6 Of 6)
GTY325365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
