Frame Wire: Components: Illustration

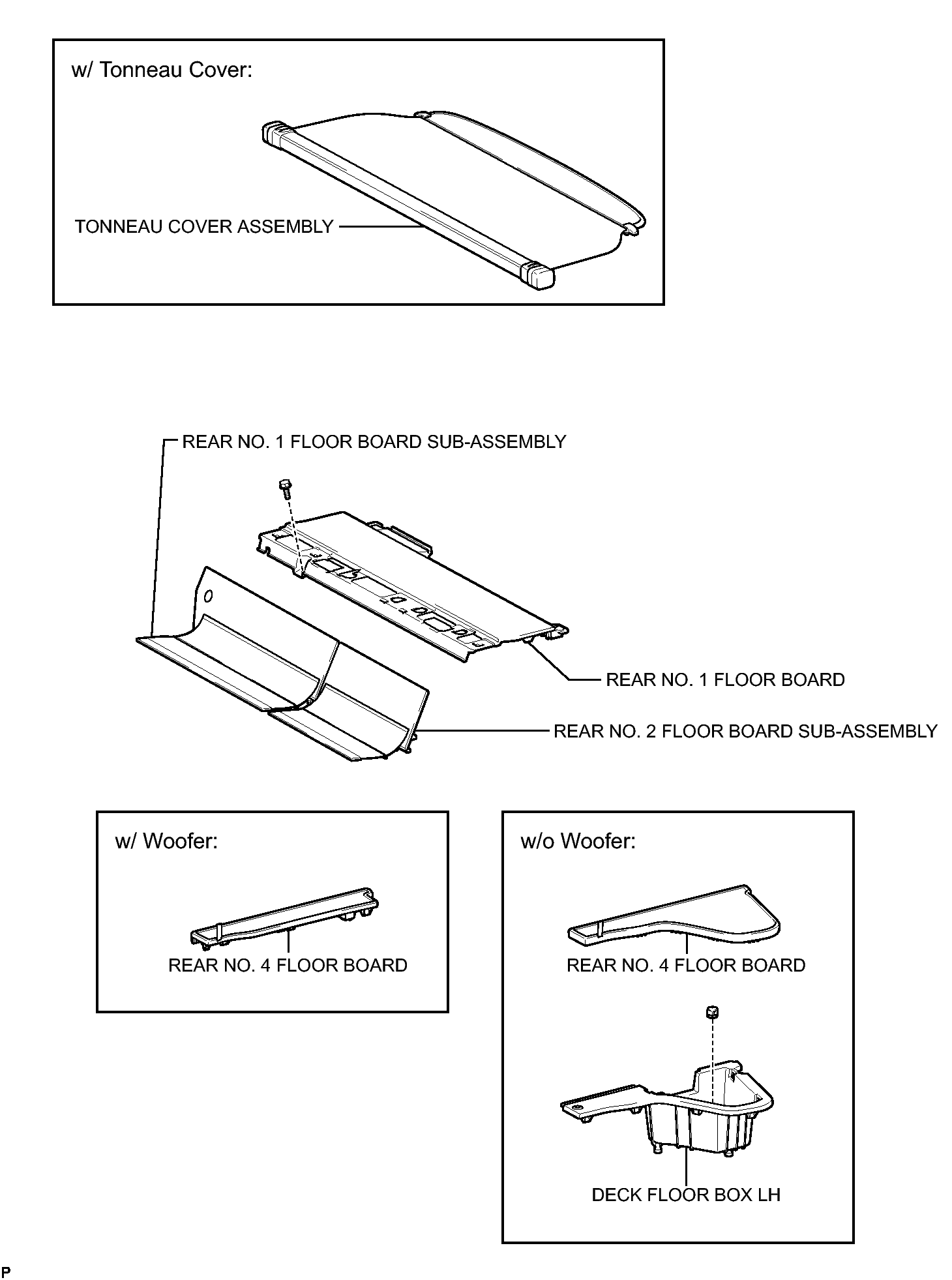

Fig 1: Identifying Frame Wire Replacement Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

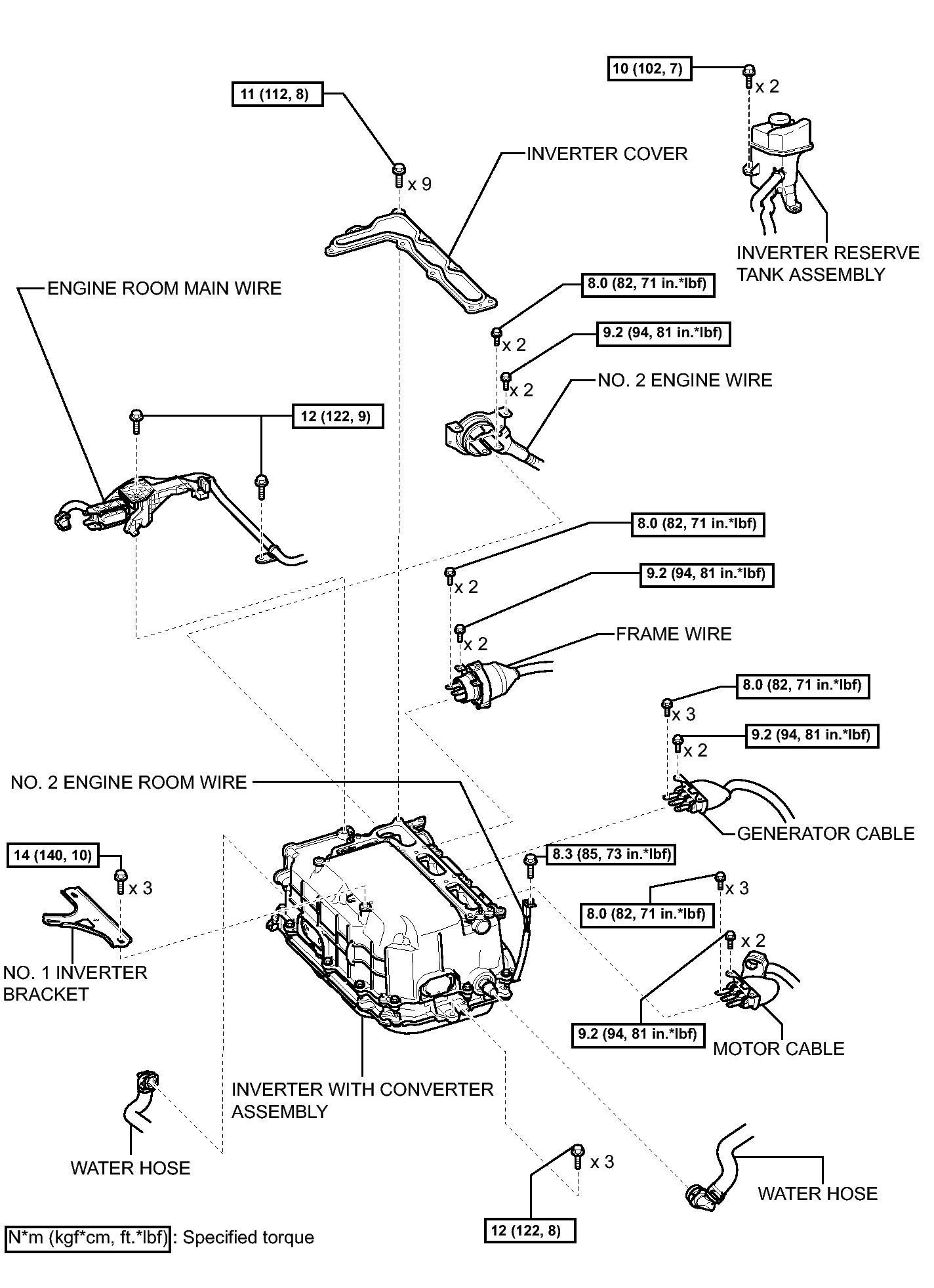

Fig 1: Identifying Frame Wire Replacement Components (2 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

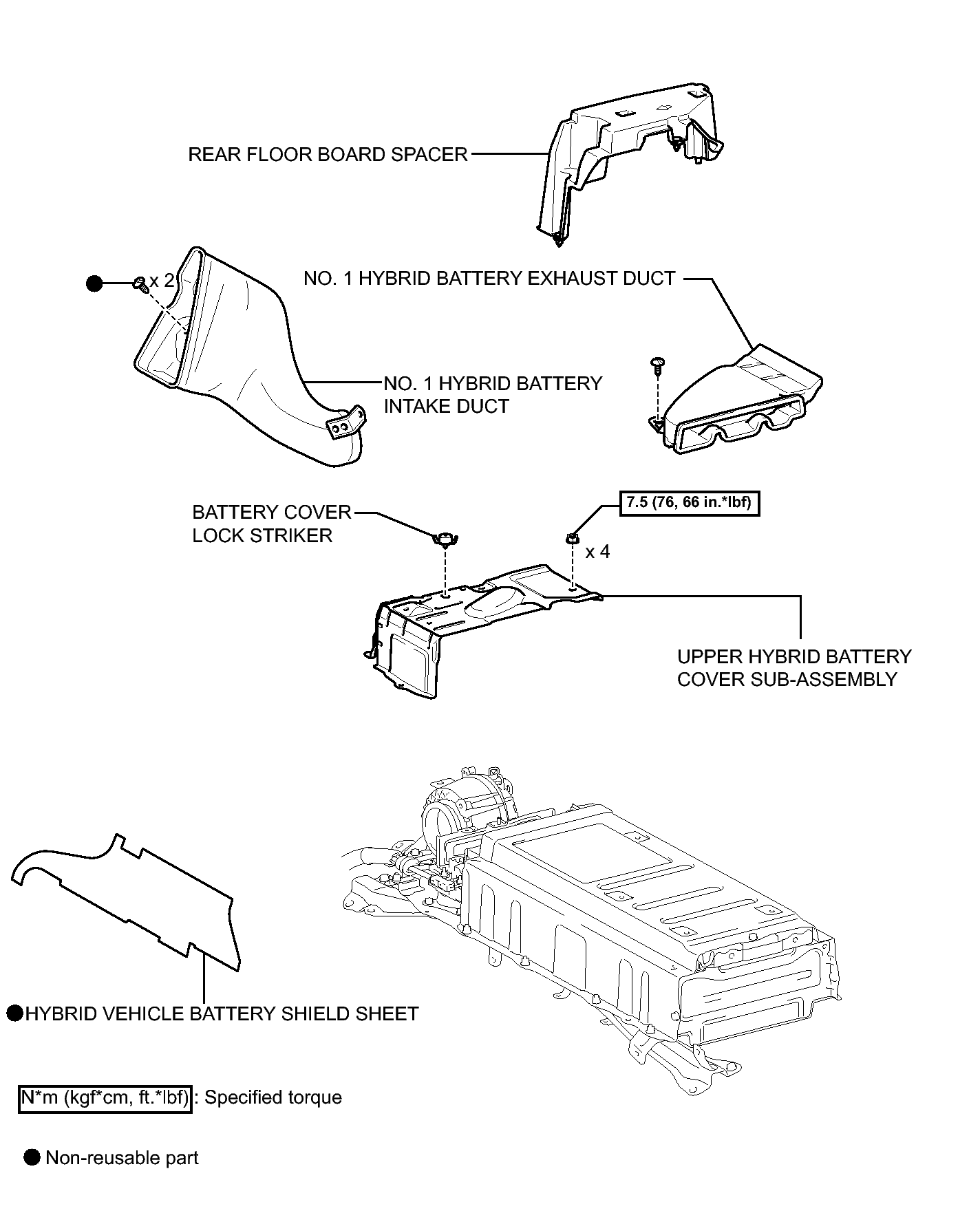

Fig 1: Identifying Frame Wire Replacement Components (3 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

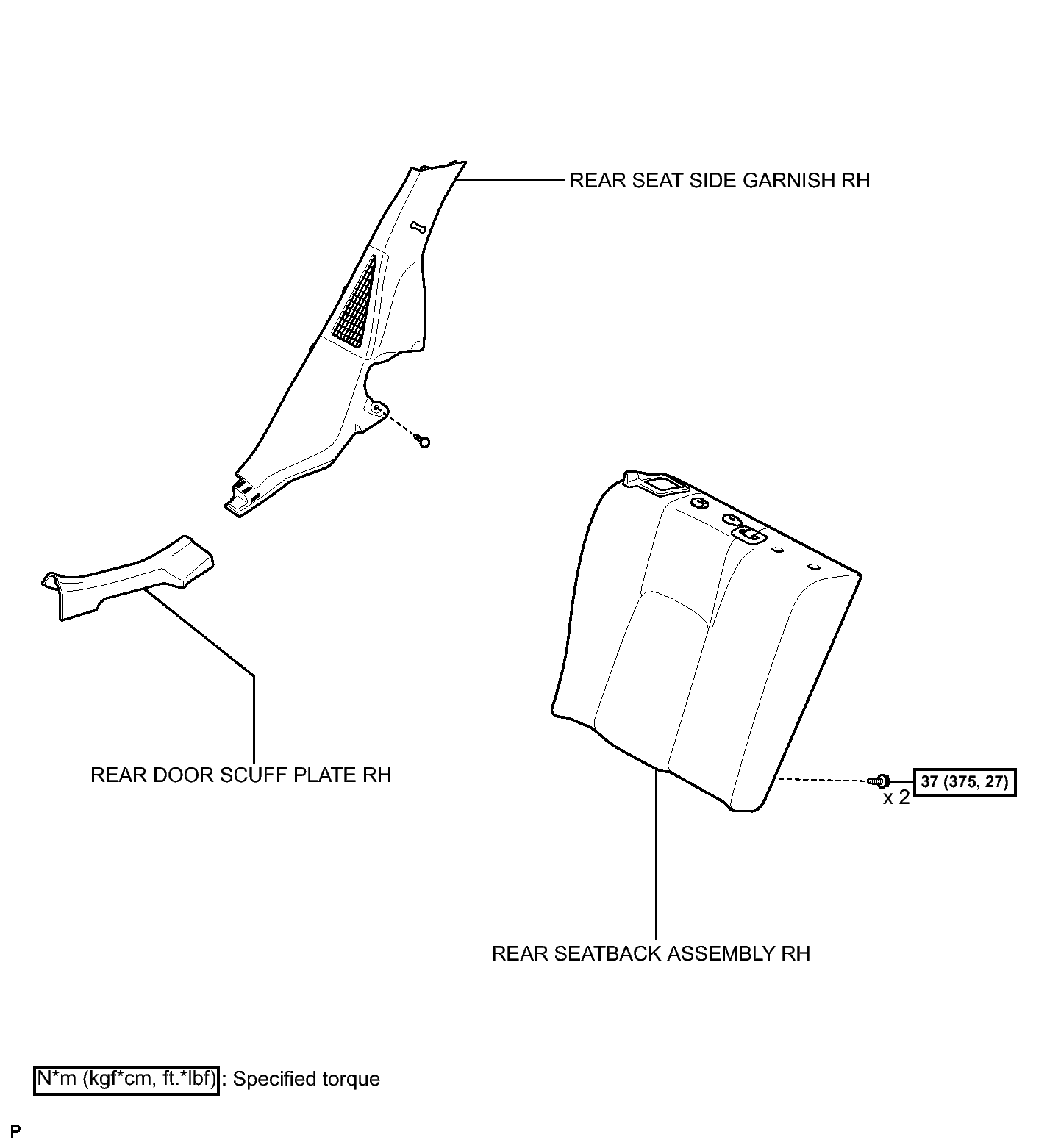

Fig 1: Identifying Frame Wire Replacement Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

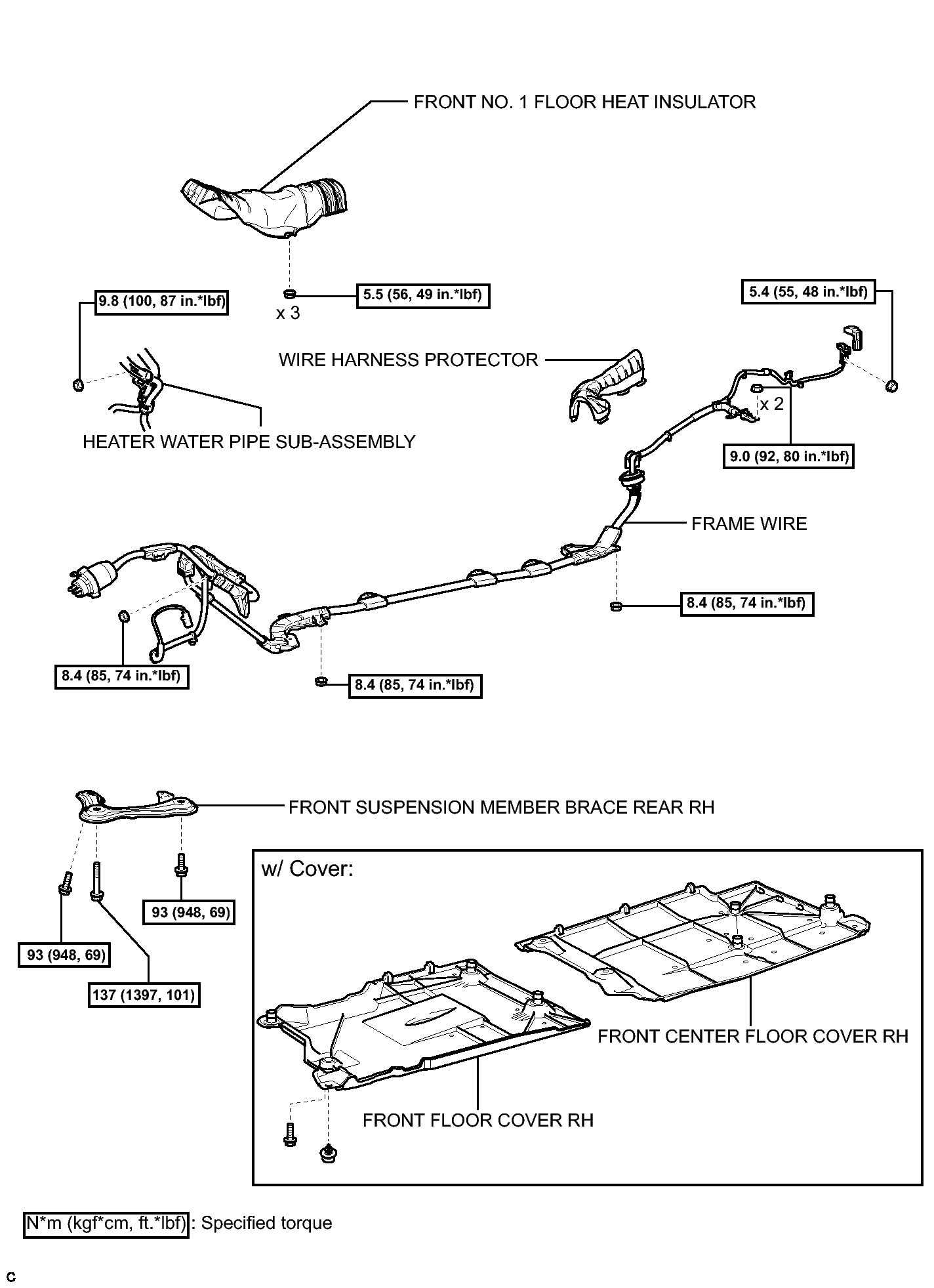

Fig 1: Identifying Frame Wire Replacement Components (5 Of 7) With Torque Specifications

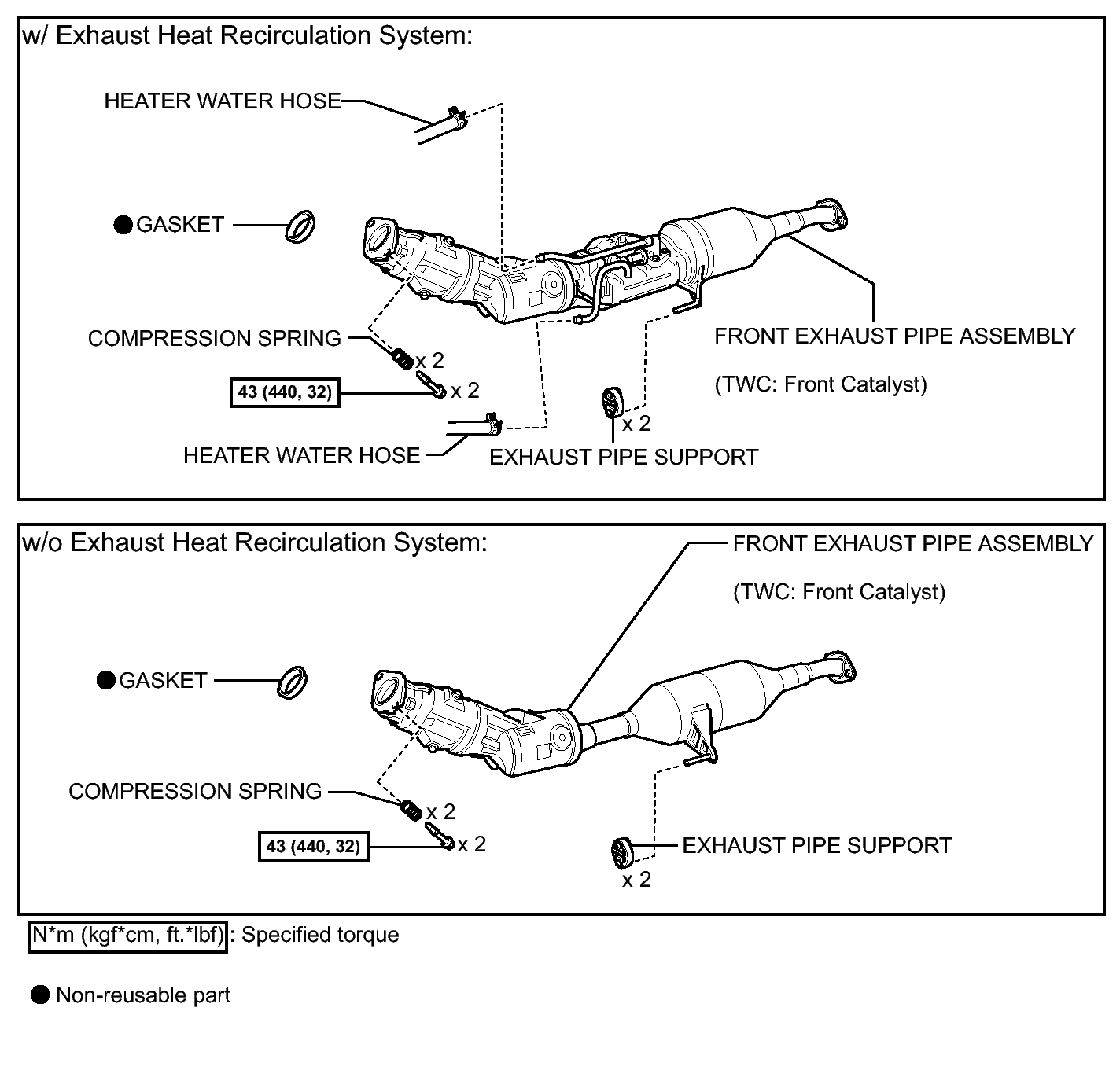

Fig 1: Identifying Frame Wire Replacement Components (6 Of 7) With Torque Specifications

Fig 1: Identifying Frame Wire Replacement Components (7 Of 7) With Torque Specifications
