Height Control Off Switch: Components: Illustration

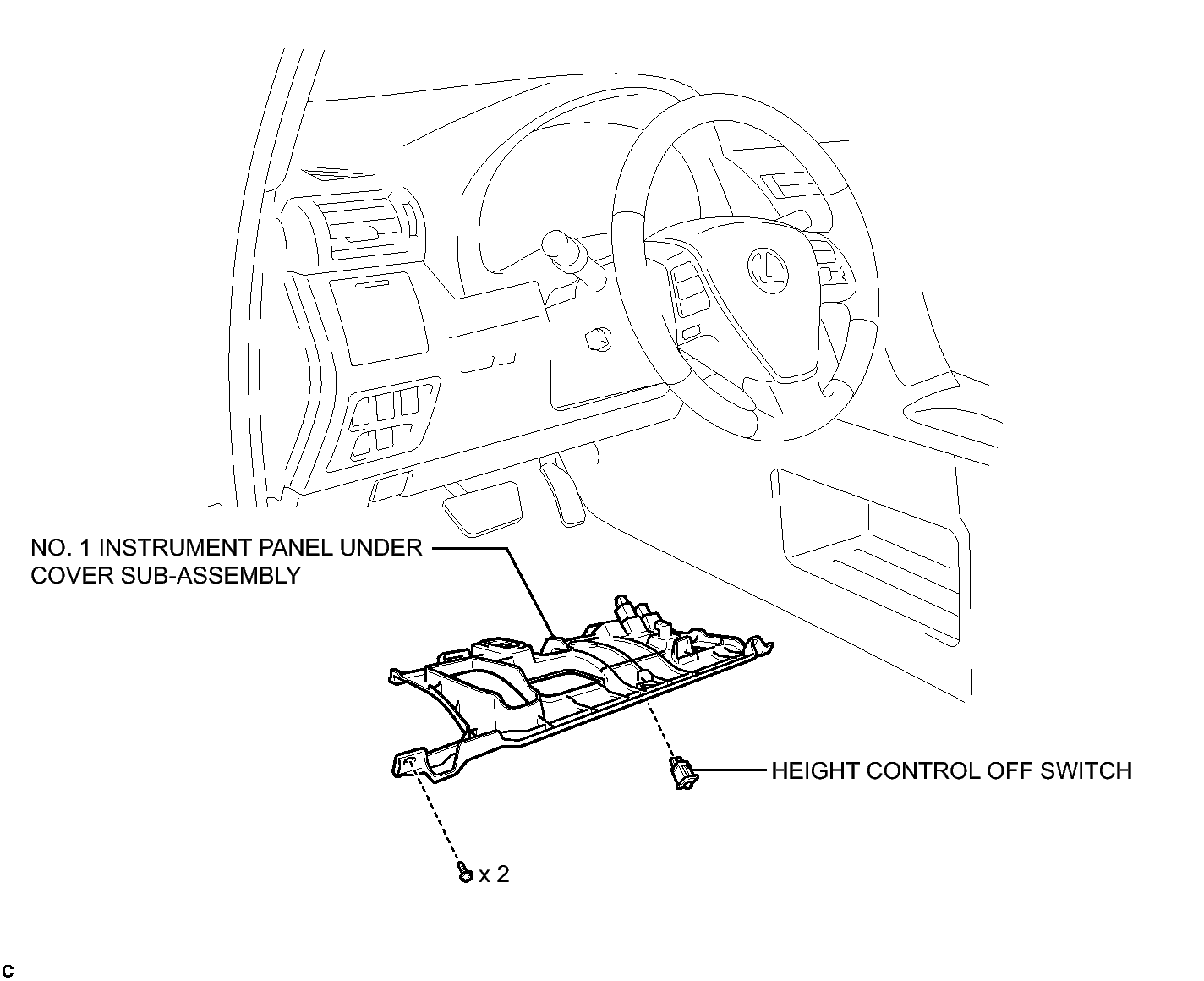

Fig 1: Identifying Height Control Off Switch Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Height Control Off Switch Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
