Brake Control System (Service Information)
>>
Brake Control Power Supply
>>
Components
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Brake Control Power Supply: Components: Illustration

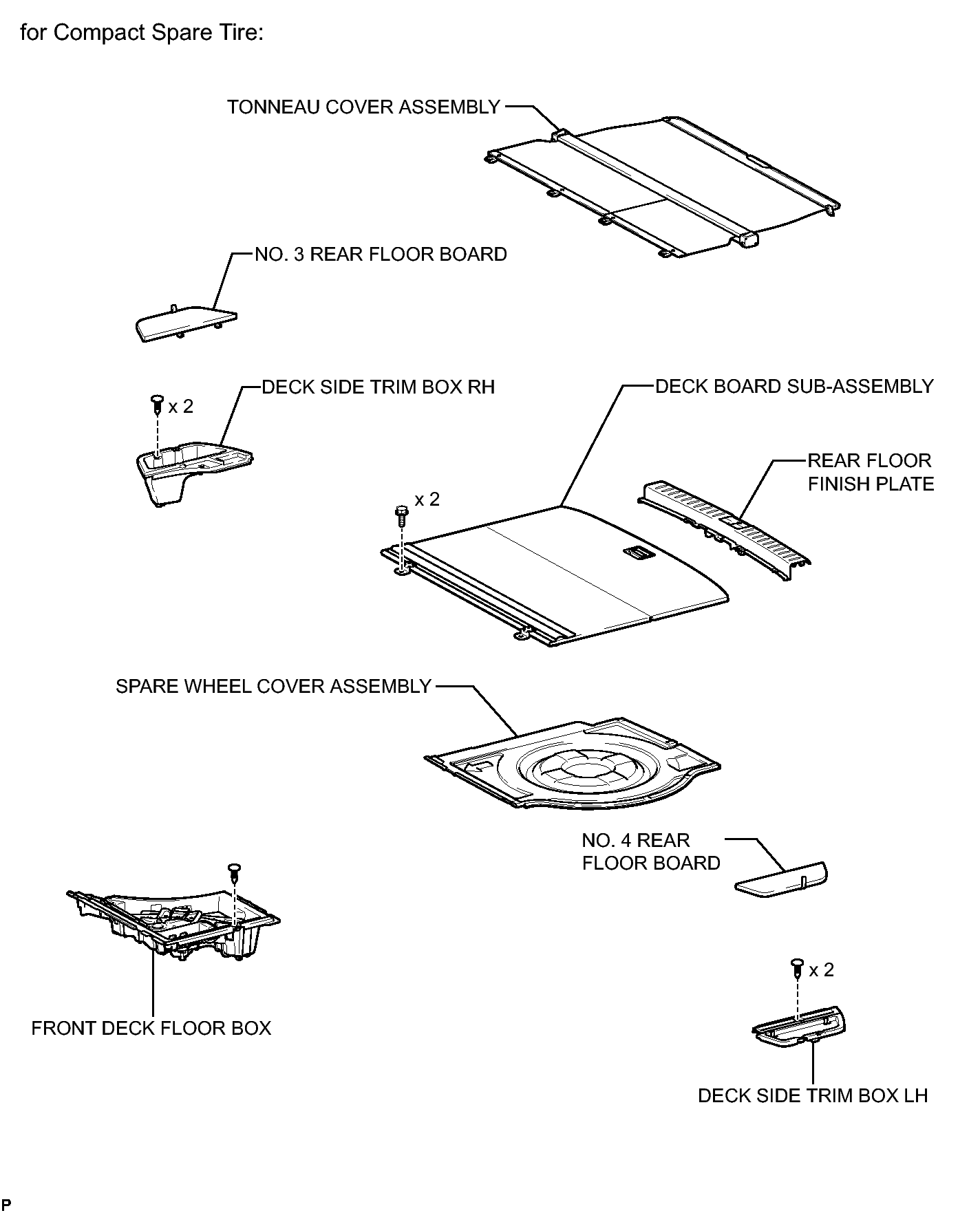

Fig 1: Identifying Brake Control Power Supply Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

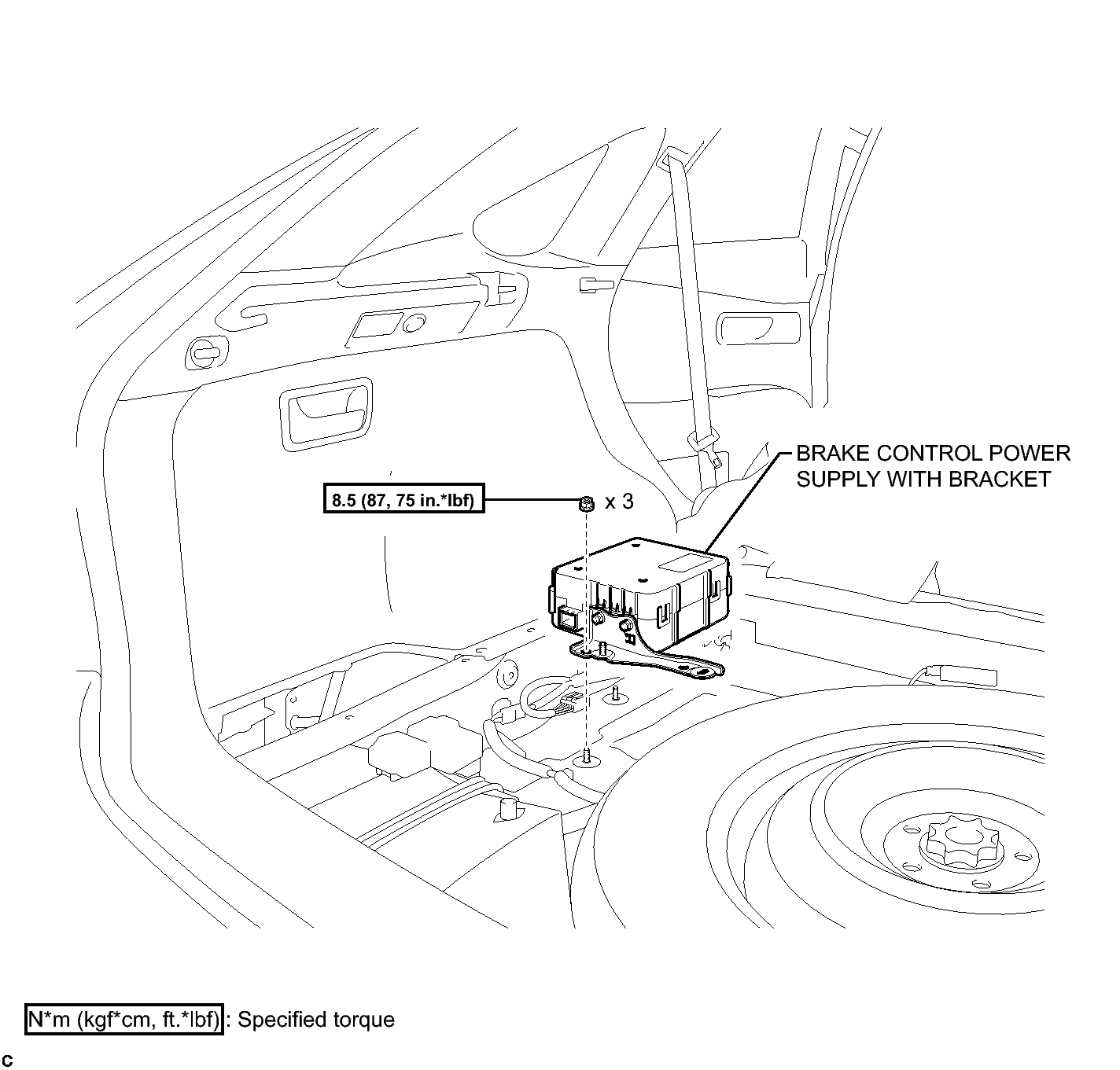

Fig 1: Identifying Brake Control Power Supply Replacement Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

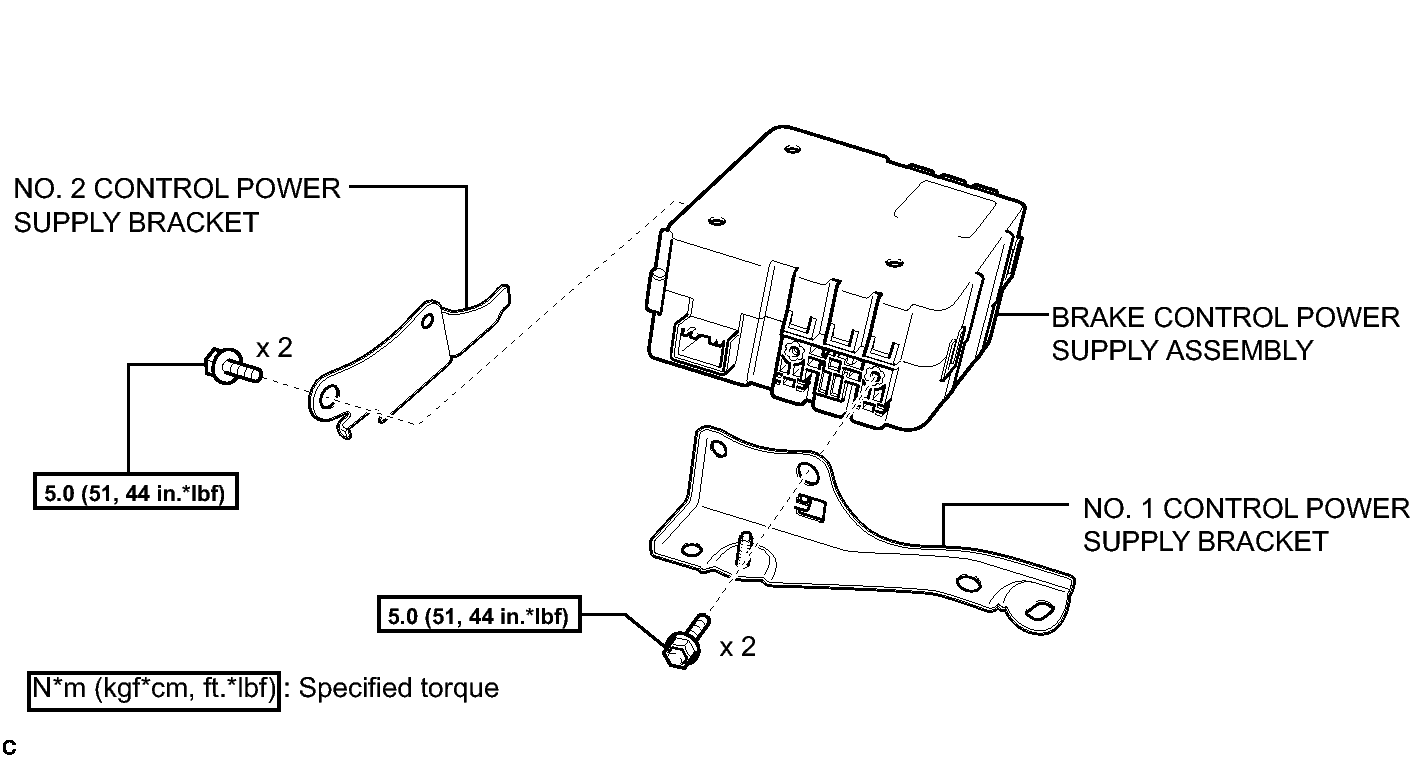

Fig 1: Identifying Brake Control Power Supply Replacement Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

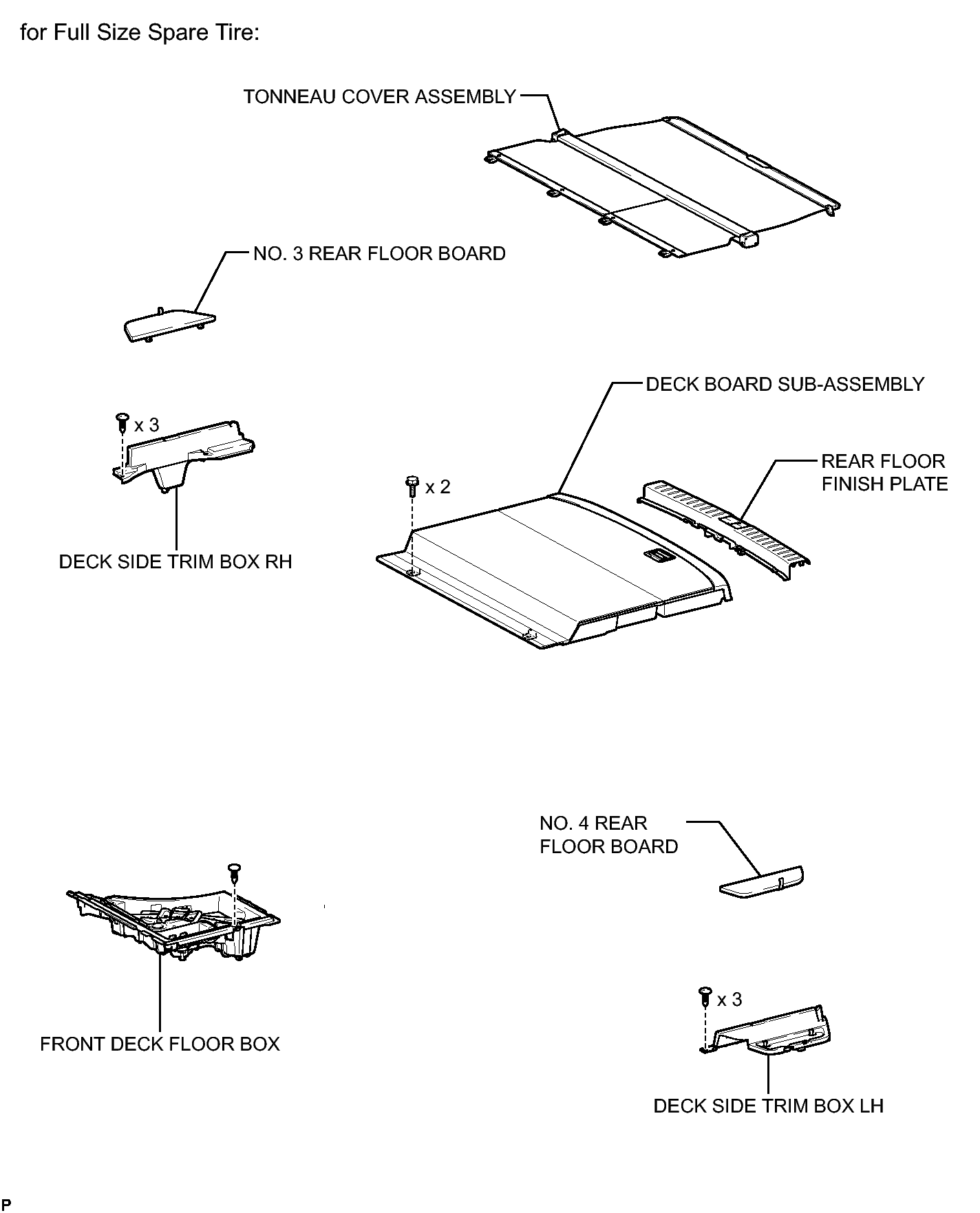

Fig 1: Identifying Brake Control Power Supply Replacement Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Brake Control Power Supply Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
