Service Data





SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

Axle





Differential

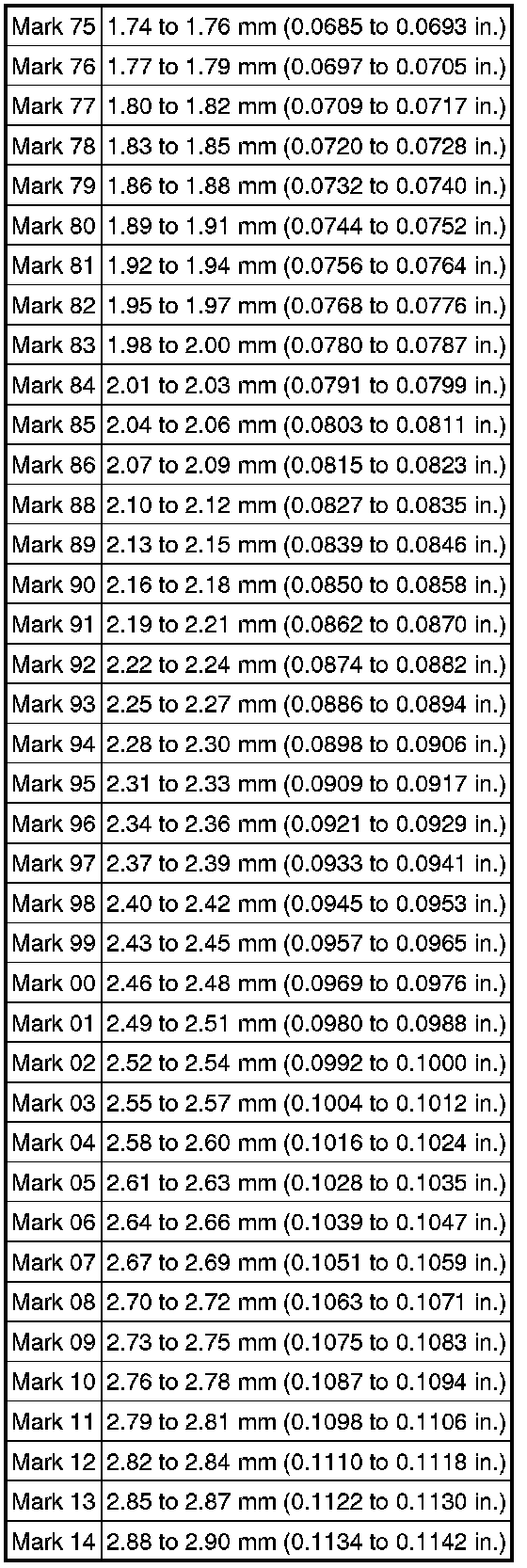

Differential / Rear Differential Side Gear Shaft Plate Washer Thickness

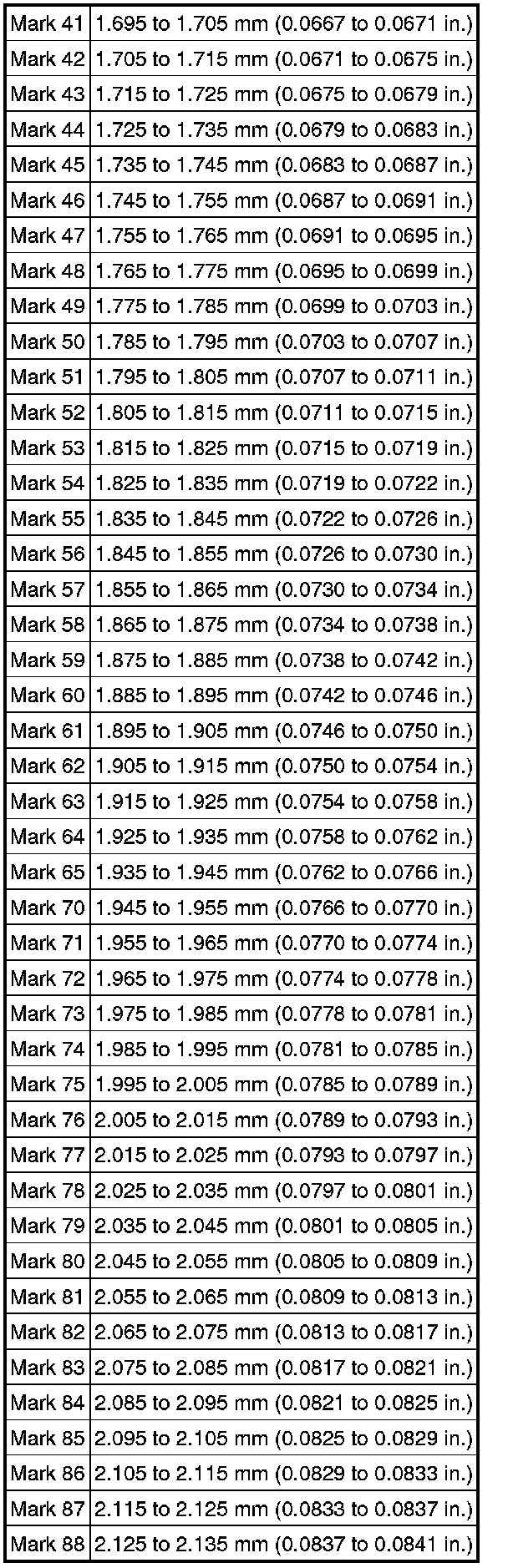

Differential / Rear Differential Drive Pinion Plate Washer Thickness
