Fuse Block

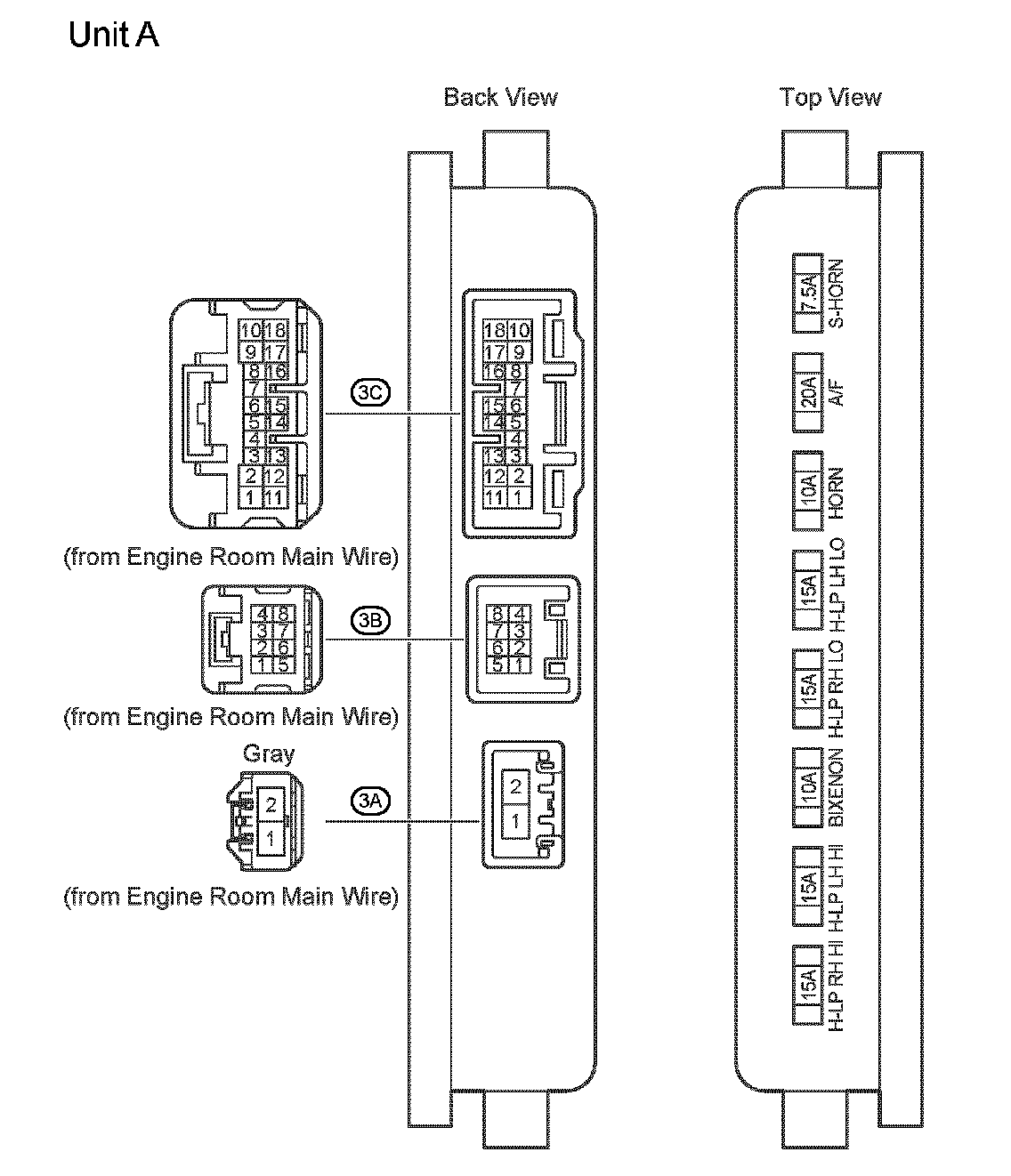

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:
Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

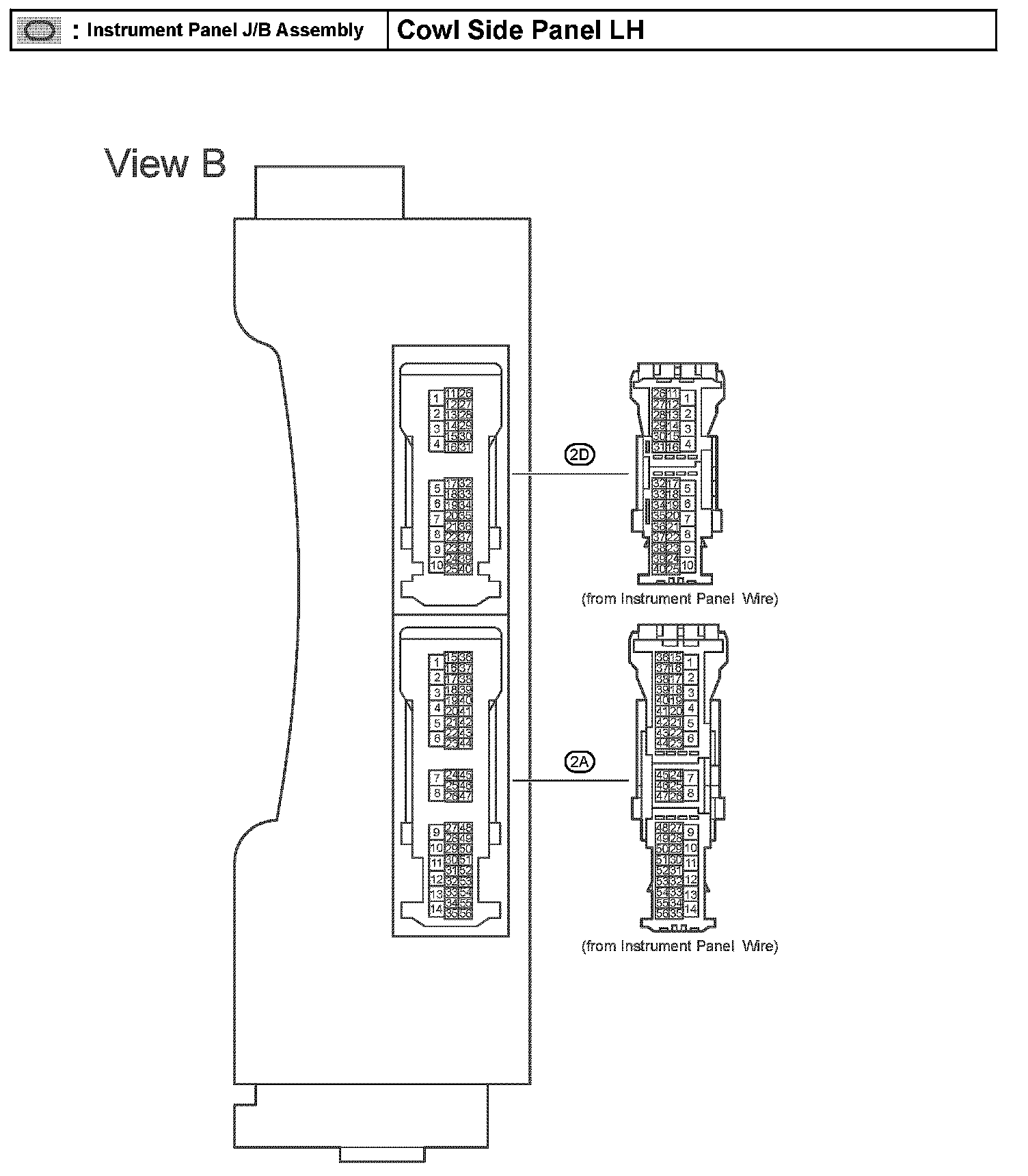

Instrument Panel J/B Assembly - Cowl Side Panel LH:

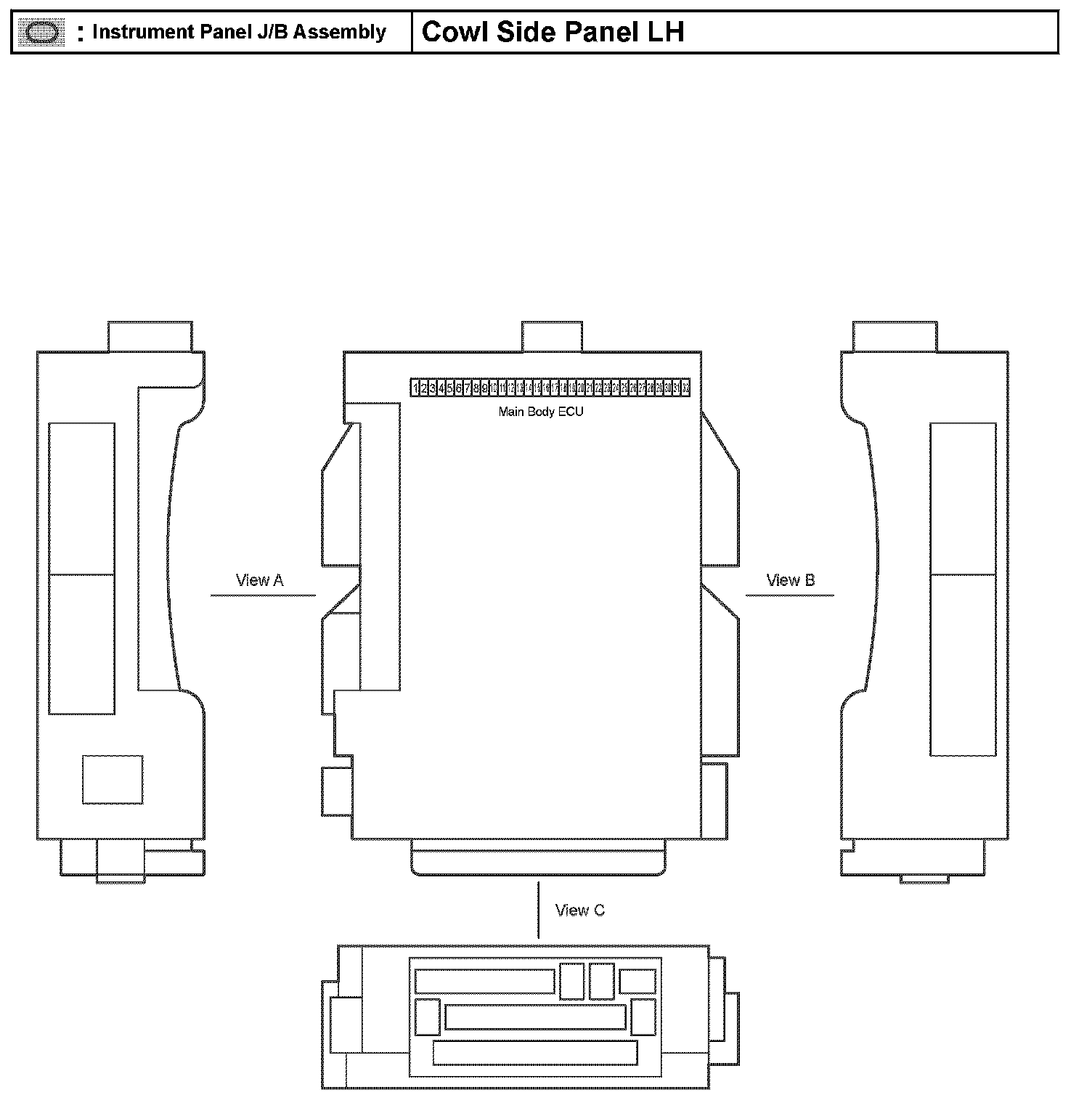

Instrument Panel J/B Assembly - Cowl Side Panel LH:

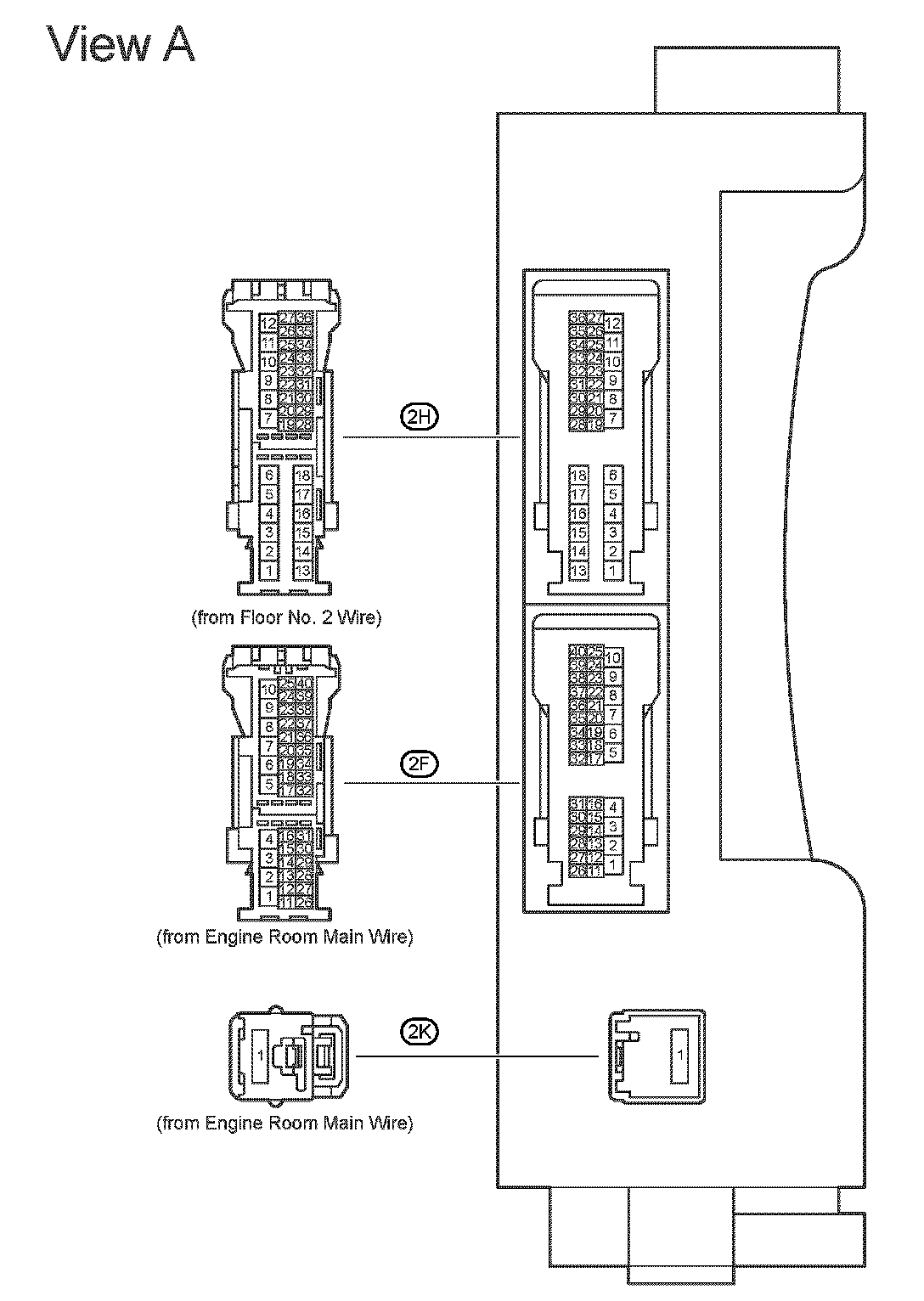

Instrument Panel J/B Assembly - Cowl Side Panel LH:

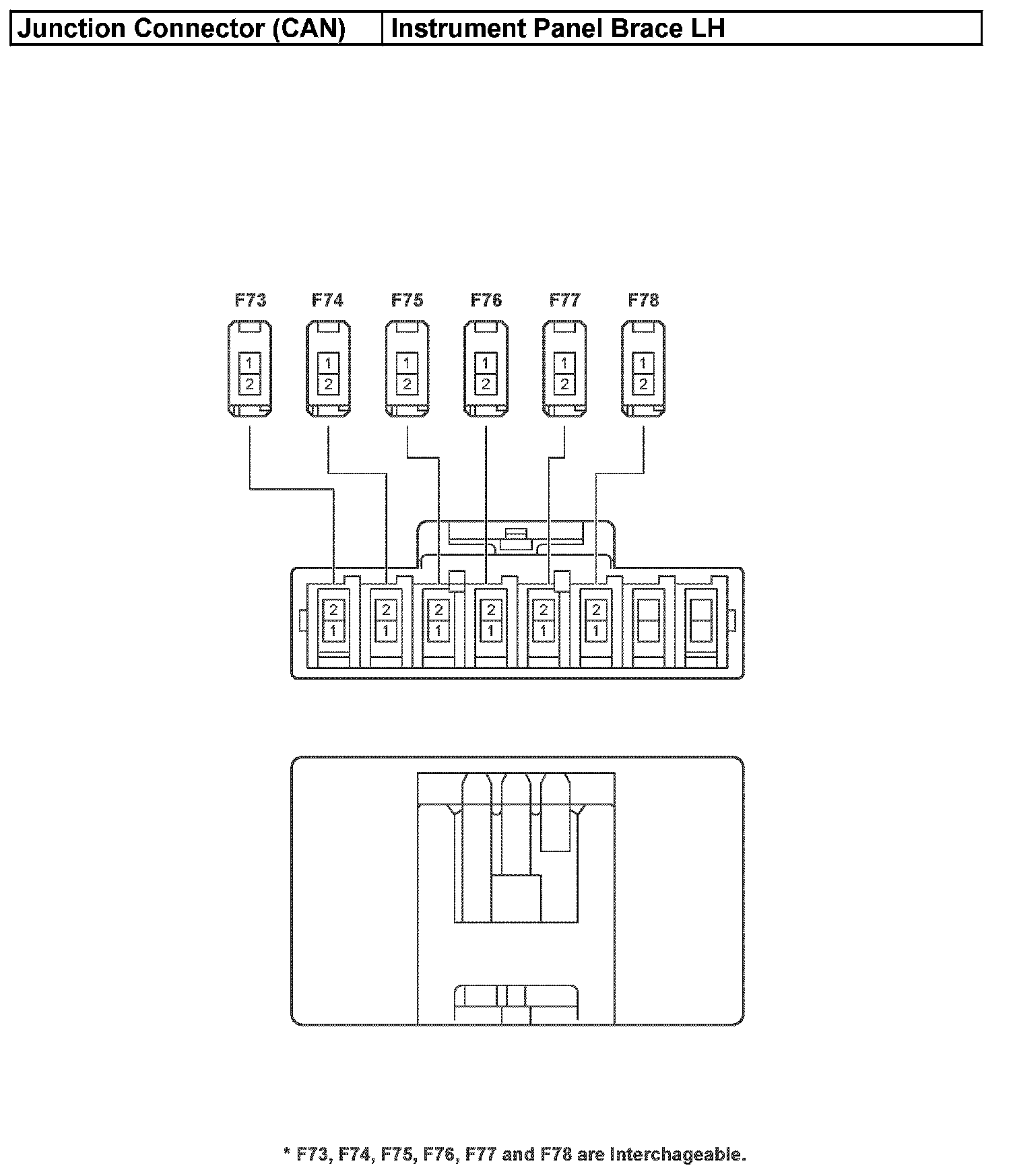

Junction Connector (CAN) - Instrument Panel Brace LH:
