Cool Box: Notes

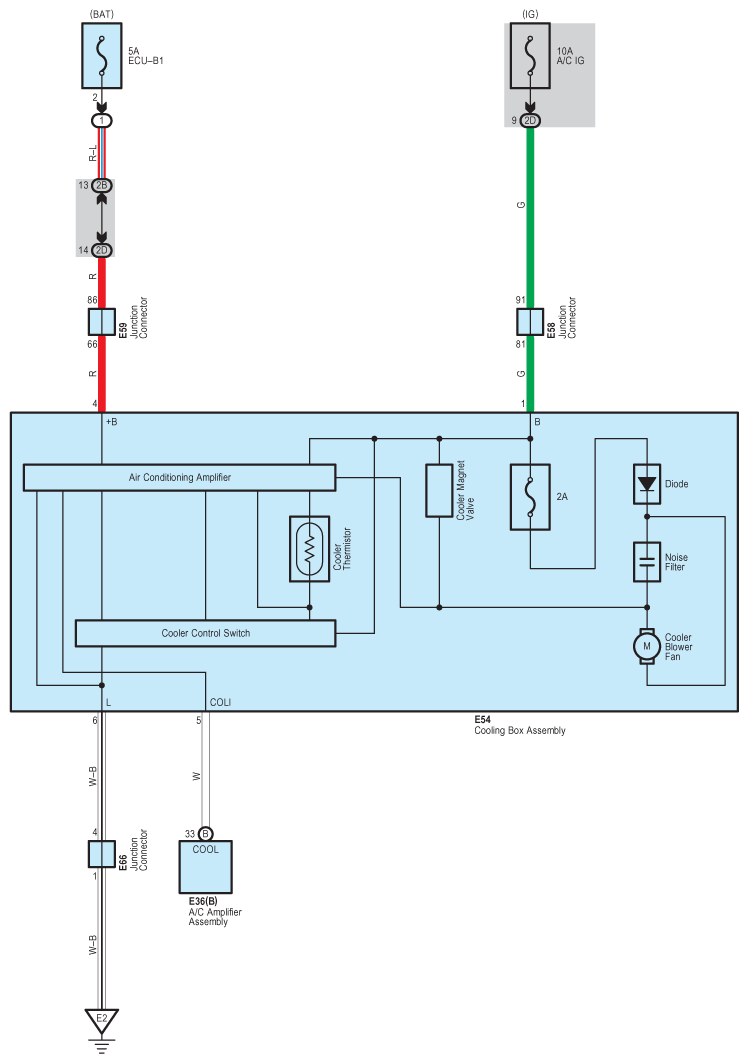

Fig 1: Cool Box - Circuit Diagram
G07575749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
