System Diagram

  1. MOST NETWORK COMMUNICATION LINE

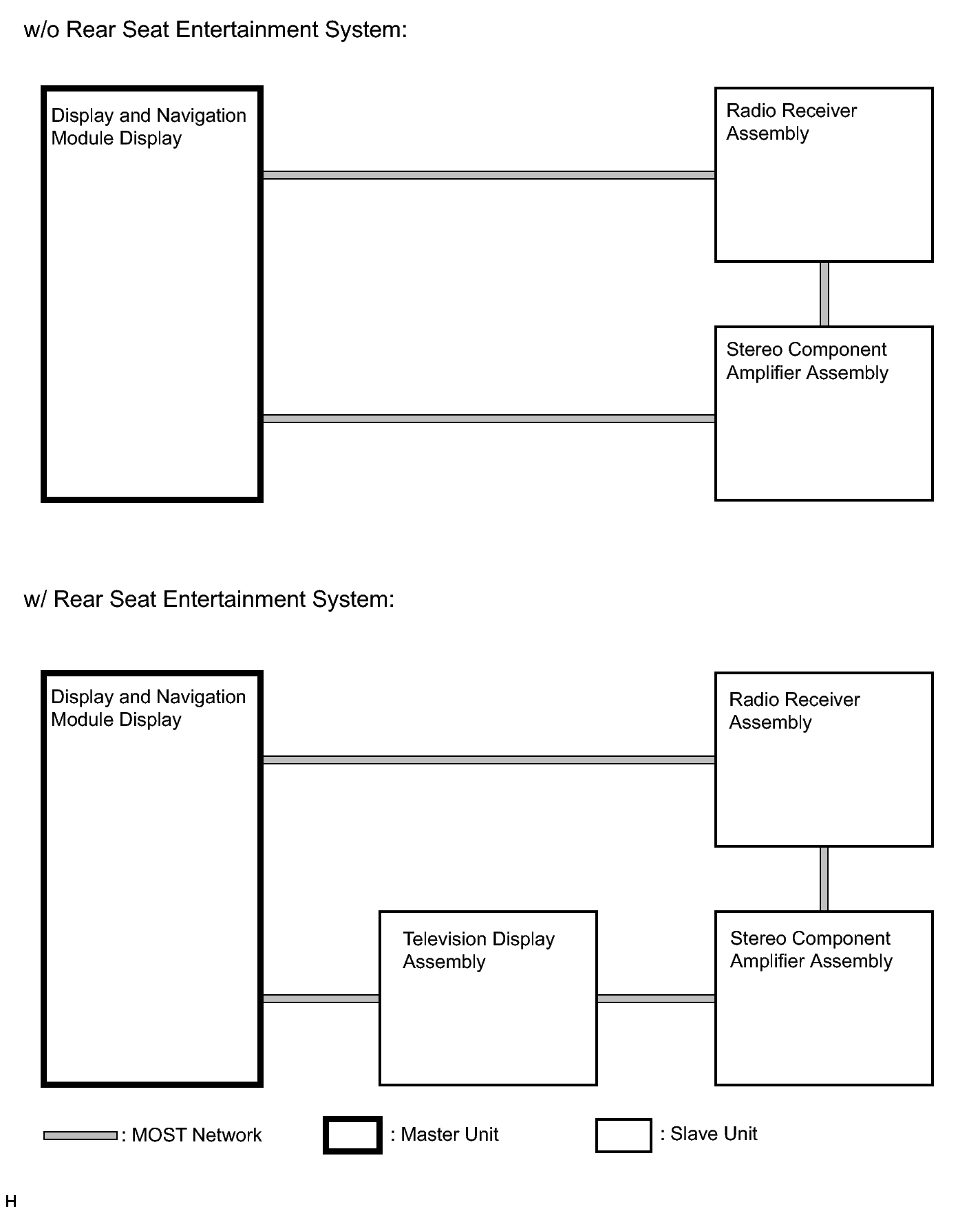

    Fig 1: Identifying MOST Network Communication Line - System Diagram
    GTY262091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN COMMUNICATION LINE

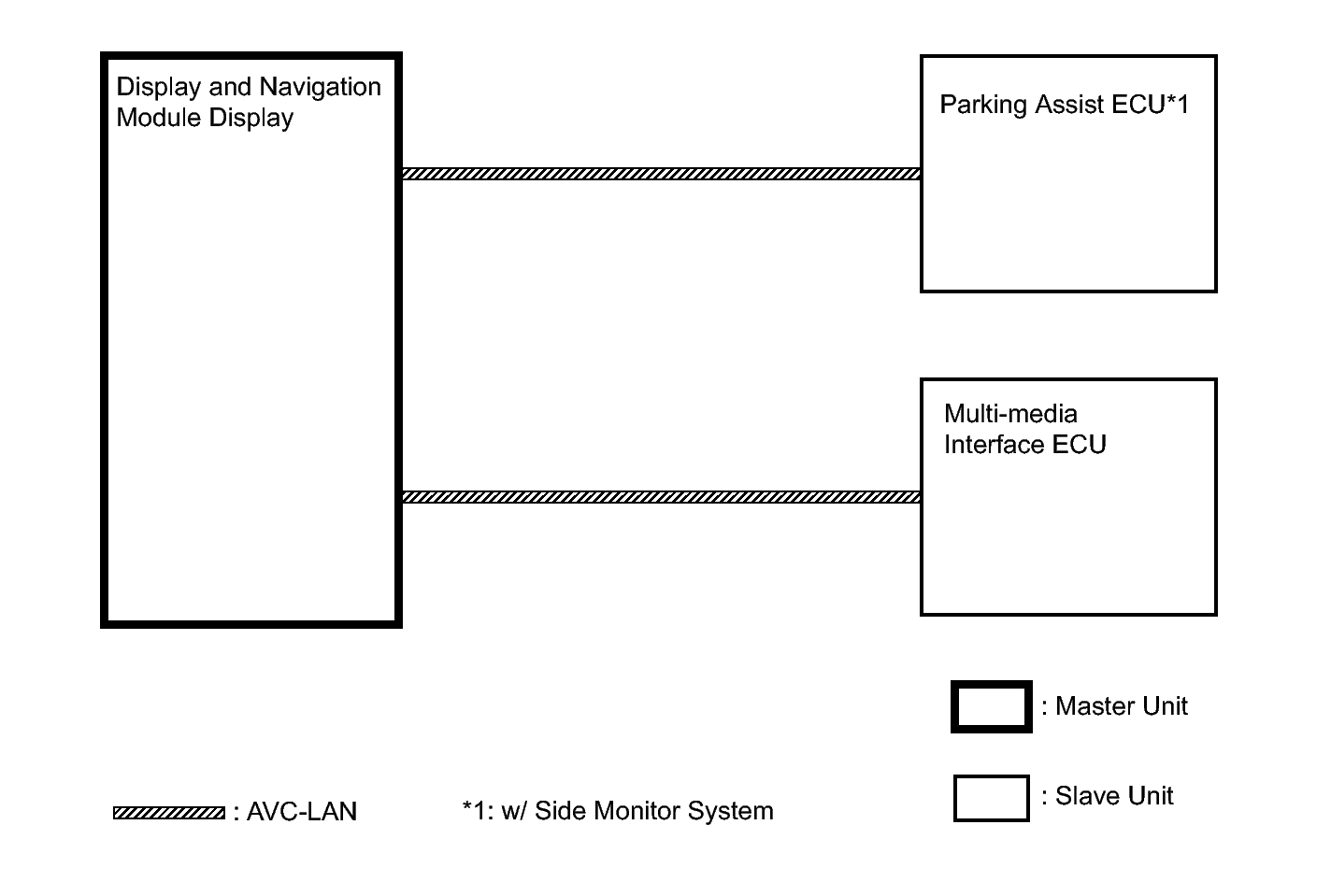

    Fig 2: Identifying AVC-LAN Communication Line - System Diagram
    GTY255519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. OTHER

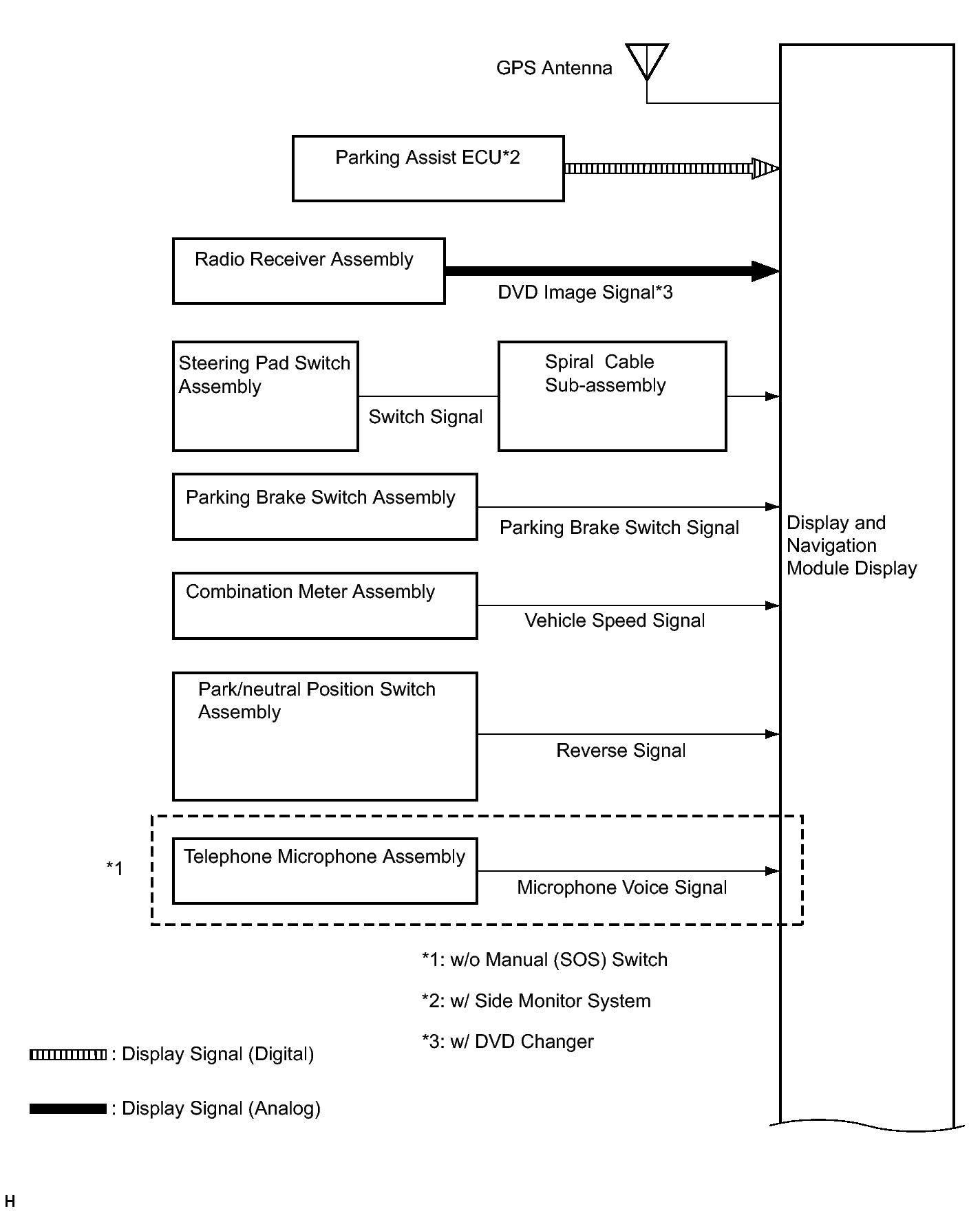

    Fig 3: Identifying Navigation System - System Diagram (1 Of 2)
    GTY259637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

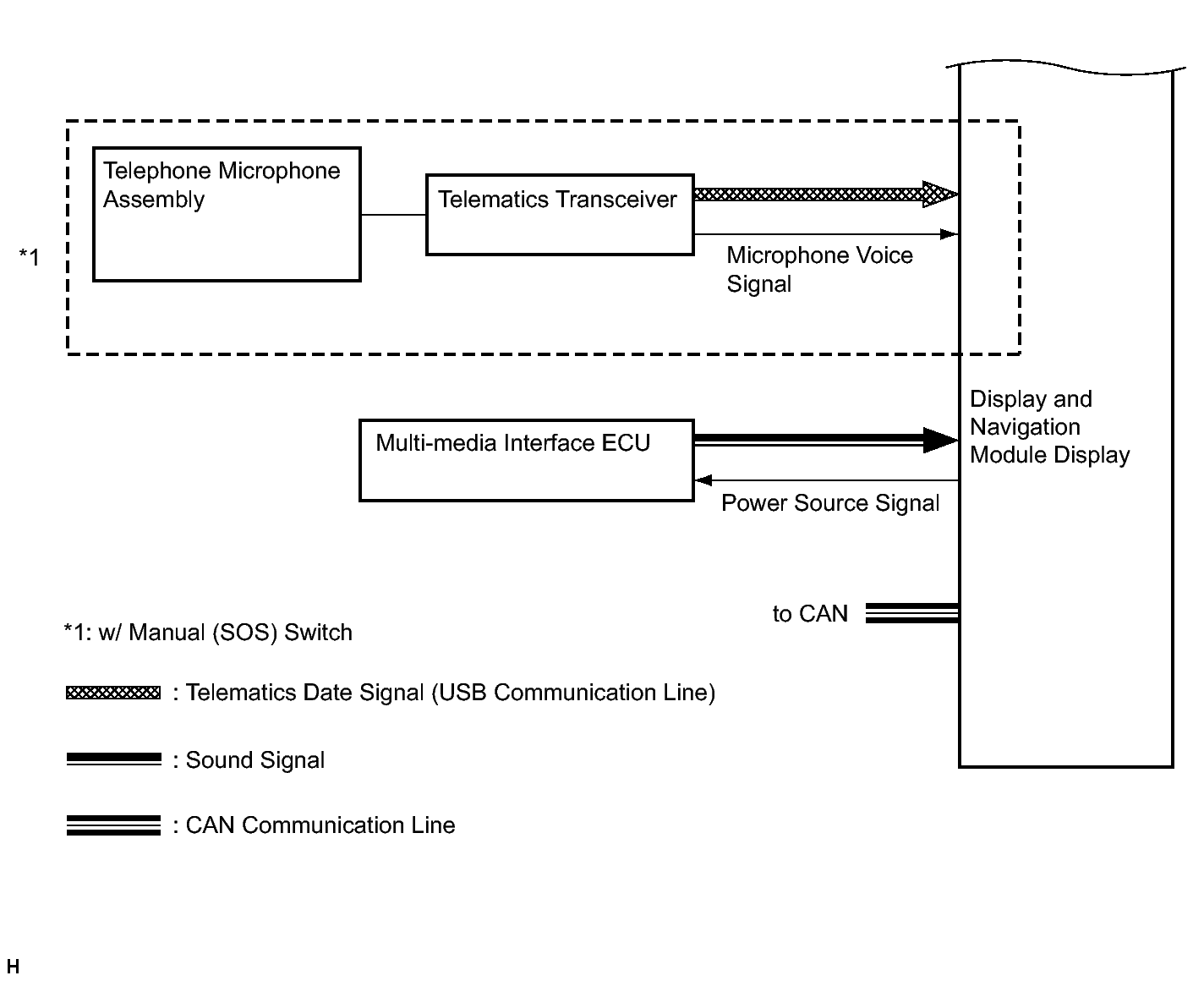

    Fig 4: Identifying Navigation System - System Diagram (2 Of 2)
    GTY266080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
