Front Stabilizer Bar: Components: Illustration

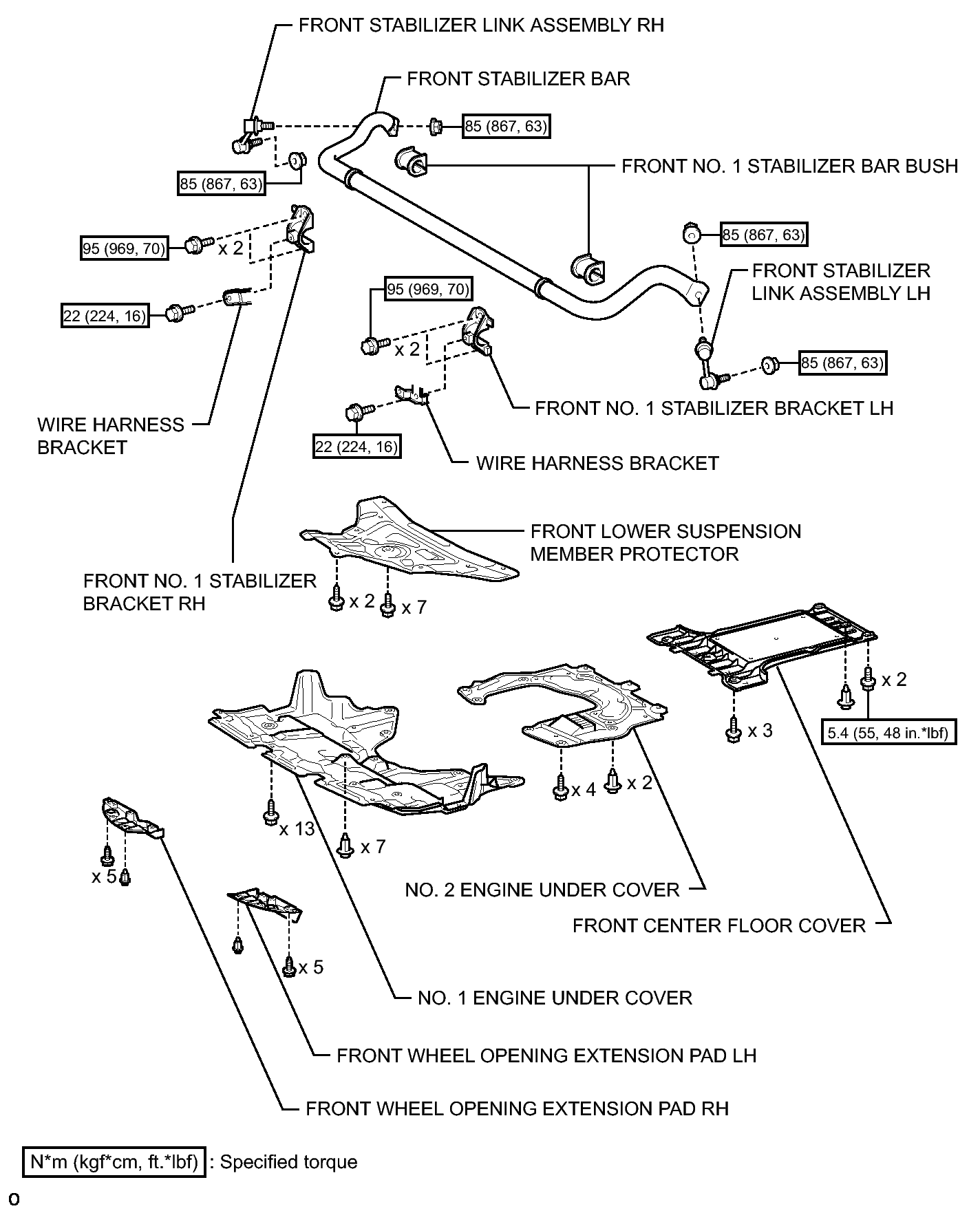

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications
GTY109998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
