Service Plug Grip: Components: Illustration

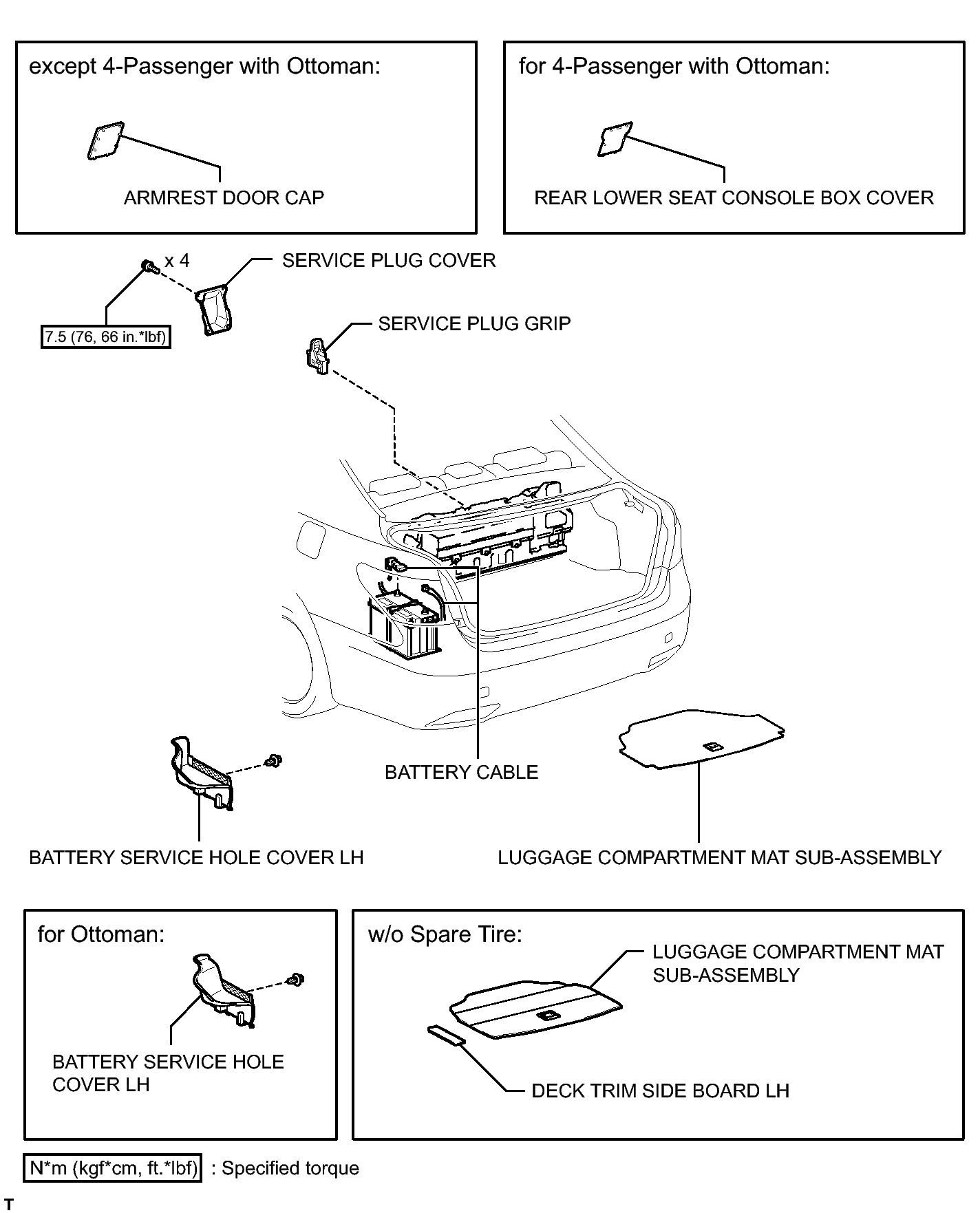

Fig 1: Identifying Service Plug Grip Replacement Components With Torque Specifications
GTY278954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
