Parts Location: Illustration

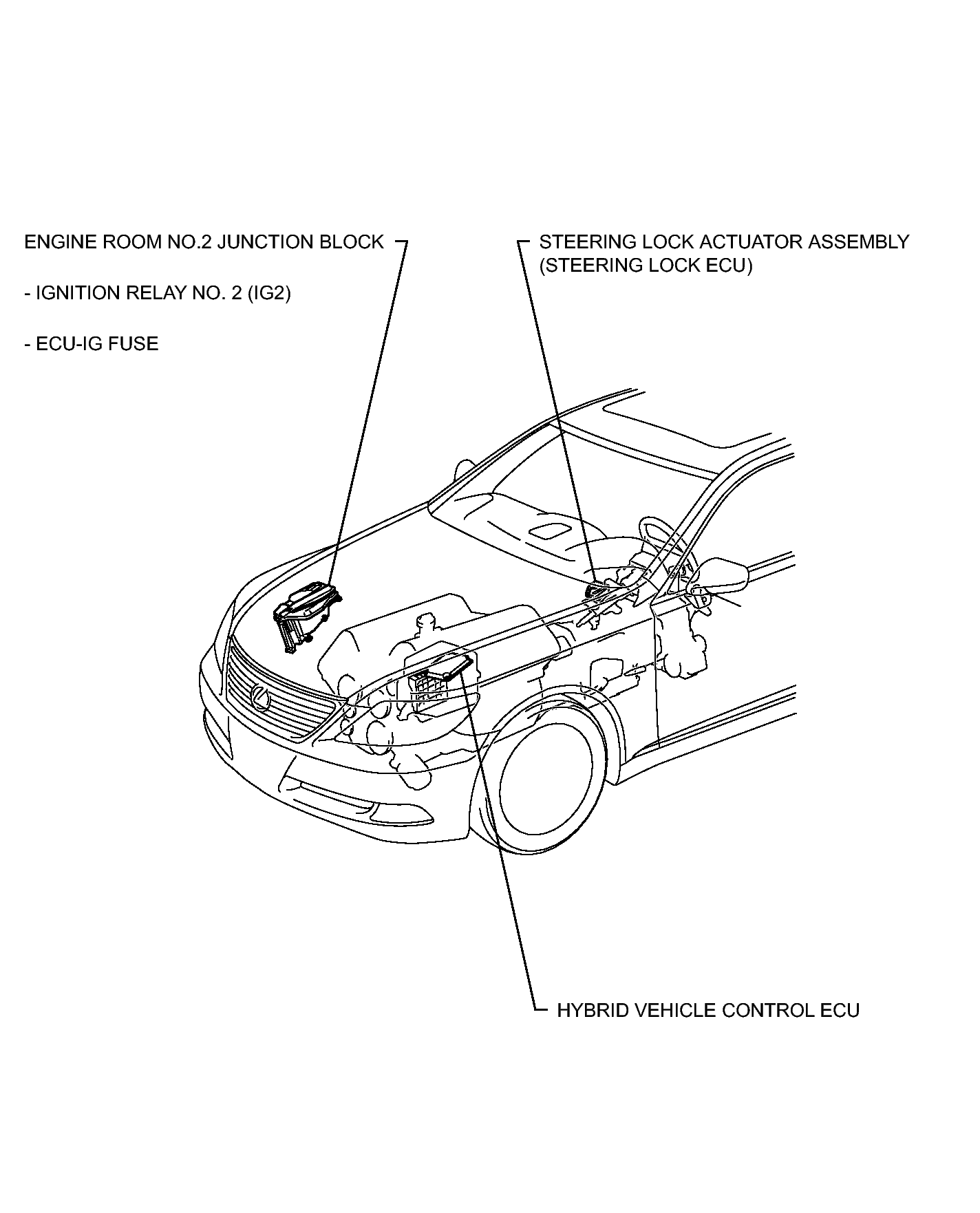

Fig 1: Identifying Smart Access System Components Location (1 Of 2)
GTY270912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

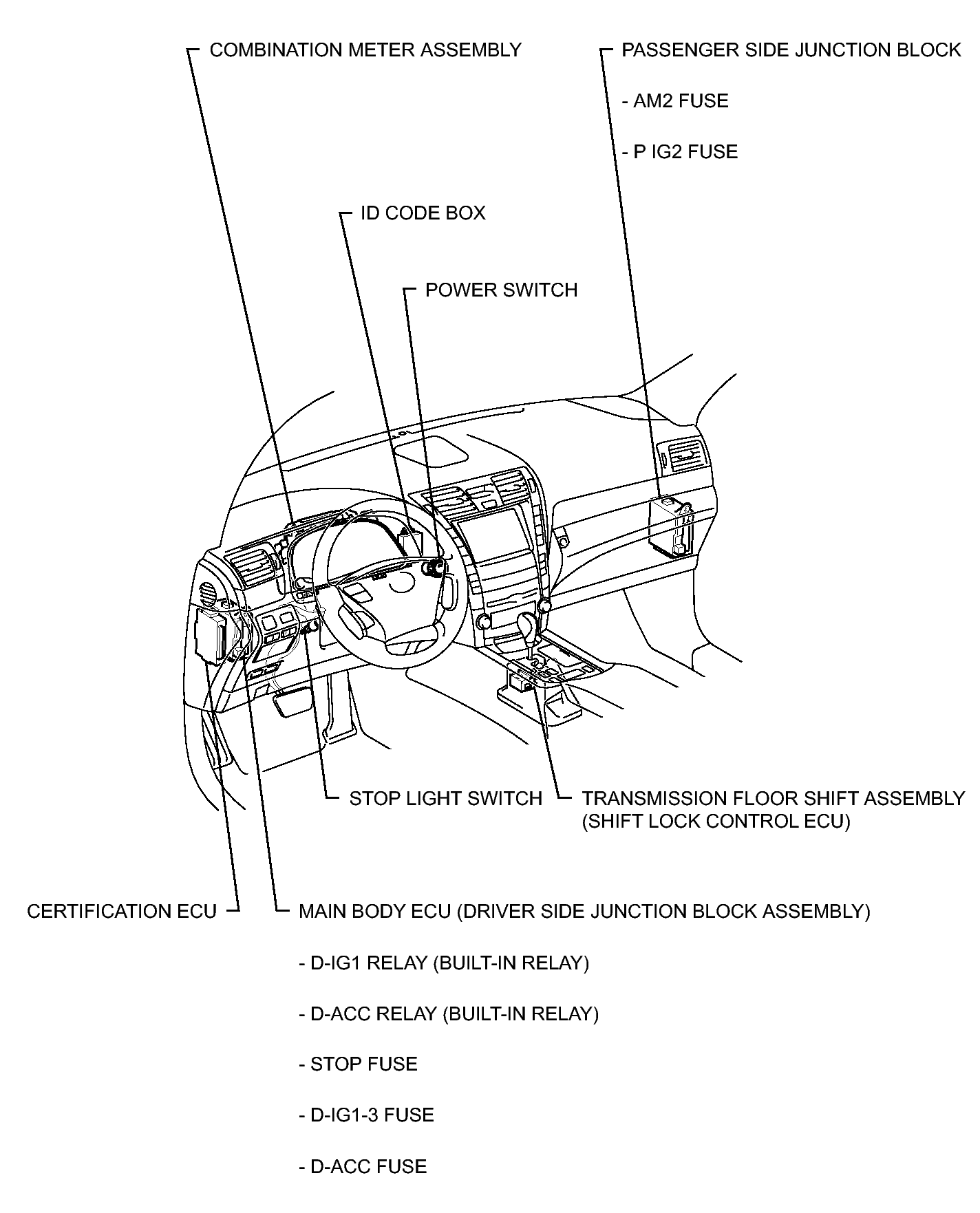

Fig 1: Identifying Smart Access System Components Location (2 Of 2)
GTY279539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
