Power Source Mode does not Change: Wiring Diagram

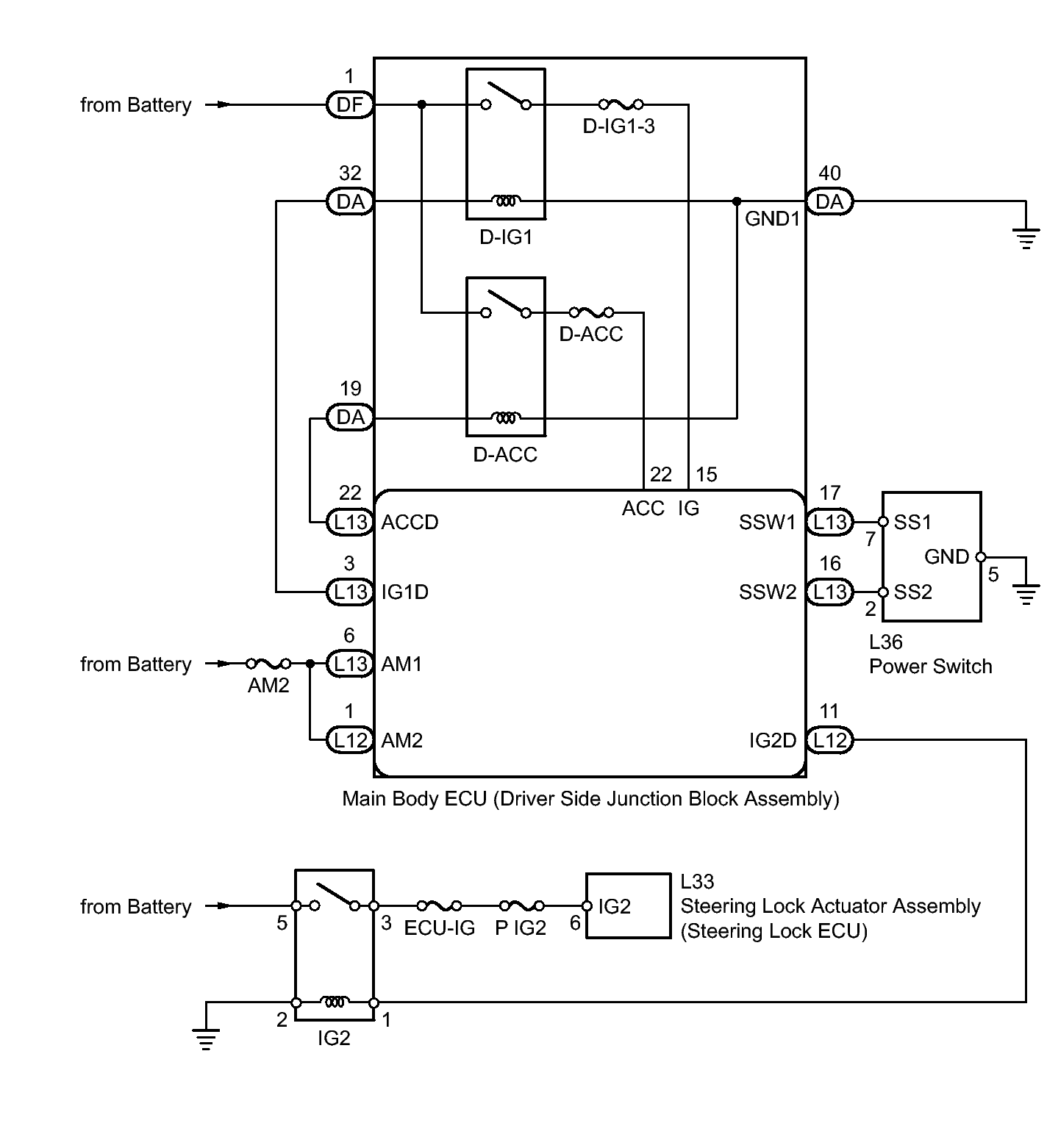

Fig 1: Identifying Power Source Wiring Diagram
GTY274776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
