Front Passenger Side Power Window Switch: Removal: Removal

  1. REMOVE FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Using a screwdriver, detach the 2 clips.

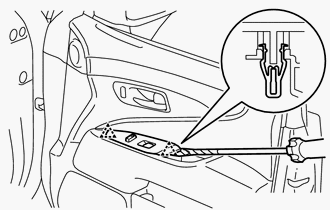

      Fig 1: Removing Armrest Base Panel Assembly Clamps
      GTY116532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the 2 connectors and remove the armrest base panel assembly.
      Fig 2: Armrest Base Panel Assembly Connectors Location
      GTY132447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 claws and remove the power window regulator switch.
      Fig 3: Identifying Power Window Regulator Switch Assembly Claws
      GTY116636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
