Smart Access System With Push-Button Start (Keyless Entry) (Diagnostics & Symptom Tests)
>>
Smart Access System With Push-Button Start
>>
Symptom Tests
>>
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

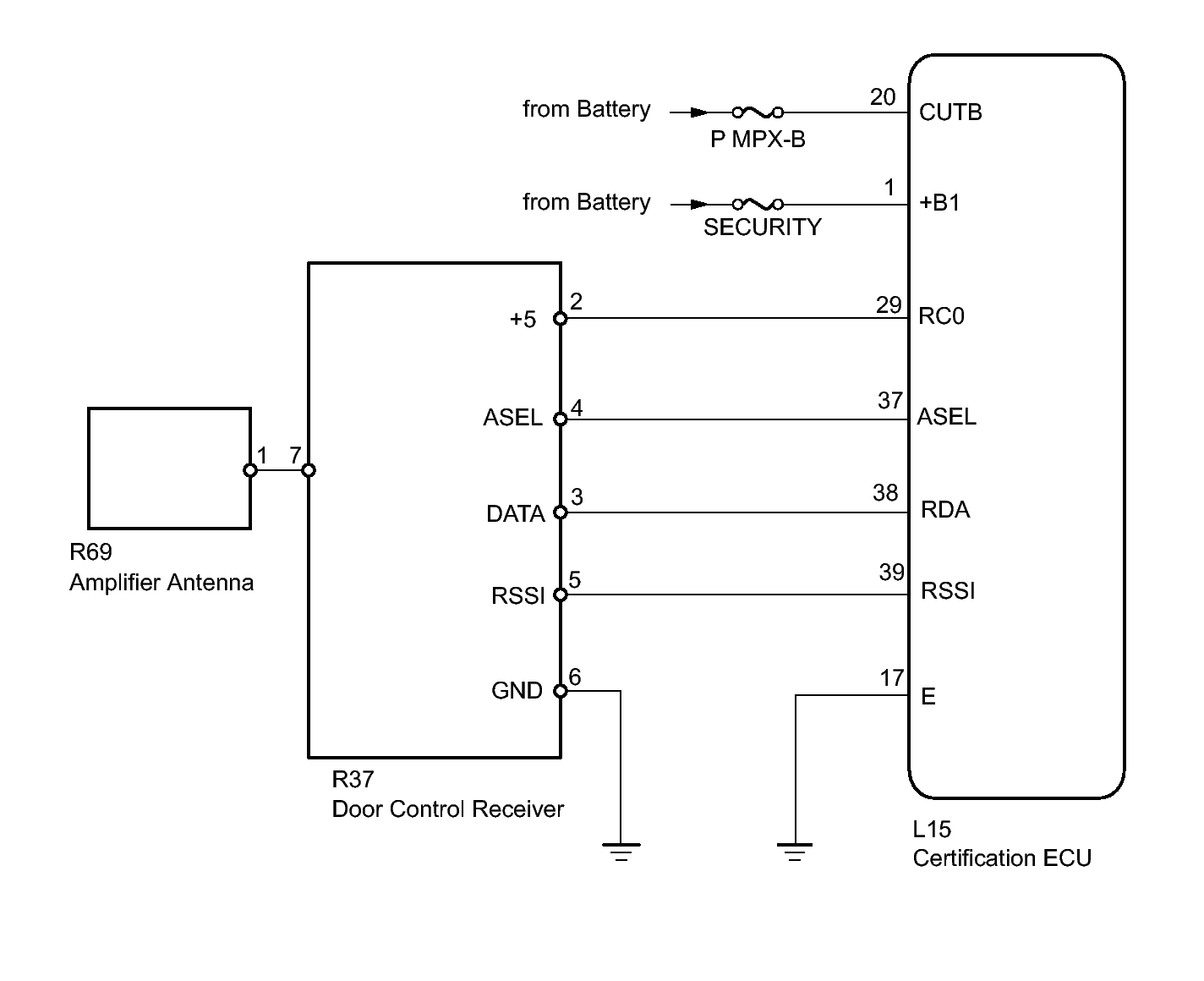

Fig 1: Entry Operation And Wireless Operation Door Lock Function - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
