Climate Control Seat (Rear Passenger's Seat): Notes

WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

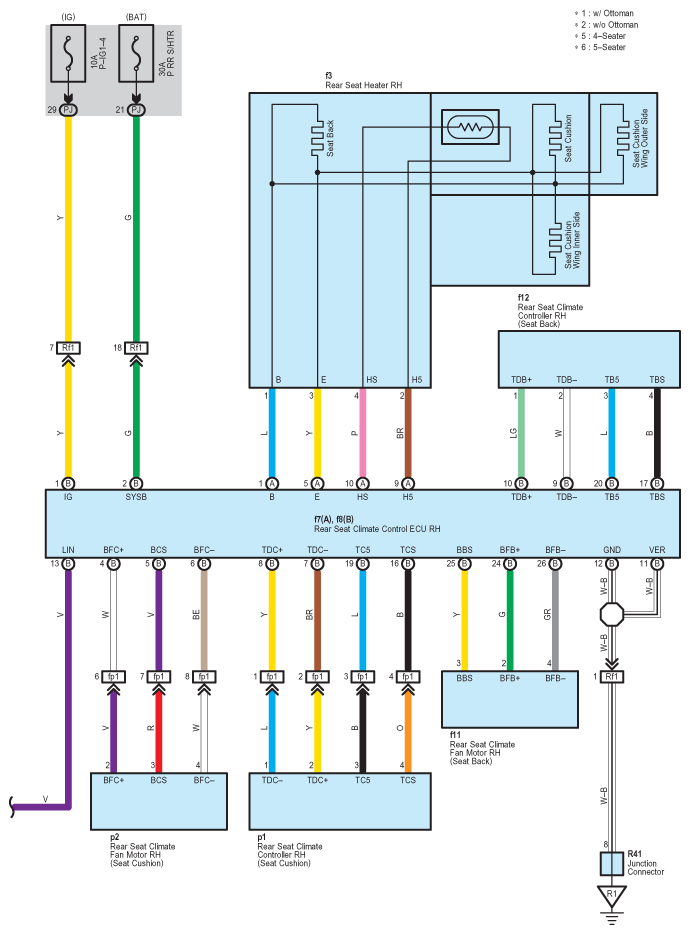

Fig 1: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

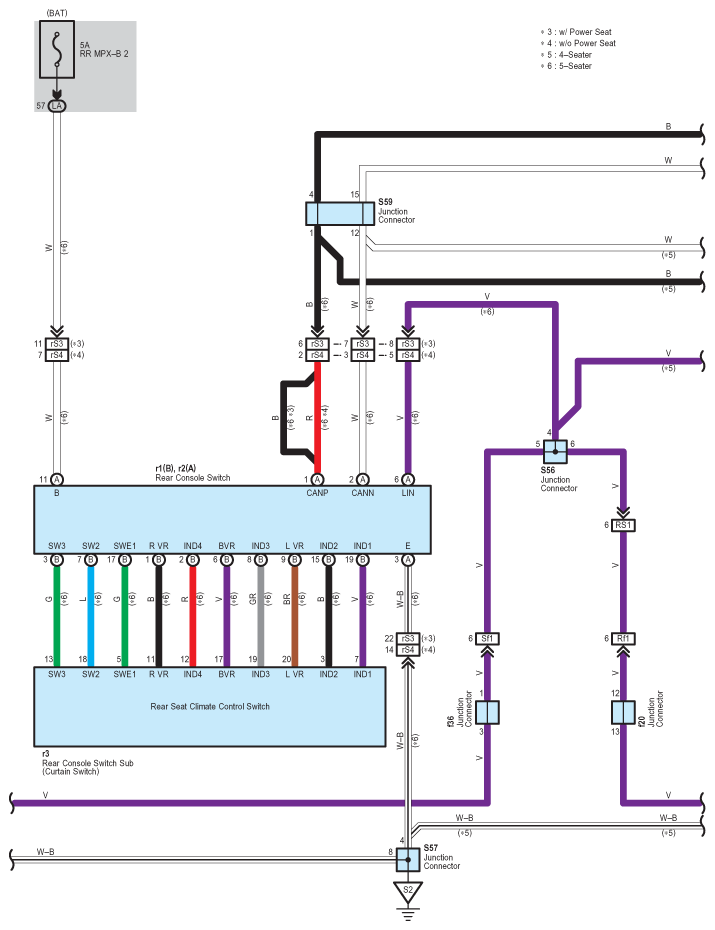

Fig 2: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

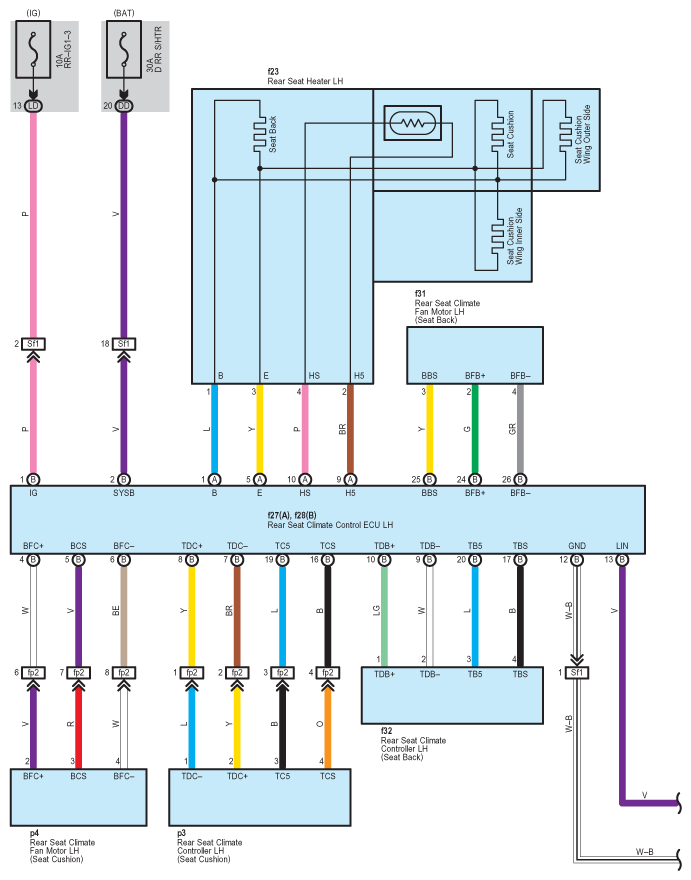

Fig 3: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (3 Of 4)

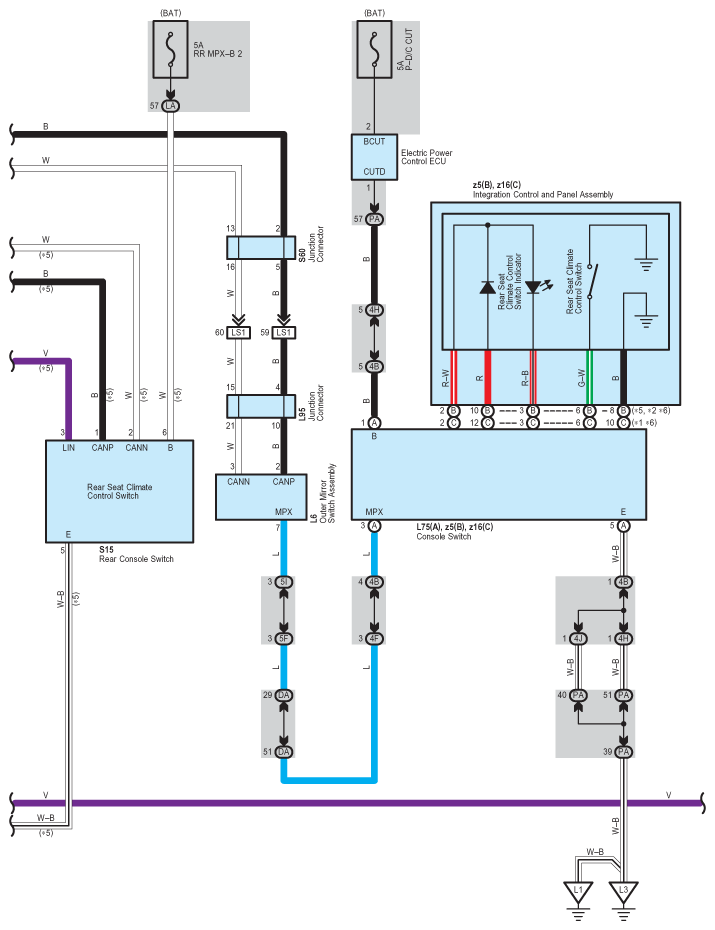

Fig 4: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (4 Of 4)
