Installation

1UR-FSE STARTING: ENGINE SWITCH: INSTALLATION

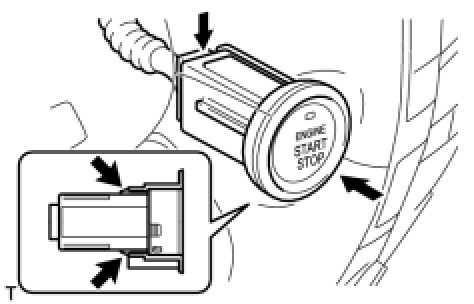

1. INSTALL ENGINE SWITCH





Attach the 2 claws to install the switch.

(a) Connect the switch connector.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
