Removal





ENGINE IMMOBILIZER: ID CODE BOX: REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Remove the instrument panel safety pad Removal.

2. REMOVE AIR CONDITIONING UNIT ASSEMBLY

(a) Remove the air conditioning unit Removal.

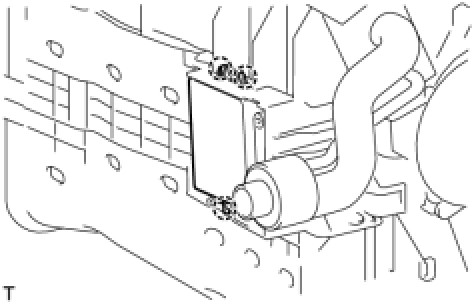

3. REMOVE ID CODE BOX

(a) Disconnect the connector.

(b) Detach the 3 claws and remove the ID code box.
