Torque Specifications

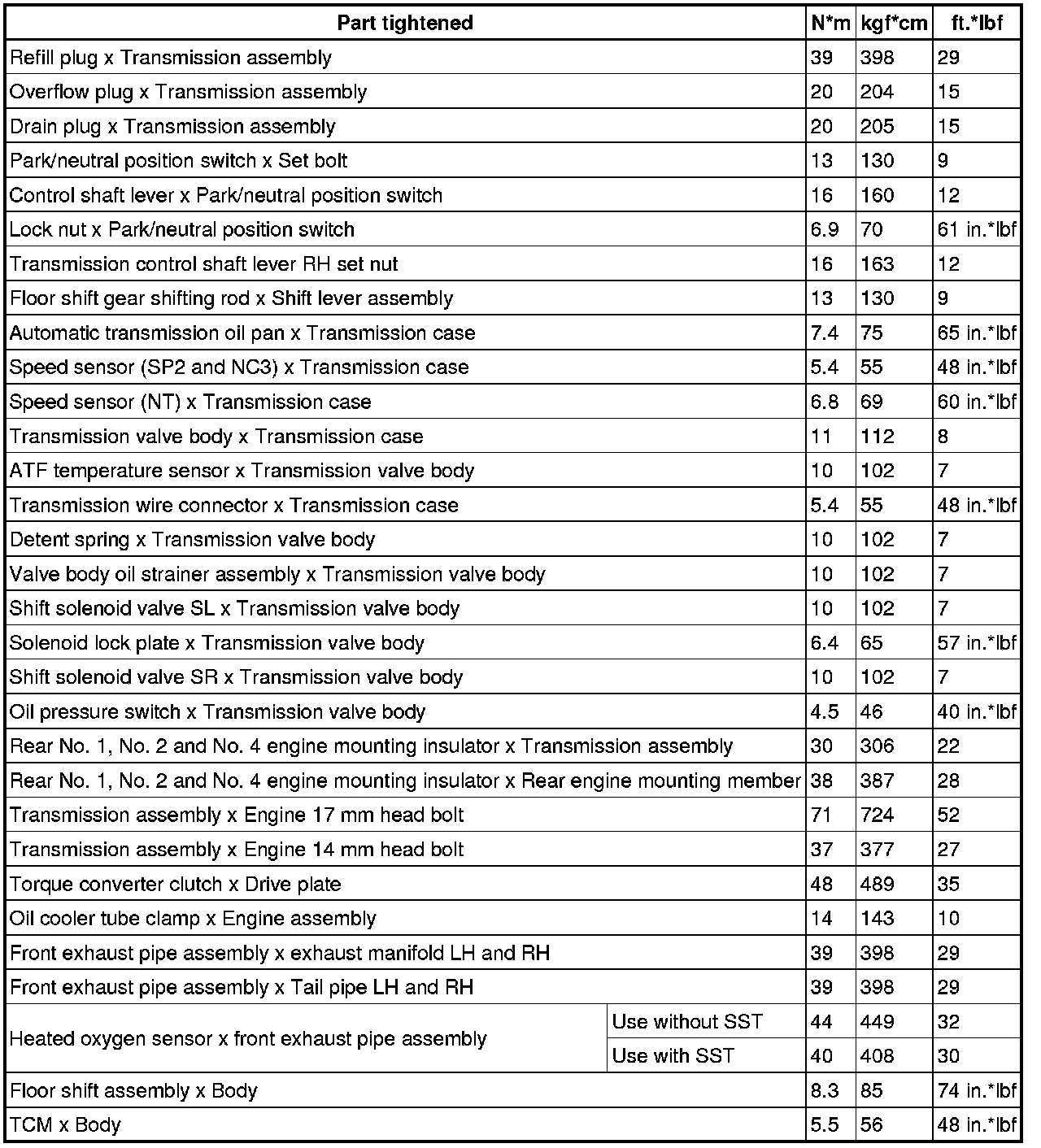

SERVICE SPECIFICATIONS: AA80F AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

Automatic Transmission Assembly
