Installation

PRE-COLLISION: SEAT BELT CONTROL ECU: INSTALLATION

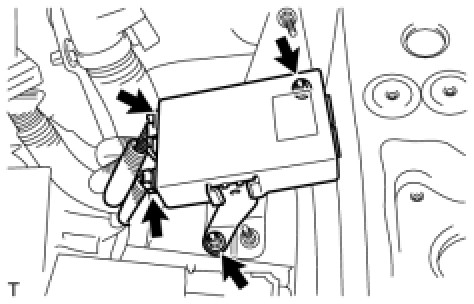

1. INSTALL SEAT BELT CONTROL ECU





(a) Install the ECU with the 2 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(b) Connect the 2 connectors.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Installation

3. INSTALL REAR FLOOR FINISH PLATE Installation

4. INSTALL DECK TRIM SIDE BOARD LH Installation

5. INSTALL ROPE HOOK Installation

6. INSTALL LUGGAGE COMPARTMENT NO. 1 TRIM HOOK Installation

7. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
