Rear Power Seat Control System

SEAT: REAR POWER SEAT CONTROL SYSTEM: PRECAUTION

1. NOTICE FOR INITIALIZATION

NOTICE:

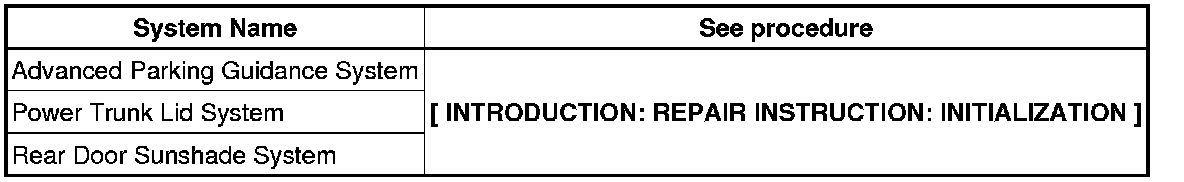

When disconnecting the cable from the negative (-) battery terminal, initialize the following systems after the cable is reconnected.





2. PRECAUTIONS WHEN USING TECHSTREAM

(a) When using the Techstream with the engine switch off to troubleshoot:

Connect the Techstream to the vehicle, and turn a courtesy light switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.

(b) After all DTCs are cleared, check if the trouble occurs again 6 seconds after the engine switch is turned on (IG).
