Distance Control ECU Communication Stop Mode

NETWORKING: CAN COMMUNICATION SYSTEM: Distance Control ECU Communication Stop Mode
- Distance Control ECU Communication Stop Mode

DESCRIPTION





HINT
"Cruise Control" refers to the circuit that includes the distance control ECU.

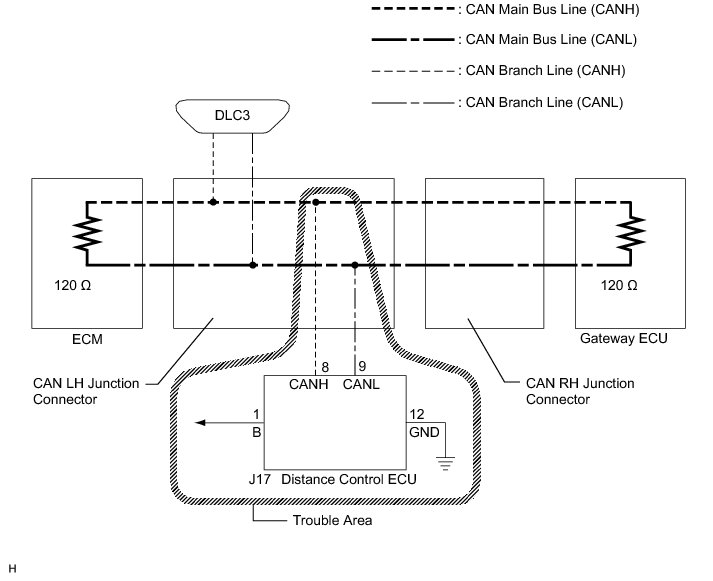

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* Turn the engine switch off before measuring the resistance of CAN bus main wires and CAN bus branch wires.
* After the engine switch is turned off, check that the key reminder warning system and light reminder warning system are not operating.
* Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the engine switch, any other switches, or the doors. If any doors need to be opened in order to check connectors, open the doors and leave them open.

HINT
Operating the engine switch, any switches, or any doors triggers related ECU and sensor communication with the CAN. This communication will cause the resistance value to change.

PROCEDURE

1. CHECK OPEN IN CAN BUS WIRE (DISTANCE CONTROL ECU BRANCH LINE)

(a) Turn the engine switch off.

(b) Disconnect the distance control ECU connector (J17).

(c) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





NG -- REPAIR OR REPLACE DISTANCE CONTROL ECU BRANCH WIRE OR CONNECTOR (CANH, CANL)
OK -- Continue to next step.

2. CHECK WIRE HARNESS (+B, GND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE DISTANCE CONTROL ECU Removal
