System Diagram

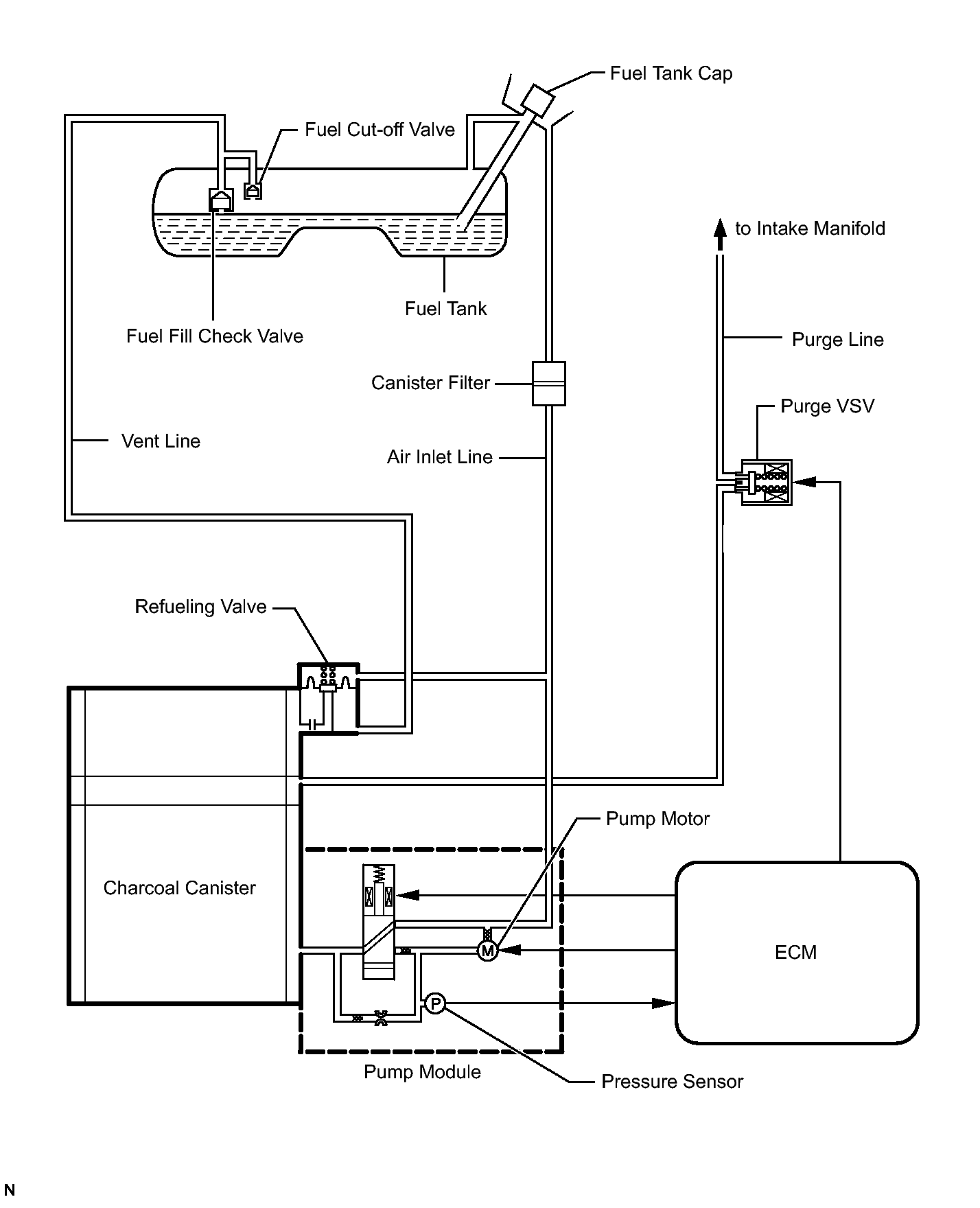

  1. EVAP CONTROL SYSTEM DIAGRAM
    Fig 1: EVAP Control System Diagram
    GTY281161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

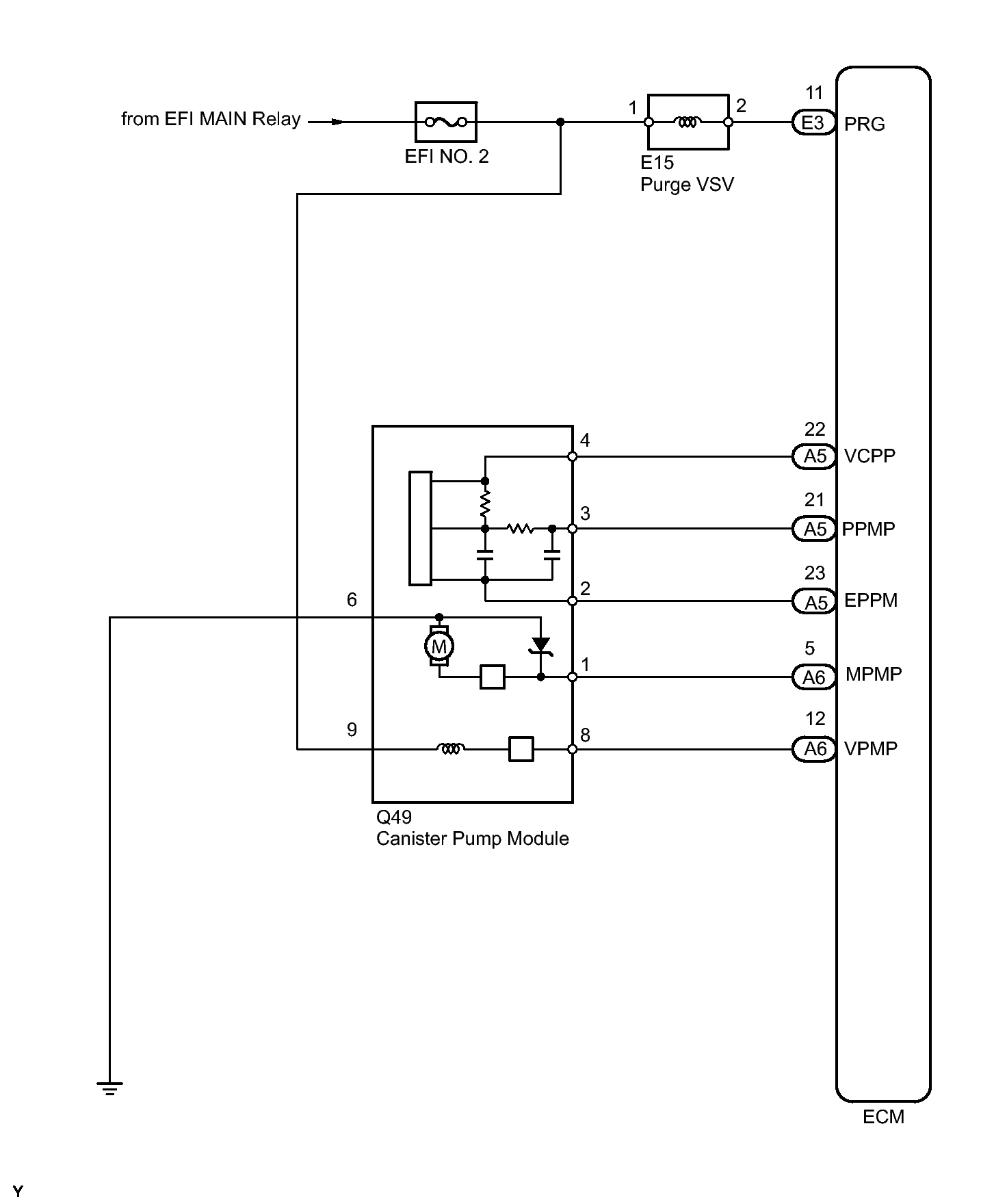

  2. EVAP SYSTEM WIRING DIAGRAM
    Fig 2: EVAP System Wiring Diagram
    GTY266746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
