System Diagram

WARNING: This page is about a different car, the 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

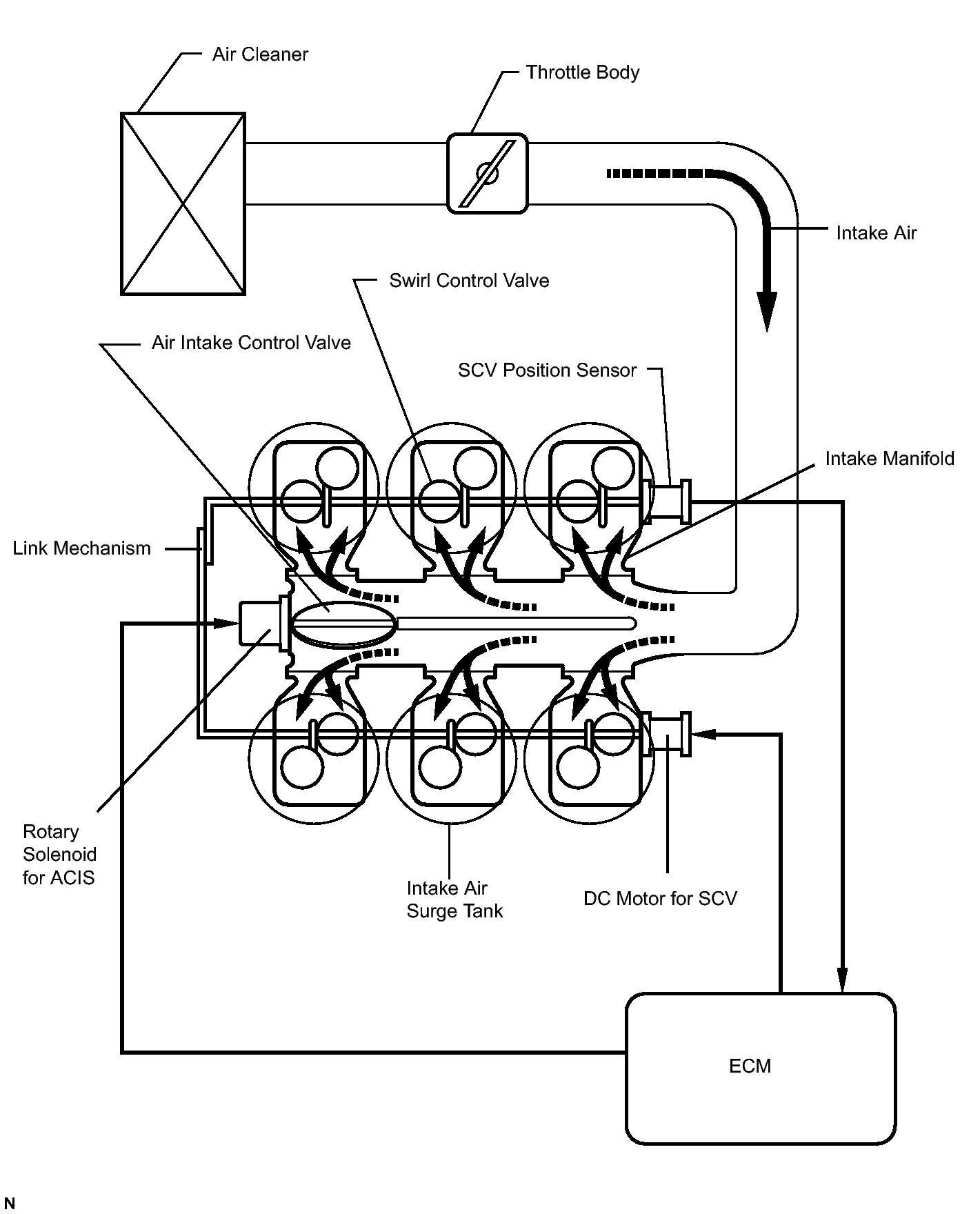

  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM
    Fig 1: Intake Control System Valve Diagram
    GTY145465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

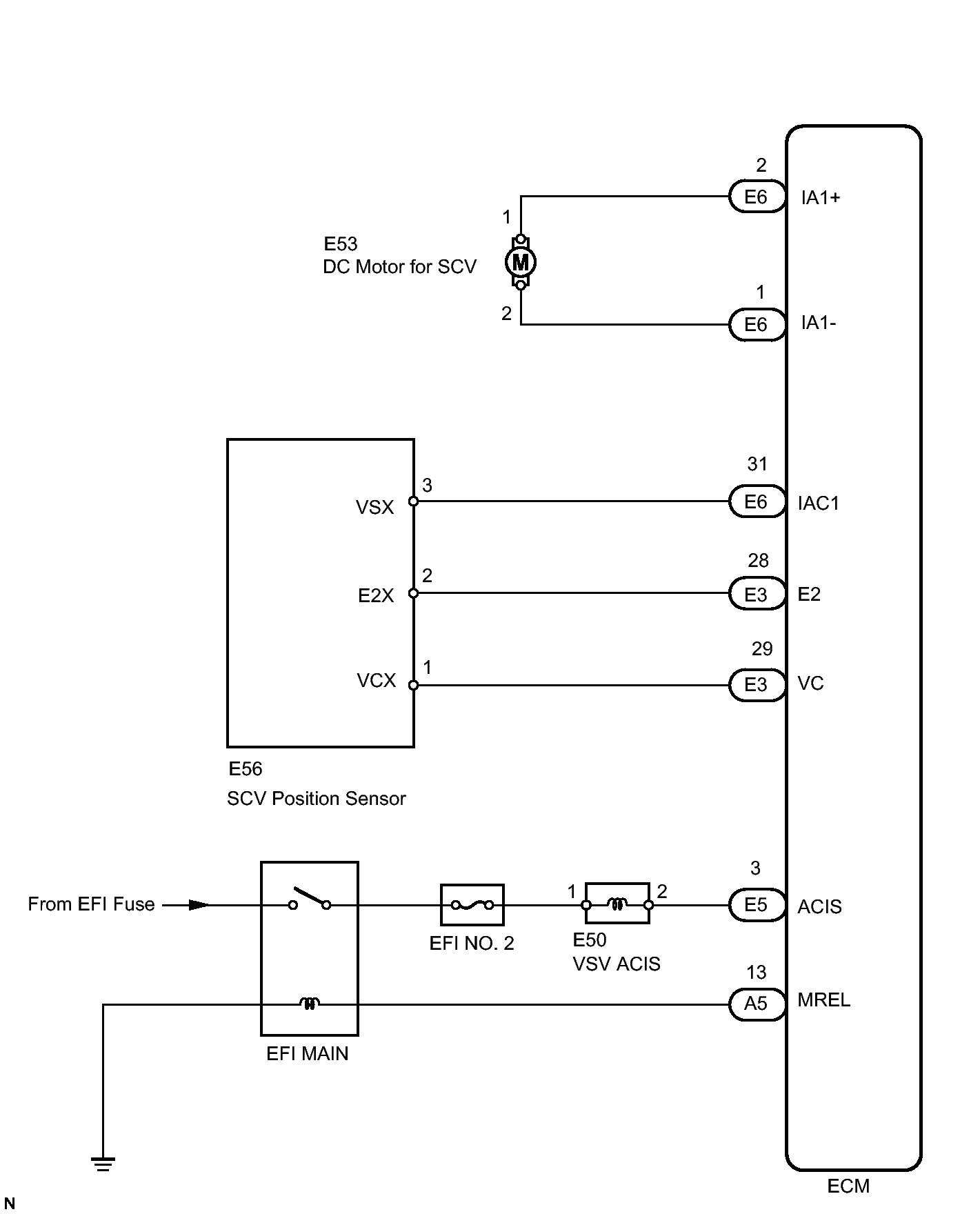

  2. ELECTRICAL WIRING DIAGRAM
    Fig 2: Intake Control Electrical Wiring Diagram
    GTY280743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
