Climate Control Seat and Seat Heater (w/ Climate Control Seat): Notes

WARNING: This page is about a different car, the 2010 Lexus IS 350 and 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

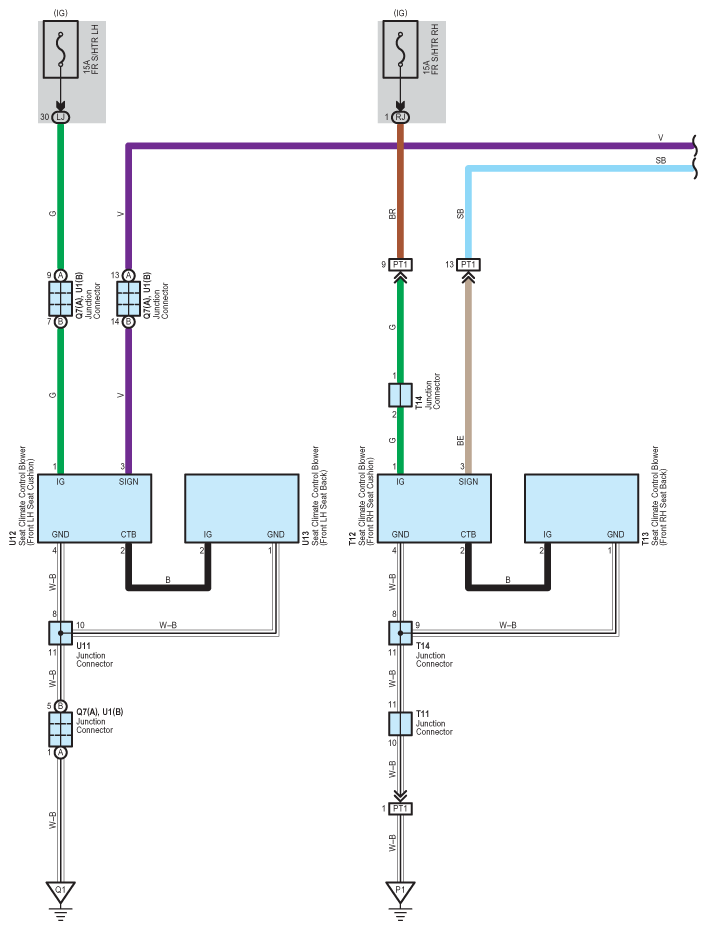

Fig 1: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (1 Of 4)
G07559227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

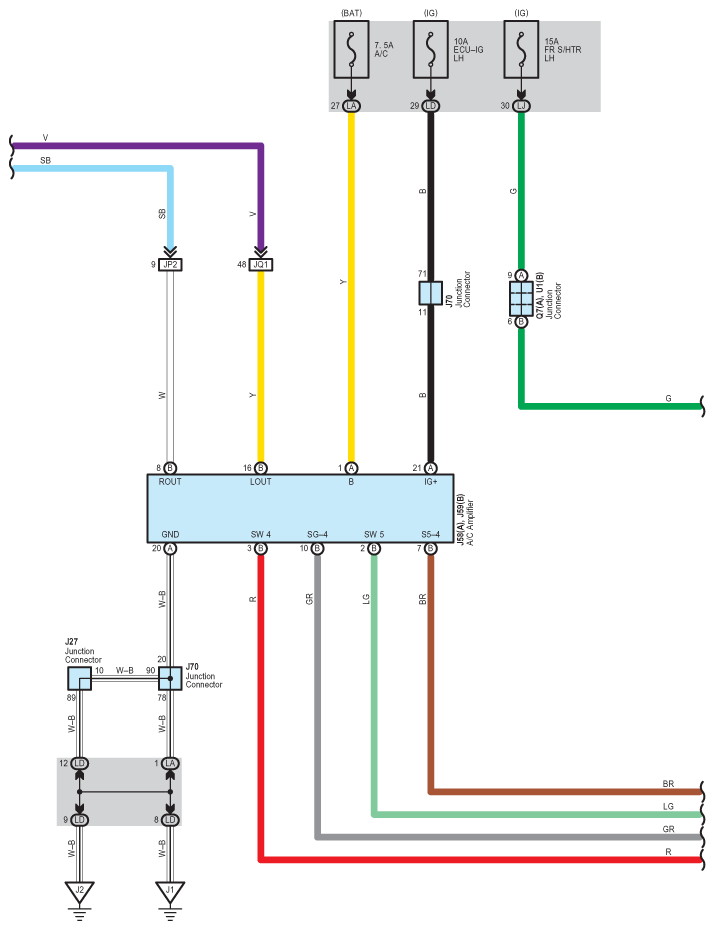

Fig 2: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (2 Of 4)
G07559228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

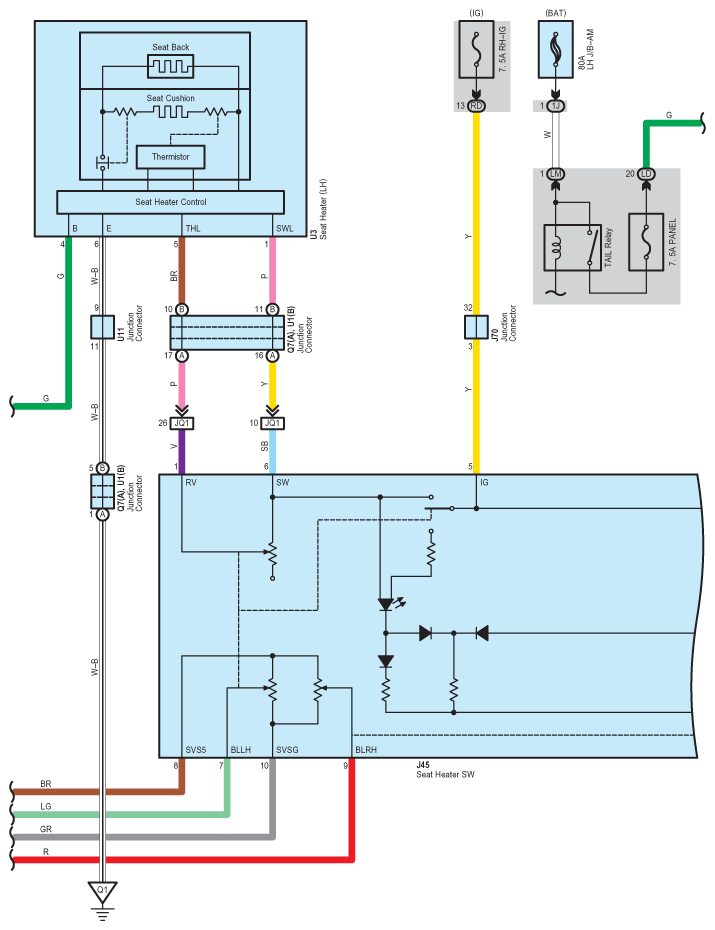

Fig 3: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (3 Of 4)
G07559229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

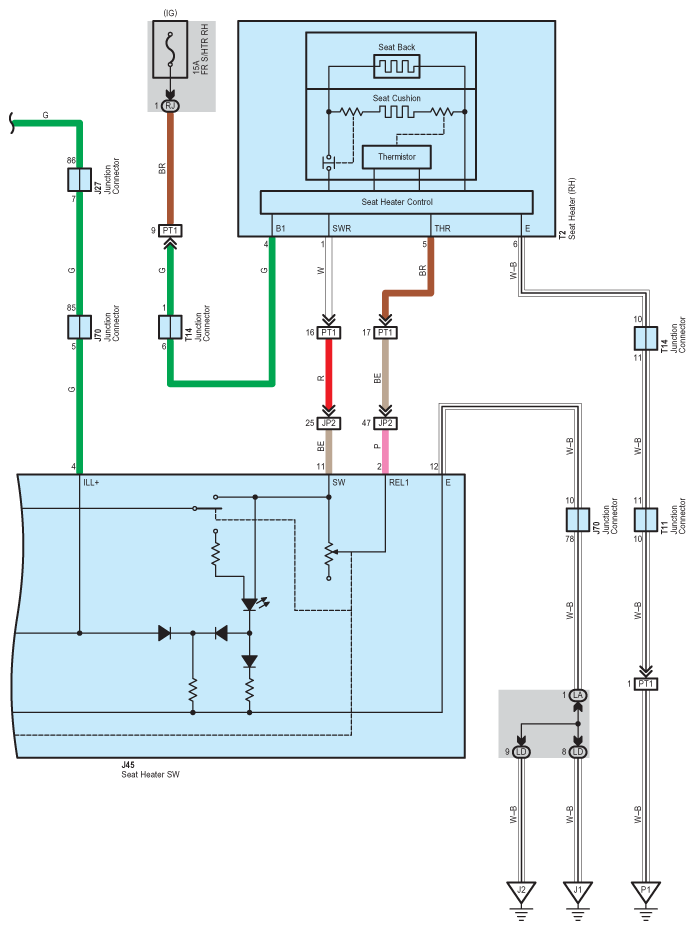

Fig 4: Climate Control Seat And Seat Heater (W/ Climate Control Seat) - Circuit Diagram (4 Of 4)
G07559230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
