OEM System Circuits: Clock: Notes

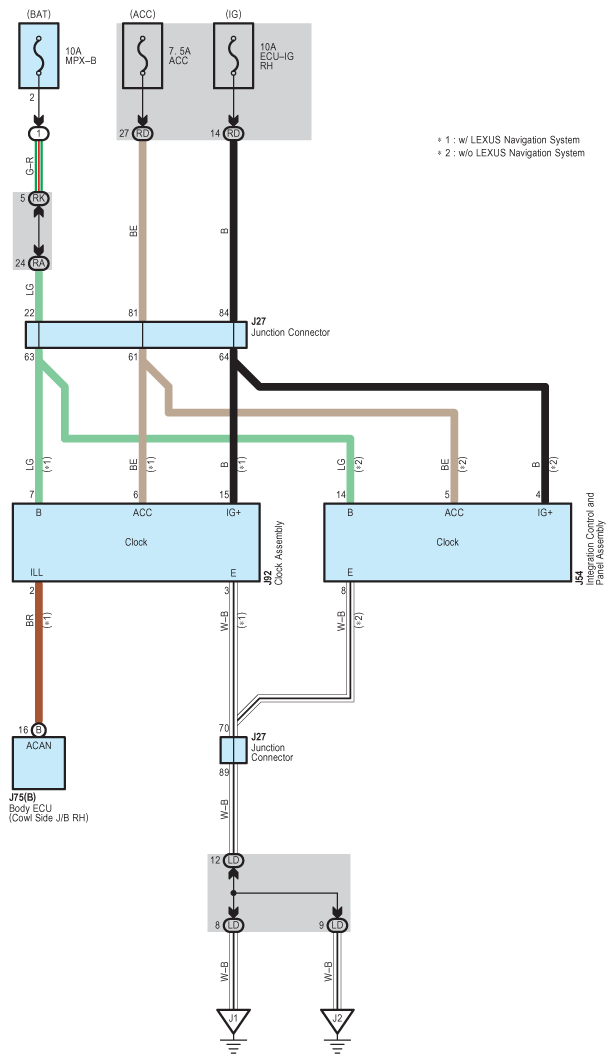

Fig 1: Clock - Circuit Diagram
G07581426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
