Audio System (w/o LEXUS Navigation System): Notes

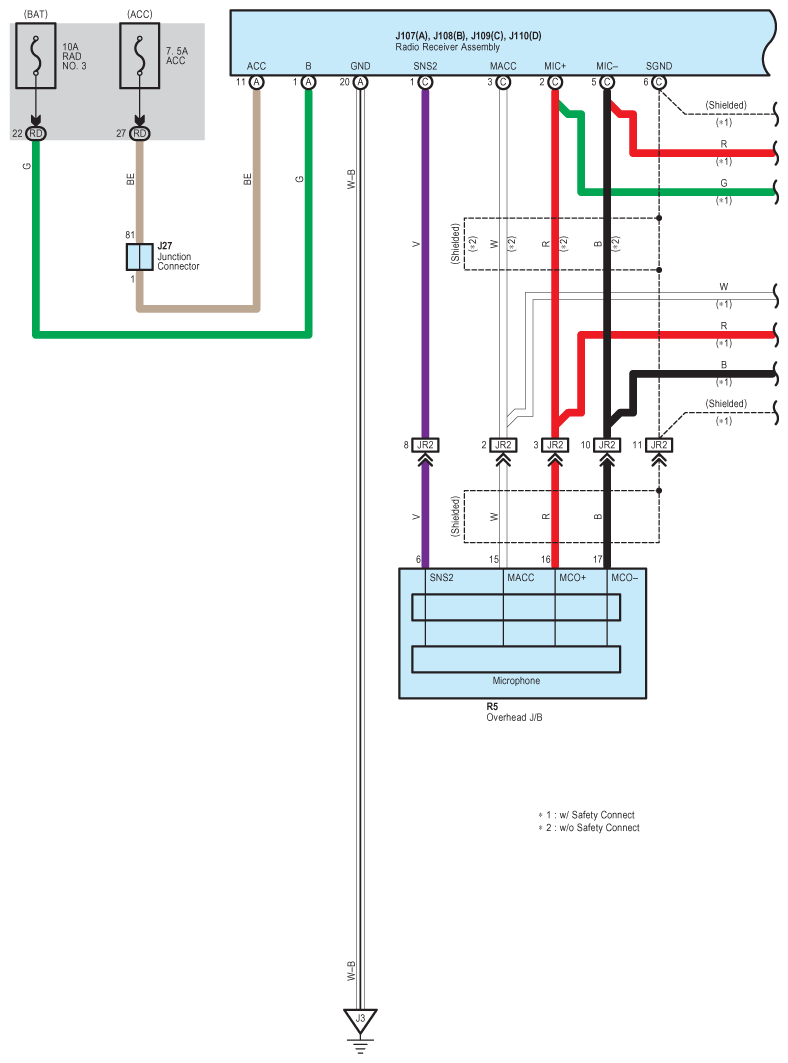

Fig 1: Audio System (W/O Lexus Navigation System) - Circuit Diagram (1 Of 9)
G07581453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

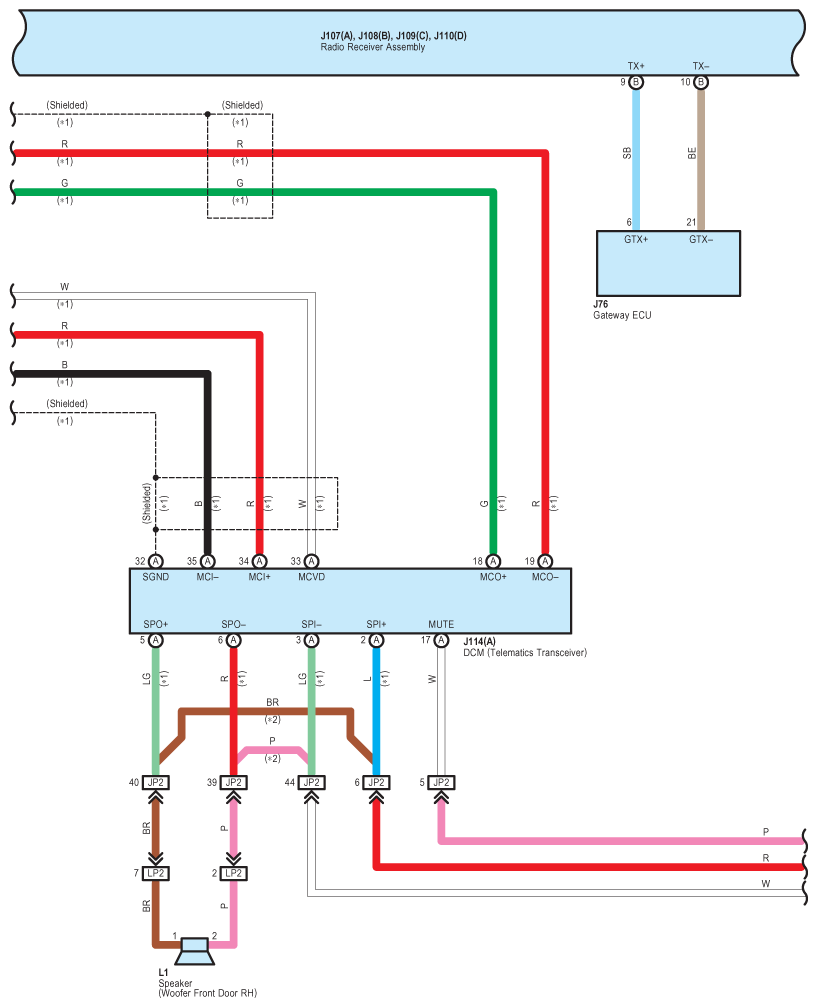

Fig 2: Audio System (W/O Lexus Navigation System) - Circuit Diagram (2 Of 9)
G07581454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

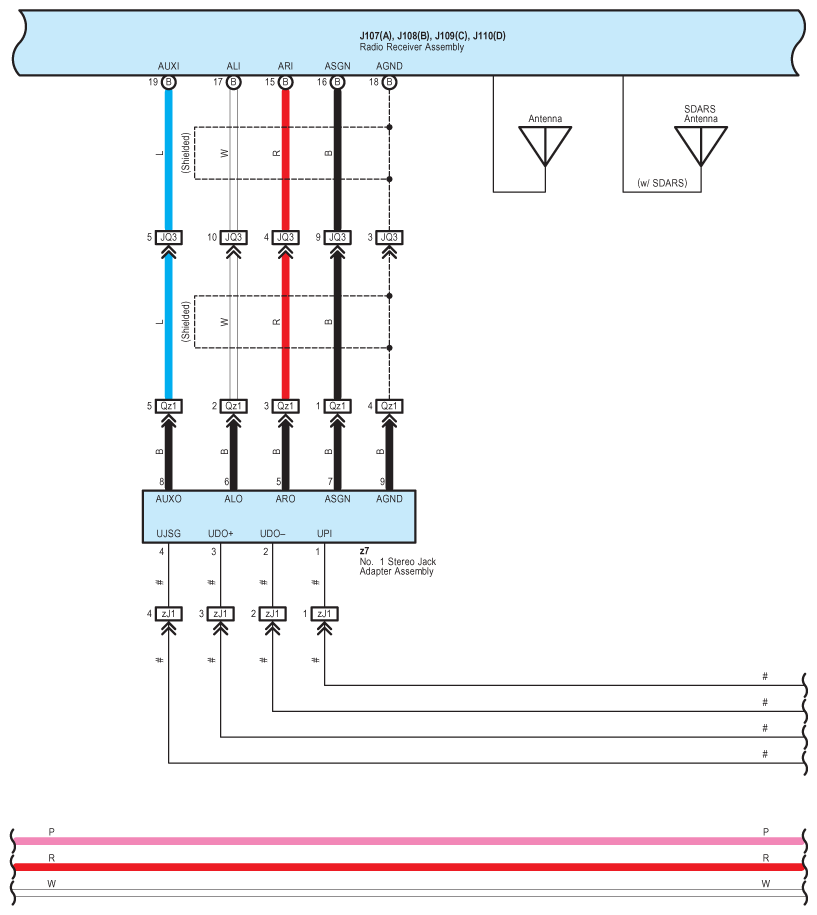

Fig 3: Audio System (W/O Lexus Navigation System) - Circuit Diagram (3 Of 9)
G07581455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

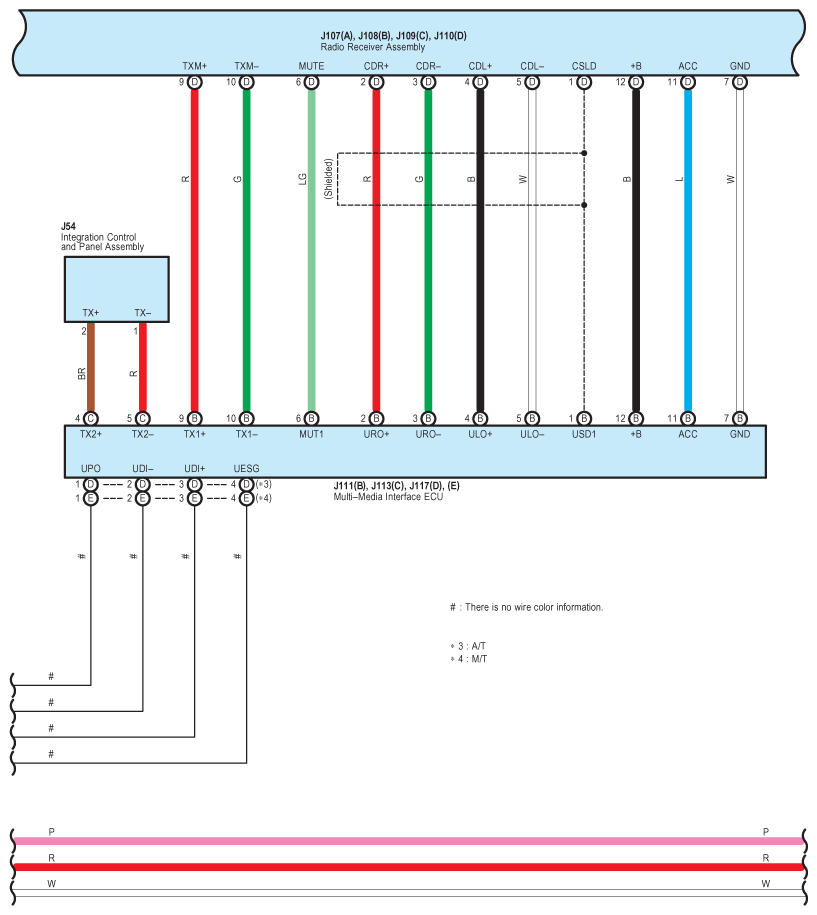

Fig 4: Audio System (W/O Lexus Navigation System) - Circuit Diagram (4 Of 9)
G07581456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

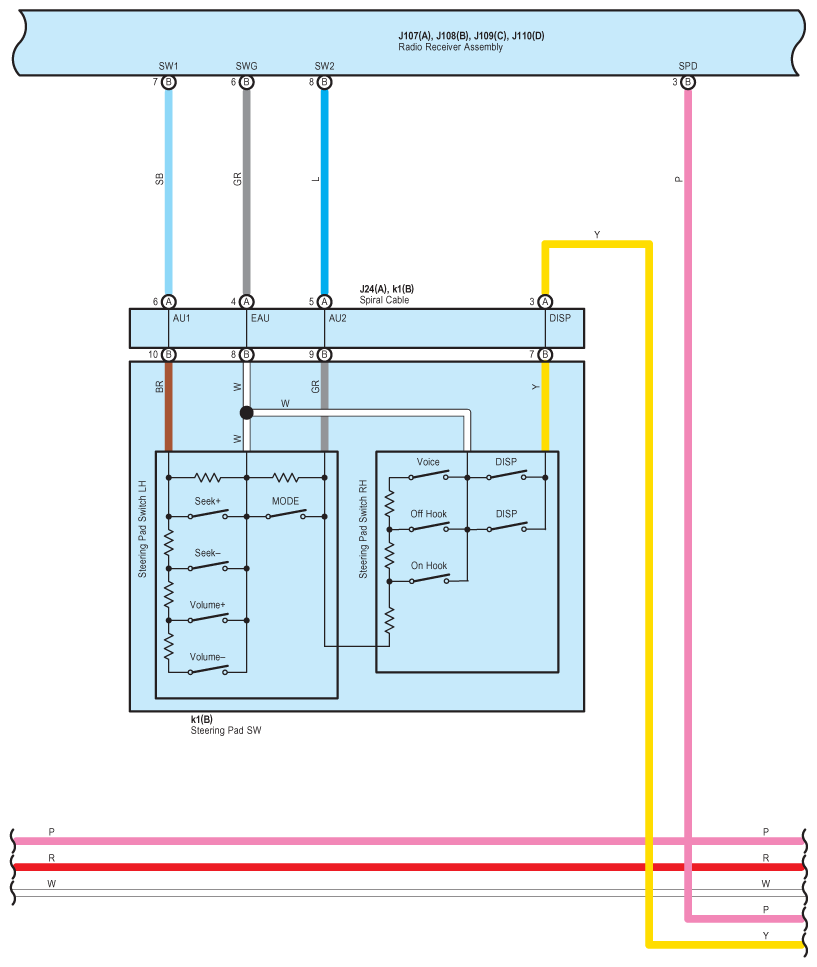

Fig 5: Audio System (W/O Lexus Navigation System) - Circuit Diagram (5 Of 9)
G07581457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

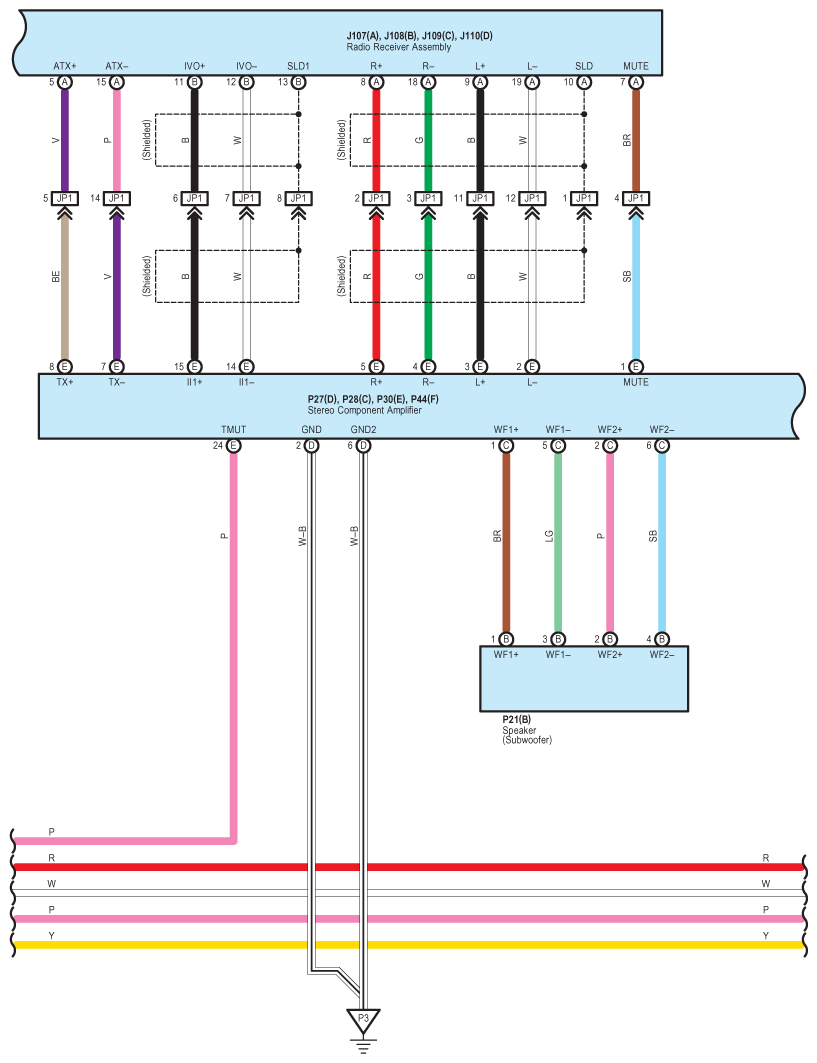

Fig 6: Audio System (W/O Lexus Navigation System) - Circuit Diagram (6 Of 9)
G07581458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

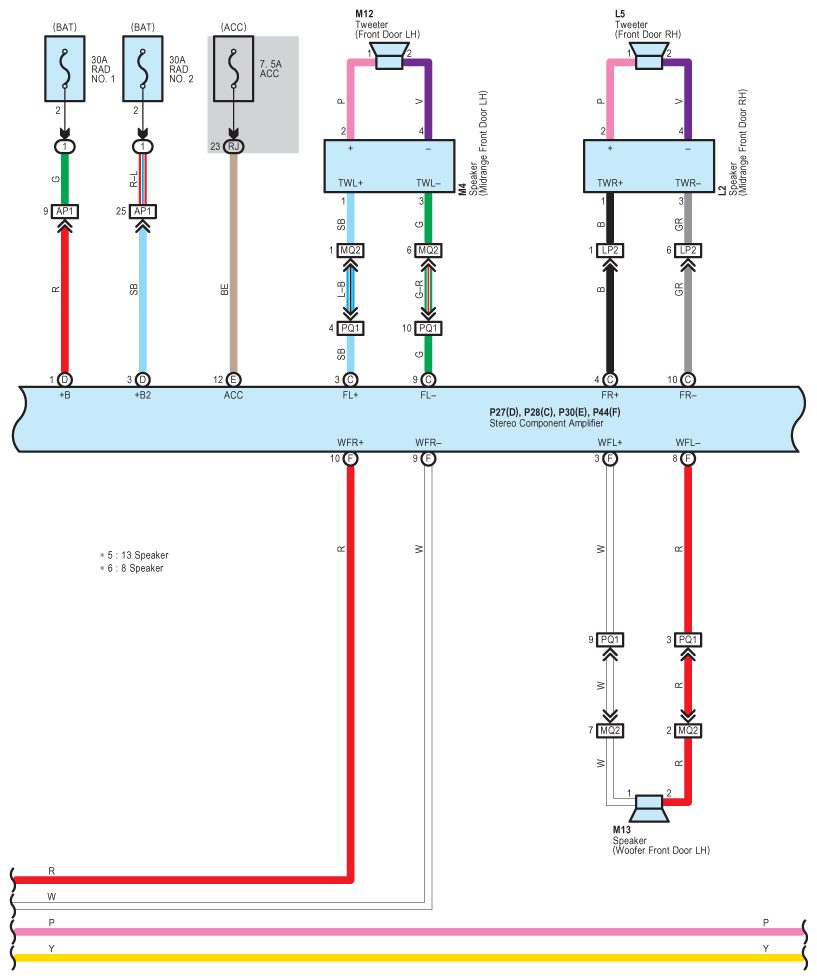

Fig 7: Audio System (W/O Lexus Navigation System) - Circuit Diagram (7 Of 9)
G07581459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

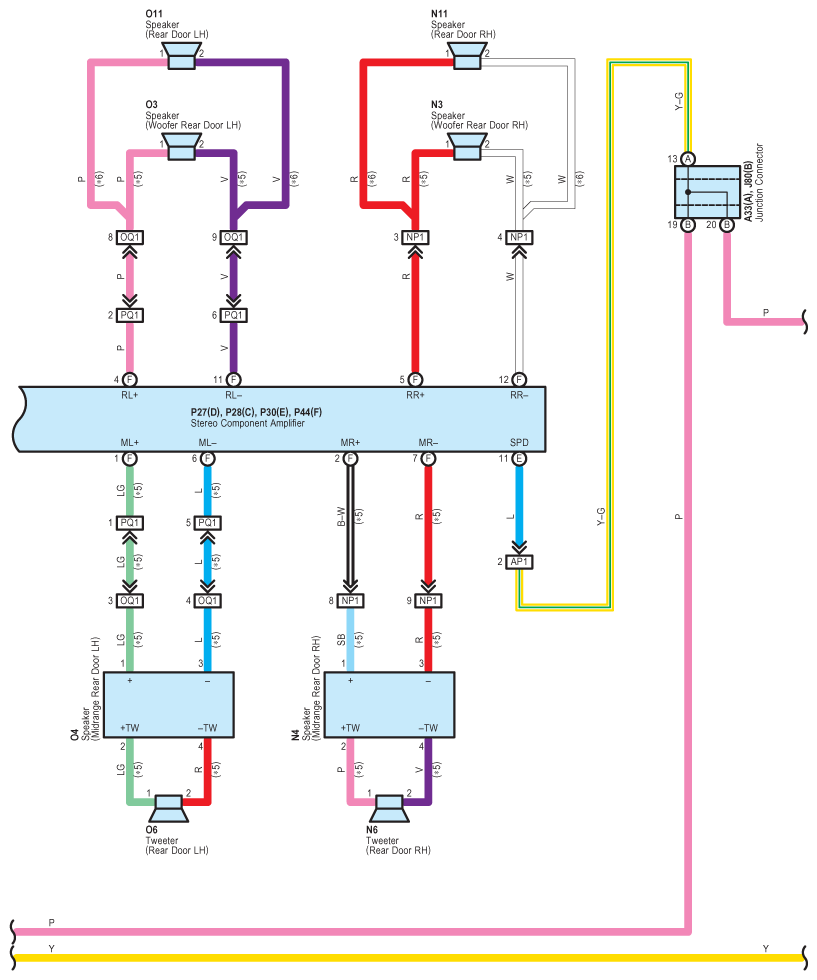

Fig 8: Audio System (W/O Lexus Navigation System) - Circuit Diagram (8 Of 9)
G07581460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

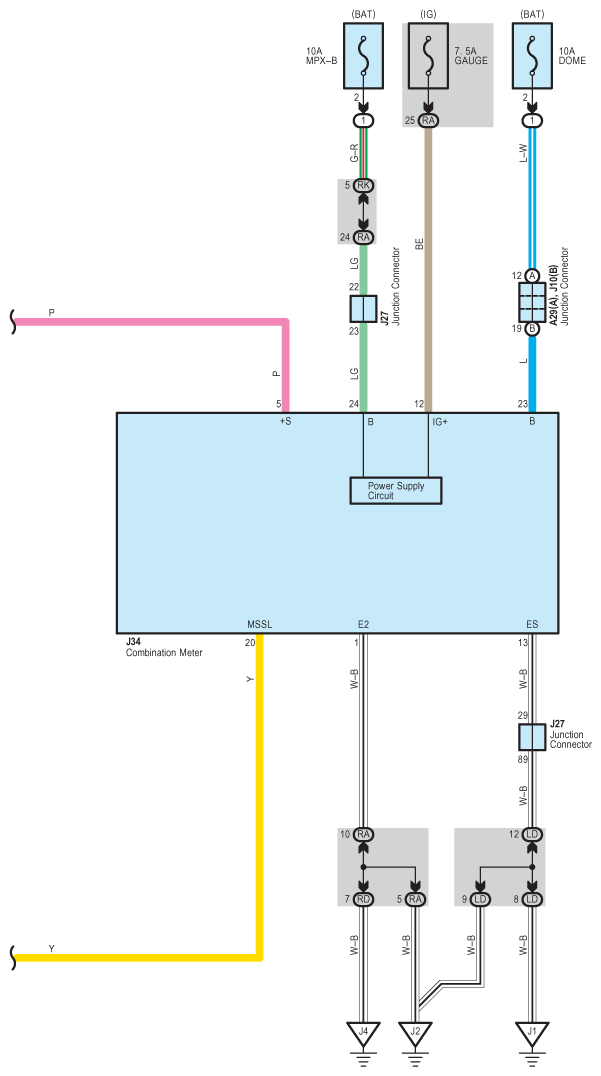

Fig 9: Audio System (W/O Lexus Navigation System) - Circuit Diagram (9 Of 9)
G07581461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
