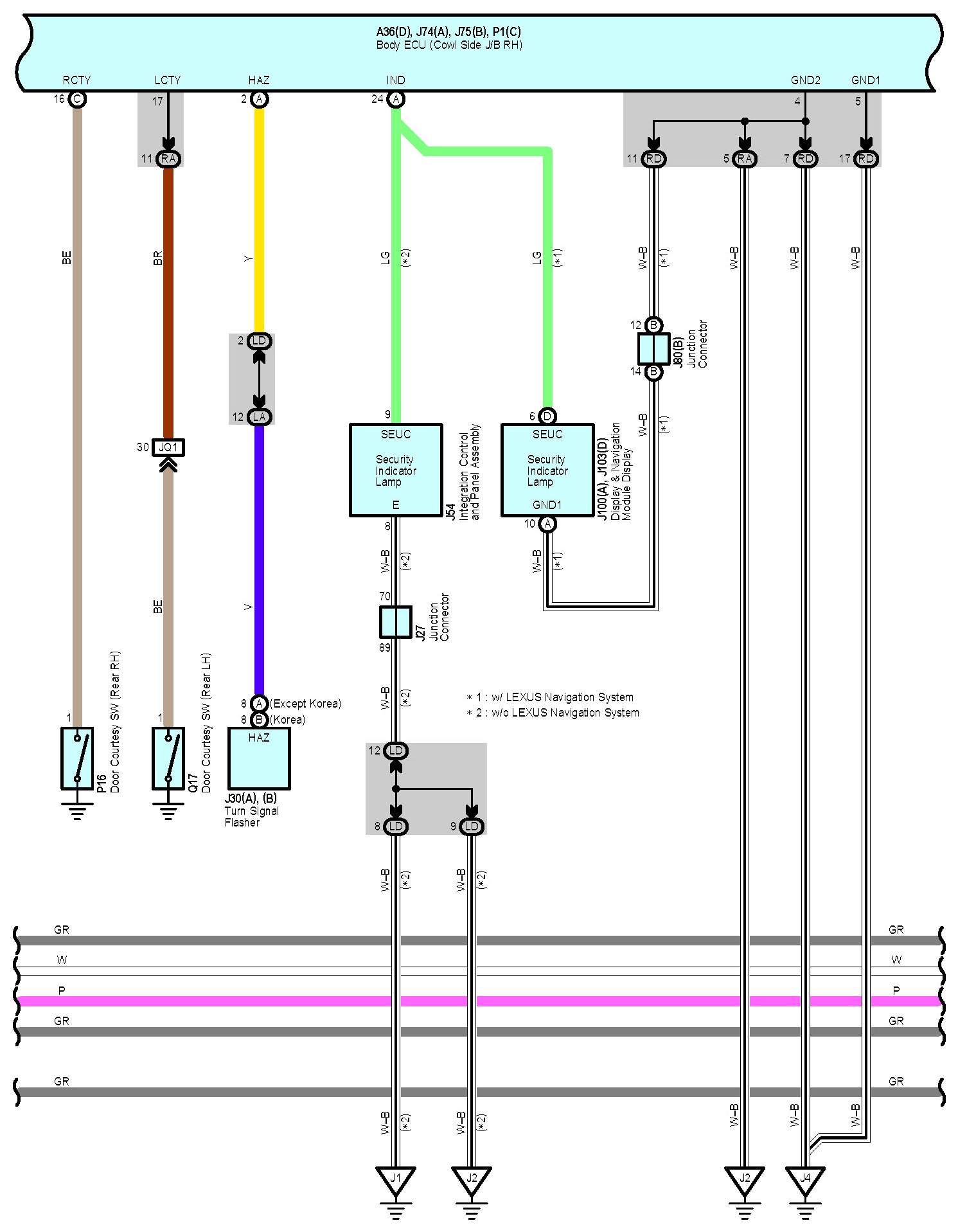

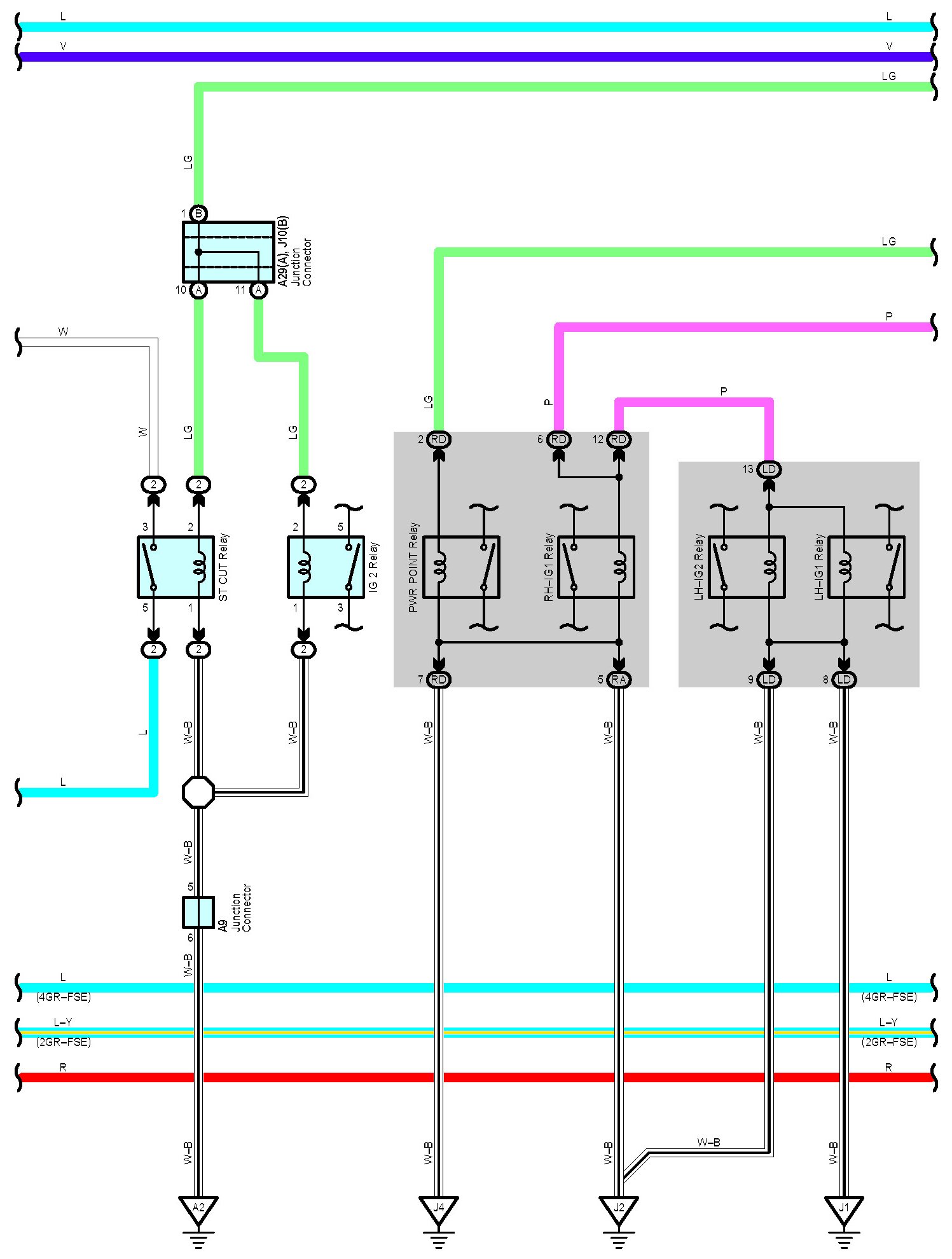

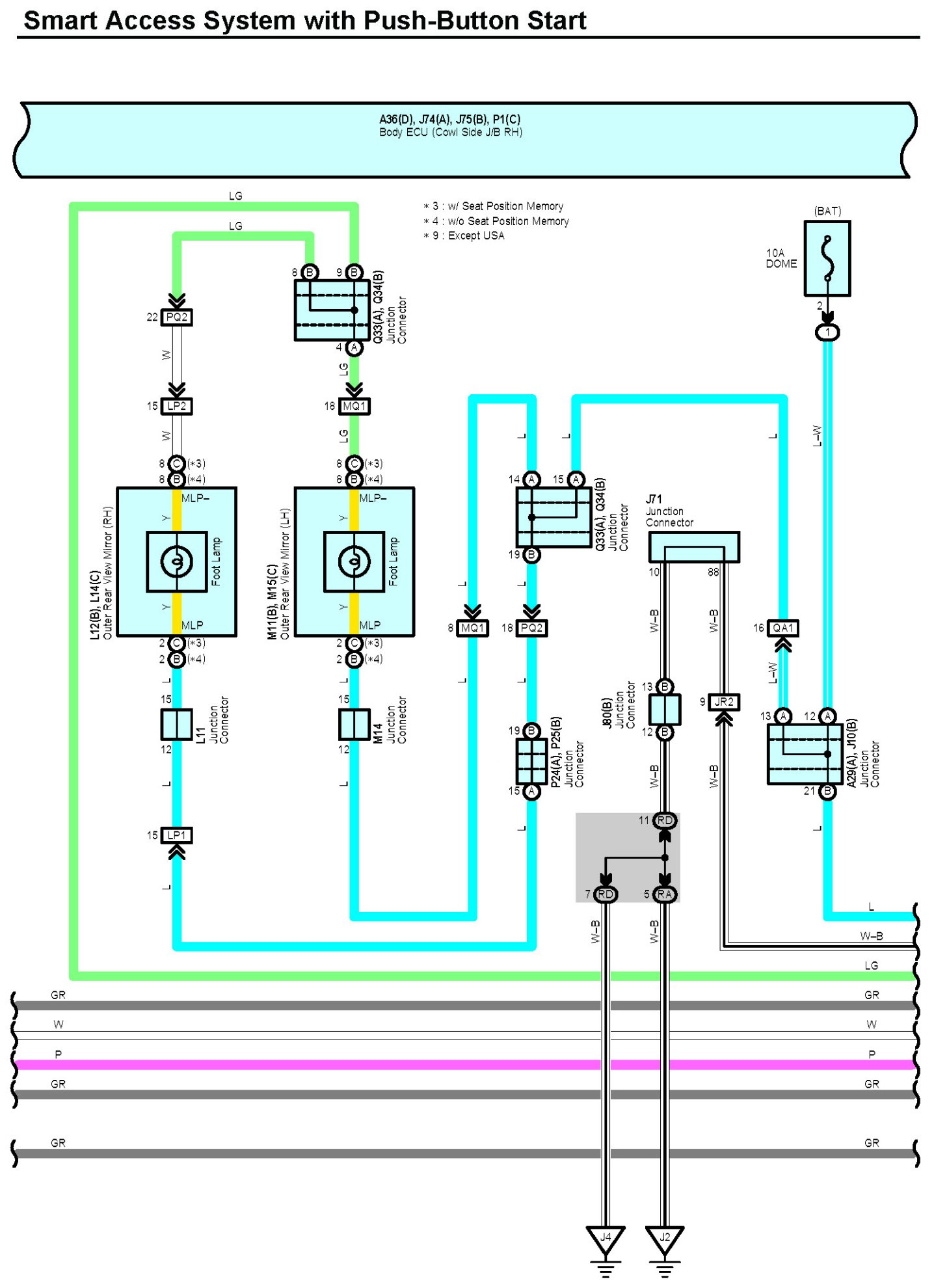

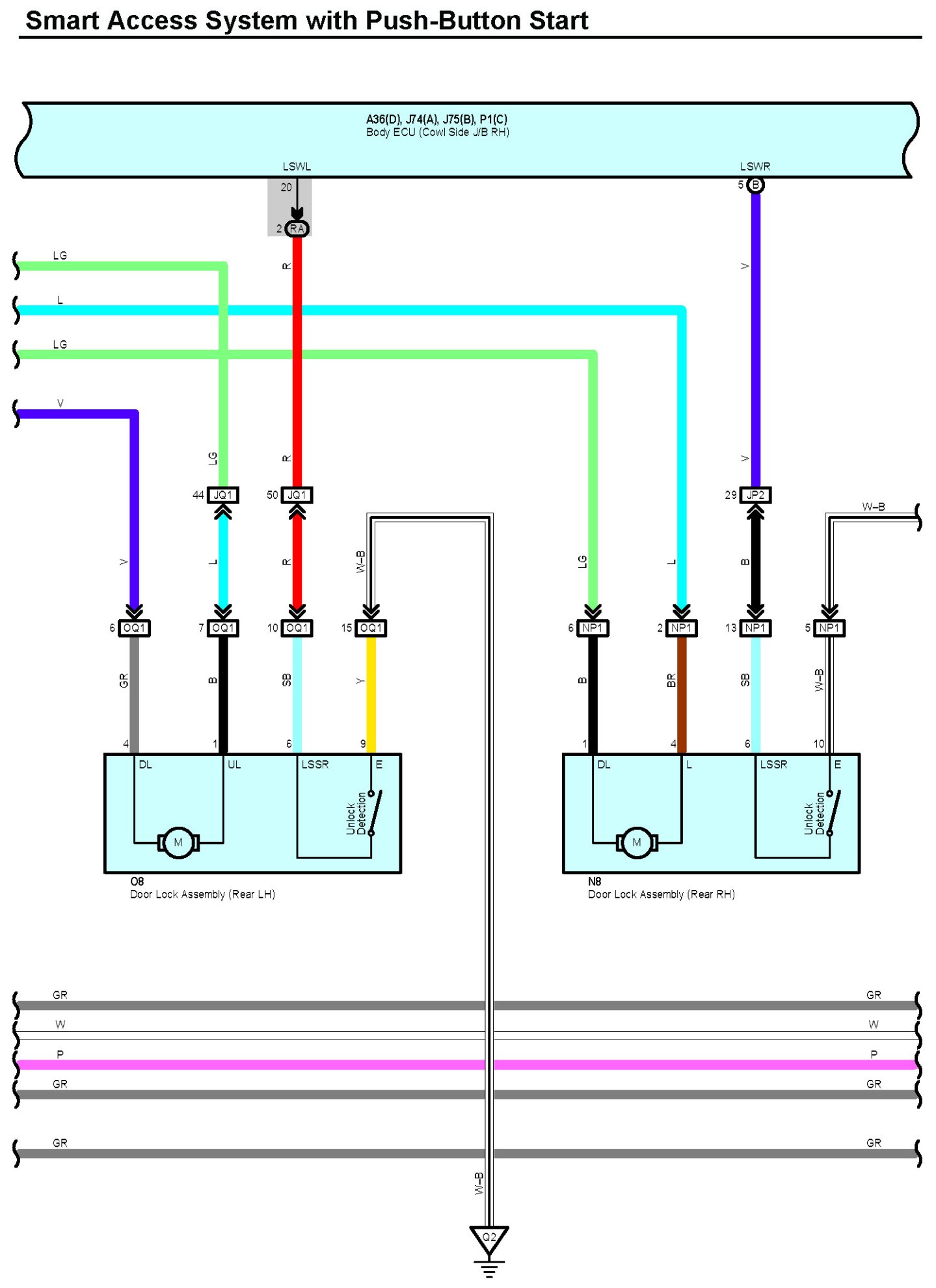

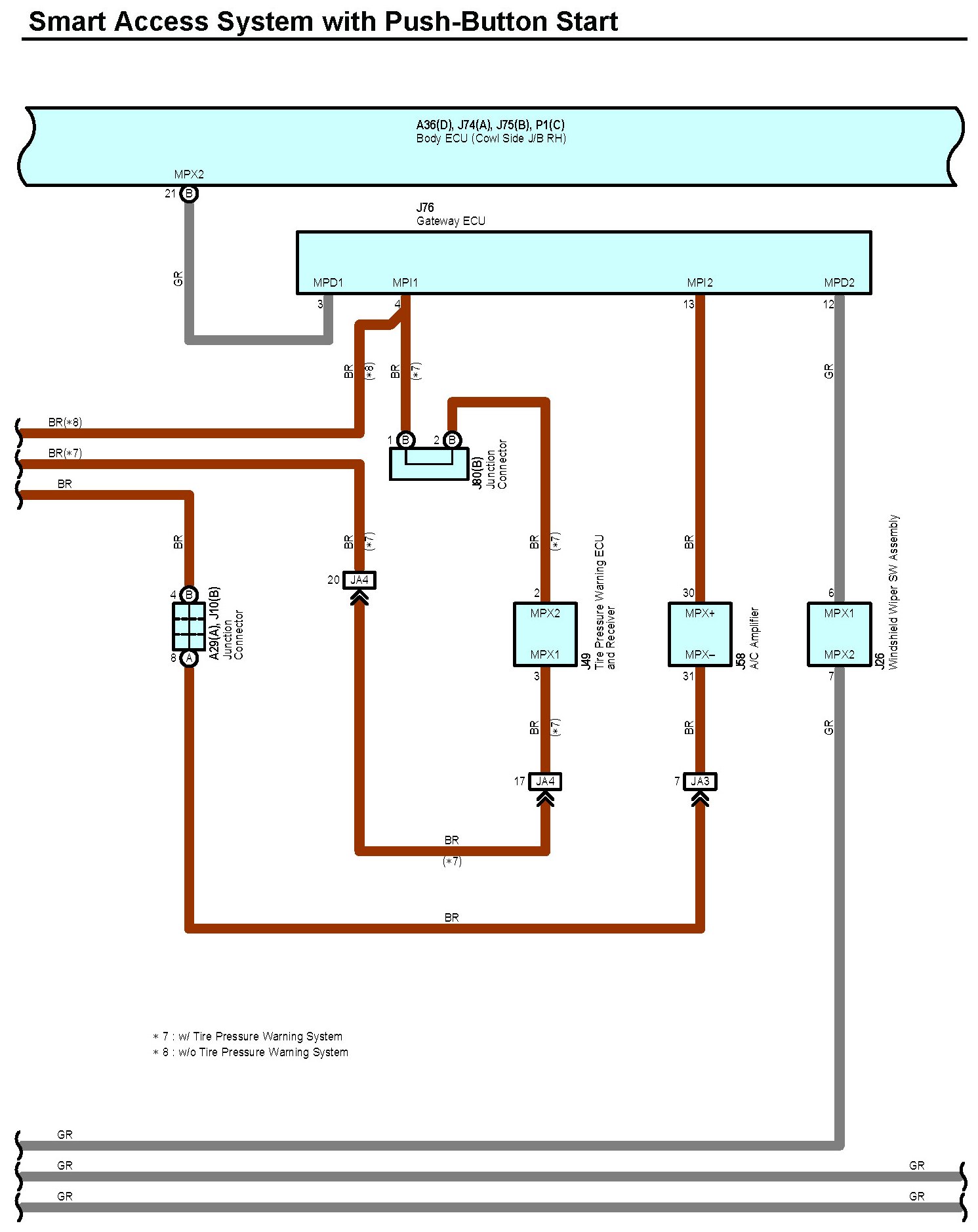

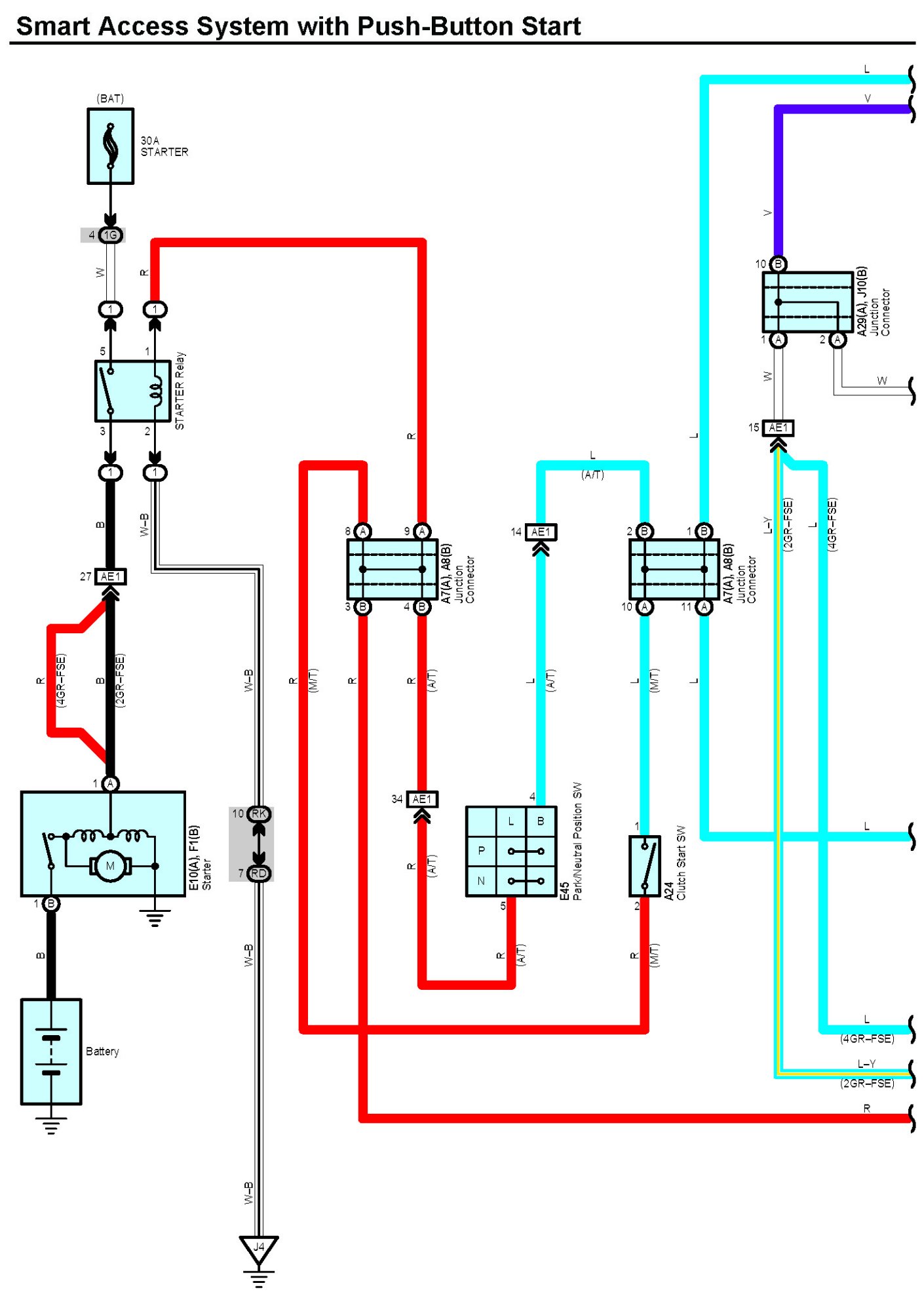

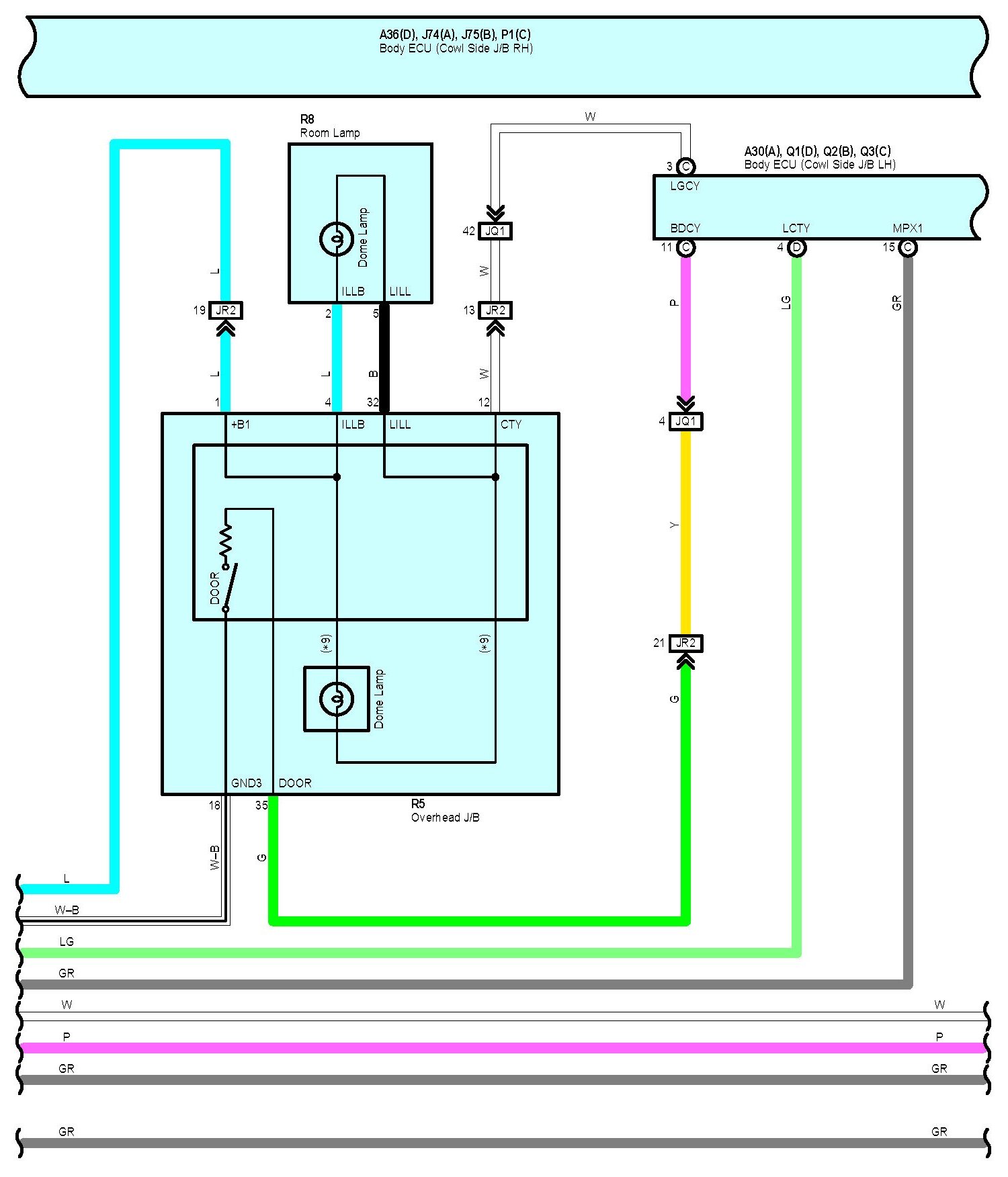

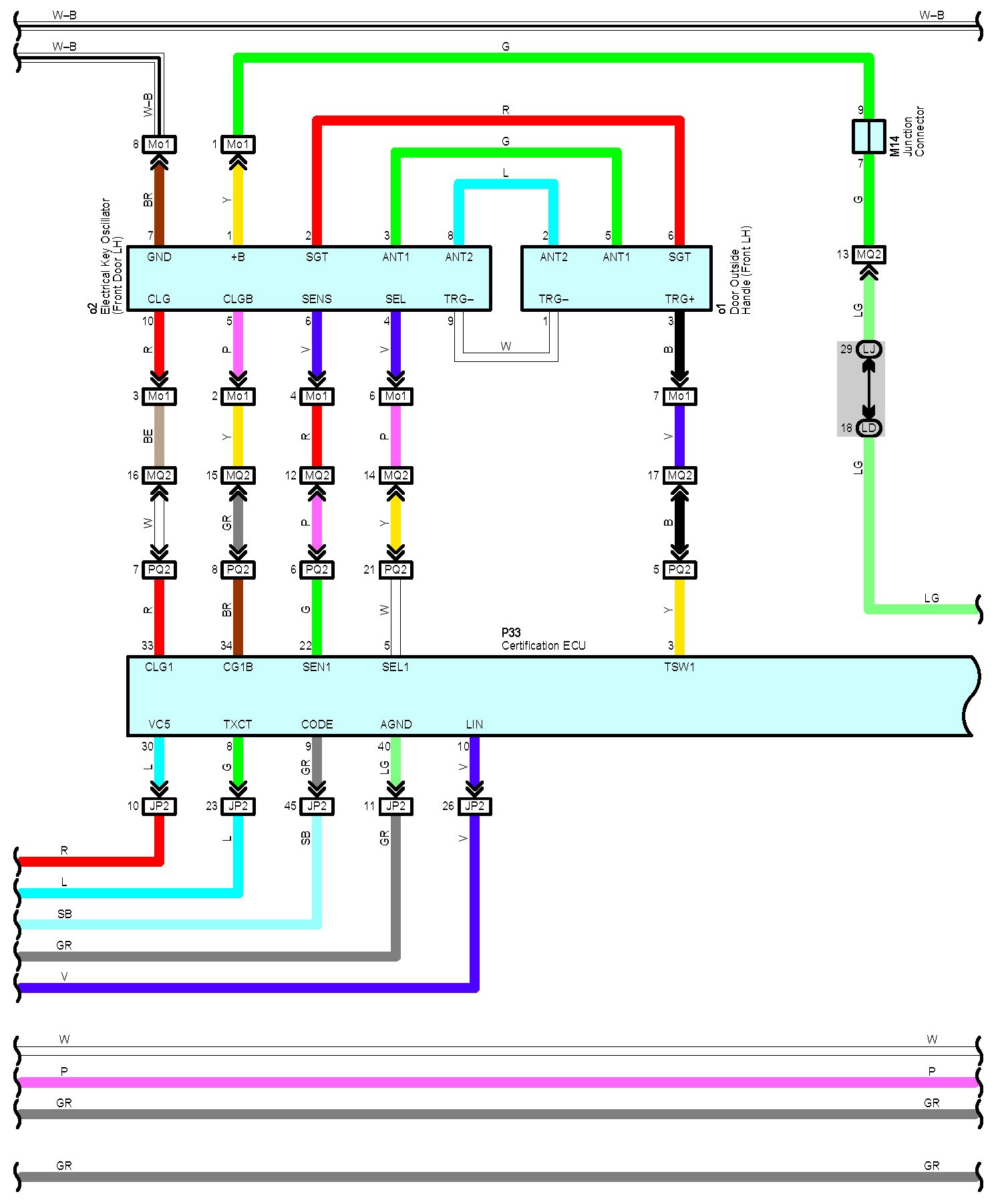

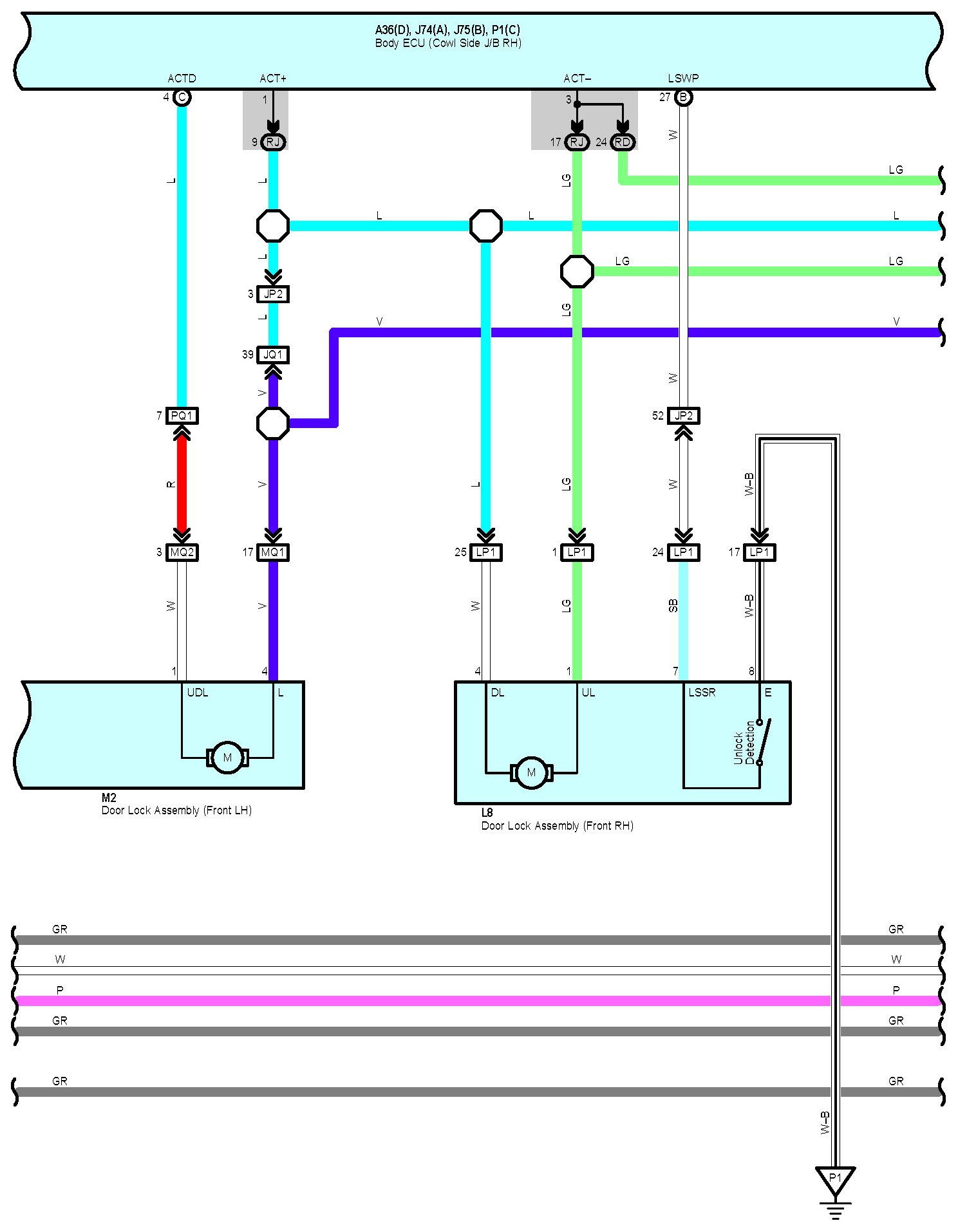

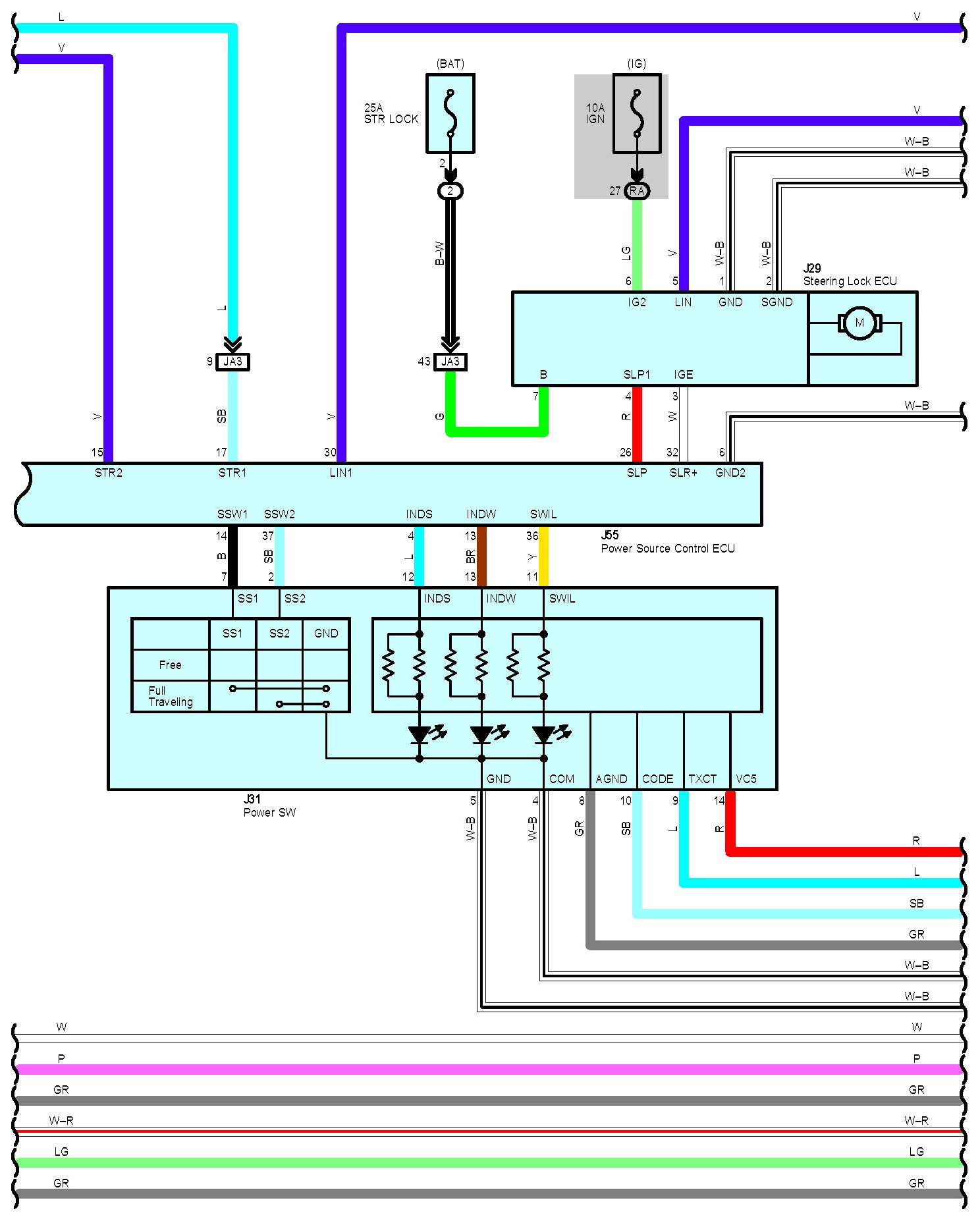

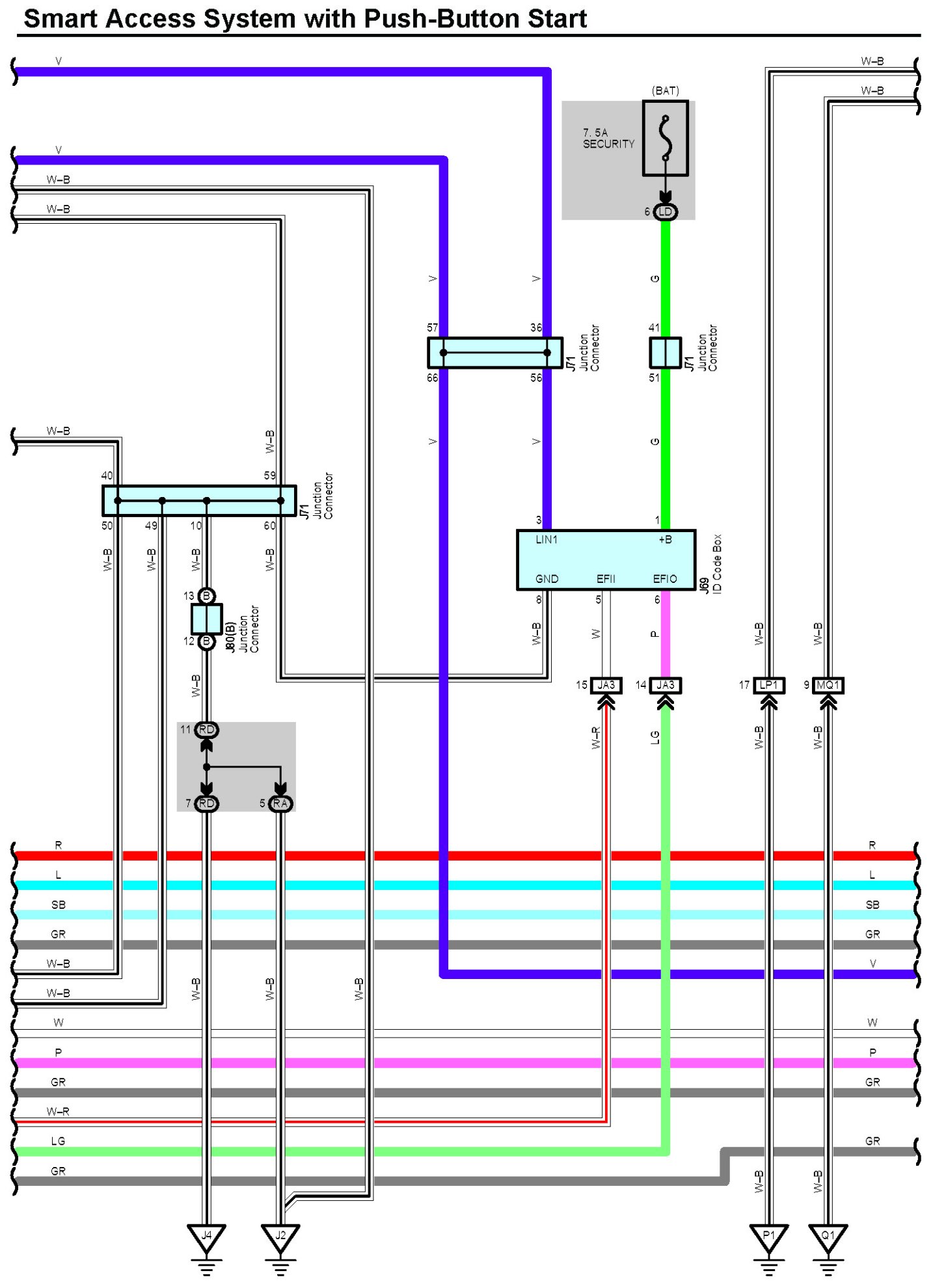

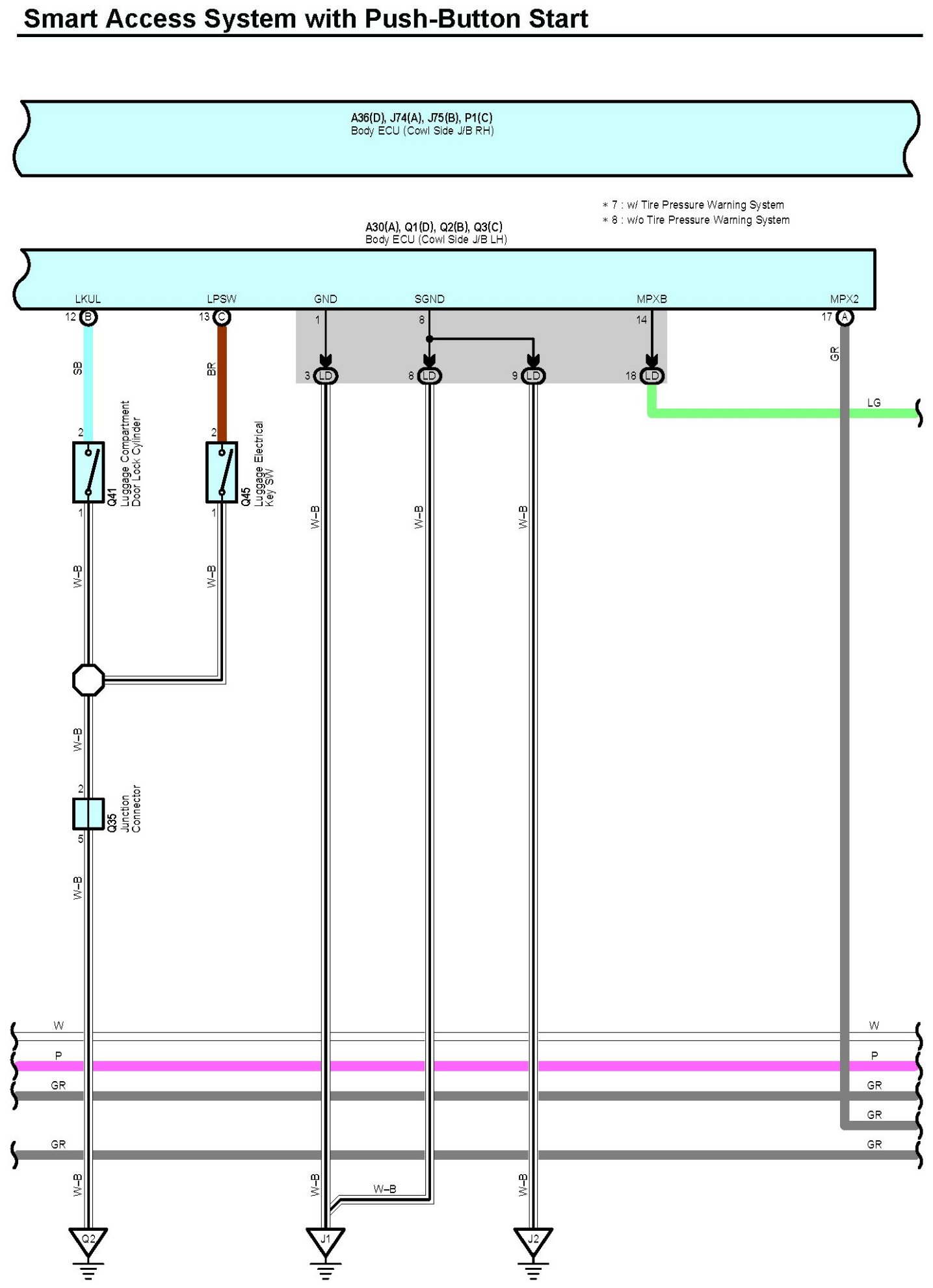

Smart Access System With Push-Button Start

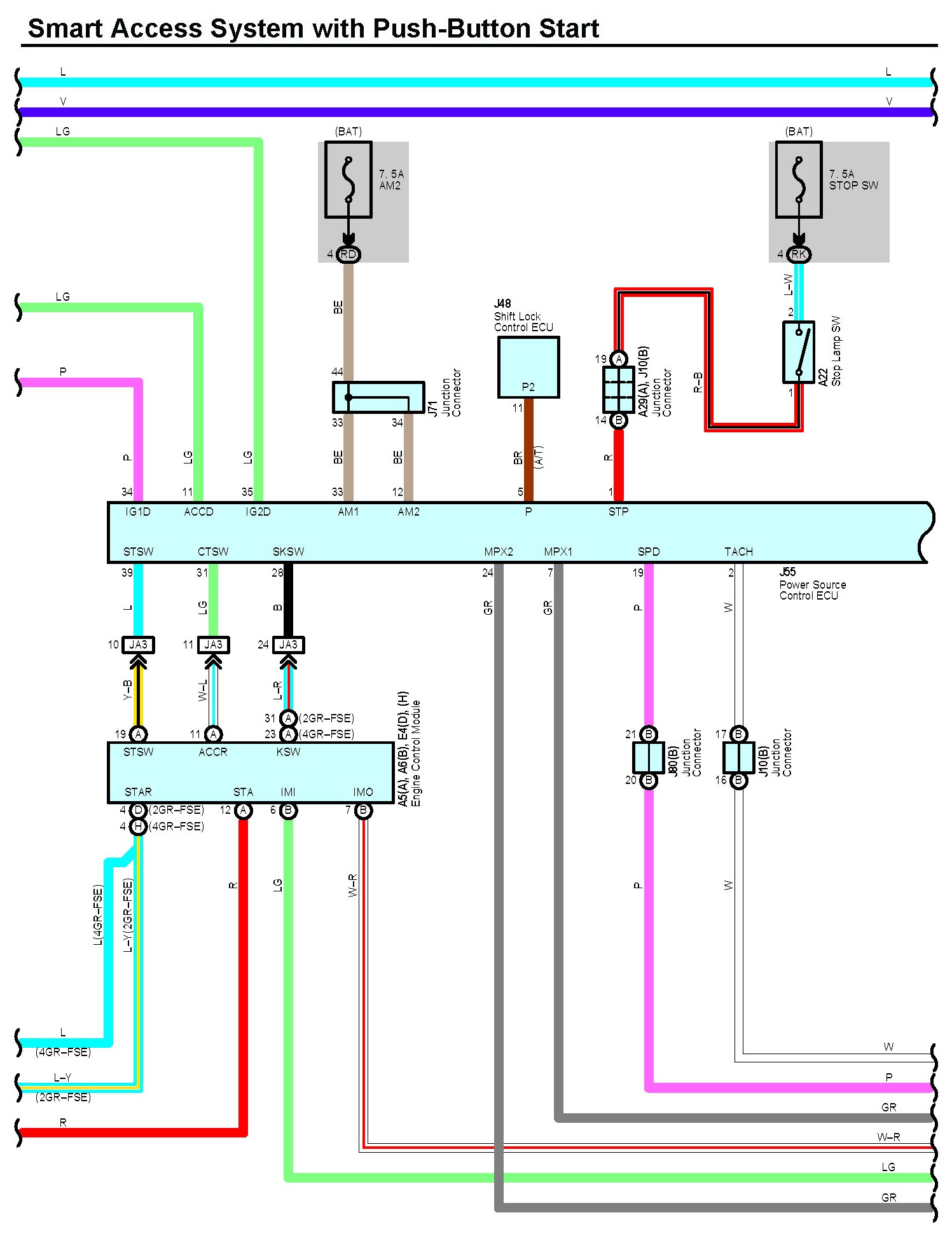

Smart Access System with Push-Button Start Part 1:

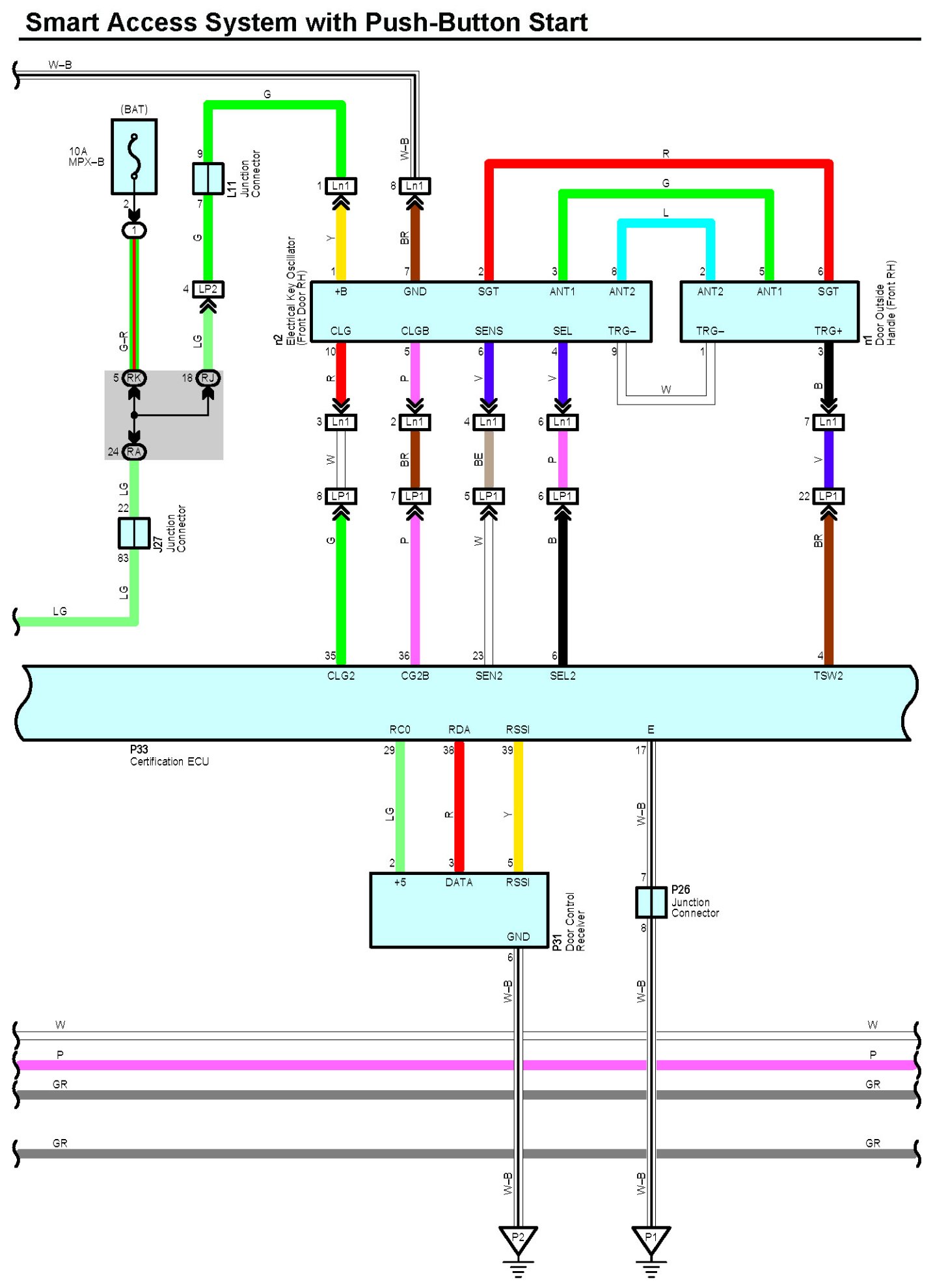

Smart Access System with Push-Button Start Part 2:

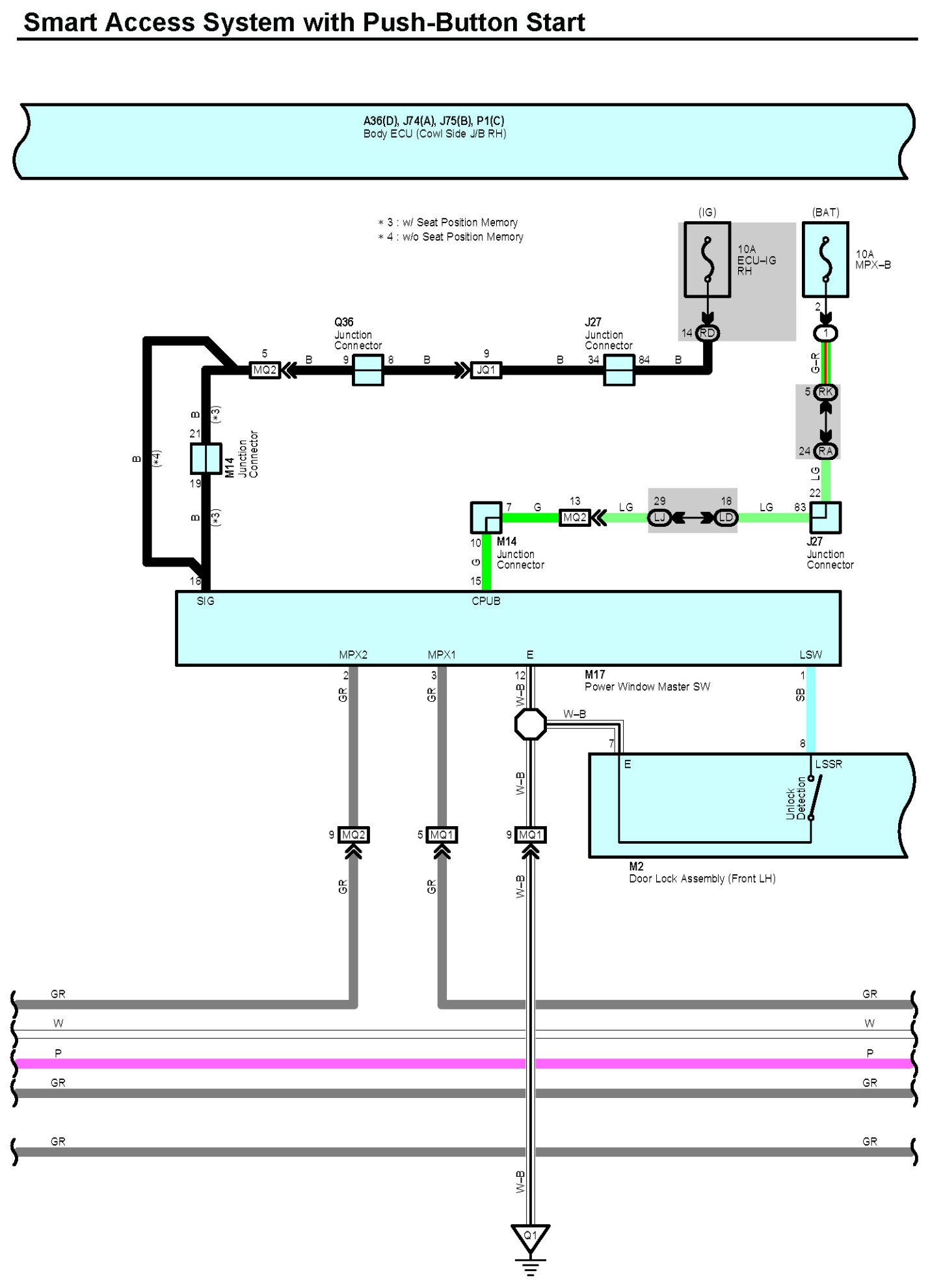

Smart Access System with Push-Button Start Part 3:

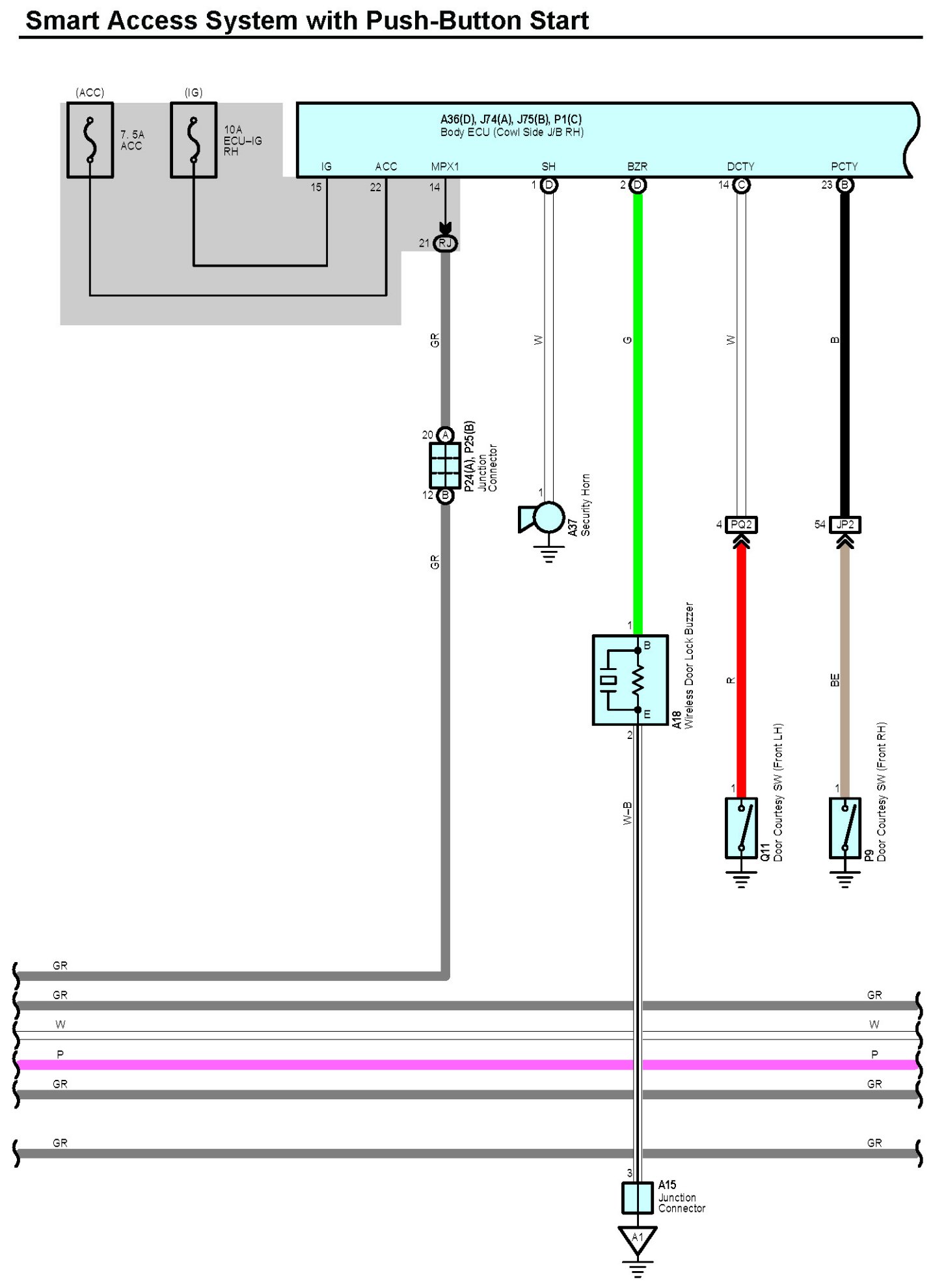

Smart Access System with Push-Button Start Part 4:

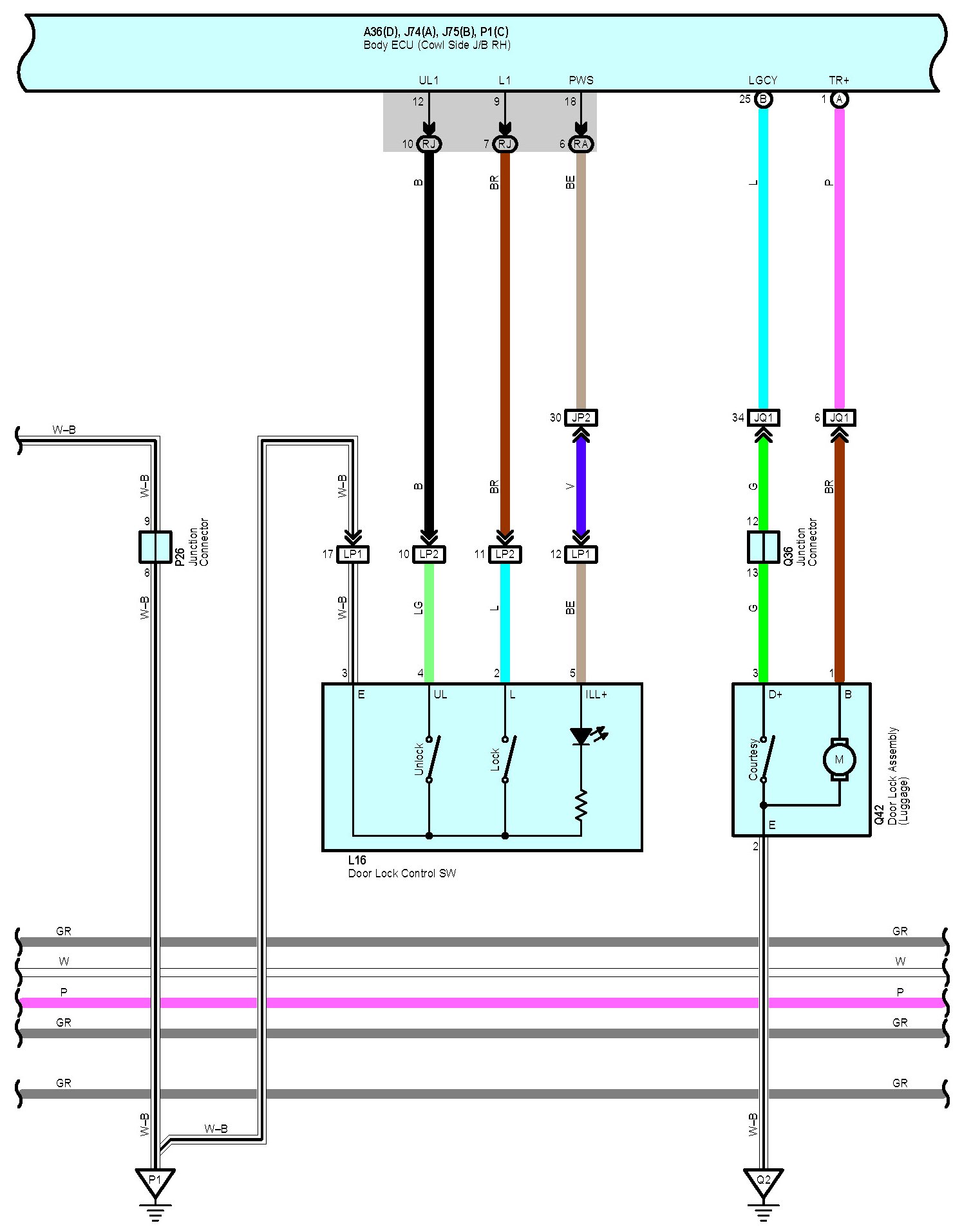

Smart Access System with Push-Button Start Part 5:

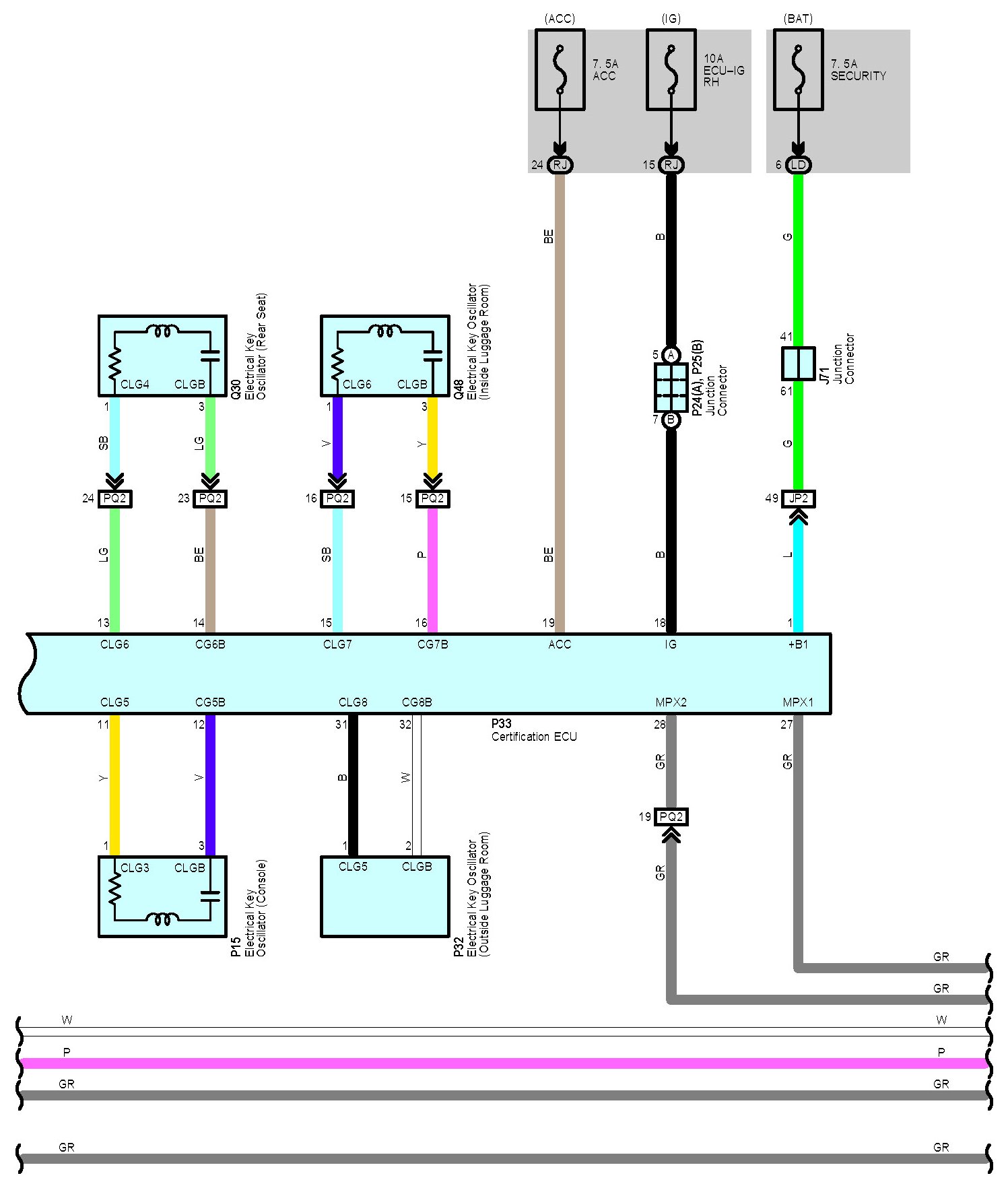

Smart Access System with Push-Button Start Part 6:

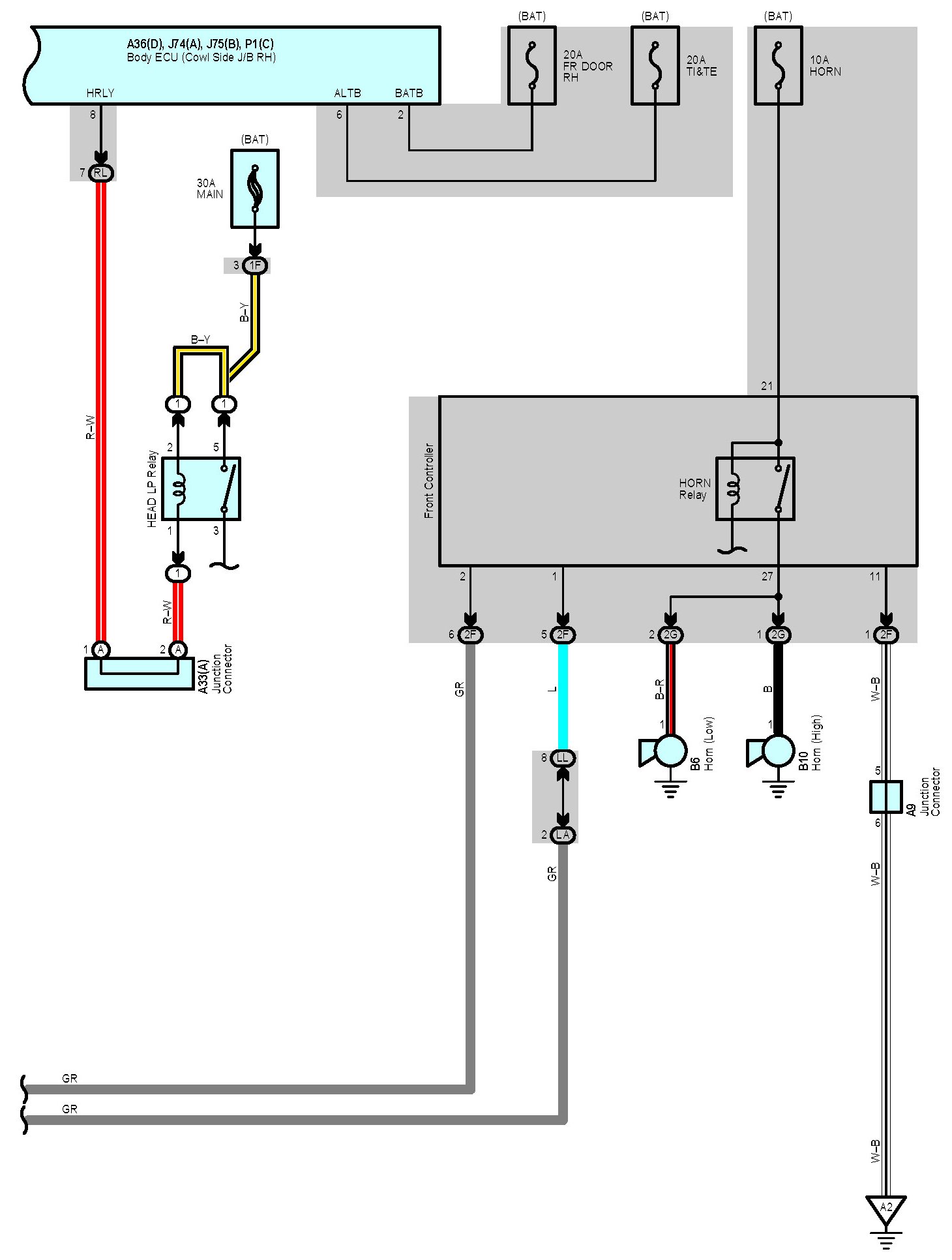

Smart Access System with Push-Button Start Part 7:

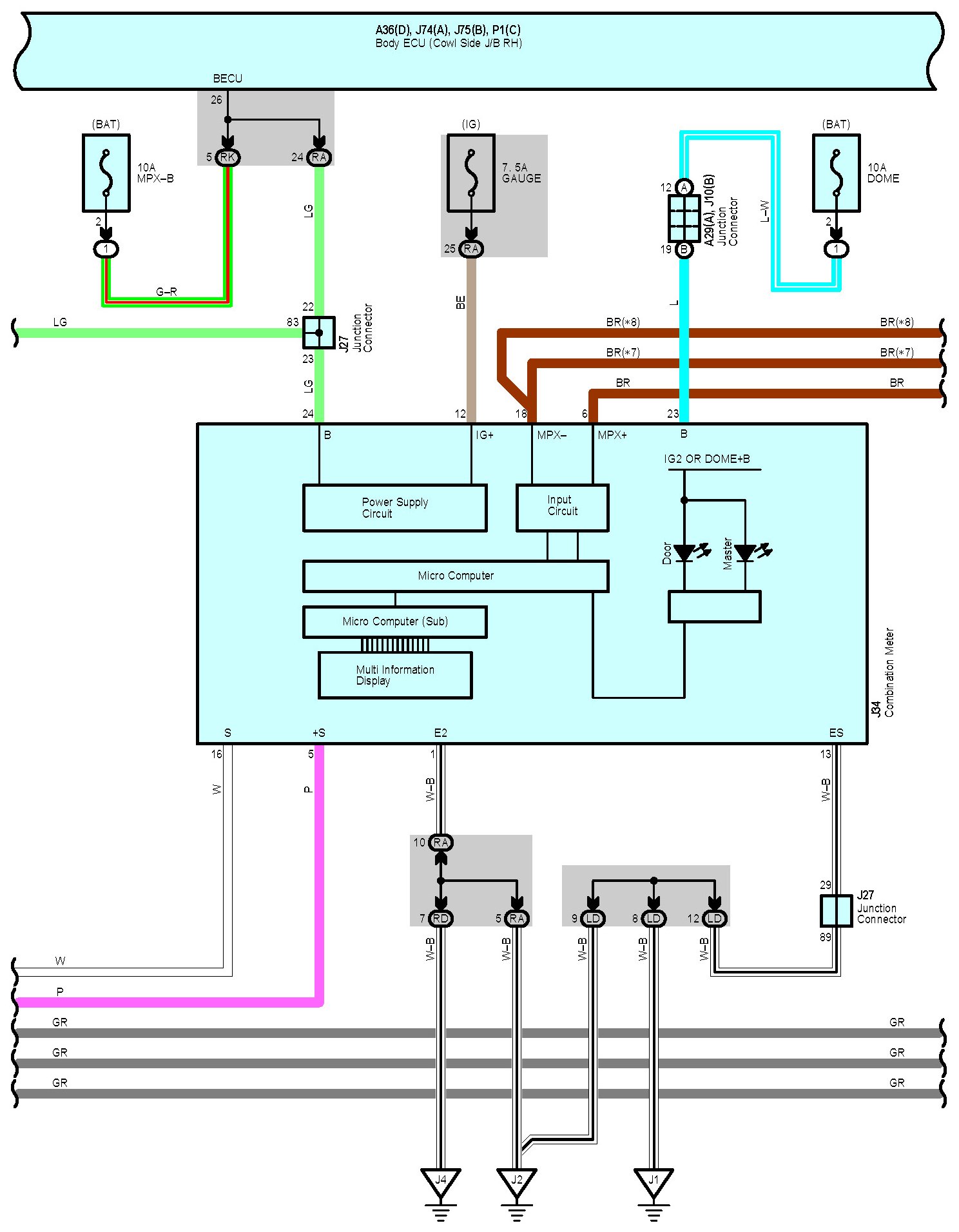

Smart Access System with Push-Button Start Part 8:

Smart Access System with Push-Button Start Part 9:

Smart Access System with Push-Button Start Part 10:

Smart Access System with Push-Button Start Part 11:

Smart Access System with Push-Button Start Part 12:

Smart Access System with Push-Button Start Part 13:

Smart Access System with Push-Button Start Part 14:

Smart Access System with Push-Button Start Part 15:

Smart Access System with Push-Button Start Part 16:

Smart Access System with Push-Button Start Part 17:

Smart Access System with Push-Button Start Part 18:

Smart Access System with Push-Button Start Part 19:

Smart Access System with Push-Button Start Part 20:

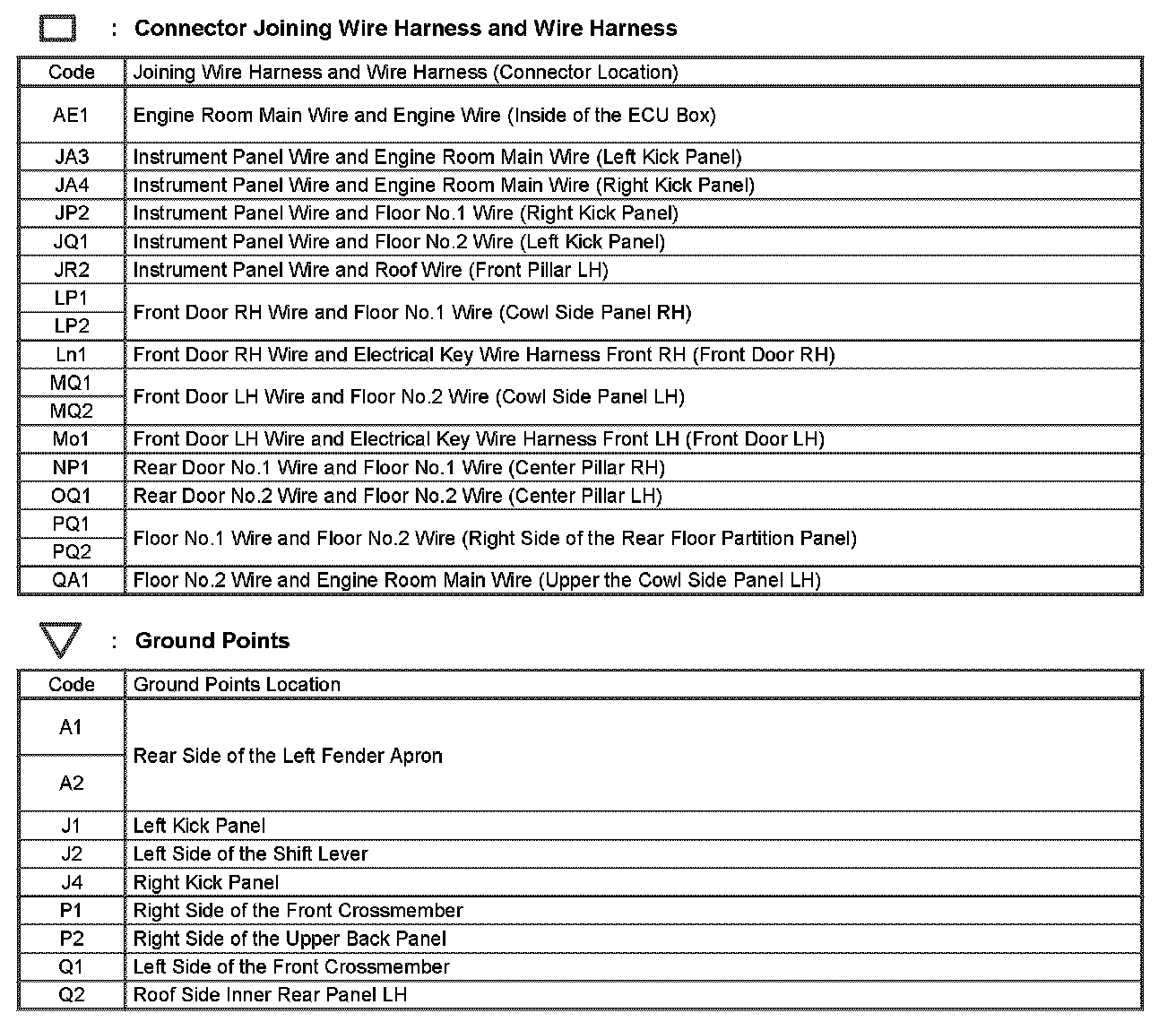

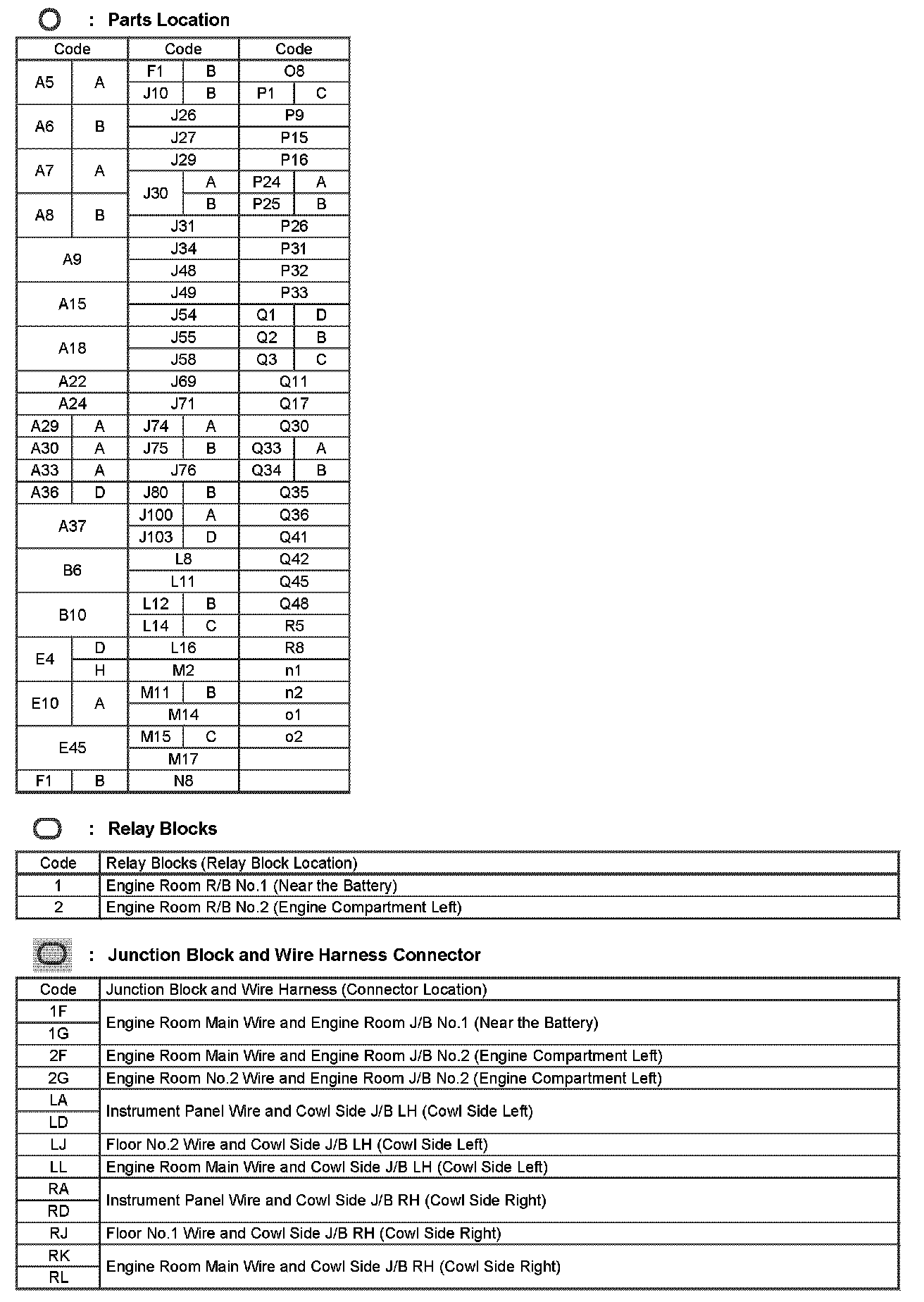

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
