Timing Cover

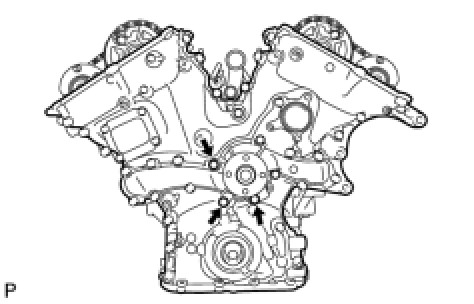

Timing cover
Bolt A 43 Nm (438 kgf-cm, 32 ft-lbf)
Bolt B 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Timing cover
Bolt A 43 Nm (438 kgf-cm, 32 ft-lbf)
Bolt B 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
