Power Seat (Front Passenger's Seat): Notes

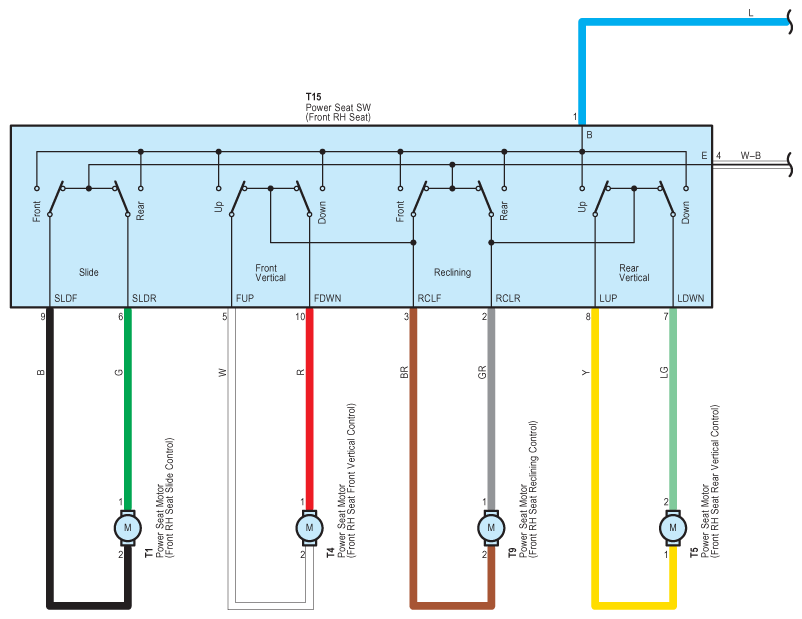

Fig 1: Power Seat (Front Passengers Seat) - Circuit Diagram (1 Of 2)
G07581401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

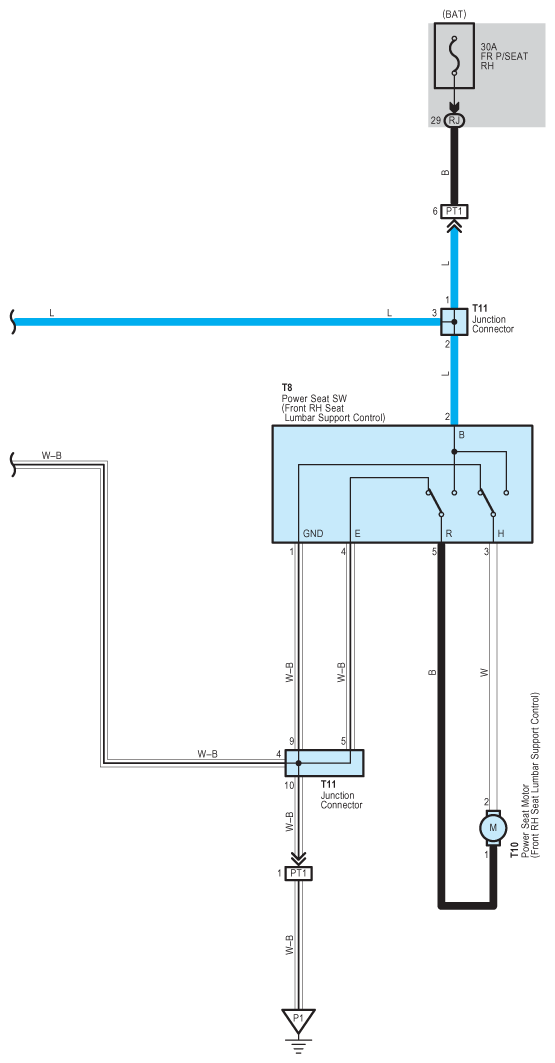

Fig 2: Power Seat (Front Passengers Seat) - Circuit Diagram (2 Of 2)
G07581402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
